Ordering number : ENN7932A

LB1935T

LB1935CL

Overview

Monolithic Digital IC

Stepping Motor Driver IC

LB1935T/LB1935CL is IC with forward/reverse motor drive 2-channel in which low saturation voltage and low voltage

operation possible. Its small sized package is optimal for 2 phase excitation drive of 2 phase bipolar stepping motors for

various portable devices such as digital still cameras.

Features

•

Low saturation voltage, VO(sat) = 0.3V typ at IO = 150mA

•

Built-in shoot-through current protection circuit

•

No standby current consumption (or zero)

•

Built-in thermal shutdown circuit

•

MSOP10 small-sized package (3.0mm×4.9mm×1.1mm typ) [LB1935T]

•

ECSP2828-10 ultraminiature leadless package (2.8mm×2.8mm×0.8mm typ) [LB1935CL]

Absolute Maximum Ratings

at Ta = 25°C

Parameter

Maximum Power Source Voltage

Applied Output Voltage

Applied Input Voltage

GND Pin Outflow Current

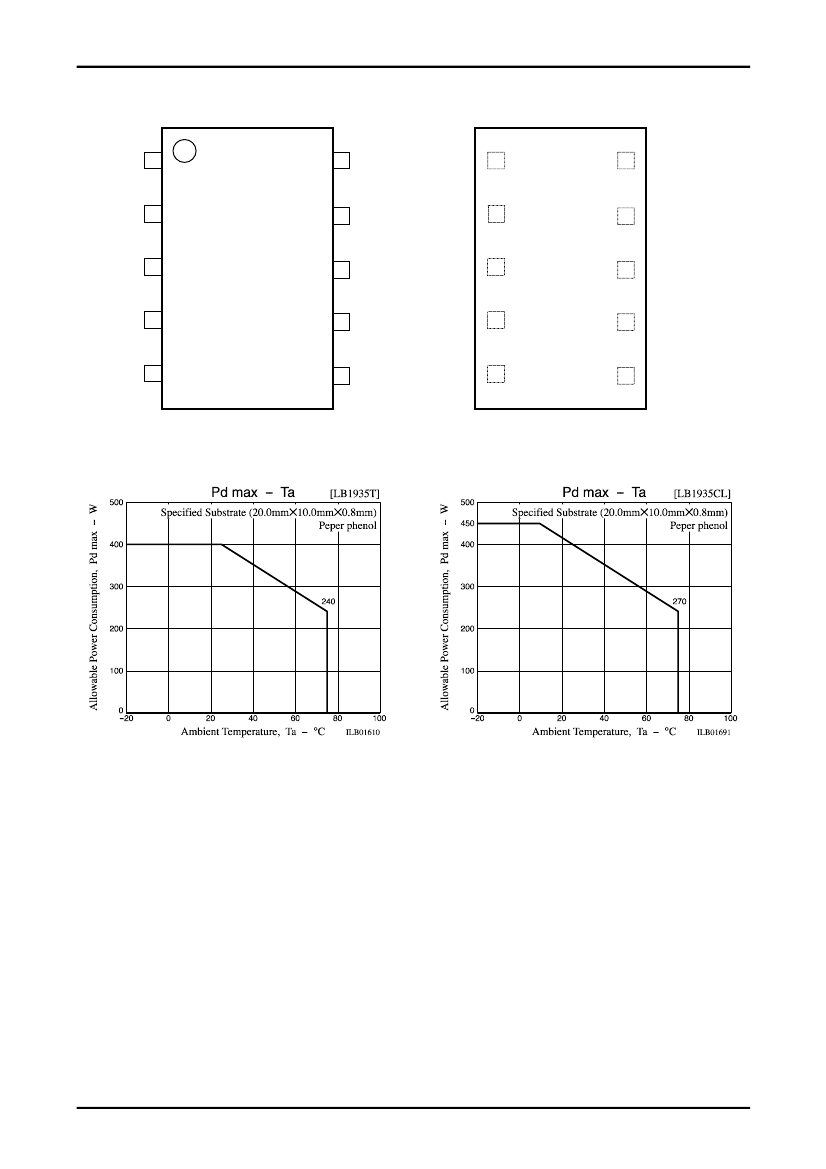

Allowable Power Consumption

Symbol

VCC max

VOUT max

VIN max

I GND

Pd max

Operating Temperature

Storage Temperature

Topr

Tstg

OUT1, OUT2, OUT3, OUT4 pin

ENA, IN1, IN2 pin

Per channel

With substrate*

[LB1935T]

[LB1935CL]

Conditions

Ratings

-0.3 to +8.0

VCC+VSF

-0.3 to +8.0

400

450

-20 to +75

-40 to +150

°C

Unit

Specified substrate : 20.0mm×10.0mm×0.8mm paper phenol

Allowable Operating Range

at Ta = 25°C

Parameter

Source Voltage

Input High Level Voltage

Input Low Level Voltage

Symbol

VCC

VIH

VIL

ENA, IN1, IN2 pin

Conditions

Ratings

2.2 to 7.5

1.8 to 7.5

-0.3 to +0.7

Unit

N3004 TN IM / 91004 JO IM No.7932-1/6

LB1935T Related Products

	LB1935T	LB1935CL
Description	Monolithic Digital IC Stepping Motor Driver IC	Monolithic Digital IC Stepping Motor Driver IC
Maker	SANYO	SANYO
Parts packaging code	MSOP	SOIC
package instruction	TSSOP, TSSOP10,.19,20	SON, SOLCC10,.11,24
Contacts	10	10
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	STEPPER MOTOR CONTROLLER	STEPPER MOTOR CONTROLLER
JESD-30 code	S-PDSO-G10	S-XDSO-N10
length	3 mm	2.8 mm
Number of functions	1	1
Number of terminals	10	10
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C
Maximum output current	0.15 A	0.15 A
Package body material	PLASTIC/EPOXY	UNSPECIFIED
encapsulated code	TSSOP	SON
Encapsulate equivalent code	TSSOP10,.19,20	SOLCC10,.11,24
Package shape	SQUARE	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
power supply	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	0.8 mm
Maximum supply current (Isup)	19 mA	19 mA
Maximum supply voltage (Vsup)	7.5 V	7.5 V
Minimum supply voltage (Vsup)	2.2 V	2.2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	NO LEAD
Terminal pitch	0.5 mm	0.6 mm
Terminal location	DUAL	DUAL
width	3 mm	2.8 mm
Base Number Matches	1	1
