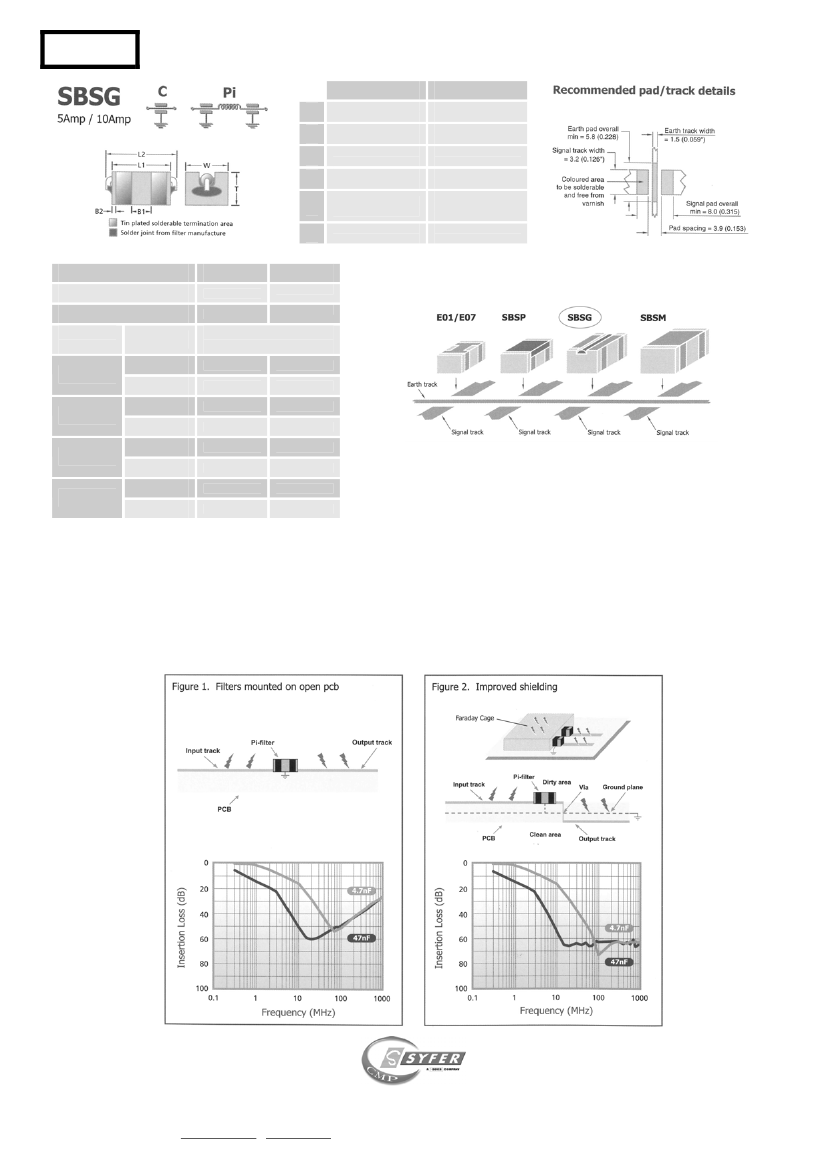

SBSGP5000222MXT datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> SBSGP5000222MXT

SBSGP5000222MXT: DescriptionEMI Filter Circuits 500V 2200pF X7R 20% 5.25x3.2mm Pi Filter; CategoryAnalog mixed-signal IC filter; File Size288KB，3 Pages; ManufacturerSyfer; Environmental Compliance

Download Datasheet Parametric Compare View All

SBSGP5000222MXT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SBSGP5000222MXT	-	-	View	Buy Now

SBSGP5000222MXT Overview

EMI Filter Circuits 500V 2200pF X7R 20% 5.25x3.2mm Pi Filter

SBSGP5000222MXT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Syfer
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PI-TYPE CIRCUIT
capacitance	2200 µF
Maximum DC resistance	0.005 Ω
filter type	DATA LINE FILTER
high	2.5 mm
inductance	0.5 µH
Maximum insertion loss	60 dB
length	5.25 mm
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	TAPE AND REEL
physical size	L5.25XB3.2XH2.5 (mm)/L0.207XB0.126XH0.098 (inch)
Rated current	5 A
Rated voltage	500 V
width	3.2 mm

Preview

Download Datasheet

View All

SBSG

Surface Mount EMI Filters

4.55 ± 0.25

(0.179 ± 0.010)

4.70 ± 0.4

(0.185 ± 0.015)

3.20 ± 0.2

(0.126 ± 0.008)

2.50 ± 0.15

(0.098 ± 0.006)

1.50 ± 0.4

(0.059 ± 0.015)

0.30 ± 0.25

(0.012 ± 0.010)

4.55 ± 0.25

(0.179 ± 0.010)

5.25 ± 0.4

(0.207 ± 0.015)

3.20 ± 0.2

(0.126 ± 0.008)

2.50 ± 0.15

(0.098 ± 0.006)

1.50 ± 0.4

(0.059 ± 0.015)

0.30 ± 0.25

(0.012 ± 0.010)

Type

Chip Size

Max Current

Rated

Voltage

50Vdc

Dielectric

C0G/NP0

X7R

100Vdc

C0G/NP0

X7R

200Vdc

C0G/NP0

X7R

500Vdc

C0G/NP0

X7R

SBSGC

1812

10A

SBSGP

1812

Minimum and maximum

capacitance values

220nF

100nF-150nF

68nF

1nF-47nF

220nF

100nF-150nF

68nF

1nF-47nF

Effects of mounting method on insertion loss

C and Pi filters are mounted to PCBs and soldered in identical manner to chip capacitors. Solder connections made to each end (signal lines) and

each side band (earth track).

Whilst SBSG, SBSM and SBSP filters can be mounted conventionally on PCBs, they are also suitable for mounting in a wall or partition on a board.

This greatly improves the screening between filter input and output, thereby enhancing the high frequency response.

The following insertion loss curves (for SBSP, SBSG, SBSM Pi filters), based on actual measurements, show the effect. It can be seen that the filters

conventionally mounted (Fig. 1) exhibit a drop in attenuation at higher frequencies. Improved shielding methods (Fig. 2), maintain excellent

suppression characteristics to 1GHz and above. See below for application example.

Syfer Technology Ltd.

Old Stoke Road, Arminghall

Norwich, Norfolk, NR14 8SQ

United Kingdom

Tel: +44 1603 723300 | Email sales@syfer.co.uk | www.syfer.com

SBSGDatasheet Issue 1 (P107545) Release Date 26/04/13

Page 1 of 3

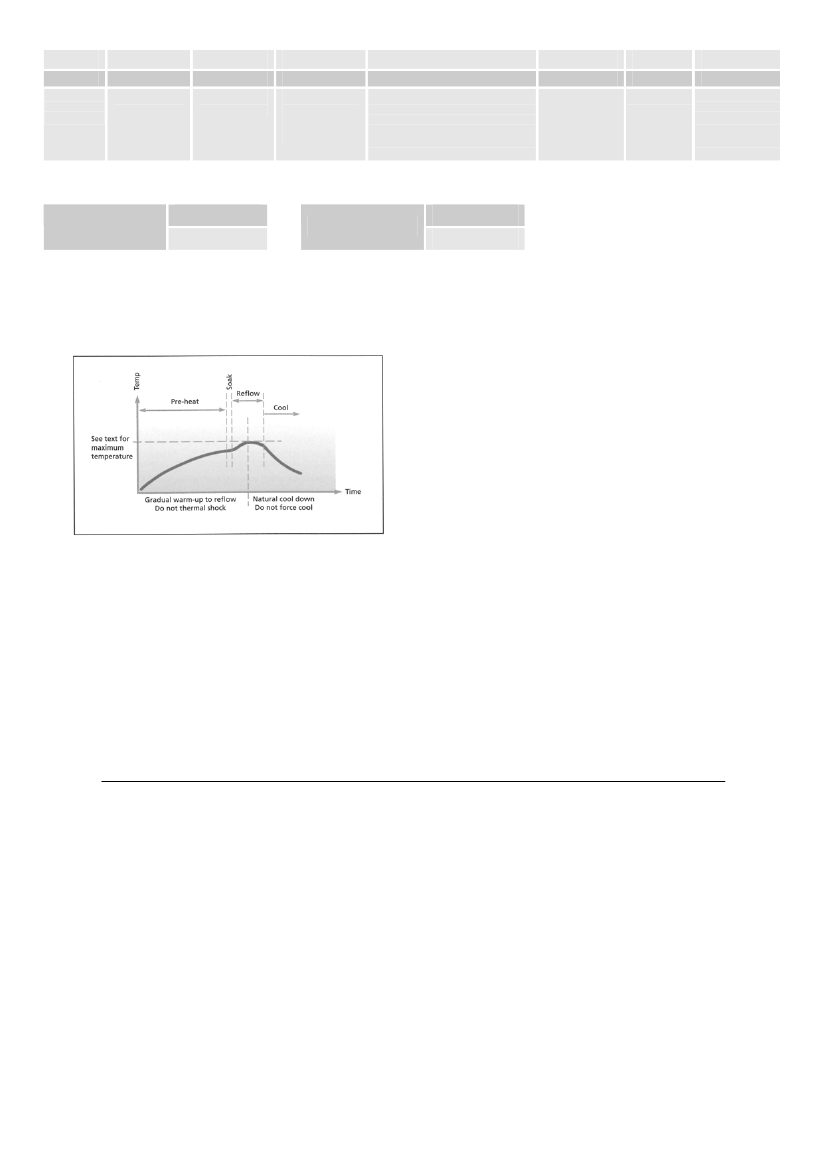

SBSGP5000222MXT Related Products

	SBSGP5000222MXT	SBSGP5000682MXB	SBSGP5000102MXT
Description	EMI Filter Circuits 500V 2200pF X7R 20% 5.25x3.2mm Pi Filter	EMI Filter Circuits 500V .0068uF X7R 20% 5.25x3.2mm Pi Filter	EMI Filter Circuits 500V 1000pF X7R 20% 5.25x3.2mm Pi Filter
Packaging	-	Bulk	Reel
Product Attribute	-	Attribute Value	Attribute Value
Manufacturer	-	Syfer	Syfer
Product Category	-	EMI Filter Circuits	EMI Filter Circuits
RoHS	-	Details	Details
Circuit Type	-	RC (Pi) Filter	RC (Pi) Filter
Capacitance	-	6800 pF	1000 pF
Voltage Rating	-	500 VDC	500 VDC
Current Rating	-	5 A	5 A
Termination Style	-	SMD/SMT	SMD/SMT
Package / Case	-	2012 (5232 metric)	2012 (5232 metric)
Maximum Operating Temperature	-	+ 125 C	+ 125 C
Minimum Operating Temperature	-	- 55 C	- 55 C
Height	-	2.5 mm	2.5 mm
Length	-	5.25 mm	5.25 mm
Operating Temperature Range	-	- 55 C to + 125 C	- 55 C to + 125 C
Product	-	EMI Network Filters	EMI Network Filters
Type	-	Surface Mount Filter C and Pi Circuit	Surface Mount Filter C and Pi Circuit
Width	-	3.2 mm	3.2 mm
Factory Pack Quantity	-	100	500
