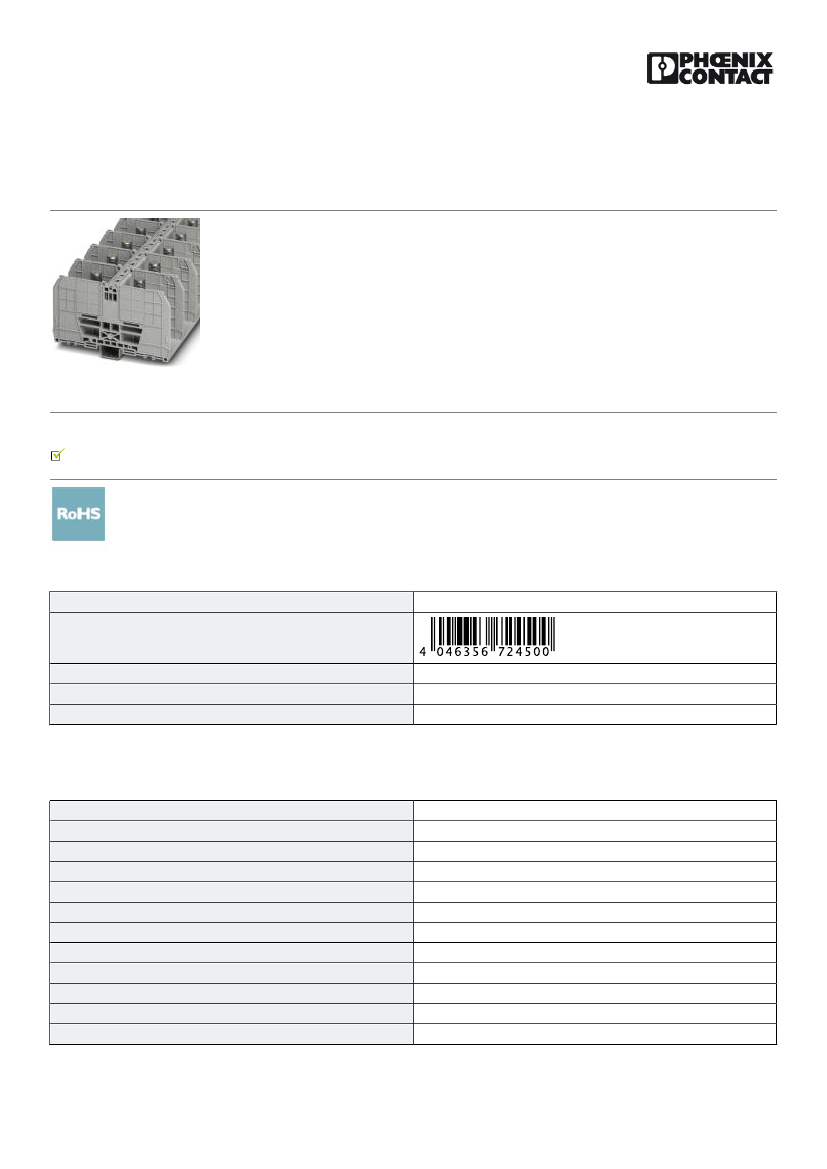

Bolt connection terminal block - RBO 16-FE - 3244631
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Bolt connection terminal block, Connection method: Bolt connection, Number of positions: 1, Cross section:
25 mm² - 300 mm², AWG: 4 - 600, Width: 54.8 mm, Color: black/yellow, Mounting type: NS 35/7,5, NS
35/15, ct screw connection
The illustration shows the version in
gray
Why buy this product
Tested for railway applications
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356724500
85369010
Made to Order (non-returnable)
5 STK
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
1
1
2
1
300 mm²
black/yellow
PA
V0
Railway industry
Machine building
Plant engineering
Rated surge voltage
8 kV
11/15/2016 Page 1 / 5
https://www.phoenixcontact.com/hq/products/3244631
Bolt connection terminal block - RBO 16-FE - 3244631
Technical data
General
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
3
III
I
520 A (At a conductor cross section of 300 mm²)
520 A
1000 V
No
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
Pitch
54.8 mm
164 mm
91.8 mm
99.3 mm
54.8 mm
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Connection bolts
Bolt connection
IEC 60947-7-1
25 mm²
300 mm²
4
600
25 mm²
300 mm²
11/15/2016 Page 2 / 5
https://www.phoenixcontact.com/hq/products/3244631
Bolt connection terminal block - RBO 16-FE - 3244631
Technical data
Connection data
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
Cable lug connection according to standard
Min. cross section for cable lug connection
Max. cross section for cable lug connection
Hole diameter, min.
Cable lug width, max.
Bolt diameter
Screw thread
Tightening torque, min
Tightening torque max
Screw thread
Tightening torque, min
Tightening torque max
4
600
DIN 46234
25 mm²
240 mm²
17 mm
38 mm
16 mm
M16
25 Nm
35 Nm
DIN 46235
50 mm²
300 mm²
17 mm
48 mm
16 mm
M16
25 Nm
35 Nm
M16
25 Nm
35 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
11/15/2016 Page 3 / 5
https://www.phoenixcontact.com/hq/products/3244631
Bolt connection terminal block - RBO 16-FE - 3244631

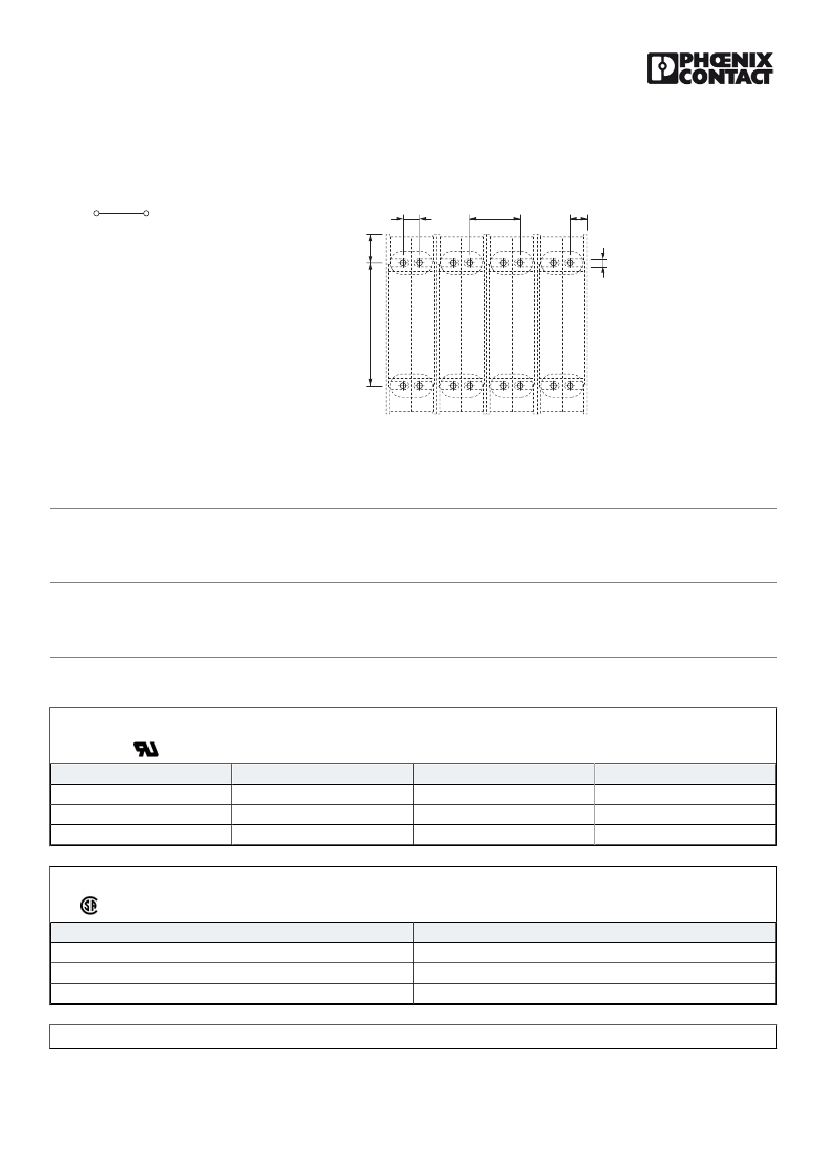

Circuit diagram
27,3
Dimensional drawing
54,8
14
Approvals
Approvals
Approvals
UL Recognized / CSA / EAC
Ex Approvals
IECEx / ATEX
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
4-1000
540 A
1000 V
B
4-1000
540 A
600 V
C
4-1000
540 A
600 V
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
C
4-1000
540 A
1000 V
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
EAC 7500651.22.01.00246
11/15/2016 Page 4 / 5
100
28
Ø 6,4
https://www.phoenixcontact.com/hq/products/3244631
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 5 / 5
