Half-pitch (1.27mm) Interface Connector
CONNECTOR
MB-0276-4
April 2015
DF02 Series
Receptacle
Plug
RoHS Compliant
Outline

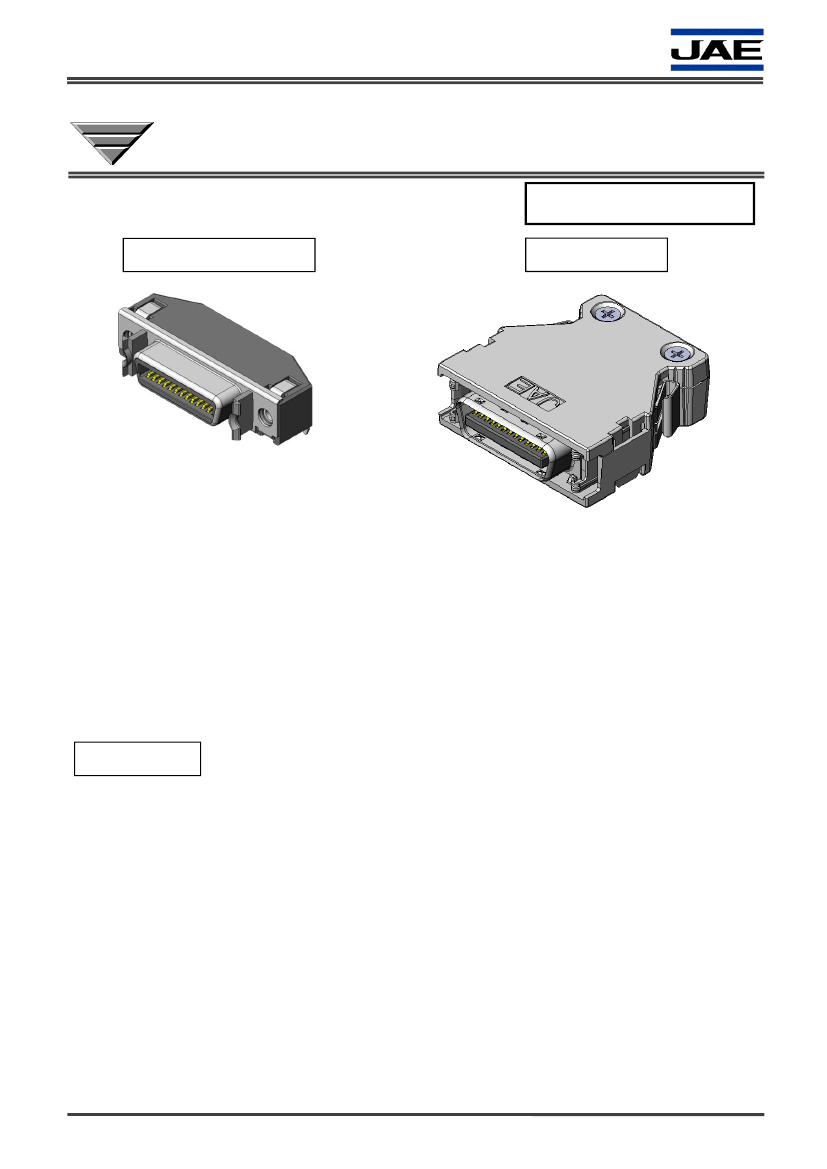

The DF02 Series is an interface connector compatible with the half-pitch
(1.27mm) which is used as a standard in the industrial instrument market.
The DF02 Series realizes light weight by using a resin-made hood and also
has sufficient measures against EMI shielding with Ni plating.
Furthermore, it has a superior operability by using a one-touch lock method.
<Application>
FA equipment, semiconductor manufacturing equipment, communication
devices, measuring instrument, broadcasting equipment, and others.
Features
<Receptacle>
- Dual use specifications with one-touch lock and screw-lock.
- Structure that prevents short circuit by foreign substances by attaching a cover
to the terminals.
- Improved resistance against twisting with a hook integrated with the shell.
<Plug>
- Miniaturization, weight and cost saving realized by using resin for hood
material. Also it has sufficient measures against EMI shielding with Ni plating.
- Excellent workability with two-unit structure hood and superior reparability with
latch lock method.
- Available in IDC type (28AWG to 30AWG) for labor-saving in termination
works.
- Realizes to shorten working time with a structure that enables streamlining of
the harness assembly processes such as the screw fixing work.
JAE PMK Div. Proprietary. Copyright © 2015, Japan Aviation Electronics Industry, Ltd.
1/11
MB-0276-4
General Specifications
Specification
Rated Current
Rated Voltage
Contact Resistance
Insulation Resistance
Dielectric Withstanding Voltage
Operating Temperature
0.5A / 1pos.
AC250Vr.m.s
35m
max. (initial)
Variance
±25m
max. (after test)
Individual connector 100M min. (initial)
10M min. (after test)
Individual connector AC500Vr.m.s (initial)
AC300Vr.m.s (after test)
-20 Deg. C to +80 Deg. C
Line-up
Item
Pin Count Variation
Termination Variation
Line-up
Receptacle
14pos., 20 pos.,26 pos.,
36 pos., 50 pos.,
Through-hole
Plug
14pos., 20 pos., 26 pos.,
36 pos., 50 pos., 68pos.,
Soldering (22AWG to 30AWG)
IDC (28AWG, 30AWG)
Materials and Finishes
Product
Part
Insulator
Locator
Lug
Shell
Nut
Contact
Insulator
Contact
Shell
Cover (Note 1)
Hood A
Hood B
Lock Spring
Nut
Fixing Screw
Clamp Plate
Materials /Finishes
9TNY
9TNY
Steel / Ni Plating
Steel / Sn Plating
Brass / Ni Plating
Copper Alloy / Au plating on contact area
6-6NY
Copper alloy / Au plating on contact area
Steel / Ni plating
PBT
ABS / Ni plating
ABS / Ni plating
Stainless Steel
Steel / Ni plating
Steel / Ni plating
Steel / Ni plating
Receptacle
Plug Individual
Unit
Plug
Hood
Clamp Plate
Note 1: A cover is not included in a soldering type plug individual unit.
JAE PMK Div. Proprietary. Copyright © 2015, Japan Aviation Electronics Industry, Ltd.
2/11
MB-0276-4

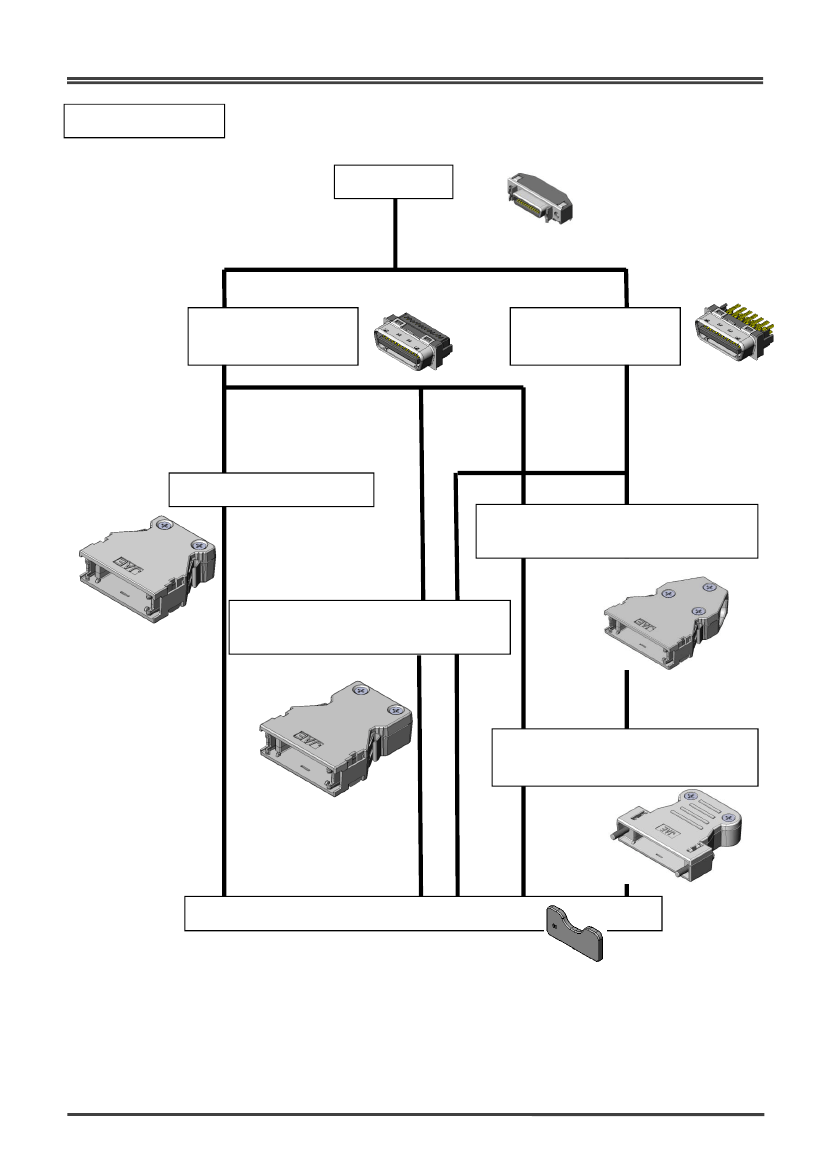

Combinations
Receptacle
Angle Type
Plug
Individual
Unit
IDC
Connection Type
Soldering
Connection Type
Hood
Straight Short
Angle Long
Angle Long / Thick cable Compatible Type
Straight Long
Straight Long /
Thick Cable Compatible Type
Straight Long
Screw Lock
Clamp Plate
Clamp Plate
Note: When using soldering connection type plug individual unit
we recommend connection with straight long, straight long / thick cable
compatible type, angle long, and angle long/ thick cable compatible
type.
JAE PMK Div. Proprietary. Copyright © 2015, Japan Aviation Electronics Industry, Ltd.
3/11
MB-0276-4
[Receptacle]
DF 02 R *** N A *
Series
Development No.
Type
R: Receptacle
No. of Contacts
Modification Code
3:Flow type
Plating
A: Contact area Au0.1μ min., terminal area Au
Type
N: Angle T/H

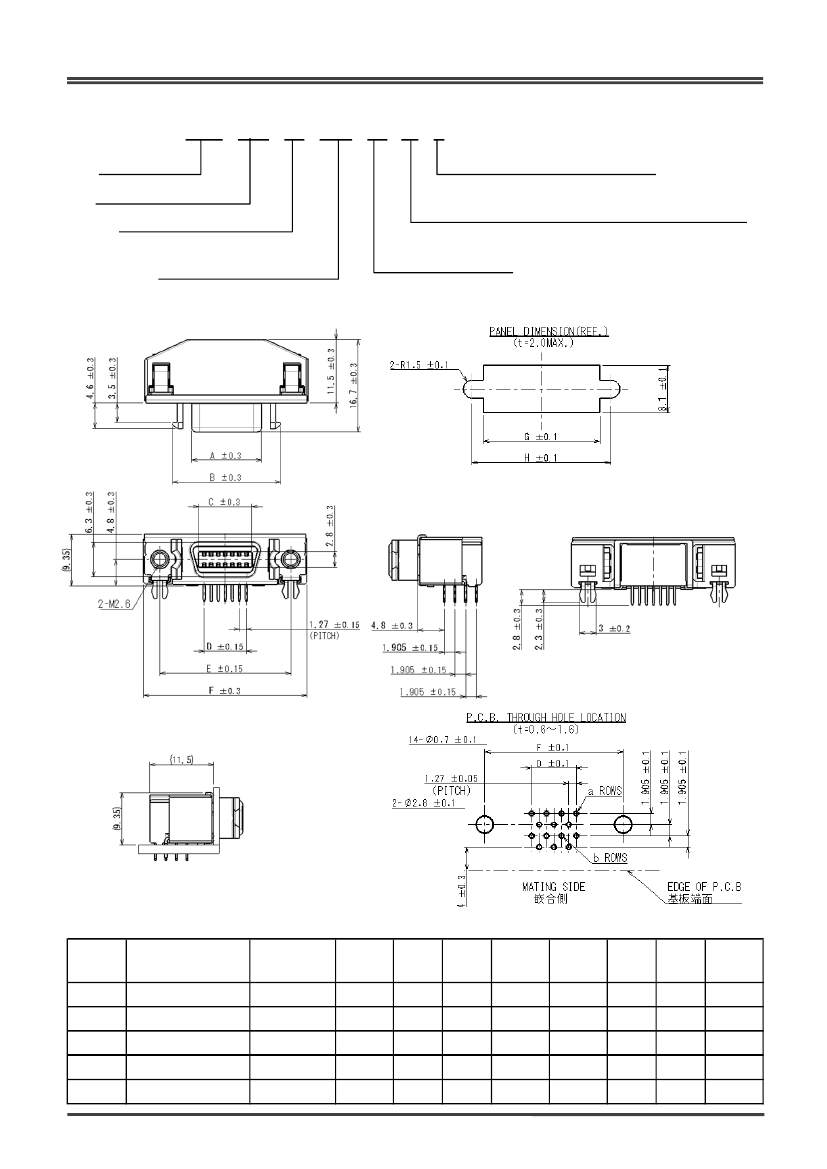

<Panel Attachment Dimensions>
<When attached to board>
<Applicable Board Dimensions>
No. of
Contacts
Part Number
DF02R014NA3
DF02R020NA3
DF02R026NA3
DF02R036NA3
DF02R050NA3
Drawing
SJ116104
SJ116105
SJ116111
SJ116106
SJ116112
A
12.64
16.45
20.26
26.61
35.5
B
19.5
23.4
27.2
33.5
42.4
C
9.6
13.4
17.2
23.6
32.5
D
7.62
11.43
15.24
21.59
30.48
E
23.64
27.45
31.26
37.61
46.5
F
29.5
33.4
37.2
43.5
52.4
G
19.9
23.8
27.6
33.9
42.8
H
23.64
27.45
31.26
37.61
46.5
4/11
14
20
26
36
50
JAE PMK Div. Proprietary. Copyright © 2015, Japan Aviation Electronics Industry, Ltd.
MB-0276-4
[Plug Individual Unit]
DF 02 P *** * ** A *
Series
Development No.
Type
P: plug
No. of Contacts
Connection Type
G: IDC
F: Soldering
Modification Code
1: Standard
Plating
A: contact area Au0.1μ min., terminal area Au
Compatible Cable
28: 28AWG
30: 30AWG
22: 22 ~30AWG
■Soldering
Connection Type
No. of
Contacts
Part Number
DF02P014F22A1
DF02P020F22A1
DF02P026F22A1
DF02P036F22A1
DF02P050F22A1
Drawing
SJ114740
SJ114741
SJ114250
SJ114035
SJ114251
A
7.62
11.43
15.24
21.59
30.48
B
12.84
16.65
20.46
26.81
35.7
14
20
26
36
50
Applicable Cable
Applicable Cable: 22~30AWG equivalent
Applicable Outer Dia:
φ1.1
max.
Recommended Sheath: PVC
■IDC
Connection Type
Applicable
No. of
Contacts
Wire
14
20
26
For
28AWG
36
50
68
For
14
30AWG
50
Part Number
DF02P014G28A1
DF02P020G28A1
DF02P026G28A1
DF02P036G28A1
DF02P050G28A1
DF02P068G28A1
DF02P014G30A1
DF02P050G30A1
Drawing
SJ114156
SJ114157
SJ114034
SJ114158
SJ114159
SJ114240
SJ114032
SJ114033
A
7.62
11.43
15.24
21.59
30.48
41.91
7.62
30.48
B
12.84
16.65
20.46
26.81
35.7
47.13
12.84
35.7
Applicable Cable
- 28 AWG IDC Connection Type
Applicable Outer Dia.:
φ0.51~ φ0.64
- 30 AWG IDC Connection Type
Applicable Outer Dia.:
φ0.51~ φ0.64
Recommended Sheath: PVC
JAE PMK Div. Proprietary. Copyright © 2015, Japan Aviation Electronics Industry, Ltd.
5/11
