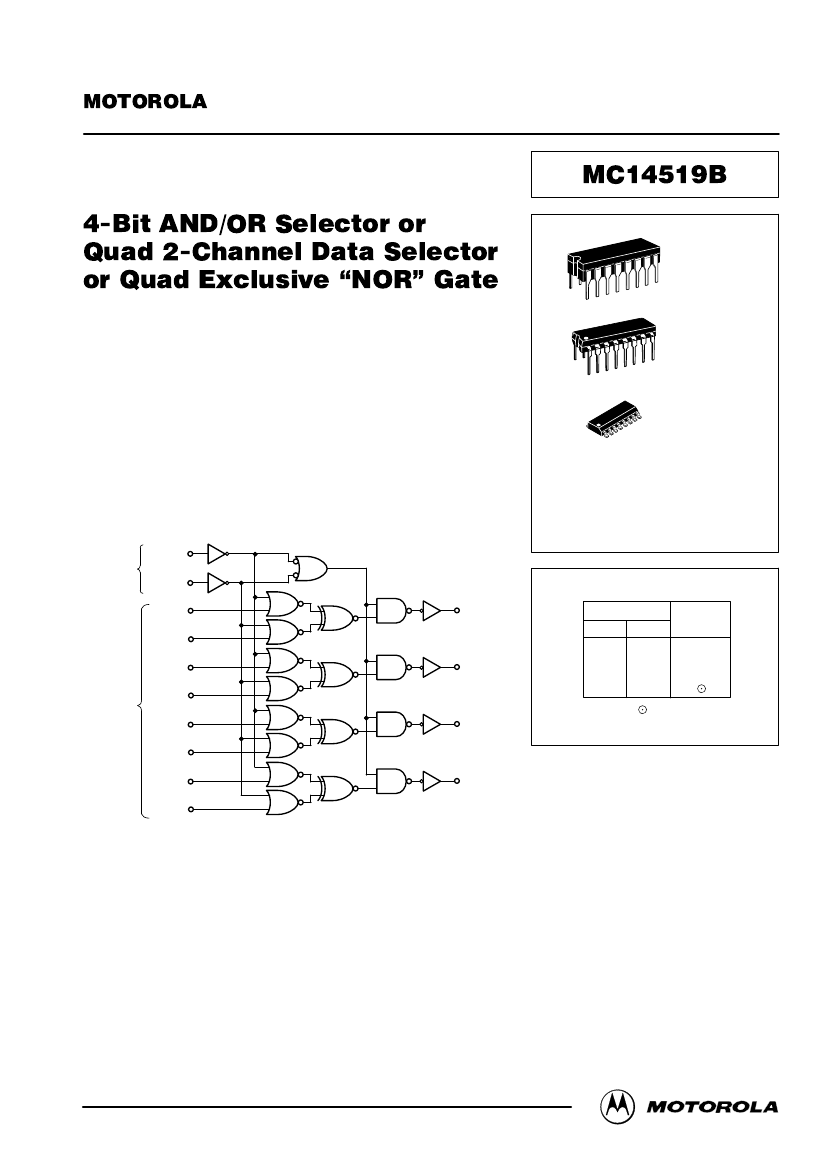

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
MC14519B
4-Bit AND/OR Selector or
Quad 2-Channel Data Selector
or Quad Exclusive NOR" Gate
The MC14519B is constructed with MOS P–channel and N–channel
enhancement mode devices in a monolithic structure. These complementary
MOS logic gates find primary use where low power dissipation and/or high
noise immunity is desired.
This device provides three functions in one package; a 4–Bit AND/OR
Selector, a Quad 2–Channel Data Selector, or a Quad Exclusive NOR Gate.
•
Diode Protection on All Inputs
•
Supply Voltage Range = 3.0 Vdc to 18 Vdc
•
Capable of Driving Two Low–power TTL Loads or One Low–power
Schottky TTL Load Over the Rated Temperature Range
•
Plug–in Replacement for CD4019 in Most Applications
L SUFFIX
CERAMIC
CASE 620
P SUFFIX
PLASTIC
CASE 648
D SUFFIX
SOIC
CASE 751B
ORDERING INFORMATION
MC14XXXBCP
MC14XXXBCL
MC14XXXBD
Plastic
Ceramic
SOIC
LOGIC DIAGRAM
CONTROL
INPUTS
A
B
X0
Y0
X1
DATA
INPUTS
Y1
X2
Y2
9
14
6
7
4
5
2
3
13 Z3
12 Z2
11 Z1
10 Z0
TA = – 55° to 125°C for all packages.
TRUTH TABLE
Control Inputs
A
0
0
1
1
B
0
1
0
1
Output
Zn
0
Yn
Xn
xn
Yn
NOTE: Xn
Yn means Xn
(Exclusive–NOR) Yn
X3 15
Y3
1
VDD = PIN 16
VSS = PIN 8
REV 3
1/94
©
MOTOROLA CMOS LOGIC DATA
Motorola, Inc. 1995
MC14519B
1
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
MAXIMUM RATINGS*
(Voltages Referenced to VSS)
Symbol
VDD
Parameter
DC Supply Voltage
Value
Unit
V
V
– 0.5 to + 18.0
Vin, Vout
Iin, Iout
PD
Tstg
TL
Input or Output Voltage (DC or Transient)
– 0.5 to VDD + 0.5
±
10
500
– 65 to + 150
260
Input or Output Current (DC or Transient),
per Pin
Power Dissipation, per Package†
Storage Temperature
Lead Temperature (8–Second Soldering)
mA
mW
PIN ASSIGNMENT
Y3
X2
Y2
X1
Y1
X0
Y0
VSS
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
VDD
X3
B
Z3
Z2
Z1
Z0
A
_
C
_
C
* Maximum Ratings are those values beyond which damage to the device may occur.
†Temperature Derating:
Plastic “P and D/DW” Packages: – 7.0 mW/
_
C From 65
_
C To 125
_
C
Ceramic “L” Packages: – 12 mW/
_
C From 100
_
C To 125
_
C
ELECTRICAL CHARACTERISTICS
(Voltages Referenced to VSS)
Characteristic
Symbol
VOL
VDD
Vdc
5.0
10
15
5.0
10
15
5.0
10
15
VIH
5.0
10
15
IOH
Source
5.0
5.0
10
15
IOL
5.0
10
15
15
—
5.0
10
15
5.0
10
15
– 3.0
– 0.64
– 1.6
– 4.2
0.64
1.6
4.2
—
—
—
—
—
3.5
7.0
11
Min
—
—
—
– 55
_
C
25
_
C
125
_
C
Max
Min
—
—
—
Typ #
0
0
0
Max
Min
—
—
—
Max
Unit
Vdc
Output Voltage
Vin = VDD or 0
“0” Level
0.05
0.05
0.05
—
—
—
1.5
3.0
4.0
—
—
—
—
—
—
—
—
—
—
0.05
0.05
0.05
—
—
—
1.5
3.0
4.0
—
—
—
—
—
—
—
—
—
—
0.05
0.05
0.05
—
—
—
1.5
3.0
4.0
“1” Level
Vin = 0 or VDD
Input Voltage
“0” Level
(VO = 4.5 or 0.5 Vdc)
(VO = 9.0 or 1.0 Vdc)
(VO = 13.5 or 1.5 Vdc)
“1” Level
(VO = 0.5 or 4.5 Vdc)
(VO = 1.0 or 9.0 Vdc)
(VO = 1.5 or 13.5 Vdc)
Output Drive Current
(VOH = 2.5 Vdc)
(VOH = 4.6 Vdc)
(VOH = 9.5 Vdc)
(VOH = 13.5 Vdc)
(VOL = 0.4 Vdc)
(VOL = 0.5 Vdc)
(VOL = 1.5 Vdc)
Input Current
Input Capacitance
(Vin = 0)
Quiescent Current
(Per Package)
Total Supply Current**†
(Dynamic plus Quiescent,
Per Package)
(CL = 50 pF on all outputs, all
buffers switching)
VOH
4.95
9.95
14.95
—
—
—
4.95
9.95
14.95
—
—
—
3.5
7.0
11
– 2.4
– 0.51
– 1.3
– 3.4
0.51
1.3
3.4
—
—
—
—
—
5.0
10
15
2.25
4.50
6.75
2.75
5.50
8.25
– 4.2
– 0.88
– 2.25
– 8.8
0.88
2.25
8.8
±
0.00001
5.0
0.005
0.010
0.015
4.95
9.95
14.95
—
—
—
3.5
7.0
11
– 1.7
– 0.36
– 0.9
– 2.4
0.36
0.9
2.4
—
—
—
—
—
Vdc
VIL
Vdc
Vdc
—
—
—
mAdc
—
—
—
—
—
—
—
±
1.0
—
150
300
600
mAdc
Sink
Iin
Cin
IDD
±
0.1
—
5.0
10
20
±
0.1
7.5
5.0
10
20
µAdc
pF
µAdc
IT
IT = (1.2
µA/kHz)
f + IDD
IT = (2.4
µA/kHz)
f + IDD
IT = (3.6
µA/kHz)
f + IDD
µAdc
#Data labelled “Typ” is not to be used for design purposes but is intended as an indication of the IC’s potential performance.
** The formulas given are for the typical characteristics only at 25
_
C.
†To calculate total supply current at loads other than 50 pF:
IT(CL) = IT(50 pF) + (CL – 50) Vfk
where: IT is in
µA
(per package), CL in pF, V = (VDD – VSS) in volts, f in kHz is input frequency, and k = 0.004.
MC14519B
2
MOTOROLA CMOS LOGIC DATA
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
SWITCHING CHARACTERISTICS*
(CL = 50 pF, TA = 25
_
C)
Characteristic
Output Rise and Fall Time
tTLH, tTHL = (1.5 ns/pF) CL + 25 ns
tTLH, tTHL = (0.75 ns/pF) CL + 12.5 ns
tTLH, tTHL = (0.55 ns/pF) CL + 9.5 ns
Propagation Delay Time
tPLH, tPHL = (1.7 ns/pF) CL + 165 ns
tPLH, tPHL = (0.66 ns/pF) CL + 82
tPLH, tPHL = (0.5 ns/pF) CL + 65 ns
Symbol
tTLH,
tTHL
VDD
5.0
10
15
5.0
10
15
Min
—
—
—
—
—
—
Typ #
100
50
40
250
115
90
Max
200
100
80
500
225
165
Unit
ns
tPLH,
tPHL
ns
* The formulas given are for the typical characteristics only at 25
_
C.
#Data labelled “Typ” is not to be used for design purposes but is intended as an indication of the IC’s potential performance.
+VDD
VDD
PULSE
GENERATOR
Vin
A
B
X0
Y0
X1
Y1
X2
Y2
X3
Y3
VSS
Z3
CL
Z2
CL
Z1
CL
Vin
90%
10%
50% DUTY CYCLE
Z0
CL
20 ns
20 ns
VDD
VSS
ISS
500
µF
Figure 1. Dynamic Power Dissipation Test Circuit and Waveform
VDD
20 ns
PULSE
GENERATOR
V
A DD Z0
B
X0
Z1
Y0
X1
Y1
Z2
X2
Y2
X3
Y3 V Z3
SS
CL
CL
OUTPUTS
CL
tPLH
CL
OUTPUT
50%
VOL
OUTPUT
INPUT
tPHL
90%
50%
10%
tTHL
tTLH
tPHL
VOH
90%
50%
10%
tPLH
20 ns
VDD
VSS
VOH
VOL
Figure 2. Switching Time Test Circuit and Waveforms
MOTOROLA CMOS LOGIC DATA
MC14519B
3
TYPICAL CIRCUIT APPLICATIONS
DATA REGISTER SELECTION COMPARISON
DATA A
CLOCK A
RESET A
4–BIT REGISTER A
Q1
Q2 Q3 Q4
MC14015B
DUAL 4–BIT REGISTER
4–BIT REGISTER B
Q1
Q2 Q3 Q4
DATA B
CLOCK B
RESET B
CONTROL A
CONTROL B
A
B
X0
X1
Z0
X3
Y0 Y1 Y2
MC14519B
AND/OR SELECT/EXCL NOR
Z1
Z2
X2
Y3
Z3
INVERT
MC14070B
QUAD
EXCLUSIVE OR
Q0
Q1
Q2
Q3
CONVERSION TABLE
Operation Code
A
0
0
1
1
0
0
1
1
B
0
0
0
0
1
1
1
1
INV
0
1
0
1
0
1
0
1
Q0
0
1
X0
X0
Y0
Y0
X0
X0
Y0
Y0
X1
X1
Q1
0
1
X1
X1
Y1
Y1
Y1
Y1
X2
X2
Output
Q2
0
1
X2
X2
Y2
Y2
Y2
Y2
X3
X3
Q3
0
1
X3
X3
Y3
Y3
Y3
Y3
Function
Inhibit, all zeros
Inhibit, all ones
Control A
Control A and Invert
Control B
Control B and Invert
Exclusive NOR
Exclusive OR
This device contains protection circuitry to guard against damage due to high static voltages or electric fields. However,
precautions must be taken to avoid applications of any voltage higher than maximum rated voltages to this high-impedance
circuit. For proper operation, Vin and Vout should be constrained to the range VSS
≤
(Vin or Vout)
≤
VDD.
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either VSS or VDD). Unused outputs must
be left open.
MC14519B
4
MOTOROLA CMOS LOGIC DATA
OUTLINE DIMENSIONS
L SUFFIX
CERAMIC DIP PACKAGE
CASE 620–10
ISSUE V
–A–
16
9
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. DIMENSION L TO CENTER OF LEAD WHEN
FORMED PARALLEL.
4. DIMENSION F MAY NARROW TO 0.76 (0.030)
WHERE THE LEAD ENTERS THE CERAMIC
BODY.
DIM
A
B
C
D
E
F
G
H
K
L
M
N
INCHES
MIN
MAX
0.750
0.785
0.240
0.295
–––
0.200
0.015
0.020
0.050 BSC
0.055
0.065
0.100 BSC
0.008
0.015
0.125
0.170
0.300 BSC
0
_
15
_
0.020
0.040
MILLIMETERS
MIN
MAX
19.05
19.93
6.10
7.49
–––
5.08
0.39
0.50
1.27 BSC
1.40
1.65
2.54 BSC
0.21
0.38
3.18
4.31
7.62 BSC
0
_
15
_
0.51
1.01
–B–
1
8
C
L
–T–
SEATING
PLANE
N
E
F
D
G
16 PL
K
M
J
16 PL
0.25 (0.010)
M
M
T B
S
0.25 (0.010)
T A
S
P SUFFIX
PLASTIC DIP PACKAGE
CASE 648–08
ISSUE R
–A–
16
9
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. DIMENSION L TO CENTER OF LEADS WHEN
FORMED PARALLEL.
4. DIMENSION B DOES NOT INCLUDE MOLD FLASH.
5. ROUNDED CORNERS OPTIONAL.
DIM
A
B
C
D
F
G
H
J
K
L
M
S
INCHES
MIN
MAX
0.740
0.770
0.250
0.270
0.145
0.175
0.015
0.021
0.040
0.70
0.100 BSC
0.050 BSC
0.008
0.015
0.110
0.130
0.295
0.305
0
_
10
_
0.020
0.040
MILLIMETERS
MIN
MAX
18.80
19.55
6.35
6.85
3.69
4.44
0.39
0.53
1.02
1.77
2.54 BSC
1.27 BSC
0.21
0.38
2.80
3.30
7.50
7.74
0
_
10
_
0.51
1.01
B
1
8
F
S
C
L
–T–
H
G
D
16 PL
SEATING
PLANE
K
J
T A
M
M
0.25 (0.010)
M
MOTOROLA CMOS LOGIC DATA
MC14519B
5
