MST
Part Number:
MC3750
Features:
1.
General
Purpose Leads
2.
Chip material:GaAsP/GaP
3. Emitted Color: Orange
4. Lens Color: Water Clear
Package Dimensions:
0.5 MAX.
2.2
1.5 TYP.
1.4
A
K
Notes:
1. ALL DIMENSIONS ARE IN mm.
2. TOLERANCE IS
±
0.25mm UNLESS OTHERWISE NOTED.
Revision: 1
24.0 MIN.
1.0
8.7
5.9
2005/10/27
MC3750
Absolute Maximum Ratings at Ta=25
℃
Parameter
Power Dissipation
Reverse Voltage
D.C. Forward Current
Peak Current(1/10Duty Cycle,0.1ms Pulse Width.)
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temp. (1.6mm from body) for 5 seconds
MST
Symbol
P
D
V
R
If
If(Peak)
Topr.
Tstg.
Rating
78
5
30
100
-25 to +85
-40 to +100
260
Unit
mW
V
mA
mA
℃
℃
℃
Electrical and Optical Characteristics:
Parameter
Luminous Intensity
Forward Voltage
Peak Wavelength
Dominant Wavelength
Reverse Current
Viewing Angle
Spectrum Line Halfwidth
Symbol
I
V
Vf
λP
λD
Ir
2θ1/2
Condition
If=20mA
If=20mA
If=20mA
If=20mA
Vr=5V
If=20mA
If=20mA
Min.
30.0
Typ.
100
2.1
635
626
Max.
Unit
mcd
2.6
V
nm
nm
100
25
35
µA
deg
nm
∆
λ
Revision: 1
2005/10/27
MC3750

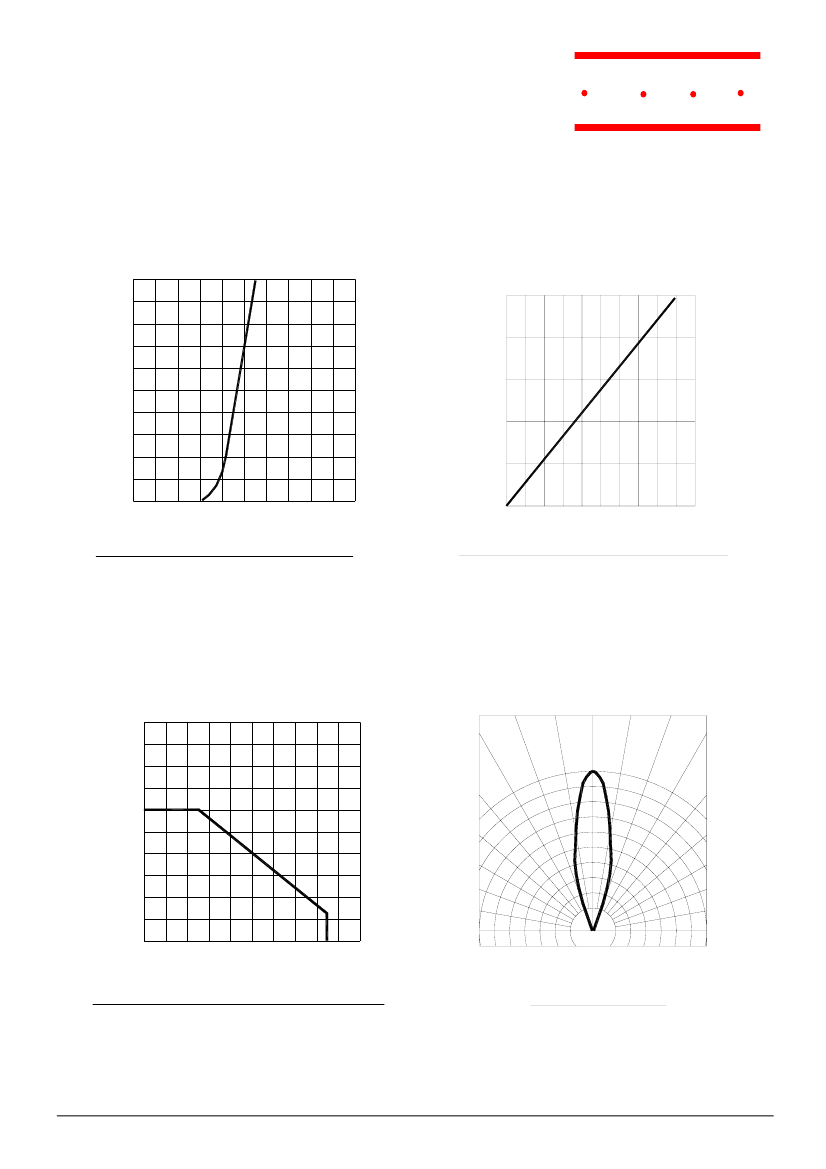

Typical Characteristic Curves:
MST
50
Relative Luminous Intensity
150
120
90
60
30
0
Forward Current IF(mA)
40
30
20
10
1.2
1.6
2.0
2.4
2.8
3.2
0.0
10.0
20.0
30.0
Applied Voltage (V)
FORWARD CURRENT VS.APPLIED VOLTAGE
Forward Current (mA)
FORWARD CURRENT VS. LUMINOUS INTENSITY
0°
50
40
10°
20°
30°
Forward Current IF(mA)
40°
30
20
10
1.0
0.9
0.8
50°
60°
70°
80°
90°
0.5
0.3
0.1
0.2
0.4
0.6
0
20
40
60
Temperature(
。
C)
80
100
0.7
FORWARD CURRENT VS. AMBIENT TEMPERATURE
RADIATION DIAGRAM
Revision: 1
2005/10/27
