354073

Description
Board to Board & Mezzanine Connectors 40P 1.27MM VERT FML B 13.65MM 3GBITS SMT
CategoryThe connector
File Size86KB,2 Pages
ManufacturerERNI
Websitehttp://www.erni.com
Download Datasheet Parametric View All

354073 Online Shopping

Suppliers Part Number Price MOQ In stock
354073 - - View Buy Now

354073 Overview

Board to Board & Mezzanine Connectors 40P 1.27MM VERT FML B 13.65MM 3GBITS SMT

354073 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerERNI
Product CategoryBoard to Board & Mezzanine Connectors
RoHSDetails
Factory Pack Quantity170

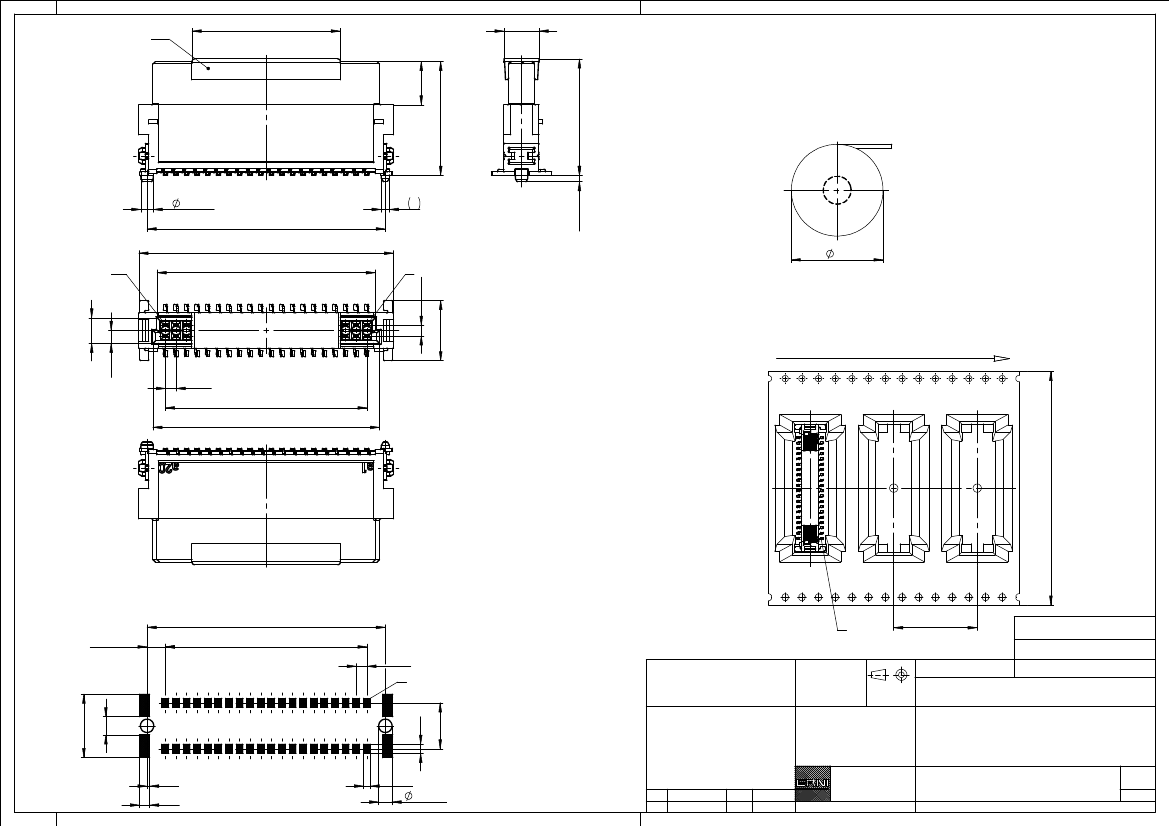

Ansaughaube
17,76
4,2
hood
5,2
Verpackt im Gurt nach DIN IEC 60286-3
Tape on Reel Packaging according to DIN IEC 60286-3
13,65
13,95
Verpackungseinheit: 170 Stück
Packaging unit: 170 pcs
1,5
-0,03
28,55
±0,03
30,48
a20
26,15
1
0,75
-0,05
330
a1
1,27
3,05
7,2
Abspulrichtung -
Reel off Direction
1,55
1,27
19 x 1,27 = 24,13
27,15
Anforderungsstufe 1
Performance Level 1
Kontaktbereich vergoldet
Mating Area gold plating
Anschlussbereich verzinnt 4-6 µm
Leiterplatten-Layout Vorschlag für SMT
Terminal Area 4-6 µm tin plating
Koplanarität der Anschlüsse
0,1 mm
PCB-Layout Proposal for SMT
28,55
±0,003
2,21
±0,03
19 x 1,27 = 24,13
1,27
a1
Coplanarity Area of Termination
0,1 mm
a1
20
BA 7-23 - hohe Bauhöhe
type 7-23 - high profile
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
Information:
Tolerances
All Dimensions
in mm
Scale
3:1
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
b
Index
03.12.2013
Date
Designation
7,6
2,2
5,5
1,1
Subject to modification without
prior notice.
Drawing will not be updated.
Federl. SMC-B 40-SMD-BA7-23
Female SMC-B 40-SMT-type7-23
0,3
1,2
0,8
1,6
-0,03
www.ERNI.com
Class
354073
SMCB
56
I
A3
