Typical RF Performance at Key Operating Frequencies
Parameter
Maximum Small Signal Gain
Output P1dB
Output IP3
Input Return Loss
Output Return Loss
Noise Figure
Unit
dB
dBm
dBm
dB
dB
dB
500MHz
18.9
20.5
39
-36
-18
5.5
850MHz
18.7
20.4
40
-24
-22
5.5
1.95GHz
17.6
20.4
36
-16
-15
5.9
2.4GHz
17.2
19.4
34.8
-15
-11
6.2
3.5GHz
15.7
16.9
28.5
-14
-16
8.3
4GHz
13.7
14.7
27.1
-10
-27
10
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS140902
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
3 of 15
RFDA4005

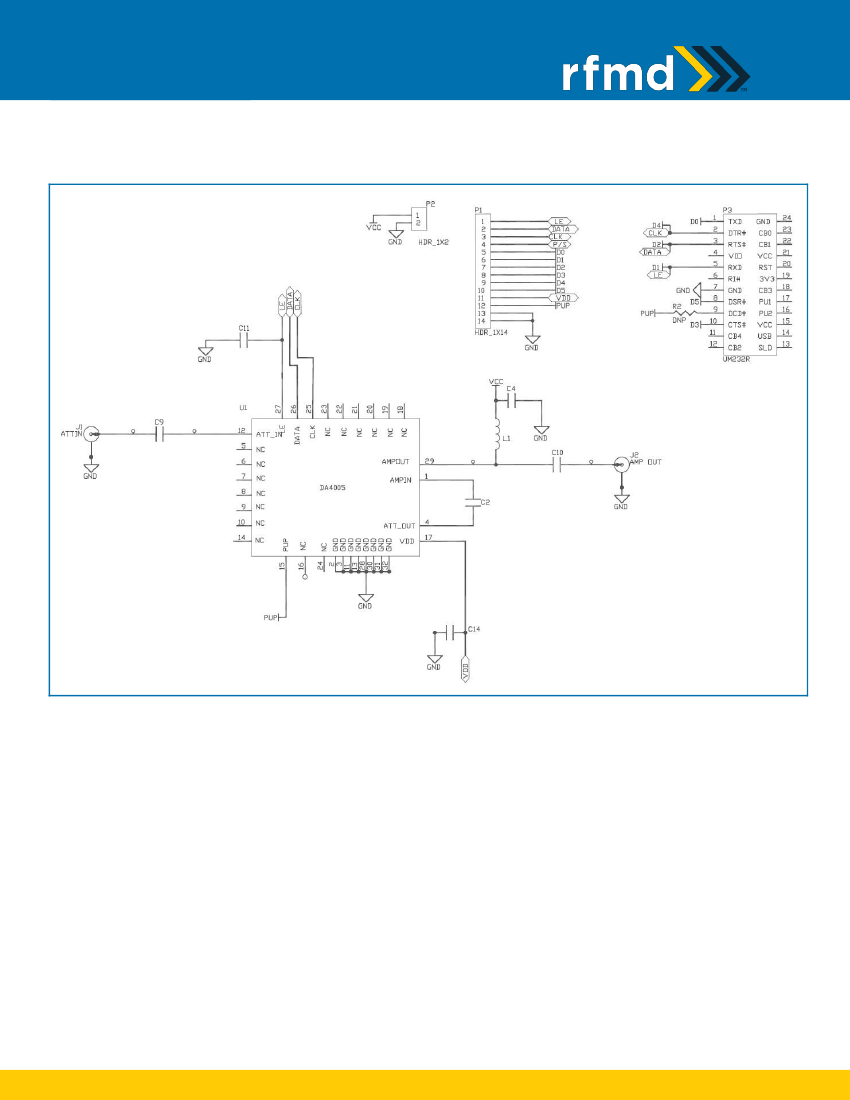

Typical Application Schematic
50MHz to 4000MHz Application Circuit
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS140902
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
4 of 15
RFDA4005

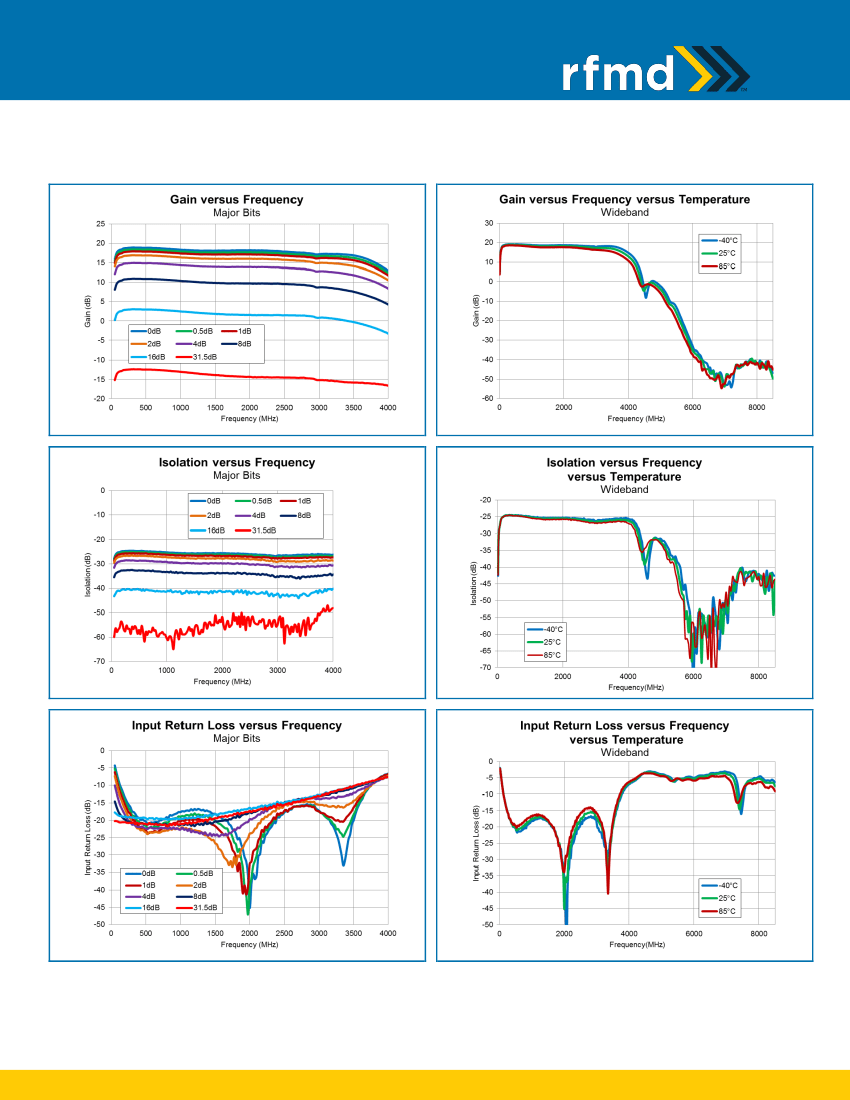

Typical Performance: T = 25°C, V
DD
= 5V unless otherwise noted
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS140902
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
