Rear panel feed-through - SF-5EP1N8AC0A5 - 1627036
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Rear panel feed-through, straight, Screw locking, M23, Number of positions: 5+PE, Type of contact: Male
connector, Crimp connection, Axial O-ring, 4xM3, shielded: yes, Cable diameter: 5.5 mm...8.5 mm
The figure shows the 8-pos.
(4+3+PE) product version
Why buy this product
Consistent EMC protection for reliable connection solutions in the industrial environment
Crimping connection: vibration- and temperature-resistant assembly
Flexible use: reliably connect various cable diameters
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4055626289762
85366990
Made to Order (non-returnable)
1 STK
Technical data
General
Note
Type of locking
Coding
Contact connection method
Type of contacts
Number of positions
Contact diameter of power contacts
Nominal current per power contact at 25°C
Contact diameter of signal contacts
Nominal current per signal contact at 25°C
Order information: Order crimp contacts 6 x Ø 2 mm separately
Screw locking
N
Crimp connection
Male connector
6
2 mm
30 A
2 mm
30 A
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1627036
Rear panel feed-through - SF-5EP1N8AC0A5 - 1627036
Technical data
General
Conductor entry
Pg housing screw connection
Mounting type
5.5 mm ... 8.5 mm
none
4xM3
Ambient conditions
Ambient temperature
Degree of protection
-40 °C ... 125 °C
IP67
Specifications according to DIN EN 61984:2001
Installation height max.
Nominal / operating voltage of power contacts
Rated surge voltage of power contacts
Overvoltage category of power contacts
Degree of pollution of power contacts
Nominal / operating voltage of signal contacts
Rated surge voltage of signal contacts
Overvoltage category of signal contacts
Degree of pollution of signal contacts
3000 m
630 V
6 kV
III
3
630 V
6 kV
III
3
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Schematic diagram
Dimensional drawing
60,1
22
2
6
1
5
4
4,5
Connector pin assignment
Dimensional drawing
M23x1
Ø27,9
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1627036
Rear panel feed-through - SF-5EP1N8AC0A5 - 1627036

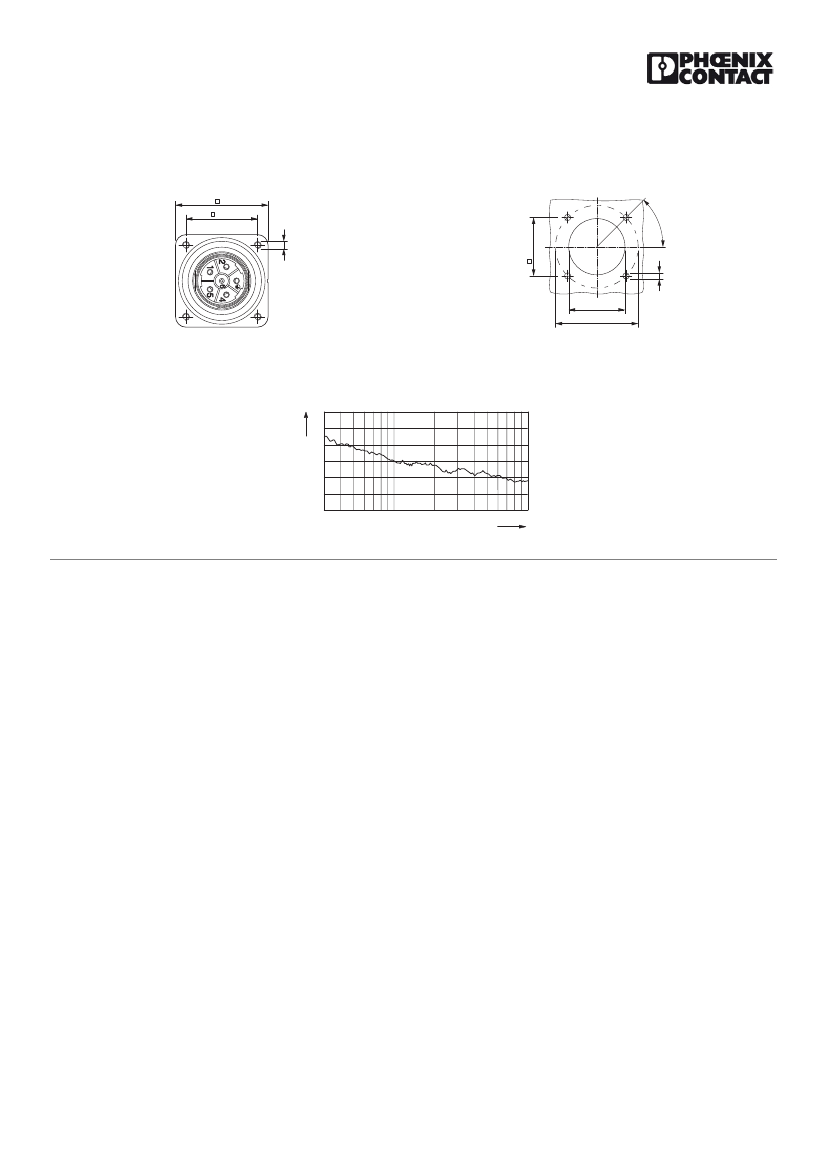

Dimensional drawing
38
Dimensional drawing
4xM3
29,4
45°
29,4
±0,1
Ø28,3
+0,1
Ø41,6
Flange dimensions
Installation dimensions
Diagram
Attenuation [dB]
120
100
80
60
40
20
0
30
100
1000
Frequency [MHz]
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
4xØ3,2
11/14/2016 Page 3 / 3
