Polypropylene Pulse/High Frequency Capacitors
A72 Series Polypropylene Film/Foil, Axial
Overview
The A72 Series is constructed of polypropylene film and
metal foil or metallized film and metal foil with axial leads
of tinned wire. The axial leads are electrically welded to
the metal layer on the ends of the capacitor winding. The
capacitor is encapsulated in a polyester tape wrapping case
with thermosetting resin material. Two different winding
constructions are used depending on voltage parameters.
Please see the Performance Characteristics for more
information.
Applications
Typical applications include switching spikes suppression
and resonant capacitors in switched mode power supply
(SMPS), and deflection circuits in televisions (S-correction
and flyback tuning) as well as applications with high voltage
and high current. Not suitable for across-the-line application
(see Suppressor Capacitors).
Benefits
• Voltage range: 100 – 2,000 VDC
• Capacitance range: 47 pF – 0.33 µF
• Diameter: 5 – 22.5 mm
• Length: 11 – 33 mm
• Capacitance tolerance: ±5%, ±10%, ±20%
• Climatic category: 55/105/56 IEC 60068-1
• Operating temperature range of −55°C to +105°C
• RoHS compliance and lead-free terminations
• Tape and reel packaging in accordance with IEC 60286–1
• Self-healing
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Part Number System
A72
Series
Polypropylene
Film/Foil
E
Rated Voltage
(VDC)
E = 100
I = 250
M = 400
P = 630
Q = 1000
S = 1500
U = 2000
F
Length (mm)
F = 11
H= 14
K = 20.5
Q = 28
T = 33
1470
Capacitance
Code (pF)
The last three
digits represent
significant figures.
The first digit
specifies the total
number of zeros
to be added.
AA
Packaging
See Ordering
Options Table
00
Internal Use
00, 02 (Standard)
J
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3039_A72_AXIAL • 3/22/2017
1
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
A72 Series Polypropylene Film/Foil, Axial
Ordering Options Table
Type of Leads and Packaging
Bulk (Bag) – Straight Leads
Tape & Reel (Standard Reel)
Lead
Length
(mm)
40+/−5
Lead and
Packaging
Code
AA
26
Dimensions – Millimeters
FRONT VIEW
LL
L
d
LL
SIDE VIEW
D
D
Nominal
5.0
6.5
7.0
7.5
8.0
8.0
8.0
8.5
8.5
8.5
9.0
9.0
9.5
9.5
10.0
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
11.0
16.5
16.5
16.5
16.5
20.5
28.0
16.5
20.5
28.0
16.5
28.0
20.5
28.0
28.0
L
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
0.5
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
d
Tolerance
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
Nominal
11.0
11.0
11.5
12.5
13.0
13.5
13.5
14.0
16.0
16.5
18.0
19.0
19.5
20.0
22.5
D
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
20.5
28.0
28.0
28.0
28.0
28.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
L
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1.0
1.0
1.0
1.0
1.0
1.0
1.0
d
Tolerance
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
Note: See Ordering Options Table for lead length (LL / I) options.
Note: See Ordering Options Table for lead length (LL / I) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3039_A72_AXIAL • 3/22/2017
2
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
A72 Series Polypropylene Film/Foil, Axial
Performance Characteristics
Dielectric
Plates
Winding
Leads
Protection
Related Documents
Sections
Voltage Range (VDC)
Voltage Range (VAC)
Capacitance Range (µF)
Capacitance Values
Capacitance Tolerance
Operating temperature Range
Rated Temperature T
R
Voltage Derating
Climatic Category
100
63
0.0047 – 0.01
Polypropylene film
Metal foil for 1 section, metal foil + metallized film for 2 sections
Non-inductive type
Tinned wire
Plastic case, thermosetting resin filled. Box material is solvent resistant and flame retardant according to
UL94.
IEC 60384–13
1
250
125
400
160
630
300
0.015 – 0.33
2
1,000
400
0.0033 – 0.1
1,500
450
0.0022 – 0.068
2,000
500
0.001 – 0.047
0.0022 – 0.015 0.000047 – 0.01
E6 series (IEC 60063) measured at 1 kHz and +20 ±1°C
±5%, ±10%, ±20%
−55°C to +105°C
+85°C
Above +85°C DC and AC voltage derating is 1.25%/°C
55/105/56 IEC 60068–1
Storage time: ≤ 24 months from the date marked on the label package
Average relative humidity per year ≤ 70%
Storage Conditions
RH ≤ 85% for 30 days randomly distributed throughout the year
Dew is absent
Temperature: −40 to 80°C (see "Maximum Humidity in Storage Conditions" graph below)
Maximum Humidity in Storage Conditions
100
90
80
70
60
50
40
30
20
10
0
−40
Relative Humidity (%)
30 Days
Annual Average
−20
0
20
40
60
80
Temperature (ºC)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3039_A72_AXIAL • 3/22/2017
3
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
A72 Series Polypropylene Film/Foil, Axial
Performance Characteristics cont'd
Test Voltage
Capacitance Drift
Maximum Pulse Steepness
Temperature Coefficient
Self Inductance
(Lead Length ~ 2 mm)
2 x V
R
VDC for 2 s (between terminations) at +25°C ±5°C
Maximum 0.5% after a 2 year storage period at a temperature of +10°C to +40°C and a relative humidity of 40%
to 60%
dV/dt according to Table 1. For peak to peak voltages lower than rated voltage (Vpp<V
R
), the specified dv/dt
can be multiplied by the factor V
R
/Vpp
−(150 ±70) ppm/°C at 1 kHz
Maximum 1 nH per 1 mm lead and capacitor length.
Measured at 25°C ±5°C
Dissipation Factor tanδ
Frequency
10 kHz
100 kHz
C ≤ 0.1 µF
0.05%
0.10%
Measured at +25°C, 100 VDC 60 seconds
Insulation Resistance
Minimum Values Between Terminals
All Capacitance Values
≥ 100,000 MΩ ( ≥ 500,000 MΩ )*
* typical value
C ≥ 0.1 µF
0.05%
–
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3039_A72_AXIAL • 3/22/2017
4
Film Capacitors – Polypropylene Pulse/High Frequency Capacitors
A72 Series Polypropylene Film/Foil, Axial

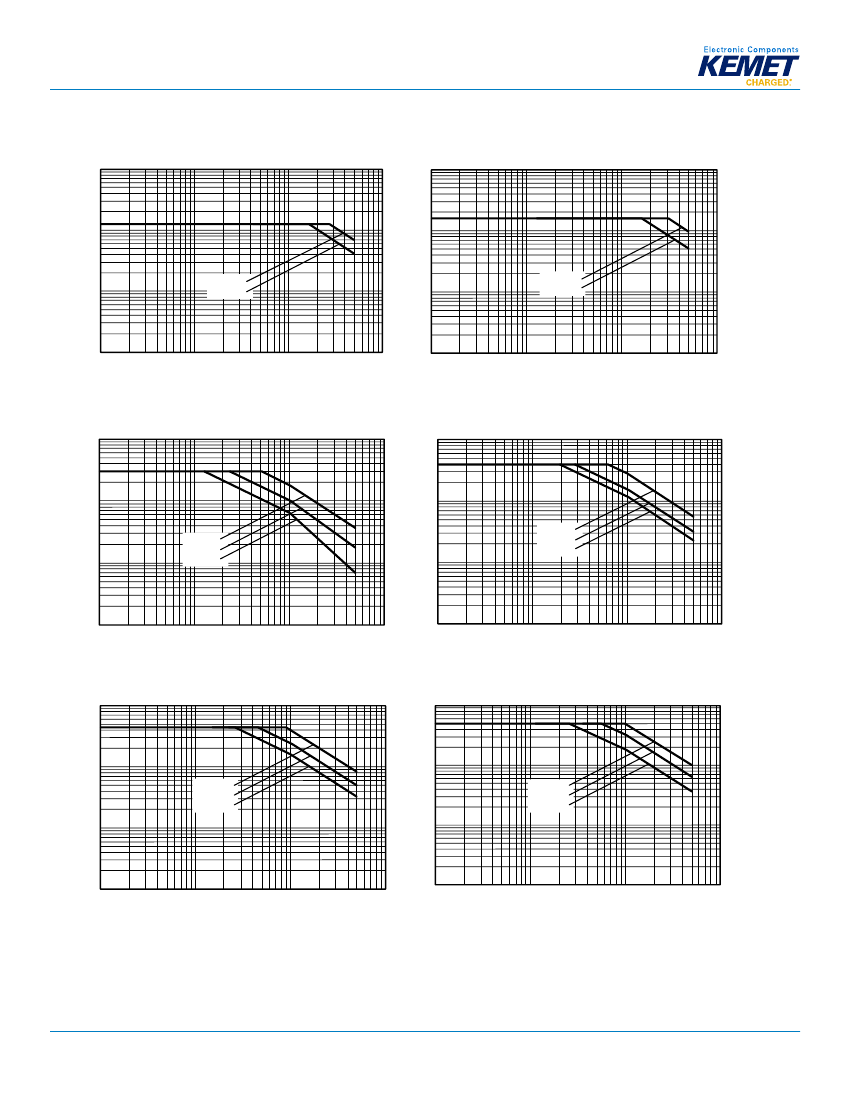

Maximum Voltage (V
rms
) vs. Frequency (Sinusoidal Waveform/Th ≤ +40°C)
1,000
250 VDC/125 VAC
1,000
400 VDC/160 VAC
100
100
V
rms
[V]
V
rms
[V]
10
0.047 µF
0.015 µF
10
0.0022 µF
0.01 µF
1
1
10
f [kHz]
100
1,000
1
1
10
f [kHz]
100
1,000
1,000
630 VDC/300 VAC
1,000
1,000 VDC/400 VAC
100
100
V
rms
[V]
V
rms
[V]
10
0.022 µF
0.1 µF
0.33 µF
10
0.01 µF
0.047 µF
0.1 µF
1
1
10
f [kHz]
100
1,000
1
1
10
100
1,000
f [kHz]
1,000
1,500 VDC/450 VAC
1,000
2,000 VDC/500 VAC
100
100
V
rms
[V]
10
V
rms
[V]
0.0047 µF
0.015 µF
0.047 µF
0.0033 µF
0.01 µF
0.047 µF
10
1
1
1
10
100
1,000
1
10
100
1,000
f [kHz]
f [kHz]
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3039_A72_AXIAL • 3/22/2017
5
