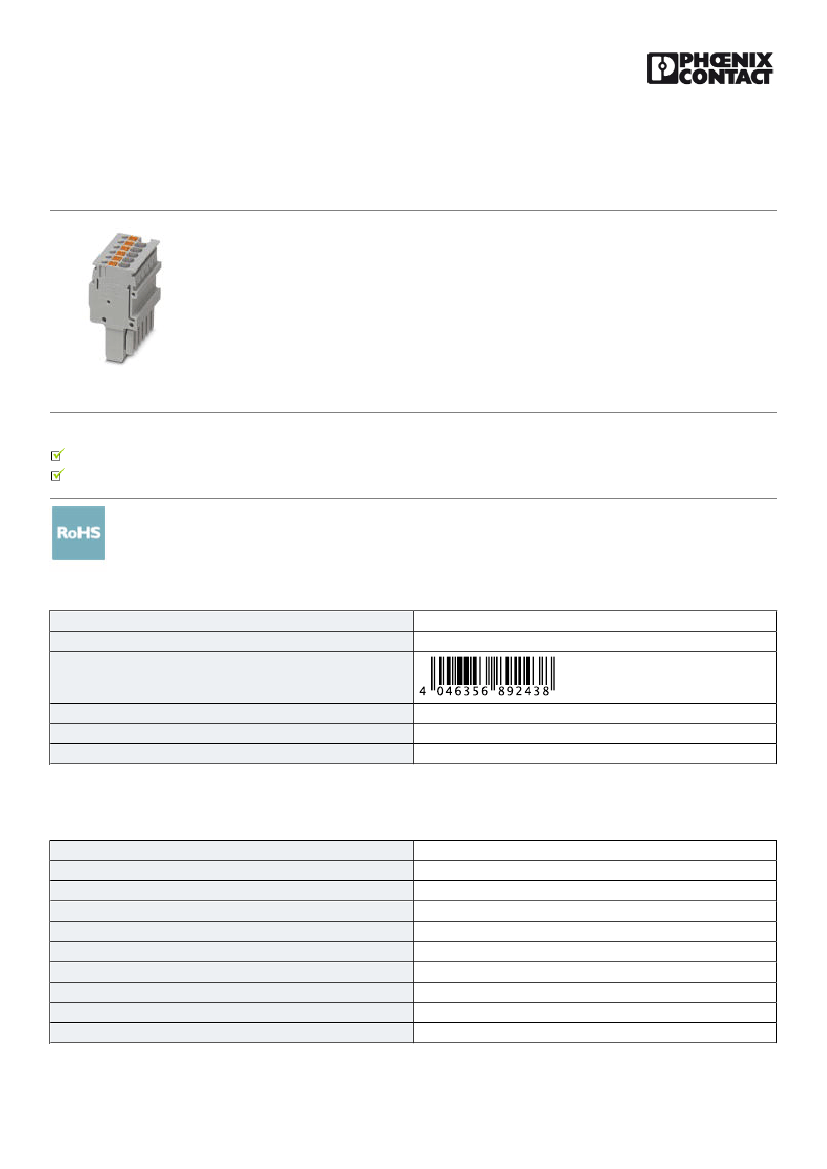

Plug - PP-H 1,5/S/3 (1GNYE/2GY) - 3212524
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug, Connection method: Push-in connection, Number of positions: 3, Cross section: 0.14 mm² - 1.5 mm²,
AWG: 26 - 14, Width: 10.5 mm, Height: 31.3 mm, Color: green/yellow-gray
The figure shows the PP-H 1,5/S/6
version
Why buy this product
Large-surface labeling option
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356892438
85366990
Made to Order (non-returnable)
50 STK
50 STK
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Maximum load current
Rated surge voltage
3
1
3
3
1.5 mm²
green/yellow-gray
PA
V0
17.5 A (with 1.5 mm² conductor cross section)
6 kV
11/15/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/3212524
Plug - PP-H 1,5/S/3 (1GNYE/2GY) - 3212524
Technical data
General
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
3
III
I
17.5 A (with 1.5 mm² conductor cross section)
17.5 A (observe derating)
500 V
Yes
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height
Pitch
10.5 mm
16.5 mm
31.3 mm
19.5 mm
3.5 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Push-in connection
IEC 61984
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
26
11/15/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/3212524
Plug - PP-H 1,5/S/3 (1GNYE/2GY) - 3212524
Technical data
Connection data
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
14
0.14 mm²
0.14 mm²
1 mm²
8 mm
A1 / B1
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 61984
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
BV / NK
Ex Approvals
Approval details
BV http://www.veristar.com/portal/veristarinfo/generalinfo/approved/approvedProducts/equipmentAndMaterials 39979/A0 BV
NK http://www.classnk.or.jp/hp/en/ 14ME0912
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 3 / 3
