RPC507154F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RPC507154F

RPC507154F: DescriptionRes,SMT,Thick Film,7.15M Ohms,200WV,1% +/-Tol,100ppm TC,2010 Case; CategoryPassive components The resistor; File Size233KB，3 Pages; ManufacturerAlpha 3 Manufacturing; Environmental Compliance

Download Datasheet Parametric View All

RPC507154F Overview

Res,SMT,Thick Film,7.15M Ohms,200WV,1% +/-Tol,100ppm TC,2010 Case

RPC507154F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Alpha 3 Manufacturing
package instruction	SMT, 2010
Reach Compliance Code	unknown
structure	Chip
JESD-609 code	e3
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.55 mm
Package length	5 mm
Package form	SMT
Package width	2.5 mm
method of packing	TR, Paper, 7 Inch
Rated power dissipation(P)	0.75 W
resistance	7150000 Ω
Resistor type	FIXED RESISTOR
series	RPC
size code	2010
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin (Sn)
Tolerance	1%
Operating Voltage	200 V
Base Number Matches	1

Preview

Download Datasheet

View All

SURFACE MOUNT

Small in size and light in weight

Electrical stability and high reliability

Excellent mechanical strength and high frequency

characteristics

Reduction of assembly costs and matching with auto

placement machines

Hybrid thick and thin integrated circuits

Telecommunication equipment

Computers

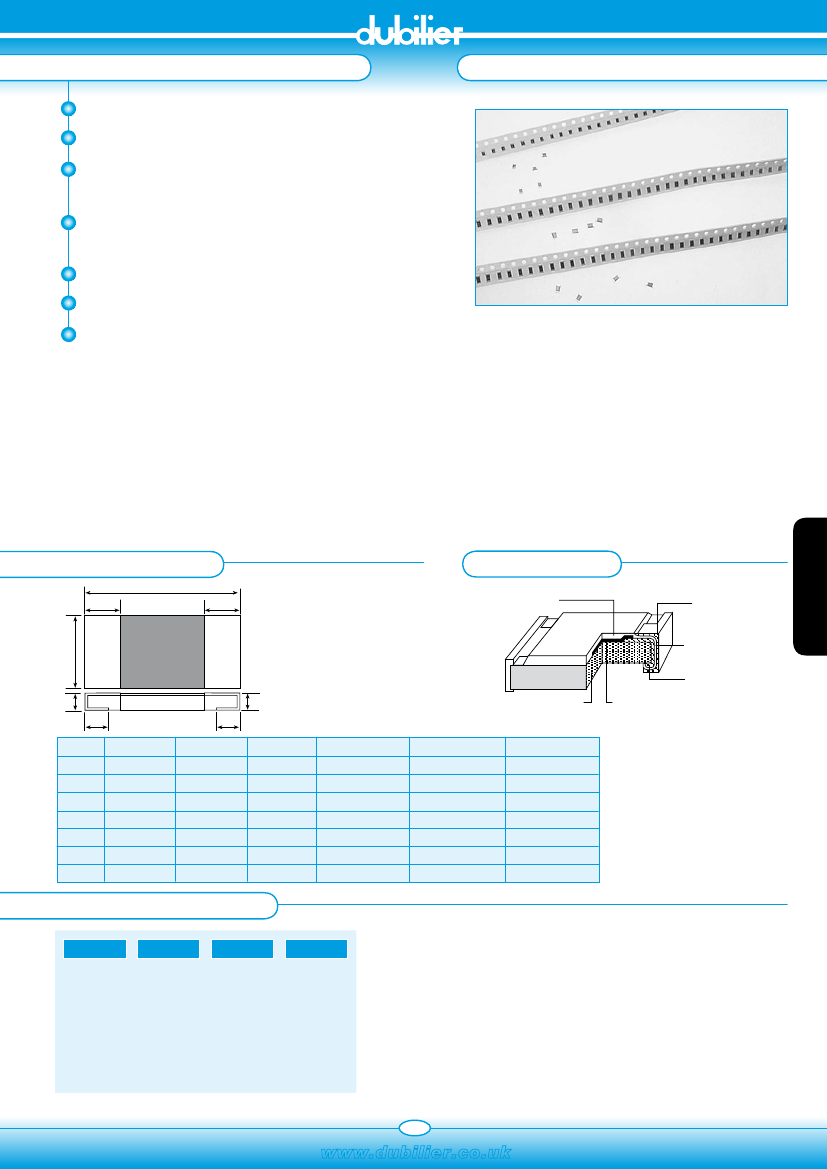

SURFACE MOUNT CHIP RESISTOR RPC

OUTLINE DRAWING

CONSTRUCTION

Protective Coating

Output Termination

Layer: Solder

Middle Termination

Layer: Sn

Inner Termination

Layer: Sn

High Purity

Alumina Substrate

Resistive Element (Ru0 )

Range

RPC04

RPC16

RPC12

RPC25

RPC33

RPC50

RPC100

Size Code

0402

0603

0805

1206

1210

2010

2512

Length L (mm)

1.00 ± 0.10

1.60 ± 0.10

2.00 ± 0.10

3.10 ± 0.10

5.00 ± 0.10

6.35 ± 0.10

Width W (mm)

0.50 ± 0.05

0.80 ± 0.10

1.25 ± 0.10

1.60 ± 0.10

2.60 ± 0.15

2.50 ± 0.15

3.20 ± 0.15

Height H (mm)

0.35 ± 0.05

0.45 ± 0.1

0.50 ± 0.1

0.55 ± 0.1

Terminal T (mm)

0.20 ± 0.10

0.30 ± 0.20

0.40 ± 0.20

0.50 ± 0.25

0.60 ± 0.25

Terminal t (mm)

0.25 ± 0.10

0.30 ± 0.20

0.40 ± 0.20

0.50 ± 0.25

0.5 ± 0.20

ORDERING INFORMATION

RPC

Range

Size

04=0402

16 = 0603

12 = 0805

25 = 1206

33 = 1210

50 = 2010

100 = 2512

103

Value

Tolerance

F = ± 1%

J = ± 5%

Remark: E96 is only available for 1%

137

www.dubilier.co.uk

SECTION 4
