Product information and Ratings - 563
Range = 4mm Panel Socket
B
B
C

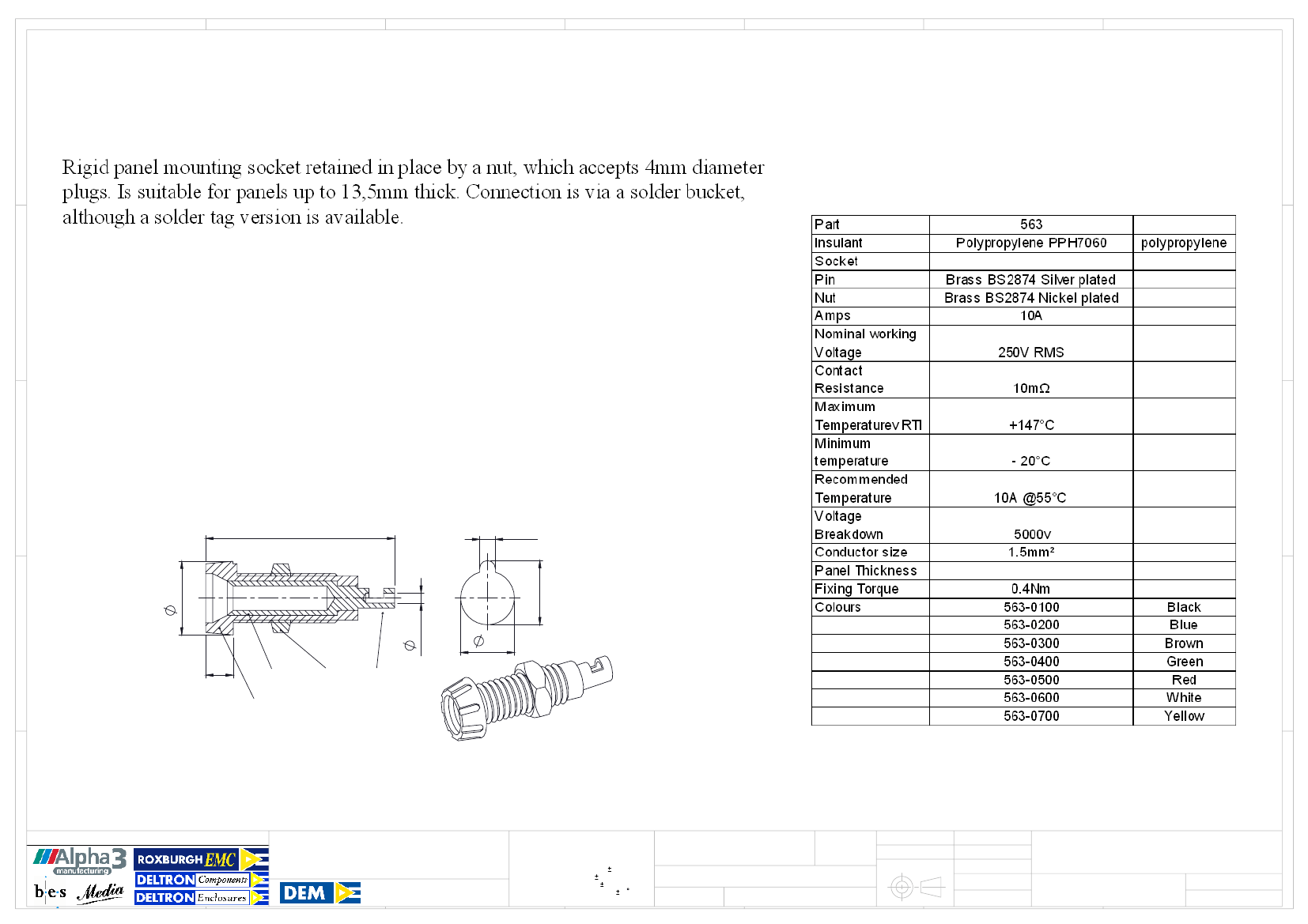

Dimensions
28.5
2.4
C
11.7
9.8
2.4
8.2
PANEL
CUTOUT
D
D
4
SOCKET
PIN
SINGLE
POLE
SOCKET
NUT
5/16"
SOLDER
BUCKET
E
E
Tel No.+44(0)1724273200 Website www.dem-uk.com
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
ALPHA 3 MANUFACTURING.
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN
PERMISSION OF
ALPHA 3 MANUFACTURING
IS PROHIBITED.
DEM Manufacturing, Deltron Emcon House
Hargreaves Way, Sawcliffe Ind. Park,
Scunthorpe, North Lincolnshire, DN15 8RF, UK
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETRES
LINEAR TOLERANCE:
NO DECIMAL PLACES 0.5mm
1 DECIMAL PLACE 0.25mm
2 DECIMAL PLACES 0.125mm
ANGULAR TOLERANCE: 1
FINISH
.
DEBURR AND
BREAK SHARP
.
EDGES
.
IF IN DOUBT ASK
DO NOT SCALE DRAWING
DRAWN BY
APPROVED BY
THIRD ANGLE PROJECTION
SPB
WC
SHEET 1 OF 1
SCALE 1:1
A3
TITLE
GENERAL SPECIFICATION
FOR
563 SERIES
563 SERIES
ISSUE
DRAWING NO.
MATERIAL
.
08
Release
