SEALED, ILLUMINATED ROCKER SWITCHES
LOW COST, SNAP-IN ROCKER FOR WET & DUSTY ENVIRONMENTS
K1/K2
SNAP-IN
ROCKERS

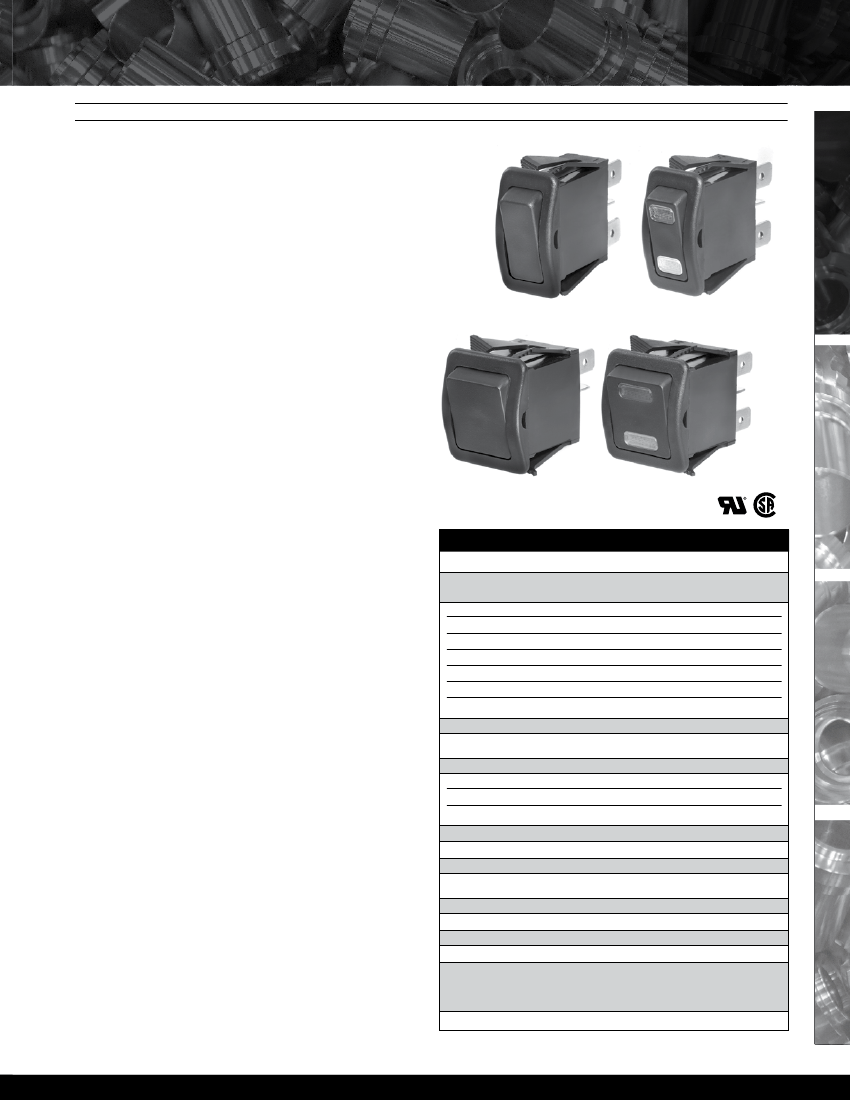

The K series rockers are rugged, high performance sealed
switches designed for use under severe conditions found in
marine, appliance, heavy equipment and industrial control
applications. Sealed to IP68S with an optional panel gasket
available.
The K1 series is offered in single pole configuration while the
K2 series is available in single and double pole configurations.
Both series offer illuminated models. Illumination can be
independent or dependent of the switch position or a
combination of both. A choice of red, green, clear or amber
colored lenses are offered in illuminated models. Illumination
options include incandescent, LED or neon light sources.
Mounting is simple and quick; snaps into panel from the
front. The OTTO snap-in design supports a variety of panel
thicknesses with just one cutout size specified.
A choice of models are offered to handle power levels to 16 amps,
1/2 HP and low level electronic switching applications.
OTTO can provide custom colors upon request. Value-added
assemblies with wire leads are also available. Please consult
the factory for assistance.
ROCKER SWITCHES
K1 Series
Single Pole
K2 Series
Single & Double Pole
C
Features:
• Withstands direct water spray
• Watertight to IP68S
• Fits industry standard panel openings for drop-in
replacement of panel sealed & unsealed switches
• Snap-in feature accommodates a wide range of
panel cutouts
• Switches up to 16 amps
• UV & solvent resistant
• Withstands extreme shock & vibration
• Custom legends available
• 2 & 3-position, momentary & maintained action
• Incandescent, LED & neon illumination with
independent & dependent light source options
• UL recognized & CSA certified
• Ignition protected
• RoHS/WEEE/Reach compliant
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Resistive
Inductive
Lamp
Motor
DWV
Low Level
Electrical Life:
Sea Level @ 28VDC
or 125/250VAC, 60Hz
16A
10A
10A
5A
0.5HP
10mA @ 30mV
See Rating Chart
Cycles
25,000
50,000
25,000
25,000
25,000
®
US
1050Vrms except across light terminals
LIGHTING:
Light Source
Incandescent
Neon
LED
Mechanical Life:
Seal:
Rating
(VDC) 6V, 12V, 24V
(VAC) 125V, 250V
(VDC) 2V, 6V, 12V, 24V
100,000 cycles
IP68S
Operating Temp Range:
-30°C to +85°C
MATERIALS:
Case:
Button:
Base:
Terminals/Contact:
Terminal Hardware:
Thermoplastic
Thermoplastic
Thermoplastic
Brass, silver alloy with silver plate, gold flash for low level
Screws and lockwashers provided when applicable
K1/K2 series recommended Quick Connect terminals:
AMP 60253-2 for 12-16 AWG
AMP 42100-2 for 14-18 AWG
None provided
Mounting Hardware:
Specifications Subject To Change Without Notice
www.ottoexcellence.com
140

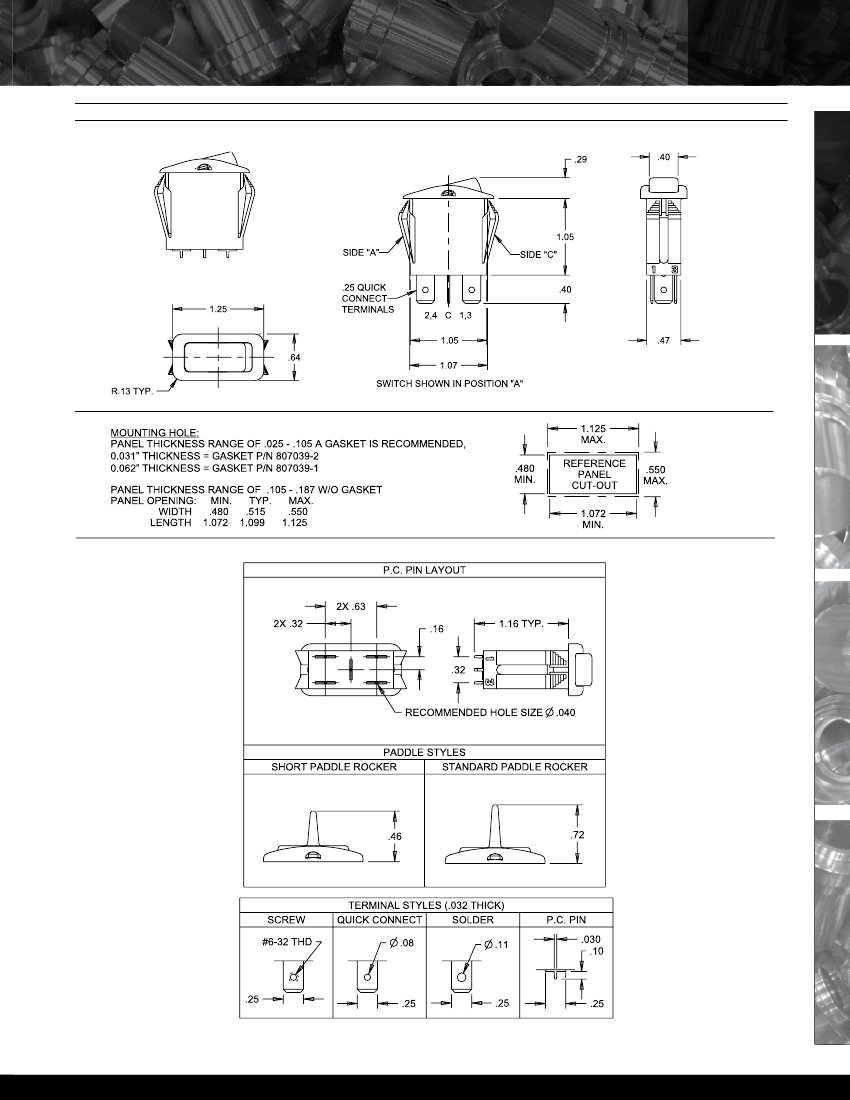

K1
SNAP-IN
ROCKERS
SEALED, ILLUMINATED ROCKER SWITCHES
LOW COST, SNAP-IN ROCKER FOR WET & DUSTY ENVIRONMENTS

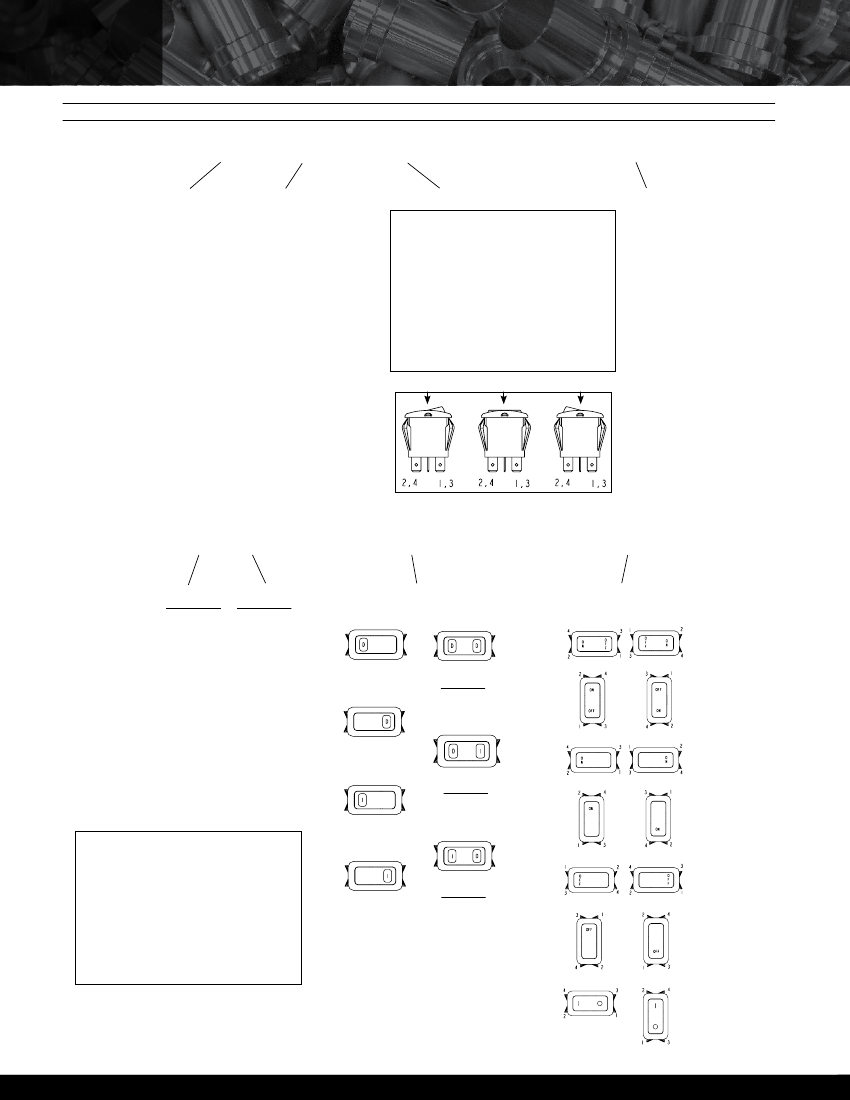

K1 PART NUMBER CODE
K1 -
X X X
Actuator Color/Style
A.
Red/Rocker
B.
Black/Rocker
C.
White/Rocker
D.
Red/Paddle
E.
Black/Paddle
F.
White/Paddle
G.
Red/Rocker Pinned
H.
Black/Rocker Pinned
J.
White/Rocker Pinned
K.
Red/Short Paddle Pinned
L.
Black/Short Paddle Pinned
M.
White/Short Paddle Pinned
N.
Red/Standard Paddle Pinned
P.
Black/Standard Paddle Pinned
R.
White/Standard Paddle Pinned
T.
Red/Short Paddle
U.
Black/Short Paddle
V.
White/Short Paddle
Switch Action/Circuit
Part Number Code Continued Below
X
Terminal Style/
Switch Rating
A.
Q.C./Std.
B.
Screw/Std.
C.
Solder/Std.
D.
Q.C./Low Level
E.
Screw/Low Level
F.
Solder/Low Level
G.
PC Pin/Std.
H.
PC Pin/Low Level
Light Type
A.
No Light
B.
6V Incandescent
C.
12V Incandescent
D.
24V Incandescent
E.
125VAC Neon
F.
250VAC Neon
G.
2V Red LED
H.
2V Green LED
J.
2V Amber LED
K.
6V Red LED
L.
6V Green LED
M.
6V Amber LED
N.
12V Red LED
P.
12V Green LED
Q.
12V Amber LED
R.
24V Red LED
S.
24V Green LED
T.
24V Amber LED
Position Position Position Circuit
“A”
“B”
“C”
A.
B.
C.
D.
E.
F.
G.
H.
1-C
1-C
(1-C)
(
1-C)
(1-C)
1-C
(1-C)
OFF
NONE
NONE
NONE
NONE
OFF
OFF
OFF
NONE
Position “B”
OFF
2-C
OFF
2-C
(2-C)
2-C
2-C
2-C
SPST
SPDT
SPST
SPDT
SPDT
SPDT
SPDT
SPST
Position “C”
NOTE
: ( ) denotes momentary action.
Position “A”
K1
Continued
X X X
Lens Color
Position “A”
A.
No Lens
B.
Red
C.
Green
D.
Amber
E.
Clear
Position “C”
A.
No Lens
B.
Red
C.
Green
D.
Amber
E.
Clear
K1 PART NUMBER CODE
CONTINUED FROM ABOVE
Light/Circuit Location
A.
No Light
B.
F.
X
Legend & Orientation
A.
None
B.
C.
Dependent Light
ON in position “A”
Wired to terms
1
& 3
C.
Dependent Light
ON in position “A”
Wired to terms
1
& 3
Dependent Light
ON in position “C”
Wired to terms
2
& 4
D.
E.
G.
Independent Light
ON in position “C”
Wired to terms
2
& 4
F.
Dependent Light
ON in position “A”
Wired to terms
1
& 3
Independent Light
ON in position “C”
Wired to terms 3 &
4
G.
D.
H.
J.
NOTES:
• No momentary switches with dependent lights.
• Neon lamps only to be coded with clear or amber
lenses.
• LED lenses must be clear or same color as LED.
• No dependent light in OFF position.
• ll legends printed on actuators without lens(es)
A
will be white except actuator codes C, F, J, M & R.
• ll legends printed on lenses will be white except
A
on clear lens(es) will be black.
Independent Light
at position “A”
Wired to terms 3 &
4
H.
K.
Independent Light
at position “A”
Wired to terms
3
& 4
Dependent Light
ON in position “C”
Wired to terms
2
& 4
E.
L.
Independent Light
at position “C”
Wired to terms 3 &
4
M.
N.
D =
Dependent Light
I =
Independent Light
NOTES:
• LED anode (+) terminal number shown in bold.
• Light on OFF side must be independent.
• ontact factory for multiple light types in the
C
same switch.
P.
R.
• K1 panel plugs available as shown on page 160.
141
OTTO Full Line Catalog
Specifications Subject To Change Without Notice
STANDARD
LEGENDS

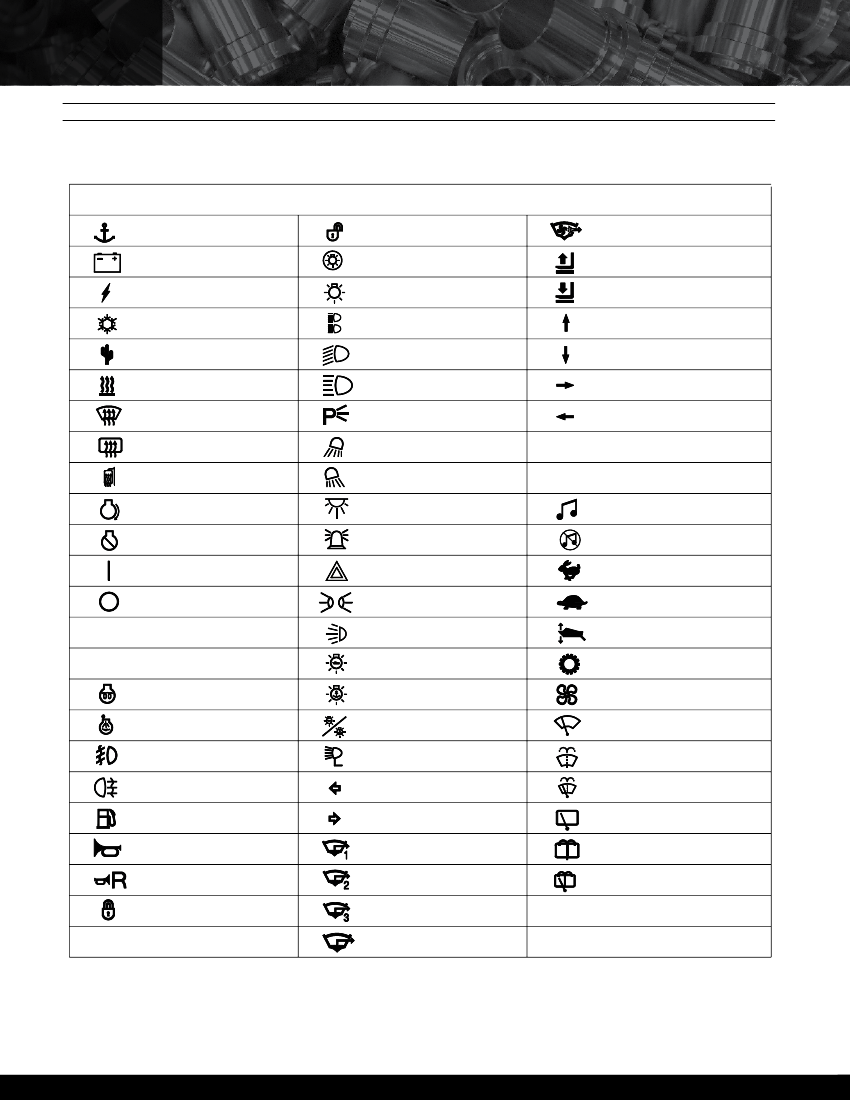

STANDARD LEGENDS PER SAE
SNAP-IN PANEL MOUNTING
Standard Legends Per SAE Specifications
STANDARD LEGENDS PER SAE SPECIFICATIONS
A1
B1
B2
C1
C2
C3
D1
D2
D3
E1
E2
E3
E4
E5
ON
ANCHOR
BATTERY
ELECTRIC POWER
AC/COOLING SYSTEMS
DEHUMIDIFIER
K2
L1
L2
L3
L4
UNLOCK
LIGHT
P5
R1
BILGE BLOWER
LIFT
LOWER
UP
DOWN
RIGHT
LEFT
FORWARD
REVERSE
RADIO
MUTE
FAST
SLOW
TRIM TAB /
TRIMMING OPERATION
TRANSMISSION
VENTILATING / AC FAN
WINDSHIELD WIPER
WINDSHIELD-WASHER
WINDSHIELD-WASHER/WIPER
REAR WINDOW WIPER
REAR WINDOW-WASHER
REAR WINDOW-WASHER/WIPER
NO LEGEND
MASTER LIGHTING SWITCH R2
HEADLIGHTS
HEADLIGHTS-LOW /
DIPPED BEAM
HEADLIGHTS-HIGH /
UPPER BEAM
PARKING LIGHT
WORK LAMP
WORK LAMP
INTERIOR DOME LIGHT
BEACON
R3
R4
R5
R6
R7
FWD
R8
REV
S1
S2
HEATER/INTERIOR HEATING L5
WINDSHIELD DEFROSTER
L6
REAR WINDOW DEFROSTER L7
MIRROR DEFROSTER
ENGINE/START
ENGINE/STOP
ON/START
OFF/STOP
ON
OFF
L8
L9
M1
M2
M3
M4
M5
HAZARD/POSITION LIGHTS T1
CLEARANCE LIGHTS
SIDE MARKER LIGHT
RUNNING LIGHTS
(UNDER POWER)
ANCHOR LIGHT
T2
T3
T4
V1
E6
OFF
E7
E8
F1
F2
G1
H1
H2
K1
ENGINE ELECTRIC PREHEAT M6
ENGINE-GAS INJECTION
FRONT FOG LIGHTS
REAR FOG LIGHTS
FUEL
HORN
HORN REAR
LOCK
M7
M8
M9
MA
P1
P2
P3
P4
RUNNING/ANCHOR LIGHTS W1
SEARCH LIGHT
LEFT TURN SIGNAL
RIGHT TURN SIGNAL
BILGE PUMP #1
BILGE PUMP #2
BILGE PUMP #3
BILGE PUMP
W2
W3
W4
W5
W6
ZZ
For legends not shown, please consult an OTTO representative.
