L50-NM-EO datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> L50-NM-EO

L50-NM-EO: DescriptionRF/Microwave Termination,; CategoryWireless rf/communication Radio frequency and microwave; File Size583KB，5 Pages; ManufacturerSpinner GmbH

Download Datasheet Parametric View All

L50-NM-EO Overview

RF/Microwave Termination,

L50-NM-EO Parametric

Parameter Name	Attribute value
Maker	Spinner GmbH
Reach Compliance Code	unknown
Base Number Matches	1

Preview

Download Datasheet

View All

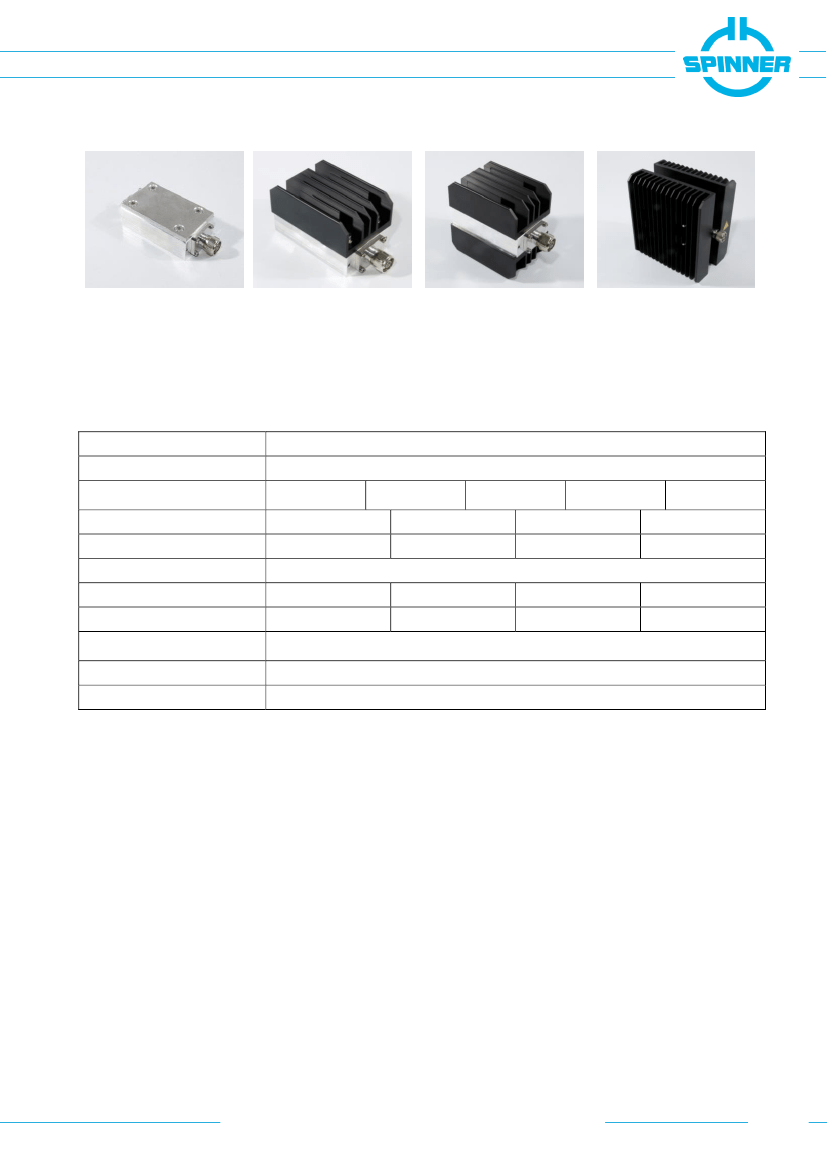

DATA SHEET

Load 25 to 200 W

Type 25

Type 50

Type 100

Type 200

General technical data

Frequency range

VSWR, max.

Power dissipation, max.

1.06 @ DC to 1

GHz

Type 25

25 W

IP protection level

Weight, approx.

Type 25

0.6 kg

Ambient temperature range

Altitude, max.

Operating position

DC to 4 GHz (Extra feature: to 6 GHz)

1.14 @ 1 to 2

GHz

Type 50

50 W

1.20 @ 2 to 3

GHz

1.30 @ 3 to 4

GHz

1.40 @ 4 to 6

GHz

Type 200

200 W

Type 100

100 W

IP50 per EN 60529 (Extra feature: IP68 per EN 60529)

Type 50

0.9 kg

Type 100

1.1 kg

Type 200

2.7 kg

-40 to +40 °C full power 2)

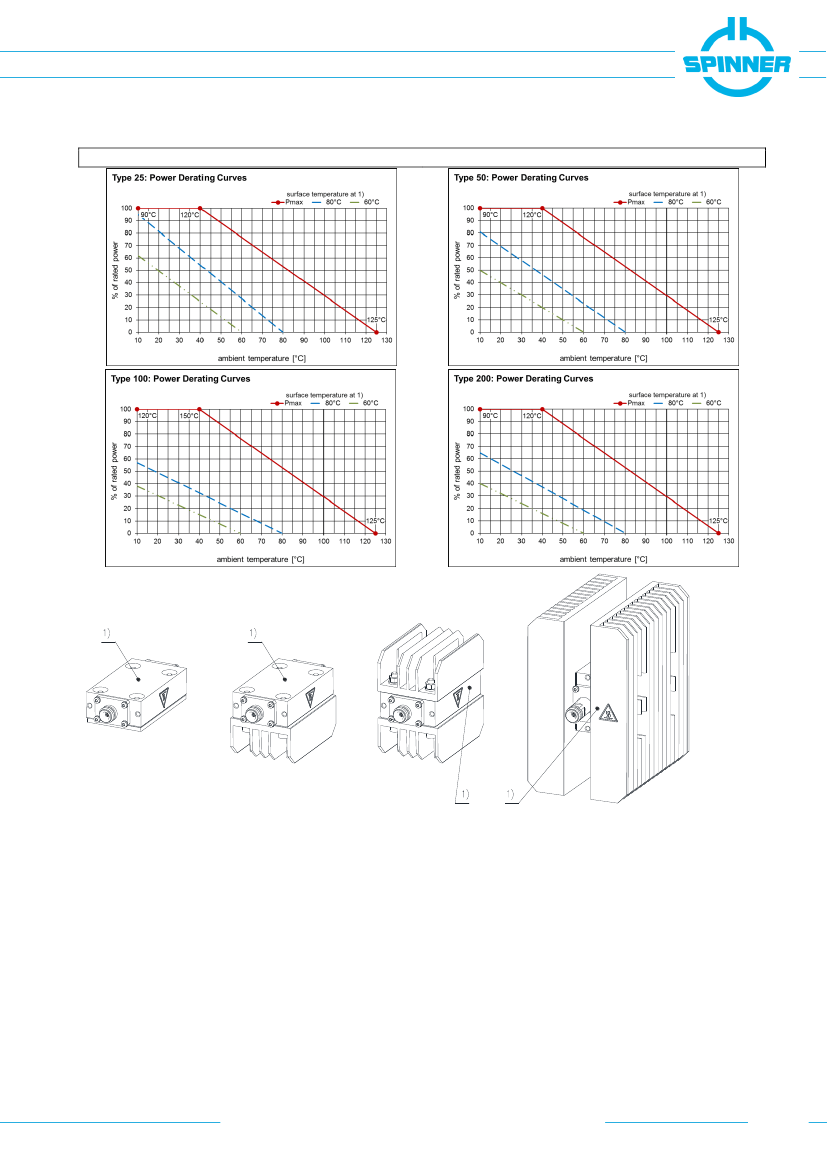

For higher ambient temperature see Power Derating Curve

2286 m full power 2)

any

Template TD-00003E

SPINNER GmbH │ www.spinner-group.com │ info@spinner-group.com

Data subject to change without notice │ Issue G

1/5
