PE4309

Description
BNC Female Bulkhead Connector Crimp/Solder Attachment For RG59, RG62, .480 inch D Hole
CategoryThe connector
File Size265KB,6 Pages
ManufacturerpSemi (peregrine semiconductor)
Websitehttp://www.psemi.com/
Download Datasheet View All

PE4309 Overview

BNC Female Bulkhead Connector Crimp/Solder Attachment For RG59, RG62, .480 inch D Hole

Advance Information

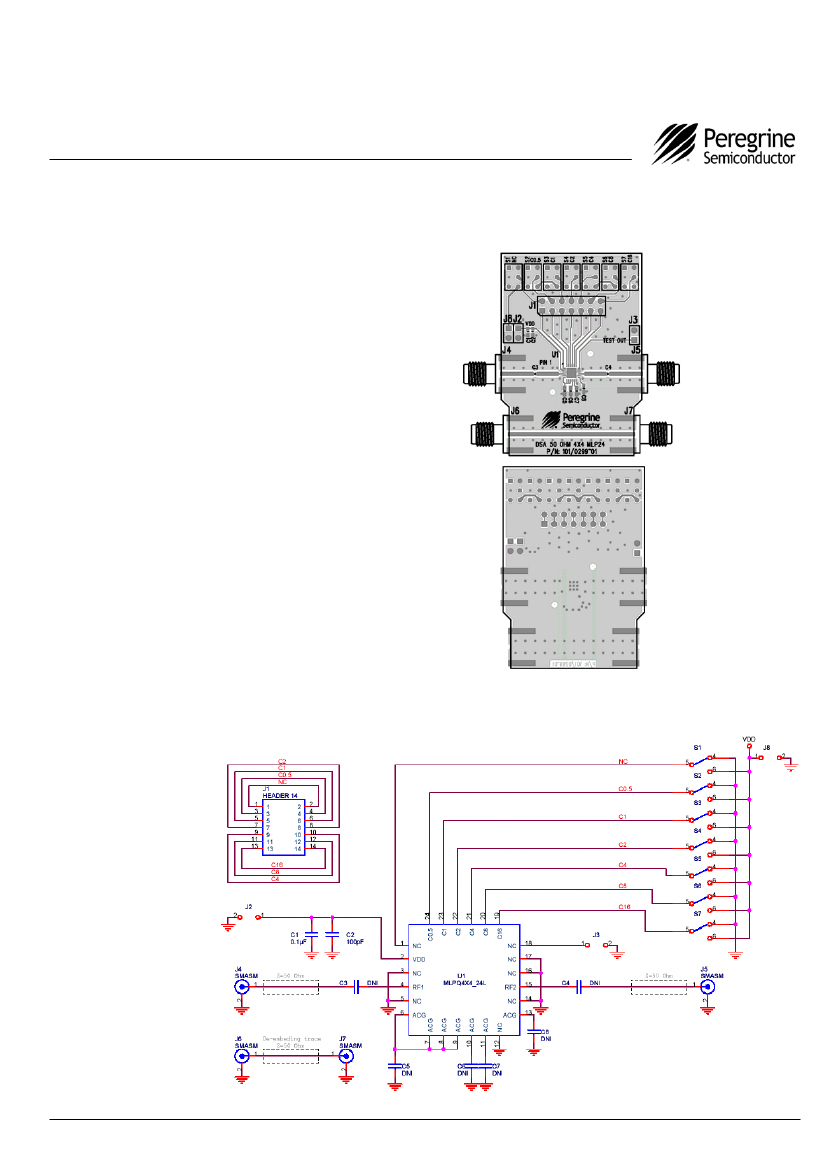

PE4309
Product Description
This product is a high linearity, 6-bit RF Digital Step Attenuator
(DSA) covering a 31.5 dB attenuation range in 0.5 dB steps.
The Peregrine 50Ω RF DSA provides a parallel CMOS control
interface and it operates on 3-volt to 5-volt supply. It maintains
high attenuation accuracy over frequency and temperature and
exhibits very low insertion loss and low power consumption.
This Peregrine DSA is available in a 4x4 mm 24 lead QFN
footprint with an exposed ground paddle.
The PE4309 is manufactured on Peregrine’s UltraCMOS™
process, a patented variation of silicon-on-insulator (SOI)
technology on a sapphire substrate, offering the performance
of GaAs with the economy and integration of conventional
CMOS.
50
RF Digital Attenuator
6-bit, 31.5 dB, DC-4.0 GHz
Features
Best in class 2.0 kV HBM ESD tolerance
Low Insertion Loss: 1.6 dB typical
Attenuation: 0.5 dB steps to 31.5 dB
High Linearity: Typical 52 dB IP3
Best in Class Attenuation accuracy
Parallel programming interface
Single supply, 3V to 5V operation
Standard 3V or 5V CMOS control logic
independent of supply voltage
Very low power consumption
RoHS-compliant 24-lead 4x4 mm QFN

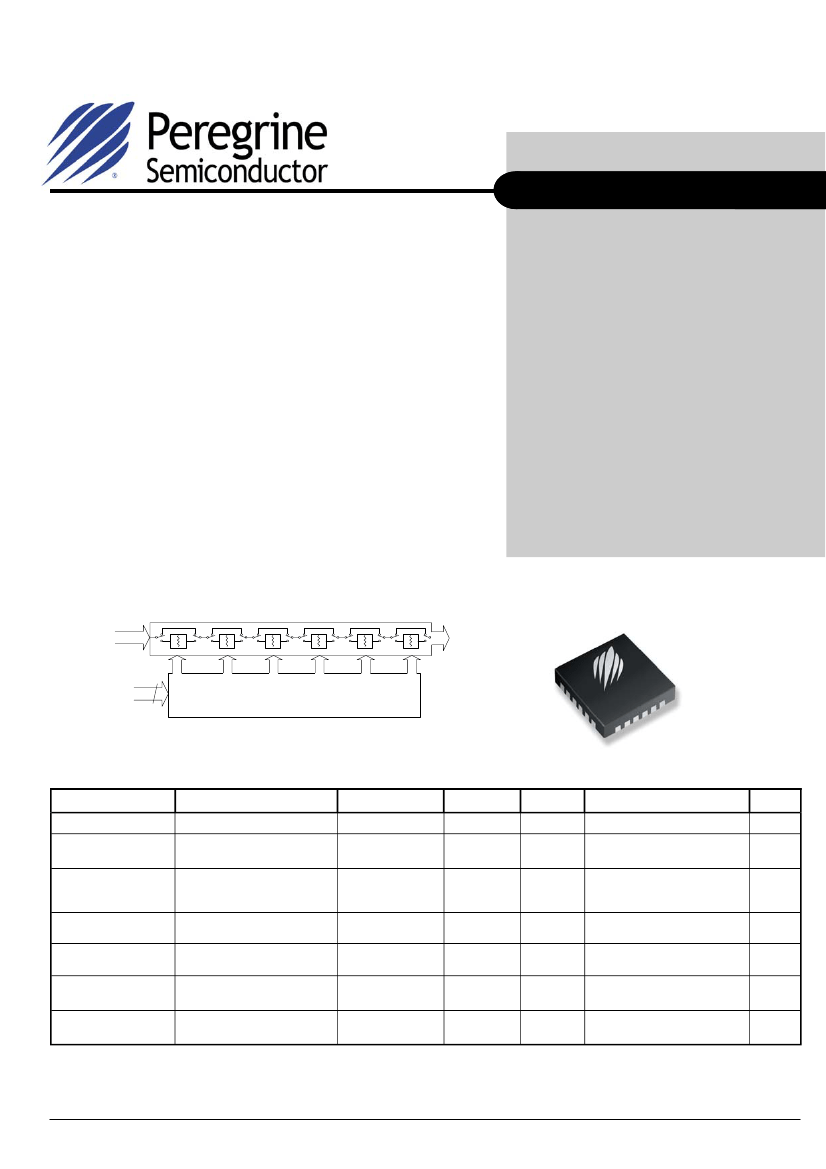

Figure 1. Functional Schematic Diagram
Switched Attenuator Array
RF Input
RF Output

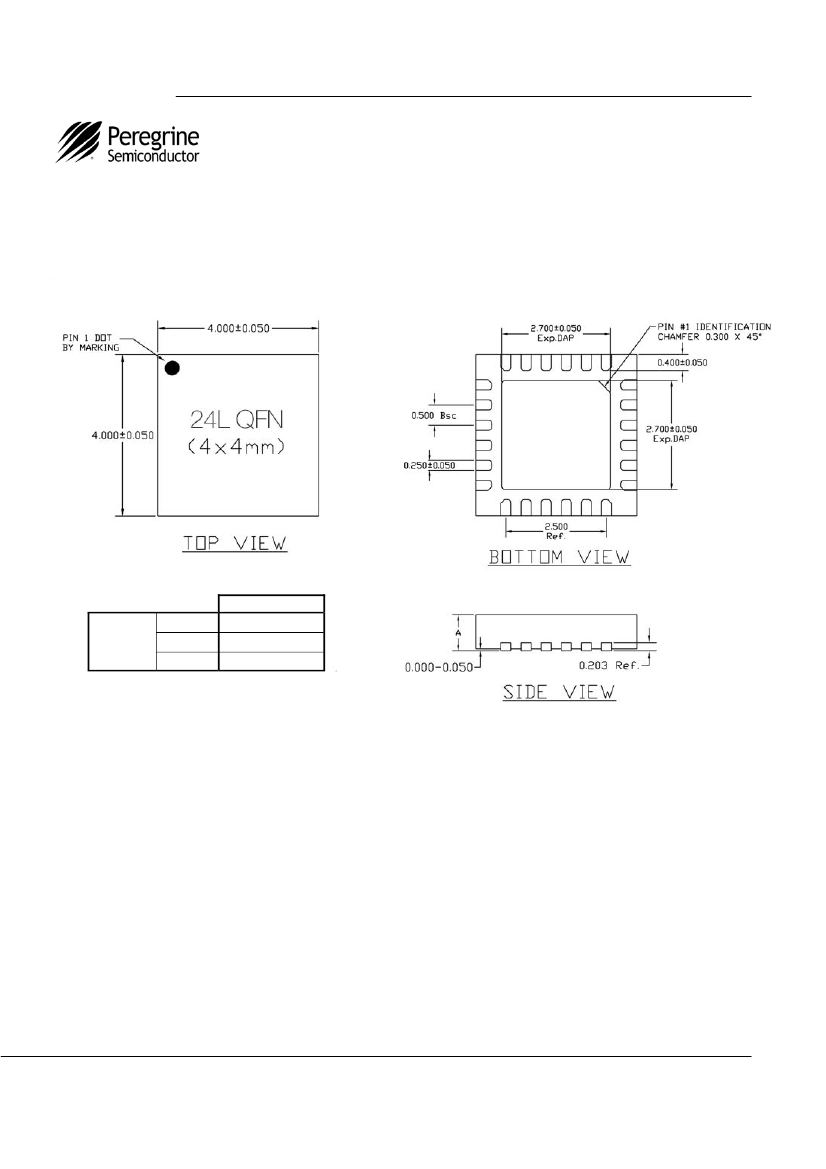

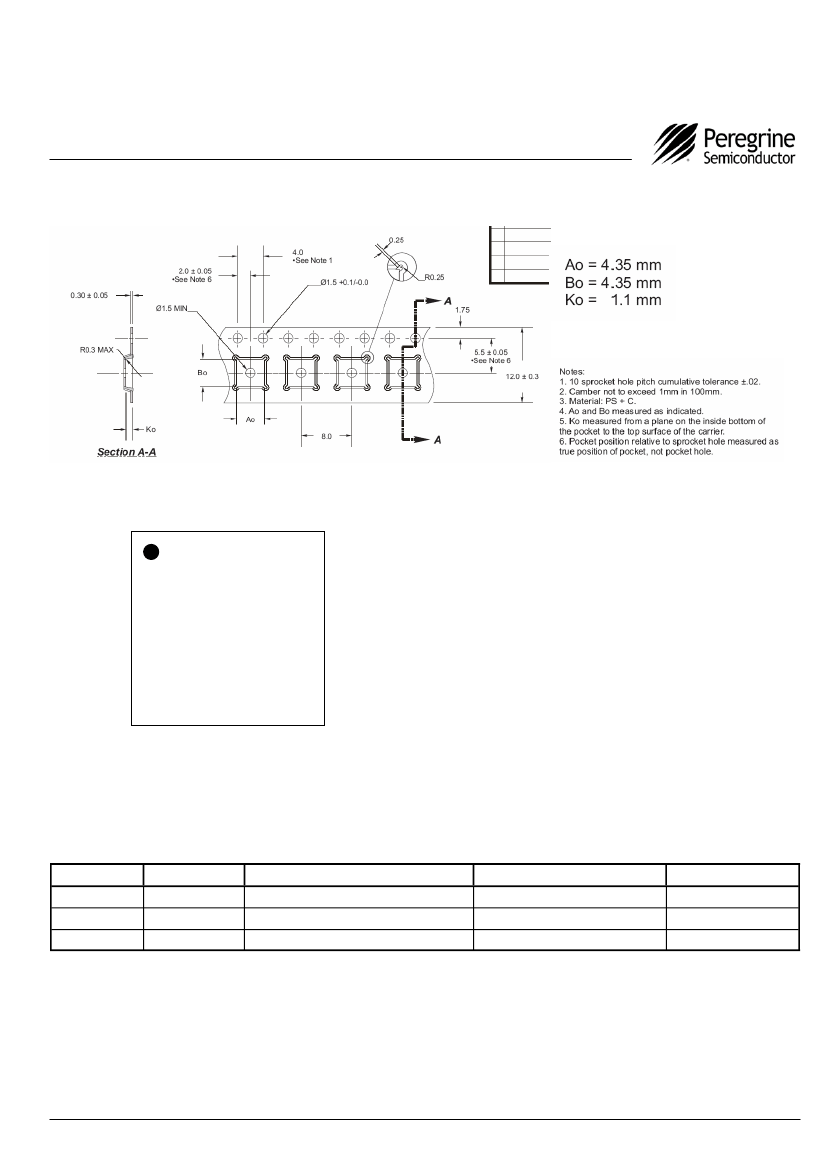

Figure 2. Package Type
4x4 mm 24-Lead QFN
Parallel Control
6
Control Logic Interface
Table 1. Electrical Specifications @ +25°C, V
DD
= 3.0 V - 5.0 V
Parameter
Operation Frequency
Insertion Loss
DC - 2.2 GHz
2.2 - 4.0 GHz
Any Bit or Bit Combination
DC
1.0 GHz
1.0 < 2.8 GHz
2.8 - 3.8 GHz
1 MHz - 2.2 GHz
2.2 - 4.0 GHz
Two-tone inputs +18 dBm
1 MHz - 2.2 GHz
DC - 2.2 GHz
2.2 - 4.0 GHz
50% of control voltage to
90% of final attenuation level
-
-
Test Conditions
Frequency
Minimum
DC
-
Typical
Maximum
4000
Units
MHz
dB
dB
1.6
2.2
-
32
30
52
20
15
-
-
1
±(0.10 + 3% of atten setting)
±(0.15 + 4% of atten setting)
±(0.20 + 5% of atten setting)
-
Attenuation Accuracy
1 dB Compression
2
Input IP3
1
Return Loss
Switching Speed
-
dB
dB
dB
dBm
dBm
dBm
dB
dB
µs
Notes: 1. Device Linearity will begin to degrade below 1 Mhz
2. Note Absolute Maximum in Table 4.
Document No. 70-0218-01
www.psemi.com
©2006 Peregrine Semiconductor Corp. All rights reserved.
Page 1 of 6
