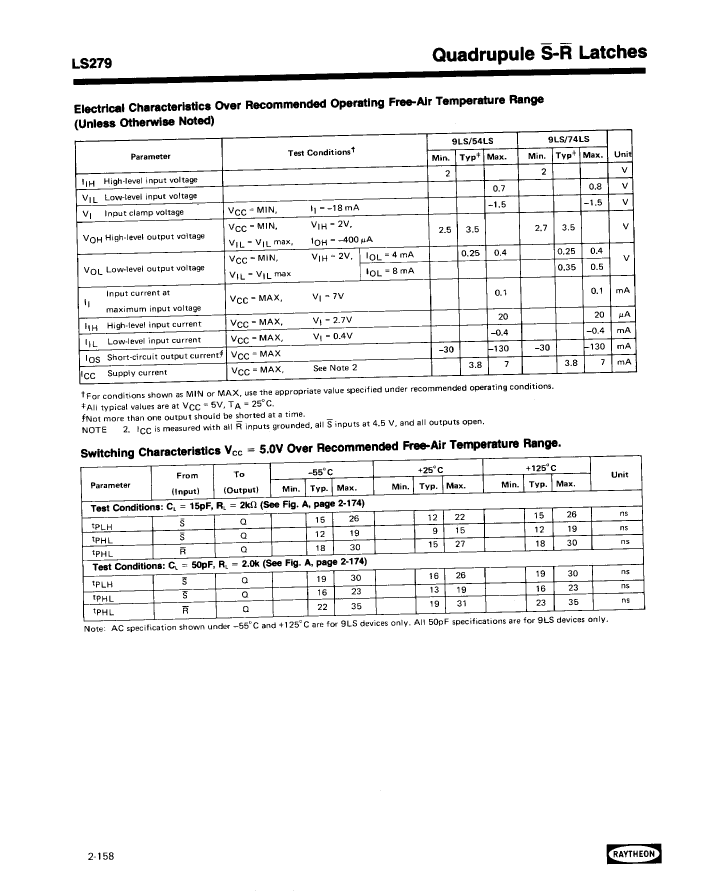

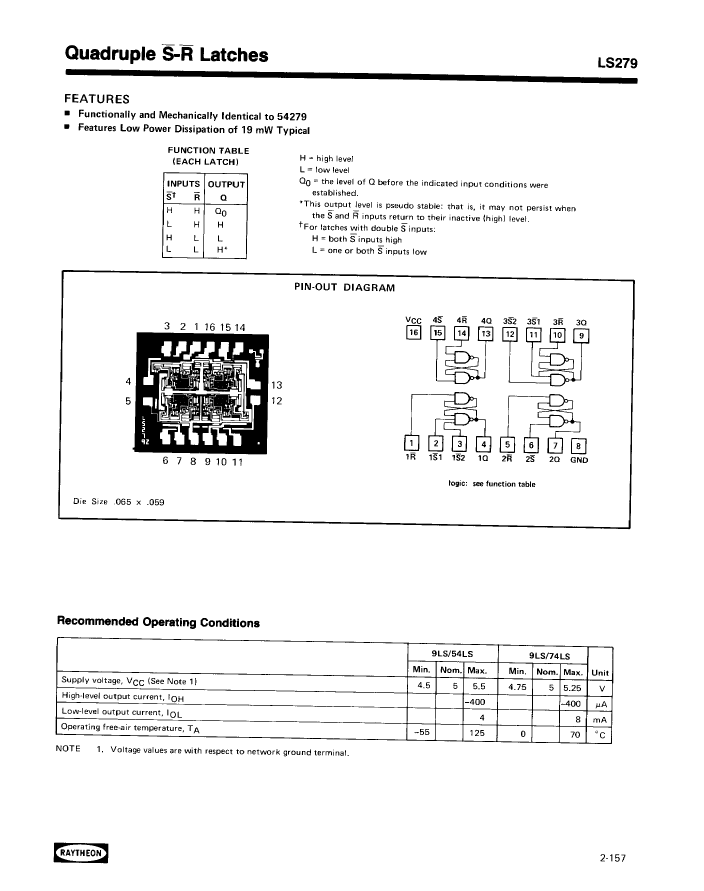

R-S Latch, 4-Func, 1-Bit, TTL, CDIP16,
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Raytheon Company |
| Reach Compliance Code | unknown |
| JESD-30 code | R-XDIP-T16 |
| JESD-609 code | e0 |
| Logic integrated circuit type | R-S LATCH |
| Number of digits | 1 |
| Number of functions | 4 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| 54LS279J03 | 54LS279J | 54LS279W | 54LS279W03 | 74LS279NA+1 | 74LS279N | 74LS279NA+2 | |
|---|---|---|---|---|---|---|---|
| Description | R-S Latch, 4-Func, 1-Bit, TTL, CDIP16, | R-S Latch, 4-Func, 1-Bit, TTL, CDIP16, | R-S Latch, 4-Func, 1-Bit, TTL, CDFP16, | R-S Latch, 4-Func, 1-Bit, TTL, CDFP16, | R-S Latch, 4-Func, 1-Bit, TTL, PDIP16, | R-S Latch, 4-Func, 1-Bit, TTL, PDIP16, | R-S Latch, 4-Func, 1-Bit, TTL, PDIP16, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company | Raytheon Company |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| JESD-30 code | R-XDIP-T16 | R-XDIP-T16 | R-XDFP-F16 | R-XDFP-F16 | - | R-PDIP-T16 | R-PDIP-T16 |
| JESD-609 code | e0 | e0 | e0 | e0 | - | e0 | e0 |
| Logic integrated circuit type | R-S LATCH | R-S LATCH | R-S LATCH | R-S LATCH | - | R-S LATCH | R-S LATCH |
| Number of digits | 1 | 1 | 1 | 1 | - | 1 | 1 |
| Number of functions | 4 | 4 | 4 | 4 | - | 4 | 4 |
| Number of terminals | 16 | 16 | 16 | 16 | - | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | - | 70 °C | 70 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | - | - | - |
| Package body material | CERAMIC | CERAMIC | CERAMIC | CERAMIC | - | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | DFP | DFP | - | DIP | DIP |
| Encapsulate equivalent code | DIP16,.3 | DIP16,.3 | FL16,.3 | FL16,.3 | - | DIP16,.3 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | FLATPACK | FLATPACK | - | IN-LINE | IN-LINE |
| power supply | 5 V | 5 V | 5 V | 5 V | - | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified | - |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | - | 5 V | 5 V |
| surface mount | NO | NO | YES | YES | - | NO | NO |
| technology | TTL | TTL | TTL | TTL | - | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | - | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | FLAT | FLAT | - | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm | - | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | - | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | - | - | - |
