8857-3-15-01-32-14-04-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 8857-3-15-01-32-14-04-0

Preview

8857-3-15-01-32-14-04-0: DescriptionCircuit Board Hardware - PCB; CategoryThe connector terminals; File Size717KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

8857-3-15-01-32-14-04-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8857-3-15-01-32-14-04-0	-	-	View	Buy Now

8857-3-15-01-32-14-04-0 Overview

Circuit Board Hardware - PCB

8857-3-15-01-32-14-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	8857
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

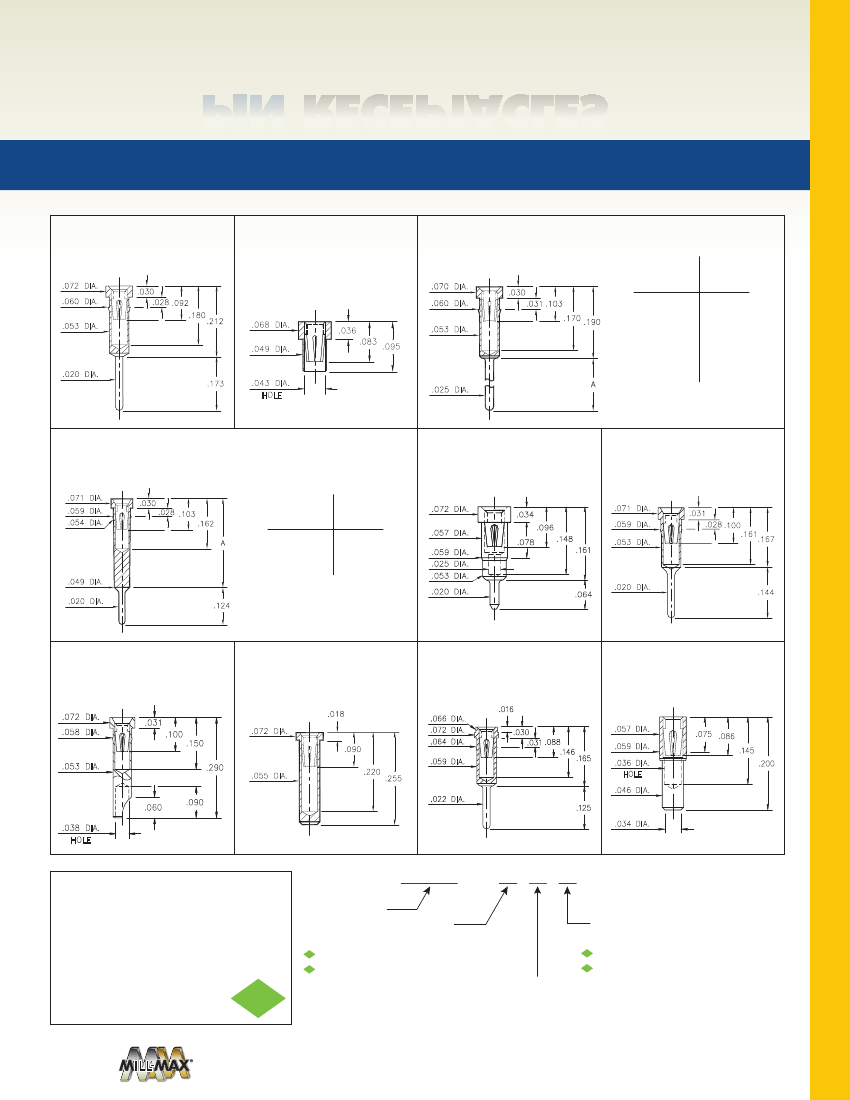

RECEPTACLES

FOR .015” - .025” DIAMETER PINS

8964

.072 DIA.

.060 DIA.

.053 DIA.

8964-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

.030

.028 .092

.180

.212

5342

5342-0-15-XX-35-XX-10-0

8857

.070 DIA.

.060 DIA.

Solder mount in .051 min. mounting hole

Also available on 8mm wide carrier tape:

6,000 parts per 13” reel

Order as: 5342-0-57-XX-35-XX-10-0

8857-X-15-XX-32-XX-04-0

Press-fit in .057 mounting hole

.030

.031 .103

.170

.190

Basic Part

Number

Length

A

.068 DIA.

.049 DIA.

.036

.083

.095

.053 DIA.

.020 DIA.

.173

8857-0

8857-1

8857-2

8857-3

8857-4

.311

.448

.589

.731

.871

.043 DIA.

HOLE

.025 DIA.

A

8862/8877

.071 DIA.

.059 DIA.

.054 DIA.

.030

88XX-0-15-XX-30-XX-04-0

Press-fit in .056 mounting hole

1334

Basic Part

Number

A

1334-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

8855

.071 DIA.

8855-0-15-XX-30-XX-34-0

Press-fit in .057 mounting hole

.028 .103

.162

Length

A

.072 DIA.

.057 DIA.

.034

.096

.078

.148

.161

.031

.028 .100

.161

.167

.059 DIA.

.053 DIA.

8862-0

8877-0

.300

.350

.059 DIA.

.025 DIA.

.053 DIA.

.020 DIA.

.049 DIA.

.020 DIA.

.124

.064

.020 DIA.

.144

2954

.072 DIA.

.058 DIA.

2954-0-18-XX-30-XX-10-0

Press-fit in .057 mounting hole

Accepts wire sizes up to .028” dia.

.031

.100

.150

.290

9363

9363-0-15-XX-35-XX-10-0

Solder mount in .057 min. mounting hole

.018

.072 DIA.

.090

.055 DIA.

.220

1023

.066 DIA.

.072 DIA.

.064 DIA.

.059 DIA.

.255

1023-0-15-XX-30-XX-04-0

Press-fit in .061 mounting hole

.016

.030

.031 .088

.146

1701

1701-0-15-XX-30-XX-10-0

Press-fit in .057 mounting hole

.057 DIA.

.059 DIA.

.165

.075 .086

.145

.200

.053 DIA.

.036 DIA.

HOLE

.046 DIA.

.060

.038 DIA.

HOLE

.090

.022 DIA.

.125

.034 DIA.

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths:

± .005

2011/65/EU

ORDER CODE: XXXX - X - XX - XX -

XX

- XX - 10 - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200

μ”

TIN/LEAD OVER NICKEL

80

200

μ”

TIN OVER NICKEL (RoHS)

15

10

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

02

100

μ”

TIN/LEAD OVER NICKEL

84

100

μ”

TIN OVER NICKEL (RoHS)

27

30

μ”

GOLD OVER NICKEL (RoHS)

Diameters: ± .002

Angles:

±2°

RoHS - 2

SELECT CONTACT:

#30, #32 or #35

CONTACT (DATA ON PAGE 253 & 254)

(For alternate contact choices, see groups B and C on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 171 | PIN RECEPTACLES
