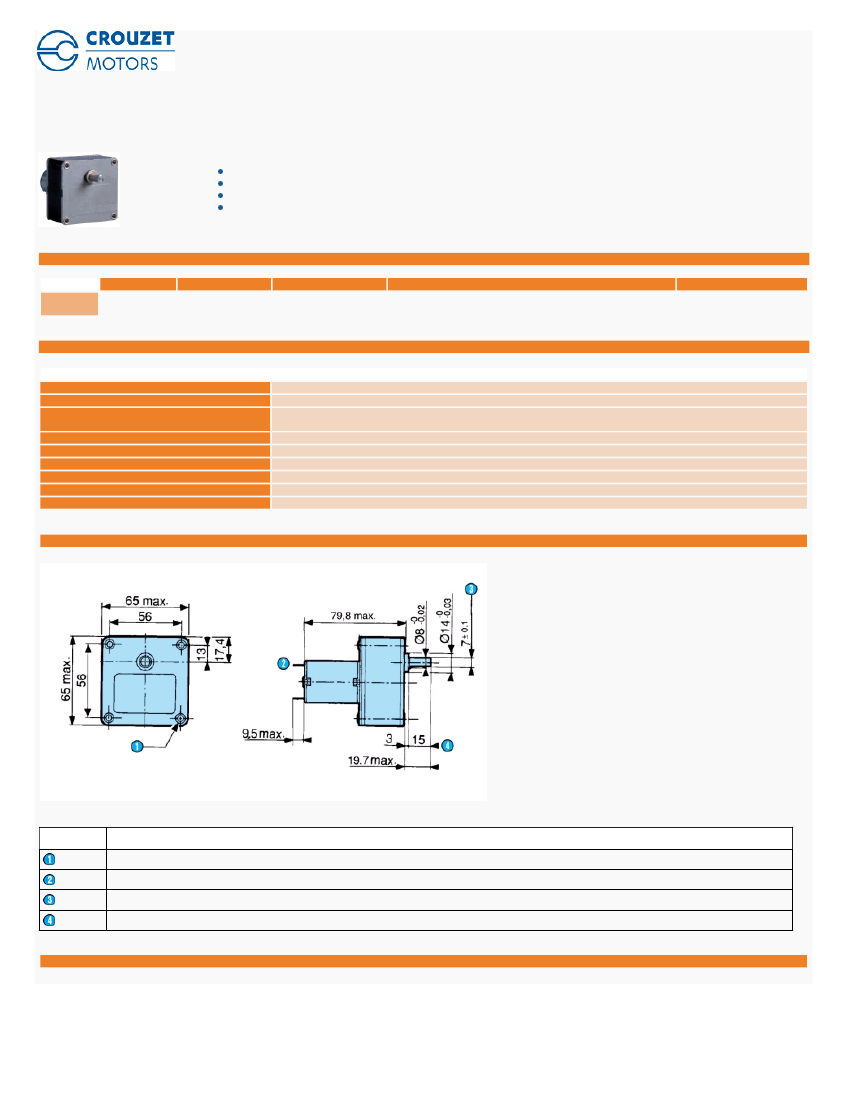

02/11/2015
www.crouzet.com
5 Nm RC65 3.9 Watts 3.9 W Part number made to order
Torque rating of gearboxes : 5 Nm, metal gears
Motors : nominal power 3 W / interference suppression for standard stocked products
Speed range : 1.7 to 344 rpm
Optional encoder built into the motor
Part numbers
Type
MADE TO
ORDER
3.9 W
Type
828670
Voltage
24 V
Output speed (rpm)
1,72
Ratios (i)
2500
Specifications
General characteristics
Motor
Gearbox
Maximum permitted torque from gearmotor under
continuous conditions for 1 million turns (Nm)
Axial load dynamic (daN)
Radial load dynamic (daN)
Max. output power (W)
Nominal output (W)
Gearbox case temperature rise (°C)
Weight (g)
828600
810370
5
2
3
3,9
3
50
465
Dimensions (mm)
828670
N
o
Legend
4 fixing holes Ø M4 x 12
2 standard tags NFC 20-120, series 2.8 x 0.5 mm
7 ± 0.1 across flats
Shaft pushed-in

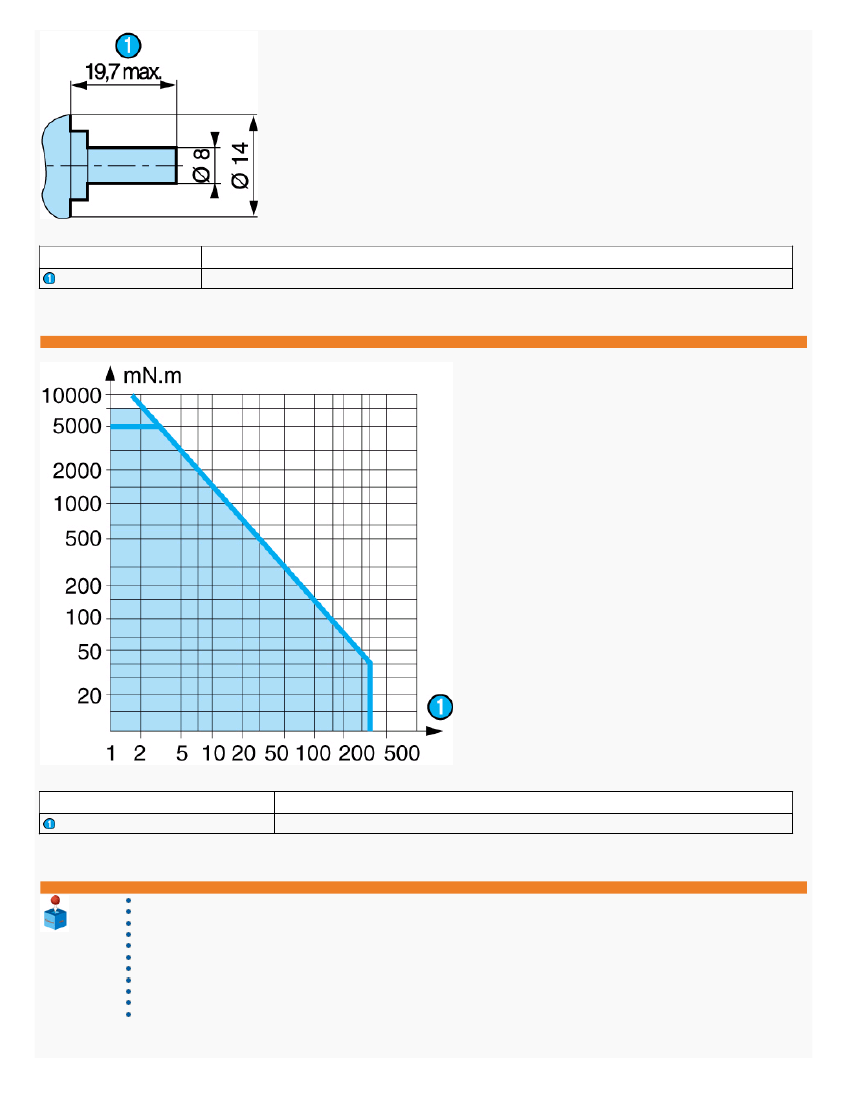

Dimensions (mm)
Shaft 79206478
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
N
o
Legend
Shaft pushed-in
Curves
Curve : torque/nominal speed
N
o
Legend
rpm
Product adaptations
Special supply voltage
Lead output
1 or 5 pulse Hall effect encoder
Special connectors
Special shaft
Special reduction ratio (40 ratios available from 4 to 3750)
Special materials for gears
Special ball bearings
Special adaptor plate
EMC filter
With shorter 1 W motor
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
