X-2629-TWT-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> X-2629-TWT-R

X-2629-TWT-R: DescriptionAudio Indicators & Alerts 107dBA 2900Hz 12Vdc; CategoryTopical application Mechanical and electrical/engineering/automation; File Size201KB，1 Pages; ManufacturerProjects Unlimited, Inc.; Websitehttp://www.pui.com/

Download Datasheet Parametric View All

X-2629-TWT-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	X-2629-TWT-R	-	-	View	Buy Now

X-2629-TWT-R Overview

Audio Indicators & Alerts 107dBA 2900Hz 12Vdc

X-2629-TWT-R Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Projects Unlimited, Inc.
Product Category	Audio Indicators & Alerts
RoHS	Details
Product	Indicators
Sound Pressure Level	107 dBA
Tone	Continuous
Frequency	2.9 kHz
Voltage Rating	12 VDC
Current Rating	35 mA
Mounting	Through Hole
Dimensions	26 mm L x 25 mm W x 22.8 mm H
Height	22.8 mm
Length	26 mm
Packaging	Bulk
Width	25 mm
Height - in	0.898 in
Height - mm	22.8 mm
Length - in	1.024 in
Length - mm	26 mm
Factory Pack Quantity	99
Width - in	0.984 in
Width - mm	25 mm

Preview

Download Datasheet

View All

SPECIFICATIONS

PARAMETERS

RATED VOLTAGE

OPERATING VOLTAGE RANGE

RATED CURRENT (MAX)

MINIMUM SPL @ 10 CM

RESONANT FREQUENCY

TONE OR PULSE RATE

OPERATING TEMPERATURE

STORAGE TEMPERATURE

HOUSING MATERIAL

TERMINAL MATERIAL

WEIGHT

VALUES

5 ~ 14

107

2,900 ± 500

CONTINUOUS

-40 ~ +85

Sn PLATED COPPER

UNITS

Vdc

dBA

0 pulse /sec

°C

grams

THIS DOCUMENT CONTAINS DATA

PROPRIETARY TO PROJECTS UNLIMITED, INC.

ANY USE OR REPRODUCTION, IN ANY FORM,

WITHOUT PRIOR WRITTEN PERMISSION OF

PROJECTS UNLIMITED, INC. IS PROHIBITED.

LTR

REVISION HISTORY

DESCRIPTION

RELEASED FROM ENGINEERING

REVISED STORAGE & OPERATING TEMPERATURES

ADDED POSITIVE TERMINAL INDICATOR

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

DATE

12/28/2007

10/23/2006

1/14/2008

4/27/2010

APPROVED

B.R.

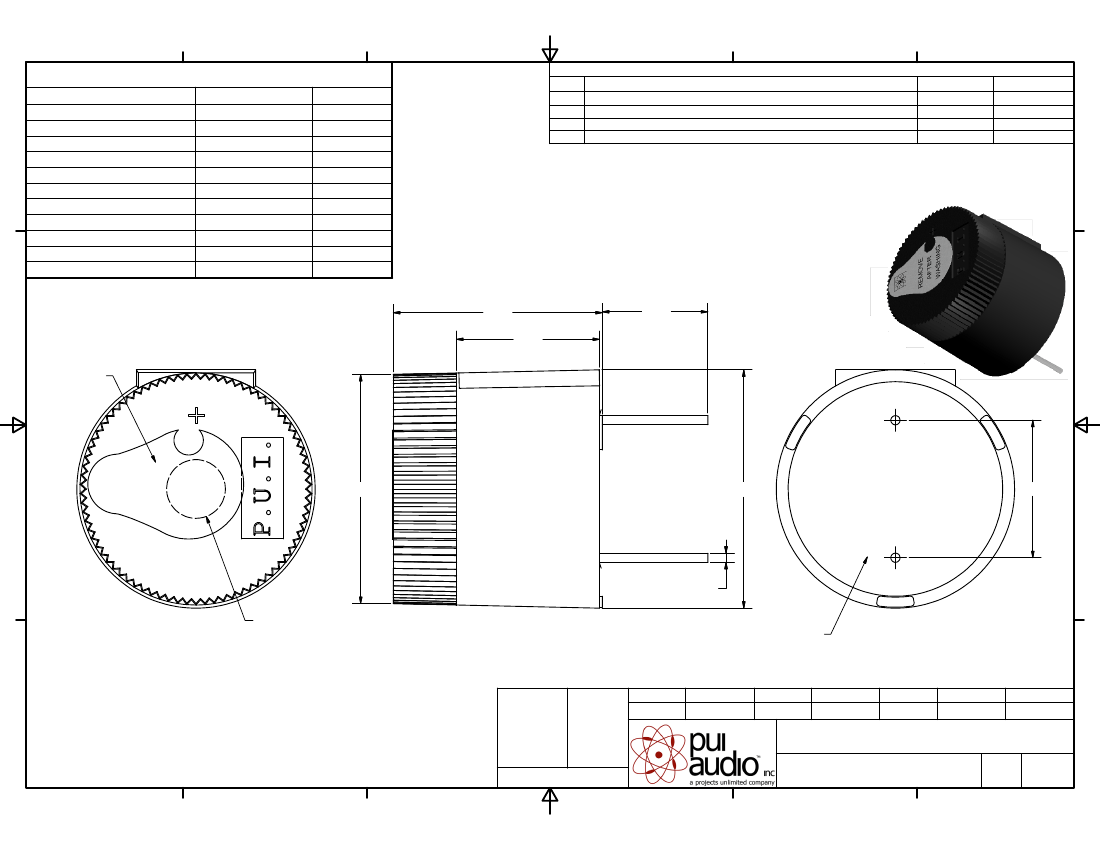

22.8

15.6

WASH TAB

11.5

Ø25

Ø26

0.1 (2)

6.4 SOUND

EMISSION HOLE

POTTING

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

Date

Checked by

Date

Approved by

Date

Drawn Date

SIZE

J.A.F.

1/26/2006

E.P.

1/26/2006

B.R.

1/26/2006 4/27/2010

X-2629-TWT-R

Indicator

Edition

Sheet

X-2629-TWT-R.idw

1/1
