NOTES:
1) DRAWINGS IN ACCORDANCE WITH STANDARD ANSI Y14.5M-1994.
2) UNTOLERANCED DIMENSIONS LOCATING TRUE POSITION ARE BASIC.
3) THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND IS COPYRIGHTED. EXCEPT WITH THE WRITTEN
PERMISSION OF SPECTRUM CONTROL, INC. OR ITS SUBSIDIARIES, SUCH INFORMATION SHALL NOT BE
PUBLISHED OR DISCLOSED TO OTHERS, OR USED FOR ANY PURPOSE AND THIS DOCUMENT SHALL NOT BE
DUPLICATED IN WHOLE OR IN PART.
4) MATERIALS: STAINLESS STEEL, PASSIVATED, SAND-BLASTED.
5) FINISH: NONE.
6) ALL STAINLESS MATERIAL SHALL BE IN ACCORDANCE WITH SAE AMS 5639, OR TYPE 304 CONDITION B,
02
HARDENED IN ACCORDANCE WITH SAE AMS-QQ-S-763, OR TYPE 303 CONDITION A, COLD ROLLED ANNEALED
IN ACCORDANCE WITH ASTM A582.
.100
Ø.750
.139 (6X)
.625-24 UNEF
.050 (6X)
CHANGE NOTICE REV
NO
CN 35240-ENG
CN 33608-CPD
CN 31108-CPD
UNLESS OTHERWISE
SPECIFIED
DIMENSIONS ARE IN
INCHES
TOLERANCES UNLESS
OTHERWISE SPECIFIED
02
01
00
DO NOT SCALE
THIRD ANGLE
PROJECTION
DECIMAL .X ± .030
DECIMAL .XX ± .010
DECIMAL .XXX ± .003
ANGLES ± 0° 30'
CODE IDENT. NUMBER
0LSP2
SPECTRUM CONTROL INC.
DWN.
DATE
FAIRVIEW
PENNSYLVANIA
D. REILLY
06-11-07

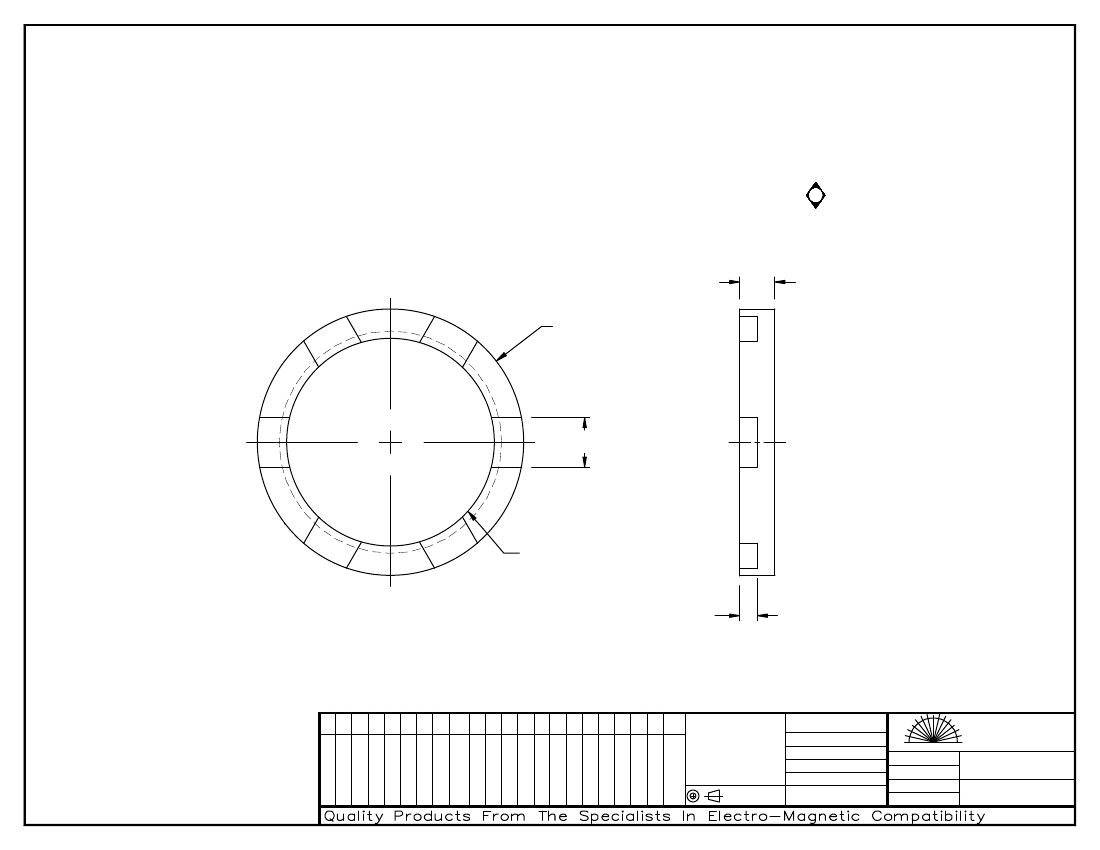

DESCRIPTION:
PANEL NUT
ENGR. D. REILLY
SHEET 1 OF 1
24-0058-0320
