Switching Mode Power Supply
ZEN-PA03024
CSM_ZEN-PA03024_DS_E_3_1
New Compact Power Supply (30 W) for ZEN
Programmable Relays
• Slim size with a depth of 56 mm (W
×
H
×
D: 70
×
90
×
56 mm).
• EMI: Conforms to EN61000-6-3 (Class B).
• Allows parallel operation.
• Safety standards: UL508/UL60950-1/UL1604,
CSA C22.2 No. 14/No.60950-1/
No.213 (Evaluated by UL),
EN60950-1 (VDE 0805 Teil 1),
EN50178 (VDE0160)
• Output voltage: 24 VDC; Output current: 1.3 A; Capacity: 30 W
• Uses lead-free soldering.
Refer to
Safety Precautions
on page 6
Model Number Structure
■
Model Number Legend
ZEN-PA 030 24
1
2
3
1. Unit
PA: Power supply unit
2. Power Ratings
030: 30 W
3. Output voltage
24: 24 V
Ordering Information
■
List of Models
Power ratings
30 W
Input voltage
100 to 240 VAC
Output voltage
24 VDC
1.3 A
Output current
Model number
ZEN-PA03024
■
Accessories (Order Separately)
Name
Mounting Track
50 cm (l)
×
7.3 mm (t)
1 m (l)
×
7.3 mm (t)
1 m (l)
×
16 mm (t)
End Plate
Spacer
PFP-50N
PFP-100N
PFP-100N2
PFP-M
PFP-S
Models
1
ZEN-PA03024
Specifications
■
Ratings/Characteristics
Efficiency (typical)
Input
Voltage
Frequency
Current
Leakage current
100 VAC input
200 VAC input
100 VAC input
200 VAC input
Inrush current (See note 2.) 100 VAC input
200 VAC input
Output
Voltage adjustment range (See note 3.)
Ripple
Input variation influence
Temperature variation influence
Start up time (See note 2.)
Hold time (See note 2.)
Additional
functions
Overload protection (See note 2.)
Parallel operation
Series operation
Others
Ambient temperature
80% min.
100 to 240 VAC (85 to 264 VAC),
95 to 350 VDC (See note 1.)
50/60 Hz (47 to 450 Hz)
0.8 A max.
0.45 A max.
0.4 mA max.
0.75 mA max.
25 A max.
50 A max.
−10
to 15% (with V.ADJ) of rated output voltage
2% (p-p) max. (−25 to
−10°C:
4% max.)
0.5% max.
0.05%/°C max.
1,000 ms max. (100 VAC or 200 VAC, at rated output voltage)
15 ms min., 20 ms (typical) (100 VAC or 200 VAC, at rated output voltage)
105% to 135% of rated load current, inverted L drop, intermittent, automatic reset
Yes (2 units max. For details, refer to the derating curve in
Engineering Data
on page
4. For DC input, parallel operation is possible only for 110 to 350 VDC.)
No
Operating: Refer to the derating curve in
Engineering Data
on page 4. (with no icing
or condensation)
Storage:
−25
to 75°C (with no icing or condensation)
Operating: 10 to 90%
Storage: 10 to 90%
DIN track mounting, surface mounting
2.0 kVAC for 1 min. (between all inputs and exposed non-current-carrying metal parts;
detection current: 10 mA max.)
3.0 kVAC for 1 min. (between all inputs and all outputs; detection current: 20 mA max.)
1.0 kVAC for 1 min. (between all outputs and non-current-carrying metal parts;
detection current: 10 mA max.)
100 MΩ min. (between all outputs and all inputs/exposed non-current-carrying metal
parts) at 500 VDC
10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z direction
300 m/s
2
, 3 times each in
±X, ±Y, ±Z
directions
Yes (color: green)
Conducted
emissions
Radiated
emissions
Approved standards
Conforms to EN61000-6-3 (Class B)
Conforms to EN61000-6-3 (Class B)
UL: UL508 (listing, Class 2: Per UL1310), UL60950-1, UL1604 (Class I/Division 2)
cUL: CSA C22.2 No. 14 (listing, Class2: Per CSA C22.2 No. 223), CSA C22.2 No. 213
(Class I/Division 2)
cUR: CSA C22.2 No.60950-1
EN/VDE: EN60950-1 (=VDE 0805 Teil 1), EN50178 (=VDE 0160)
240 g max.
Load variation influence (rated input voltage) 1.5% max.
Ambient humidity
Mounting method
Dielectric strength
Insulation resistance
Vibration resistance
Shock resistance
Output indicator
EMI
Weight
Note: 1.
This product has been approved for safety standards only when an AC input is used. It has not been approved when a DC input is used.
2.
Refer to the Engineering Data section on page 4 for details.
3.
If the V. ADJ adjuster is turned, the voltage will increase by more than 15% of the voltage adjustment range.
Check the output voltage of the power supply when converting the output voltage, and make sure that the load will not be damaged.
2
ZEN-PA03024
Connections
■
Block Diagram
ZEN-PA03024
Fuse 2A
L1
INPUT
L2/N
Rectifier/
Inrush current
protection circuit smoothing
circuit
Rectifier/
smoothing
circuit
+V
Noise filter
DC OUTPUT
−V
Drive control
circuit
Overcurrent
circuit
Current
detection circuit
Overvoltage
detection circuit
Photocoupler
Note:
The Power Supply is provided with reinforced insulation between the input and output terminals.
■
Installation
No.
1
Name
AC input terminal (L1)
Function
Connect the input line to this termi-
nal. A fuse is included in the cir-
cuit.
2
3
4
5
6
AC input terminal (L2/N)
Connect the input line to this termi-
nal. Negative pole for DC input.
DC output terminals (+V)
Connect the load lines to these ter-
minals.
DC output terminals (−V)
Connect the load lines to these ter-
minals.
Output indicator
(DC ON: Green)
Lights while a direct current (DC)
output is ON.
Output voltage adjuster
Use to adjust the voltage.
(V.ADJ)
3
ZEN-PA03024

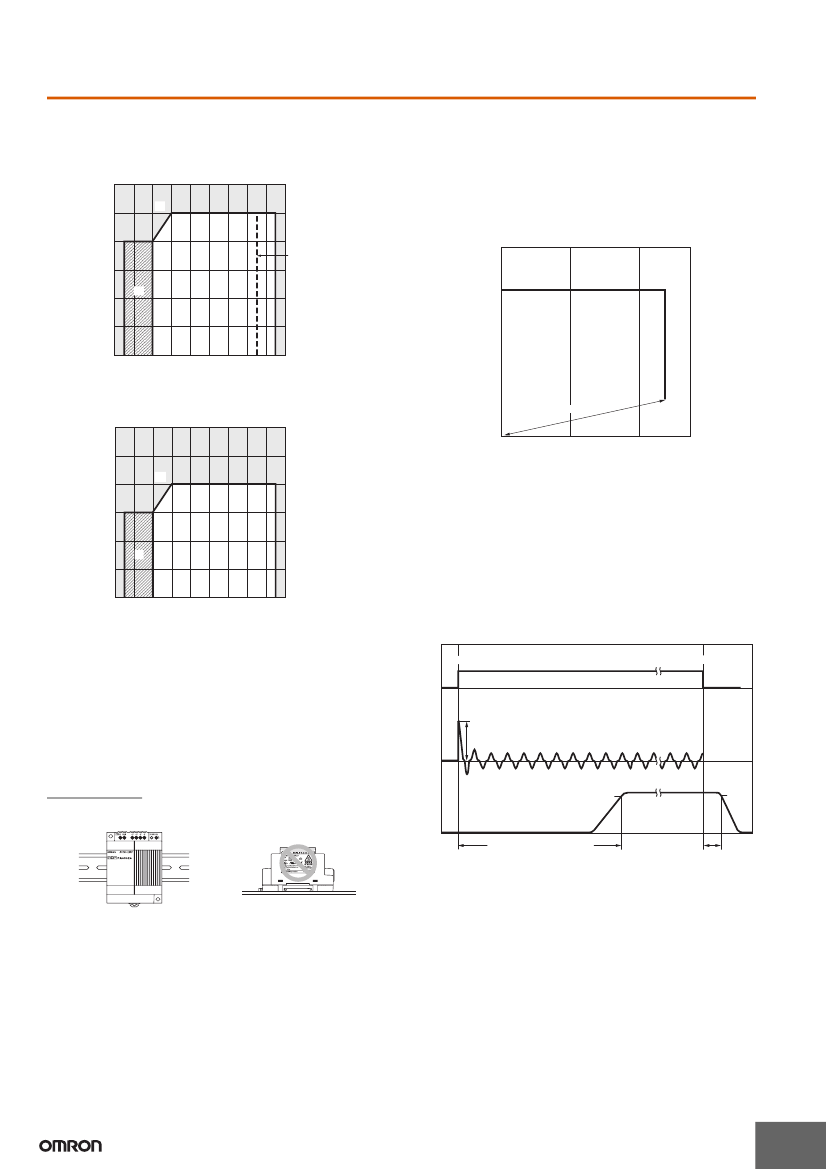

Engineering Data
■
Derating Curve
85 to 264 VAC or 110 to 350 VDC input
Load (%)
120
100
80
60
40
20
0
−30 −20 −10
−25
(2)
For parallel
operation
(See note 1.)
(1)
■
Overload Protection
The Power Supply is provided with an overload protection function
that protects the load and the power supply from possible damage by
overcurrent. When the output current rises above 105% min. of the
rated current, the protection function is triggered, decreasing the out-
put voltage. When the output current falls within the rated range, the
overload protection function is automatically cleared.
(Reference value)
Output voltage (V)
0
10
50 60
45 55
Ambient Temperature (°C)
20
30
40
95 to 110 VDC input
Load (%)
120
Intermittent operation
0
100
80
60
40
(2)
20
0
−30 −20 −10
−25
(1)
50
100
Output current (%)
The values shown in the above diagrams are for reference only.
Note: 1.
Internal parts may occasionally deteriorate or be damaged
if a short-circuited or overcurrent state continues during op-
eration.
2.
Internal parts may possibly deteriorate or be damaged if the
Power Supply is used for applications with frequent inrush
current or overloading at the load end. Do not use the Power
Supply for such applications.
0
10
50 60
55
Ambient Temperature (°C)
20
30
40
Note: 1.
The maximum ambient temperature for parallel operation is
45°C.
2.
Parallel operation is not possible for an input of 95 to
110 VDC.
3.
Although operation is possible in the (2) portion of the der-
ating curve, performance may be adversely affected, i.e.,
ripple noise may increase.
4.
Internal parts may occasionally deteriorate or be damaged.
Do not use the Power Supply in areas outside the derating
curve (i.e., the area shown by shading (1) in the above
graph).
■
Inrush Current, Start Up Time,
Hold Time
Input ON
AC input
voltage
Input OFF
Inrush current on input application
AC input
current
Installation
Correct
Incorrect
Output
voltage
Start up time (1,000 ms max.)
90%
96.5%
Hold time (15 ms min.)
Standard mounting
Face-up mounting
Note: 1.
Improper mounting will interfere with heat dissipation and
may occasionally result in deterioration or damage of inter-
nal parts. Use the standard mounting.
2.
If there is a derating problem, use forced air-cooling. The
ambient temperature is specified for a point 50 mm below
the Power Supply.
4
ZEN-PA03024

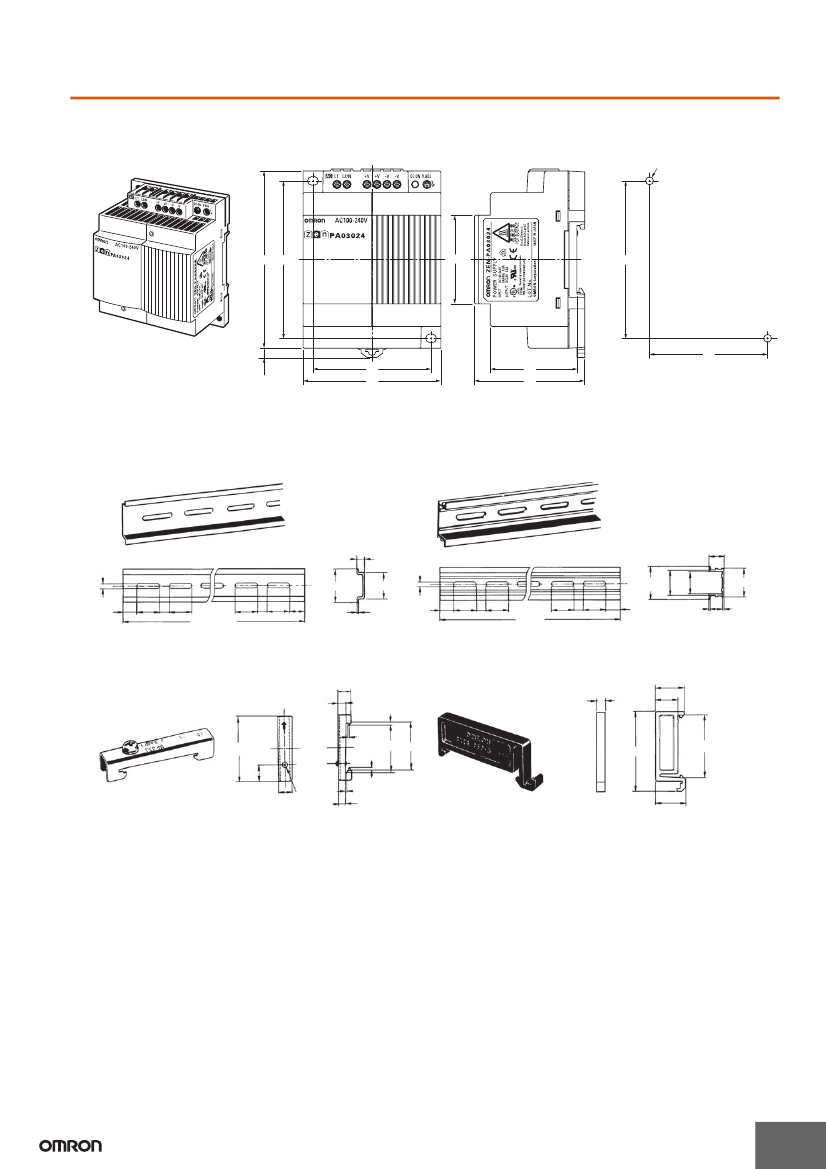

Dimensions
Note:
All units are in millimeters unless otherwise indicated.
ZEN-PA03024
Surface Mounting Holes
Two, M4
90
80
45
80
60
60
4.7
(Sliding: 13 max.)
70
44
56
■
Accessories (Order Separately)
Mounting Track
PFP-100N, PFP-50N
PFP-100N2
16
7.3±0.15
4.5
35±0.3
15 25
10
25
1,000 (500)*
25
10
25
27±0.15
1
15
25
10
25
1,000
25
10
25 15
4.5
35±0.3
27
24
1
29.2
1.5
*
The value shown in parentheses is for the PFP-50N.
End Plate
PFP-M
10
6.2
Spacer
PFP-S
1.8
5
16
12
1
50
1.8
35.5 35.3
44.3
34.8
11.5
10 M4 x 8
pan head
screw
1.3
4.8
16.5
5
