Integrated Steppers
The STM is an
integrated
Drive
+
Motor, fusing
step motor and
drive technologies
into a single device,
offering savings
on space, wiring
and cost over
conventional motor
and drive solutions.
C
C
IP
IP
C
IP
Models
C
C
IP
IP
R
▪
Pulse & direction, CW/CCW pulse
C
& direction, CW/CCW pulse, A/B
▪
Pulse
R
IP
quadrature
▪
Velocity (oscillator) mode
▪
Streaming commands (SCL compatible)
▪
ST Configurator™
software for setup
Drive
Motor
Control
C
C
IP
IP
R
C
▪
Executes stored Q programs
IP
▪
Networking with RS-485 or Ethernet
R
options
▪
▪
▪
▪
R
C
C
IP
IP
C
C
IP
IP
▪
CANopen protocols DS301 and DSP402
▪
Profile Position, Profile Velocity, and Hom-
ing
C
modes
▪
Up to 127 axes per channel
IP
▪
Executed stored Q programs
R
Conditional processing & multi-tasking
Math functions, register manipulation
Encoder following
Third-party HMI compatibility
Dynamic Current Control
Anti-Resonance
Torque Ripple Smoothing
Microstep Emulation
Stall Prevention/Detection
C
▪
EtherNet/IP industrial networking
IP
control modes as Q model
▪
Same
R
For
R
more information visit: www.applied-motion.com/STM
R
R

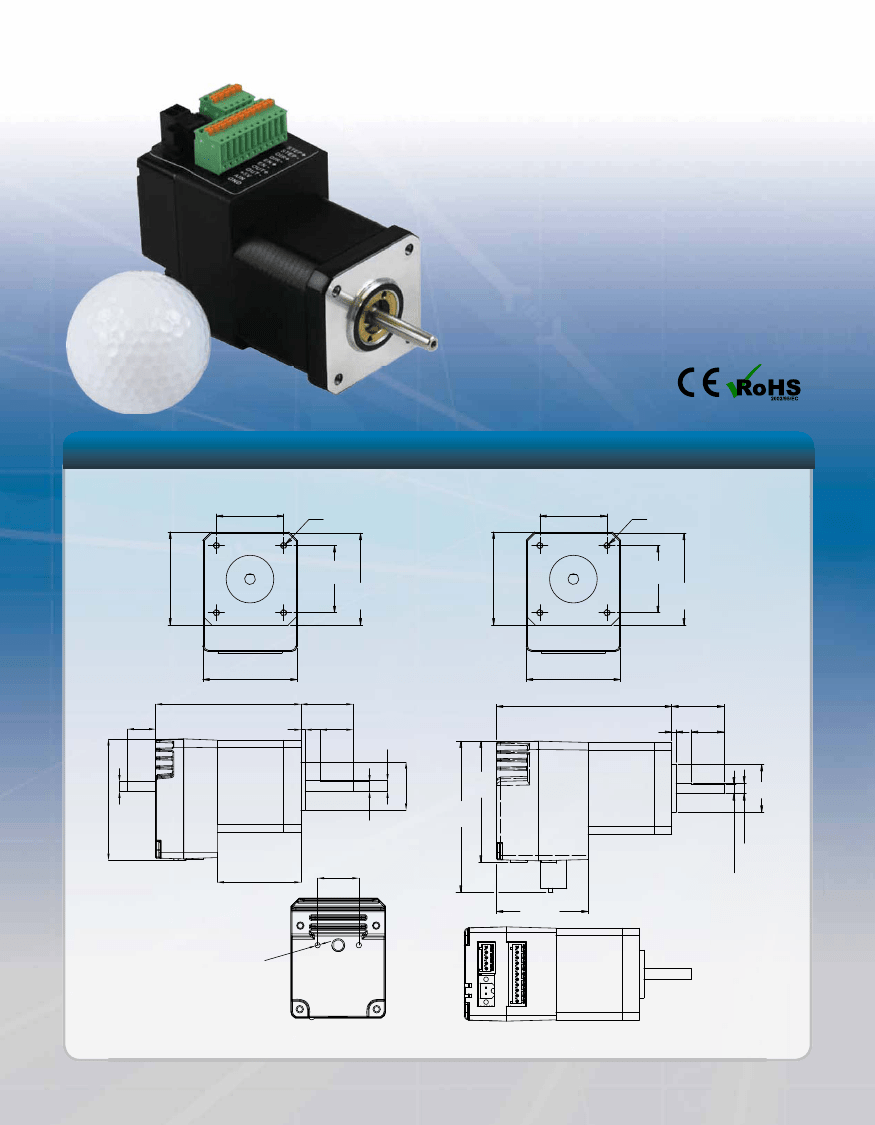

STM17 Technical Specifications
POWER AMPLIFIER:
AMPLIFIER TYPE
CURRENT CONTROL

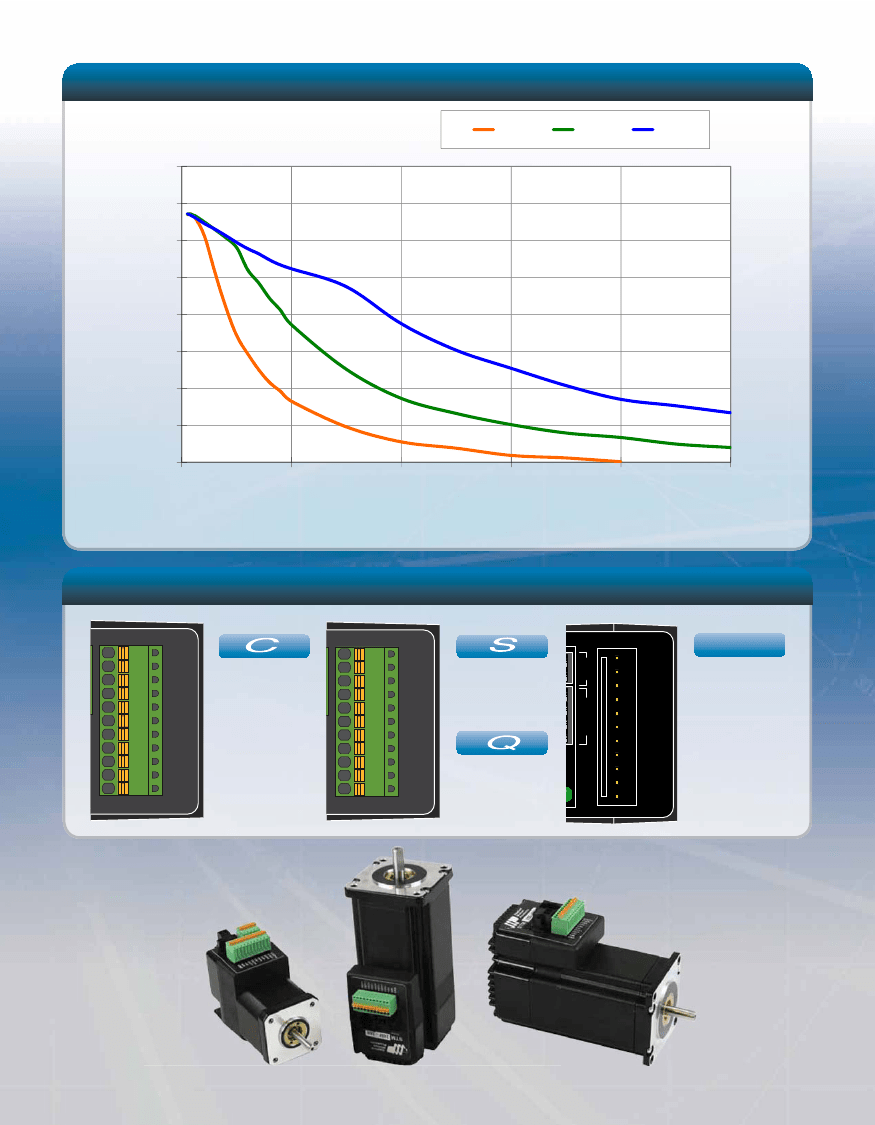

OUTPUT TORQUE
POWER SUPPLY
Dual H-bridge, 4 quadrant
4 state PWM at 16 kHz
Up to 68 oz-in with suitable power supply
External 12 - 48 VDC power supply required
Under-voltage alarm: 11 VDC
Over-voltage shutdown: 52 VDC
PROTECTION
IDLE CURRENT REDUCTION
Over-voltage, under-voltage, over-temp, motor/wiring shorts (phase-to-phase, phase-to-ground)
STM17S/Q/C:
Reduction range of 0 - 90% of running current after delay selectable in milliseconds.
STM17R:
Switch selectable 50% or 90% of running current.
CONTROLLER:
MICROSTEP RESOLUTION
STM17S/Q/C:
Software selectable from 200 to 51200 steps/rev in increments of 2 steps/rev.
STM17R:
Dip-switch selectable 200, 400, 800, 1000, 1600, 2000, 3200, 4000, 5000, 6400, 8000, 10000,
12800, 20000, 25000 or 25600 steps/rev.
Performs high resolution stepping by synthesizing fine microsteps from coarse steps (step & direction mode only)
Software configurable filtering reduces jerk and excitation of extraneous system resonances (step & direction mode)
Raises the system damping ratio to eliminate midrange instability and allow stable operation throughout the speed
range and improves settling time
Measures motor parameters and configures motor current control and anti-resonance gain settings
Checks internal & external power supply voltages, diagnoses open motor phases
Configurations are saved in flash memory on-board the DSP
STM17R:
Step & direction or CW/CCW pulse (switch selectable)
STM17S:
Step & direction, CW/CCW pulse, A/B quadrature pulse, velocity (oscillator, joystick), streaming commands
(SCL)
STM17Q:
All STM17S modes of operation plus stored Q program execution
STM17C:
CANopen slave node plus stored Q program execution
DIGITAL INPUTS
Adjustable bandwidth digital noise rejection filter on all inputs
STEP+/- (IN1+/-):
Optically isolated, 5-24 volt. Minimum pulse width = 250 ns. Maximum pulse frequency = 3 MHz.
Function: STM17R: Step, CW pulse; All others: Step, CW pulse, A quadrature (encoder following), CW limit, CW jog,
start/stop (oscillator mode), or general purpose input.
DIR+/- (IN2+/-):
Optically isolated, 5-24 volt. Minimum pulse width = 250 ns. Maximum pulse frequency = 3 MHz.
Function: STM17R: Direction, CCW pulse; All others: Direction, CCW pulse, B quadrature (encoder following), CCW
limit, CCW jog, direction (oscillator mode), or general purpose input.
EN+/- (IN3+/-):
Optically isolated, 5-24 volt. Minimum pulse width = 250 ns. Maximum pulse frequency = 3 MHz.
Function: STM17R: Enable; All others: Enable, alarm/fault reset, speed 1/speed 2 (oscillator mode).
DIGITAL OUTPUT
ANALOG INPUT
COMMUNICATION INTERFACE
OUT+/-:
Optically isolated, 30V/40mA max. Function: STM17R: Fault; All others: Fault, motion, tach, or general
purpose programmable.
STM17S/Q/C:
AIN referenced to GND. Range = 0 to 5 VDC. Resolution = 12 bits.
STM17R:
No analog input
STM17x-3Ax:
RS-232
STM17x-3Rx:
RS-485
STM17C-3Cx:
CANopen and RS-232
STM17R-3Nx:
No communication port
MICROSTEP EMULATION
COMMAND SIGNAL SMOOTHING
ANTI-RESONANCE
(Electronic Damping)
AUTO SETUP
SELF TEST
NON-VOLATILE STORAGE
MODES OF OPERATION
APPROVALS:
AGENCY APPROVALS
RoHS, CE EN61800-3:2004
PHYSICAL:
OPERATING TEMPERATURE
AMBIENT TEMPERATURE
HUMDITY
MASS
ROTOR INERTIA
0 to 85°C (32 to 185°F) Internal temperature of the electronics section and encoder
0 to 100°C (32 to 212°F) Temperature of motor body
0 to 40°C (32 to 104°F) When mounted to a suitable heatsink
90% max, non-condensing
STM17R:
14.7 oz (416 g);
STM17S/Q/C:
15.6 oz (441 g)
1.16 x 10
-3
oz-in-sec
2
(82 g-cm
2
)
4
