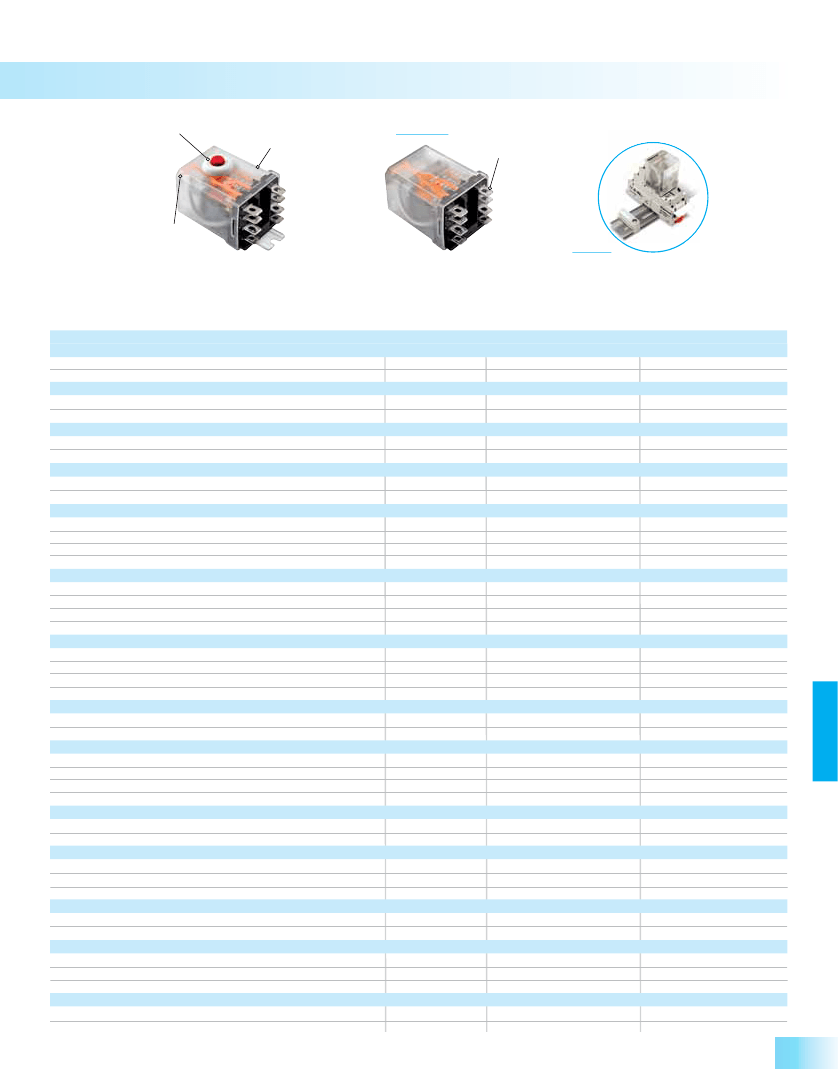

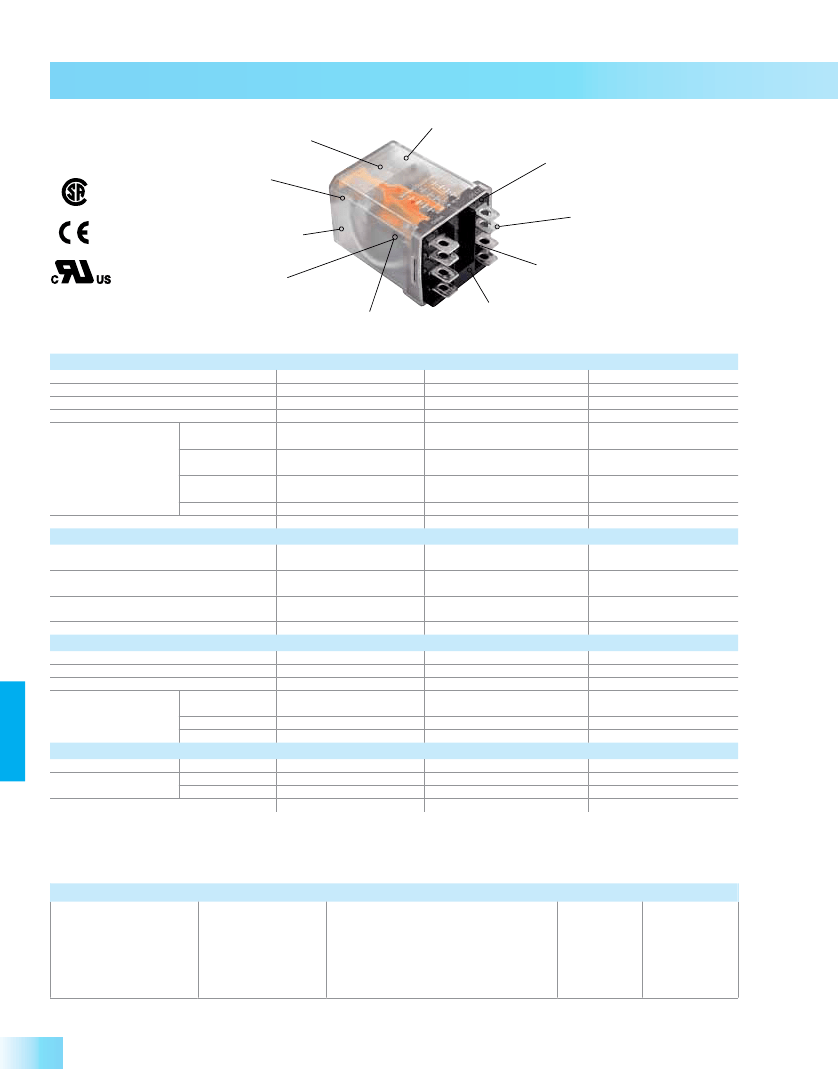

389F Power Relays/One,
Two or Three Pole 20-30 Amp Rating (DC and AC)
Oversized current carrying parts
to run cooler and last longer
Full range of contact ratings
to meet a wide variety of
applications
A variety of covers and
mounting options
Up to 30A switching for
power applications
600 V spacing can handle
most loads
Terminals for 0.25”
Quick Connects
Can be customized for
unique situations
WHITE
UL Recognized
File No. E43641
Contact Viewing Window
Gold Flashed Contacts
Square Base
General Specifications - (UL 508)
Contact Characteristics
Number and type of contacts
Contact materials
Thermal (carrying) current
Maximum switching voltage
Resistive
Switching current @
voltage
Ballast
HP
389FHXX, XHX
SPST-NO-DM, SPDT-DM-DB
Silver Alloy
30 A
600 V
30 A @ 300 VAC 50/60Hz
30 A @ 28 VDC
25 A @ 277 VAC 50/60Hz
1.5 @ 200-300 V 50/60Hz
1 @ 120-199 V 50/60Hz
A600
100 mA @ 5 VDC or 0.5 W
12 to 240 VAC
12 to 110 VDC
85% to 110% AC
80% to 110% DC
3.5 VA
1.44 W
10% AC/DC
100,000 operations
5,000,000 operations
20 ms
2000 VAC
2000 VAC
500 VAC
UL, CE, CSA
-40 to 85 °C
-40 to 55 °C
88 g
389FXAX, BXX, XBX
SPST, SPDT, DPST, DPDT
Silver Alloy
25 A
600 V
25 A @ 300 VAC 50/60Hz
13 A @ 28 VDC
20 A @ 277 VAC 50/60Hz
1.5 @ 208-240 V 50/60Hz
1 @ 480-600 V 50/60Hz
B600
100 mA @ 5 VDC or 0.5 W
12 to 240 VAC
12 to 110 VDC
85% to 110% AC
80% to 110% DC
3.5 VA
1.44 W
10% AC/DC
100,000 operations
5,000,000 operations
20 ms
2000 VAC
2000 VAC
500 VAC
UL, CE, CSA
-40 to 85 °C
-40 to 55 °C
88 g
389FCXX, XCX
3PST, 3PDT
Silver Alloy
20 A
300 V
20 A @ 150 VAC 50/60Hz
13 A @ 28 VDC
20 A @ 150 VAC 50/60Hz
6.67 A @ 277 VAC 50/60Hz
0.5 @ 208-240 V 50/60Hz
0.5 @ 120 V 50/60Hz
B300
100 mA @ 5 VDC or 0.5 W
12 to 240 VAC
12 to 110 VDC
85% to 110% AC
80% to 110% DC
3.5 VA
1.44 W
10% AC/DC
100,000 operations
5,000,000 operations
20 ms
2000 VAC
2000 VAC
500 VAC
UL, CE, CSA
-40 to 85 °C
-40 to 55 °C
88 g
Pilot Duty
Minimum switching requirement
Coil Characteristics
Voltage range
Operating range (% of nominal)
Average consumption
Drop-out voltage threshold
Performance Characteristics
Electrical life (operations @ rated current)
Mechanical life (unpowered)
Operating time (response time)
Between coil and
contact
Dielectric strength
Between poles
Between contacts
Environment
Product certifications
Standard version
Ambient air temperature Storage
around the device
Operation
Weight
SECTION 6
Part Number Builder
389F
Series
389F =
Standard model
equipped with flag indicator
XBX
Configuration
XAX =
SPDT
BXX =
DPST-NO
XBX =
DPDT
CXX =
3PST-NO
XCX =
3PDT
HXX =
SPST-NO-DM
XHX =
SPDT-DM-DB
C1M
Options**
B =
Mounting base
C =
Plastic dust cover - socket mountable
C1 =
Side flange mount cover
C3 =
Top flange cover
L =
Indicator lamp across coil
M =
Manual operator button on case
T =
Printed circuit board terminals
-120
Voltage
Coil Voltage
A
Current Type
A =
AC
D =
DC
Note - Not all iterations of option codes are available and some standard parts may use different nomenclature than outlined in part number builder.
**Multiple codes may be used.
6/12
M a gn e c r a ft S o lu t io n G ui de 1 0 5 A
www.magnecraft.com
Push Button
Available
Indicator Lamp
847-441-2540
NEW!
1/4” Solderable
Quick-Connects
Indicator Flag
NEW!
Side Flange Cover
Option C1
Plain Cover
Option C
389 Relay with the
70-788EL11-1 Socket
BOLD-FACED PART NUMBERS ARE NORMALLY STOCKED
Coil Resistance
7200 Ω
1700 Ω
4600 Ω
1200 Ω
100 Ω
400 Ω
100 Ω
400 Ω
1100 Ω
4300 Ω
44 Ω
1100 Ω
100 Ω
400 Ω
100 Ω
400 Ω
1700 Ω
72 Ω
1700 Ω
7200 Ω
1200 Ω
4600 Ω
100 Ω
400 Ω
100 Ω
400 Ω
100 Ω
400 Ω
7200 Ω
1700 Ω
72 Ω
8000 Ω
400 Ω
4600 Ω
1200 Ω
46 Ω
8000 Ω
400 Ω
Part Number
389FXBXC1M-240A
389FXBXC1M-120A
389FXCXC1M-240A
389FXCXC1M-120A
389FXBXC1M-12D
389FXBXC1M-24D
389FXCXC1M-12D
389FXCXC1M-24D
389FHXXC1-120A
389FHXXC1-240A
389FXHXC1-24A
389FXHXC1-120A
389FHXXC1-12D
389FHXXC1-24D
389FXHXC1-12D
389FXHXC1-24D
389FXAXC1-120A
389FXBXC1-24A
389FXBXC1-120A
389FXBXC1-240A
389FXCXC1-120A
389FXCXC1-240A
389FXAXC1-12D
389FXAXC1-24D
389FXBXC1-12D
389FXBXC1-24D
389FXCXC1-12D
389FXCXC1-24D
389FXBXC-240A
389FXBXC-120A
389FXBXC-24A
389FXBXC-110/125D
389FXBXC-24D
389FXCXC-240A
389FXCXC-120A
389FXCXC-24A
389FXCXC-110/125D
389FXCXC-24D
Contact Configuration
DPDT
DPDT
3PDT
3PDT
DPDT
DPDT
3PDT
3PDT
SPST-NO-DM
SPST-NO-DM
SPDT-DM-DB
SPDT-DM-DB
SPST-NO-DM
SPST-NO-DM
SPDT-DM-DB
SPDT-DM-DB
SPDT
DPDT
DPDT
DPDT
3PDT
3PDT
SPDT
SPDT
DPDT
DPDT
DPDT
DPDT
DPDT
DPDT
DPDT
DPDT
DPDT
DPDT
DPDT
DPDT
DPDT
DPDT
Standard Part Numbers
Nominal Input Voltage
25 Amp, AC Operated Flange Mount with Push Button
220/240 VAC, 50/60 Hz
110/120 VAC, 50/60 Hz
220/240 VAC, 50/60 Hz
110/120 VAC, 50/60 Hz
20 Amp, AC Operated Flange Mount with Push Button
25 Amp, DC Operated Flange Mount with Push Button
12 VDC
24 VDC
12 VDC
24 VDC
20 Amp, DC Operated Flange Mount with Push Button
30 Amp, AC Operated Flange Mount
110/120 VAC 50/60 Hz
220/240 VAC 50/60 Hz
24 VAC 50/60 Hz
110/120 VAC 50/60 Hz
12 VDC
24 VDC
12 VDC
24 VDC
30 Amp, DC Operated Flange Mount
25 Amp, AC Operated Flange Mount
20 Amp, AC Operated Flange Mount
110/120 VAC 50/60 Hz
220/240 VAC 50/60 Hz
25 Amp, DC Operated Flange Mount
12 VDC
24 VDC
12 VDC
24 VDC
20 Amp, DC Operated Flange Mount
25 Amp, AC Operated Socket Compatible
12 VDC
24 VDC
220 / 240 VAC 50/60 Hz
110 / 120 VAC 50/60 Hz
24 VAC 50/60 Hz
25 Amp, DC Operated Socket Compatible
110/125 VDC
24 VDC
20 Amp, AC Operated Socket Compatible
220/240 VAC 50/60 Hz
110/120 VAC 50/60 Hz
24 VAC 50/60 Hz
20 Amp, DC Operated Socket Compatible
110/125 VDC
24 VDC
6/13
Magnecra f t So l u t io n Gu i de 1 0 5 A
SECTION 6
110/120 VAC 50/60 Hz
24 VAC 50/60 Hz
110/120 VAC 50/60 Hz
220/240 VAC 50/60 Hz
389F Power Relays/One,
Two or Three Pole 20-30 Amp Rating (DC and AC)
continued
Push Button
Available
Indicator Lamp
NEW!
1/4” Solderable
Quick-Connects
WHITE
UL Recognized
File No. E43641
Indicator Flag
Side Flange Cover
Plain Cover

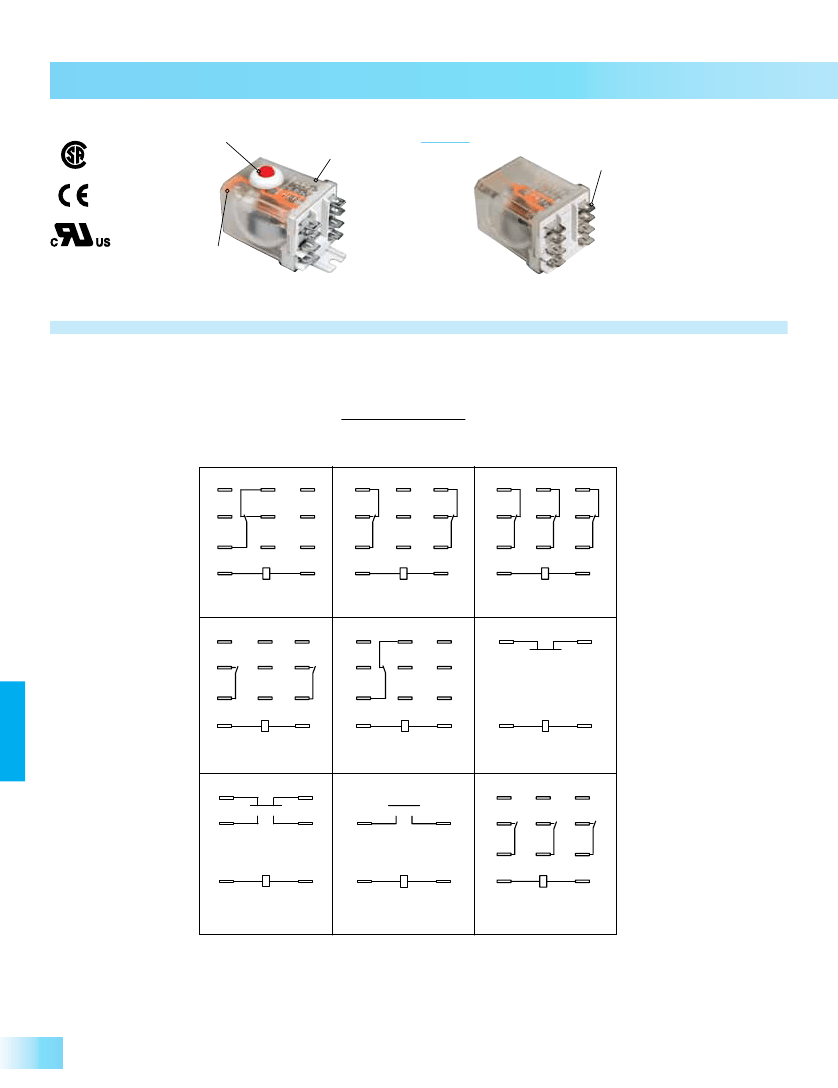

WIRING DIAGRAMS
VIEWED FROM PIN END
2
32
5
34
7
11
A
A1
SPDT
1
12
4
14
7
11
A
A1
DPDT
2
32
7
11
A
A1
SPST-NC
3
22
6
24
3
22
6
24
9
21
B
A2
WIRING DIAGRAMS
BOTTOM VIEW
NEMA
IEC
1
12
4
14
7
11
A
A1
NEMA
IEC
B
A2
2
32
5
34
8
31
3
22
6
24
9
21
B
A2
3PDT
1
12
3
22
SECTION 6
4
14
7
11
A
A1
DPST-NO
1
12
4
14
6
24
9
21
B
A2
B
A2
A
A1
SPST-NC-(DB)
B
A2
4
14
6
24
A
A1
B
A2
A
A1
B
A2
4
14
7
11
A
A1
5
34
8
31
6
24
9
21
B
A2
SPDT-NC-NO-(DB-DM)
SPST-NO-(DM)
3PST-NO
6/14
M a gn e c r a ft S o lu t io n G ui de 1 0 5 A
–
A
A1
P.C. TERMINALS
0.046 TYP.
(1.16)
0.026
(0.66)
www.magnecraft.com
847-441-2540
0.206 TYP.
(5.23)
PUSH
BUTTON
0.156
1.9 MAX
(3.96)
(48.42)

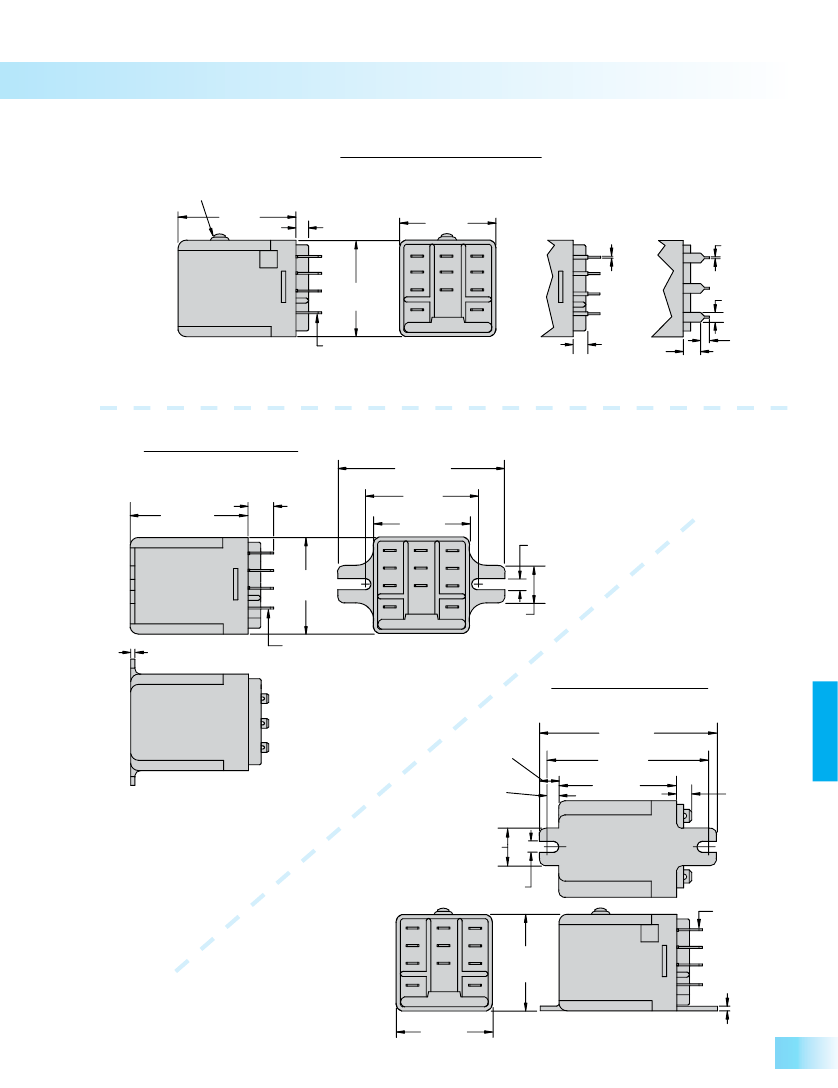

PLAIN/PUSH BUTTON COVER STYLE
PLAIN/PUSHBUTTON
Option C
COVER STYLE
0.28 MAX
0.288
(7.1)
(7.31)
0.28 MAX
(7.1)
1
4
1.53 MAX
(38.89)
2
5
8
3
6
9
P.C. TERMINALS
PUSH
BUTTON
1.9 MAX
(48.42)
0.026
(0.66)
PLAIN/PUSHBUTTON COVER STYLE
0.046 TYP.
(1.16)
1.53 MAX
(38.89)
0.206 TYP.
(5.23)
1
2
5
8
3
6
9
4
1.4 MAX
(35.72)
7
A
0.28 MAX
(7.1)
B
0.25 X 0.032
(6.35 X 0.81)
QUICK CONNECT
TERMINALS WITH
SOLDER HOLE
0.28 MAX
0.288
(7.1)
(7.31) 1.4 MAX
(35.72)
0.156
7
(3.96)
A
B
TOP FLANGE COVER STYLE
TOP FLANGE COVER STYLE
Option C3
0.31
(7.92)
1
4
0.25 X 0.032
(6.35 X 0.81)
QUICK CONNECT
TERMINALS WITH
SOLDER HOLE
2.53 MAX
(64.29)
1.71
(43.51)
1.53 MAX
(38.89)
2
5
8
3
6
9
1.9 MAX
(48.42)
0.14
(3.58)
TOP FLANGE COVER STYLE
1.4 MAX
(35.72)
7
A
B
0.06
(1.59)
0.37 MAX
(9.53)
0.18 MAX
(4.76)
1.9 MAX
(48.42)
0.28 MAX
(7.1)
0.37 MAX
(9.53)
2.9 MAX
(73.82)
2.5 MAX
(63.5)
1.9 MAX
(48.42)
0.06
0.28 MAX
(1.59) (7.1)
0.62 TYP.
(15.88)
0.15 TYP.
(3.96)
1
4
7
2
5
8
3
6
9
0.18 MAX
(4.76)
0.25 X 0.032
(6.35 X 0.81)
QUICK CONNECT
TERMINALS WITH
SOLDER HOLE
1.4 MAX
(35.72)
0.06 MAX
(1.59)
1
4
7
0.62 TYP.
(15.88)
0.15 TYP.
(3.96)
3
6
9
A
B
2
5
8
0.25 X 0.032
(6.35 X 0.81)
QUICK CONNECT
TERMINALS WITH
SOLDER HOLE
1.4 MAX
(35.72)
0.06 MAX
(1.59)
1.53 MAX
(38.89)
A
B
1.53 MAX
(38.89)
6/15
Magnecra f t So l u t io n Gu i de 1 0 5 A
SECTION 6
SIDE FLANGE COVER STYLE
0.25 X 0.032
(6.35 X 0.81)
QUICK
2.9 MAX CONNECT
TERMINALS WITH
(73.82) HOLE
SOLDER
2.5 MAX
(63.5)
0.49
(12.7)
1.9 MAX
(48.42)
SIDE FLANGE COVER STYLE
Option
SIDE FLANGE COVER STYLE
C1
