30-203: DescriptionPushbutton Switch, SPST, Momentary, 0.15A, 24VDC, Solder Terminal, Panel Mount-threaded,; CategoryMechanical and electronic products switch; File Size251KB，1 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric Compare View All

30-203 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	30-203	-	-	View	Buy Now

30-203 Overview

Pushbutton Switch, SPST, Momentary, 0.15A, 24VDC, Solder Terminal, Panel Mount-threaded,

30-203 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1013770965
Reach Compliance Code	compliant
Country Of Origin	USA
ECCN code	EAR99
Factory Lead Time	18 weeks
YTEOL	8.2
Actuator type	PLUNGER
body height	7.58 mm
Body length or diameter	17.53 mm
Maximum contact current (DC)	0.15 A
Contact (DC) maximum rated R load	0.15A@24VDC
Maximum contact voltage (DC)	24 V
Electrical life	500000 Cycle(s)
illumination	NON-ILLUMINATED
JESD-609 code	e4
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
seal	IP65
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal surface	GOLD OVER NICKEL
Termination type	SOLDER

Preview

Download Datasheet

View All

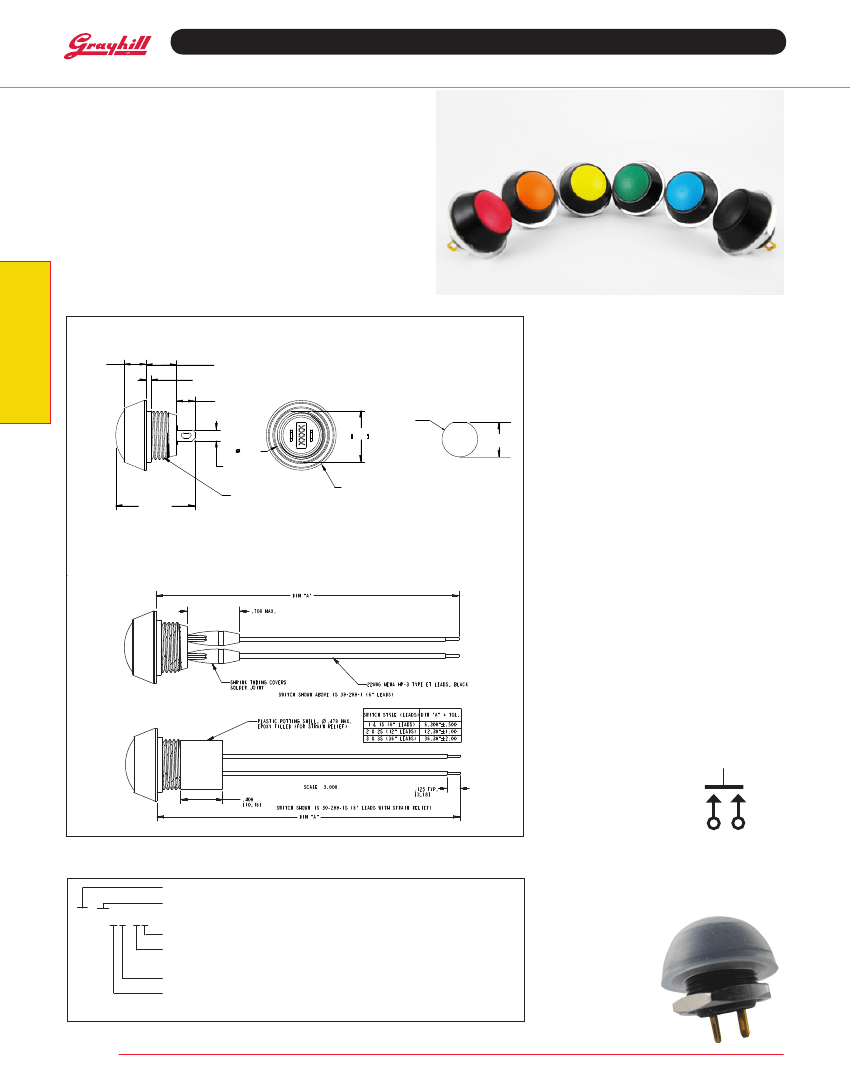

Butt Contact Pushbutton Switches

SerieS 30

FeATUreS

•

Sealed, Front Panel Mounting

Threaded bushing

Choice of 6 button colors

SPST (momentary contact)

Gold plated contacts

Strong, lightweight aluminum housing

Sealed against dust and moisture

to IP67 (to IP67 with silicone boot*)

Pushbutton Switches

DiMenSionS

in inches (and millimeters)

rATinG

.220

[ 5,59 ]

.050

[ 1,27 ]

.182

[ 4,62 ]

Ø .530 ±.003

[ 13,46 ]

.503

[

12,78

]

.522

.298

[ 7,58 ]

[ 13,26 ]

RECOMMENDED PANEL

CUTOUT

.510 ±.003

[ 12,95 ]

.110

[ 2,79 ]

.689

[ 17,51 ]

1/2-32 UNEF THREADS

.780

REF.

[ 19,81 ]

Cycles:

500,000 actuations

operating Temperature:

-40ºC to +80ºC

Shock:

100 G's/6 milliseconds

Travel:

.090 nominal

Travel Before Make:

.035 nominal

rating at 24 VDC:

150 milliamps

Voltage Breakdown:

1000 Vac

Contact resistance:

25 Milliohms max

(initial)

insulation resistance:

1,000

Megaohms

minimum

MATeriAL

Housing:

Aluminum, black chrome finish

Button, Base, and Plunger:

Nylon, 45%

glass-filled

Terminal:

Brass, gold-plated over nickel

Shorting Bar:

Brass, gold-plated over nickel

internal Seal:

Silicone rubber

o-ring panel Seal:

Silicone

Spring:

Tinned music wire

Hex nut:

1/2-32, Brass with Nickel Plating,

P/N 635201

Lockwasher:

Internal,1/2 dia. , Steel with

Zinc plating, P/N 635401

* Switch meets IP67 without boot if not

actuated during immersion

Cable options

CirCUiTrY

SPST n.o.

orDerinG inForMATion

Series

Threaded Bushing

Strain Relief: Blank = shrink tubing, S = strain relief

Connection: Blank = terminals, E = epoxy rear seal

1 = 6" leads, 2 = 12" leads, 3 = 36" leads

Silicone Boot: Blank = no boot, B = black boot, C = clear boot

Cap Color: 0 = black, 1 = red, 2 = green

3 = yellow, 4 = orange, 5 = blue

30-201B-1S

pictured with clear

silicone boot

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

30-203 Related Products

	30-203	30-200C	30-201-1	30-205-1	30-204C	30-201C	30-203C	30-205	30-202	30-201C-E
Description	Pushbutton Switch, SPST, Momentary, 0.15A, 24VDC, Solder Terminal, Panel Mount-threaded,	Pushbutton Switches SWTCH BLK CLR 36in lead	Pushbutton Switches PB SWITCH,RED,REAR SEAL anel mount, red	Pushbutton Switches PB Switch Blue Rear Seal Panel Mount	Pushbutton Switches Pushbutton Switch, threaded, panel mount, orange, clear boot	Pushbutton Switches PushBtn Switch Panel Mnt Red Clear boot	Pushbutton Switches Pushbutton Switch, threaded, panel mount, yellow, clear boot	Pushbutton Switches PushBtn Switch Thrd Pnl Mnt Blue	Pushbutton Switches PushBtn Switch Thrd Pnl Mnt Green	Pushbutton Switches PB SWTCH,RED,CLR,BT,EPOXY RS anel mount, red, clear boot
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	-	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	18 weeks	-	16 weeks	16 weeks	16 weeks	16 weeks	16 weeks	16 weeks	16 weeks	-
Actuator type	PLUNGER	-	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER
body height	7.58 mm	-	7.58 mm	7.58 mm	7.58 mm	7.58 mm	7.58 mm	7.58 mm	7.58 mm	7.58 mm
Body length or diameter	17.53 mm	-	17.53 mm	17.53 mm	17.53 mm	17.53 mm	17.53 mm	17.53 mm	17.53 mm	17.53 mm
Maximum contact current (DC)	0.15 A	-	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A
Contact (DC) maximum rated R load	0.15A@24VDC	-	.15A@24VDC	.15A@24VDC	.15A@24VDC	.15A@24VDC	.15A@24VDC	.15A@24VDC	.15A@24VDC	.15A@24VDC
Maximum contact voltage (DC)	24 V	-	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V
Electrical life	500000 Cycle(s)	-	500000 Cycle(s)	500000 Cycle(s)	500000 Cycle(s)	500000 Cycle(s)	500000 Cycle(s)	500000 Cycle(s)	500000 Cycle(s)	500000 Cycle(s)
JESD-609 code	e4	-	e4	e4	e4	e4	e4	e4	e4	e4
Installation features	PANEL MOUNT-THREADED	-	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Maximum operating temperature	80 °C	-	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
seal	IP65	-	IP65	IP65	IP67	IP67	IP67	IP65	IP65	IP67
surface mount	NO	-	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	-	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPST	-	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
Switch type	PUSHBUTTON SWITCH	-	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Terminal surface	GOLD OVER NICKEL	-	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	-	-	Grayhill	Grayhill	Grayhill	Grayhill	Grayhill	Grayhill	Grayhill	Grayhill
Base Number Matches	-	-	1	1	1	-	1	1	1	-
