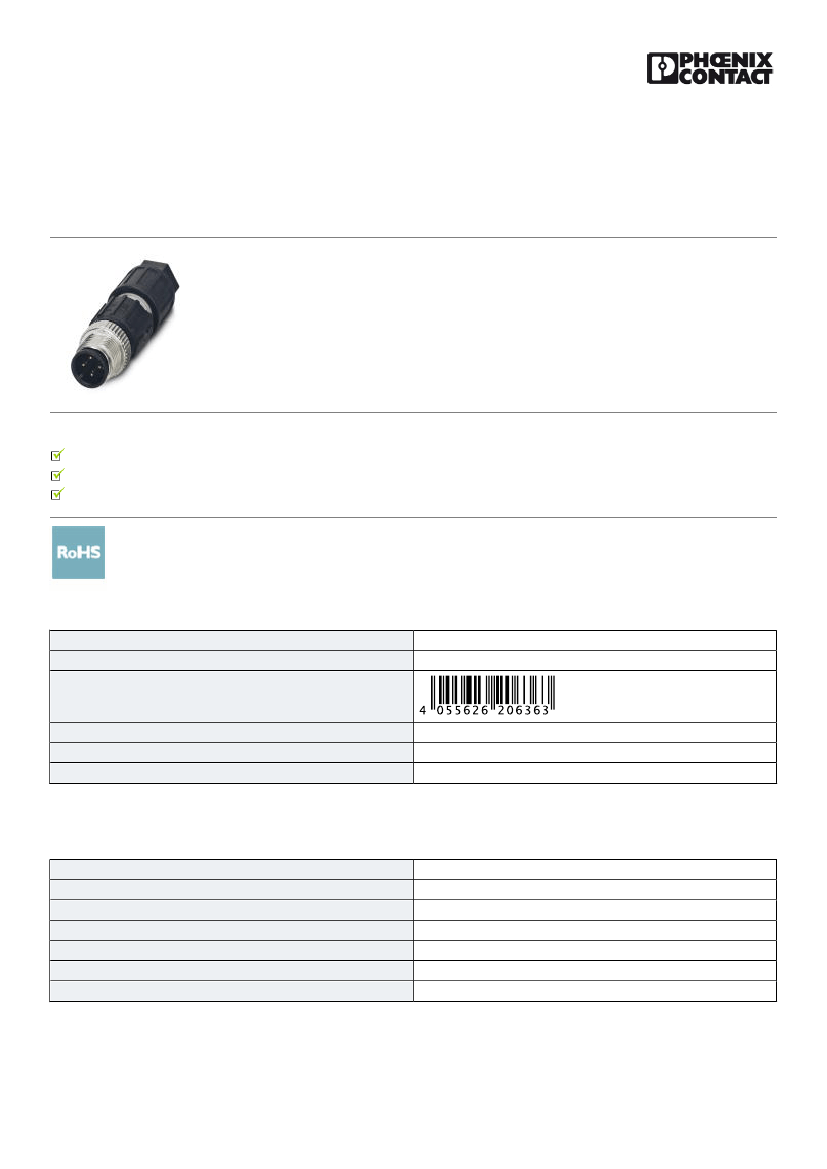

Sensor/actuator connector - SACC-M12MS-4QO-0,34-M OL
OT - 1420388
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Why buy this product
Safe use in the field, thanks to a high degree of protection
Flexible: connectors for on-site assembly
Insulation displacement connection: innovative and time-saving assembly without stripping the single wire
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4055626206363
85366990
Made to Order (non-returnable)
100 STK
1000 STK
Technical data
General
Rated current at 40°C
Rated voltage
Number of positions
Standards/regulations
Status display
Overvoltage category
Degree of pollution
4A
125 V
4
M12 connector IEC 61076-2-101
No
II
3
Material
11/13/2016 Page 1 / 2
https://www.phoenixcontact.com/hq/products/1420388
Sensor/actuator connector - SACC-M12MS-4QO-0,34-M OL
OT - 1420388
Technical data
Material
Flammability rating according to UL 94
V0
Cable
Standards/specifications
M12 connector IEC 61076-2-101
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
V0

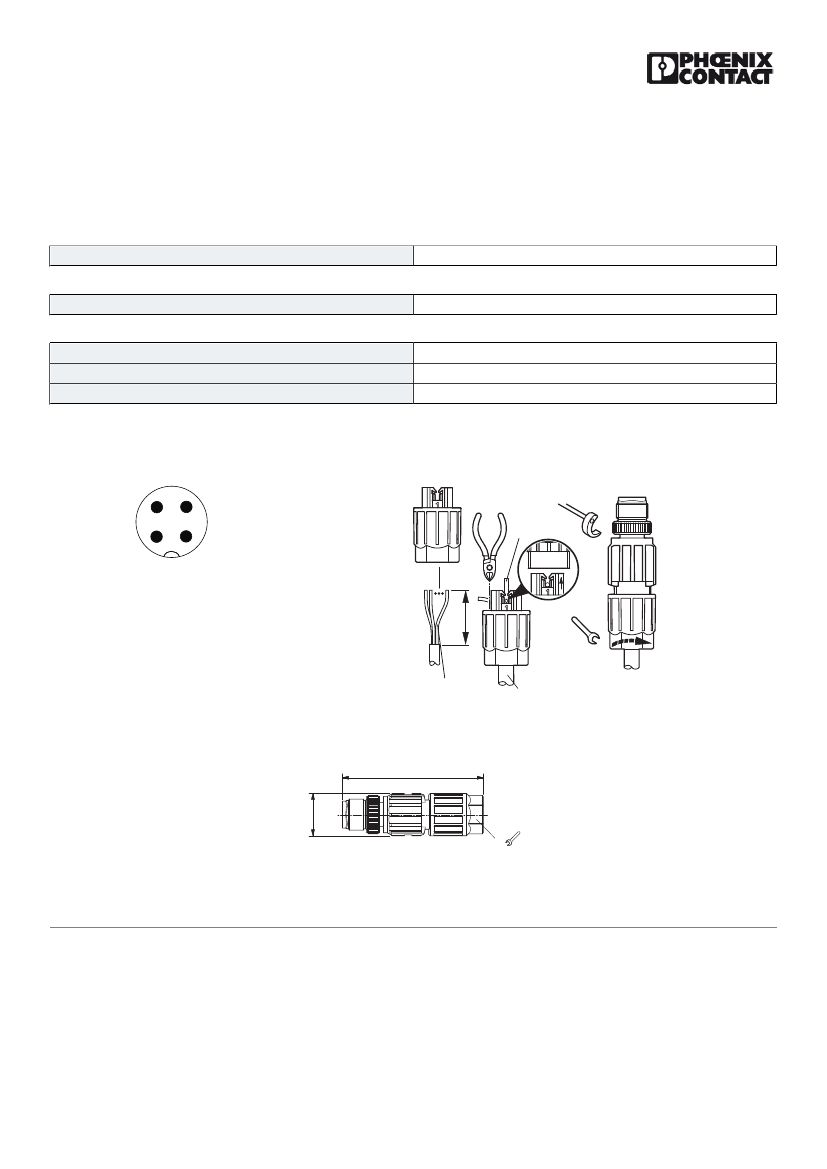

Drawings
Schematic diagram
4
3
Functional drawing
PVC/PP/
PE/rubber
0,4 Nm
1
2
Pin assignment M12 plug, 4-pos., A-coded, view
plug side
13
1,2 Nm
0,14 – 0,34 mm
²
40
Ø 3,5 – 6,0 mm
Dimensional drawing
≈54
Ø16,3
13
M12 x 1 plug, straight
