Part Number

Search

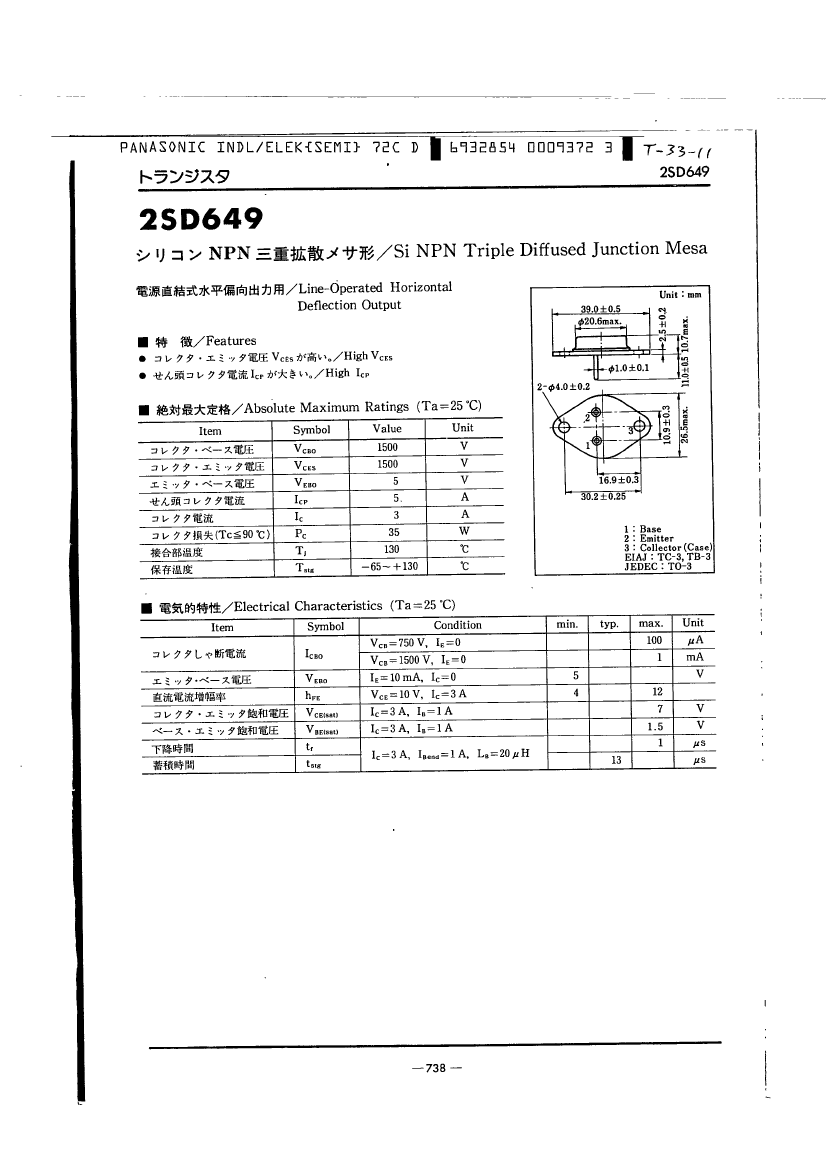

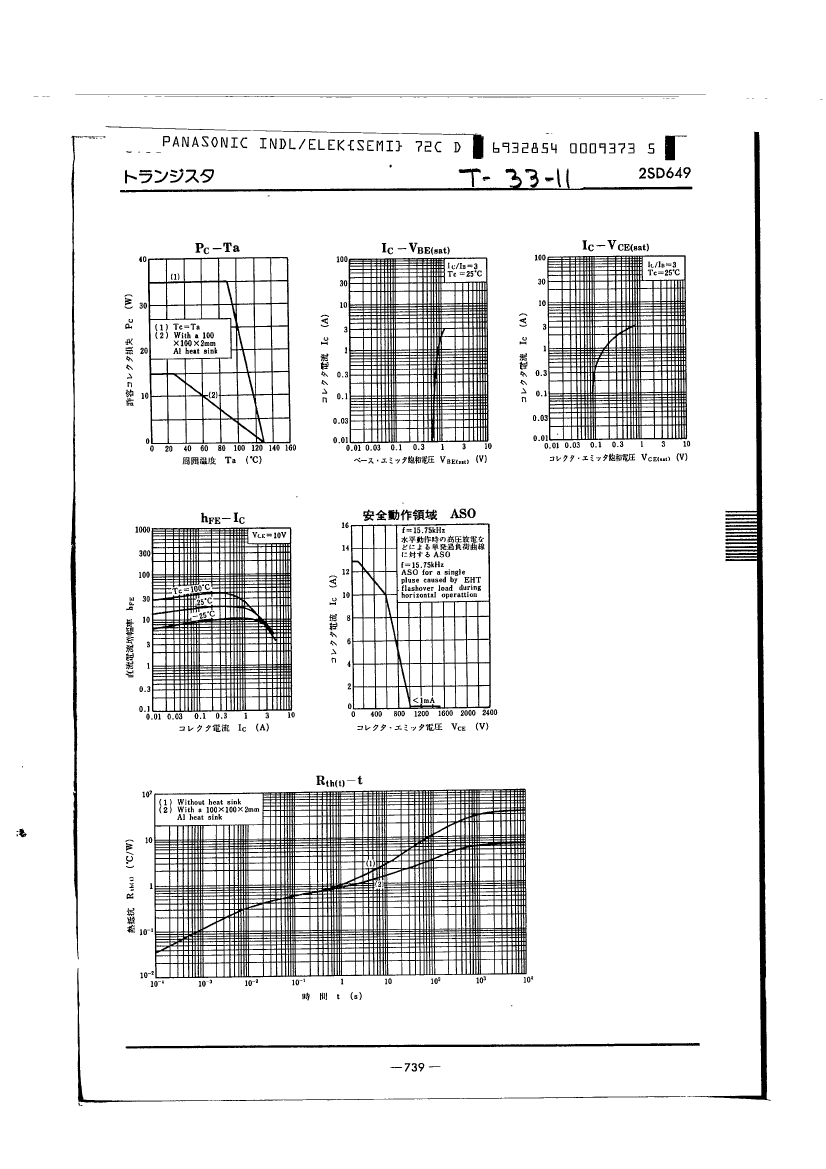

2SD649

Description
Small-signal device - Small-signal transistor - General-use Low-Frequency Amplifires
CategoryDiscrete semiconductor    The transistor
File Size188KB,4 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Download Datasheet Parametric Compare View All

2SD649 Overview

Small-signal device - Small-signal transistor - General-use Low-Frequency Amplifires

2SD649 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instruction,
Reach Compliance Codeunknow
Maximum collector current (IC)5 A
ConfigurationSingle
Minimum DC current gain (hFE)4
JESD-609 codee0
Maximum operating temperature125 °C
Polarity/channel typeNPN
Maximum power dissipation(Abs)22 W
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Base Number Matches1

2SD649 Related Products

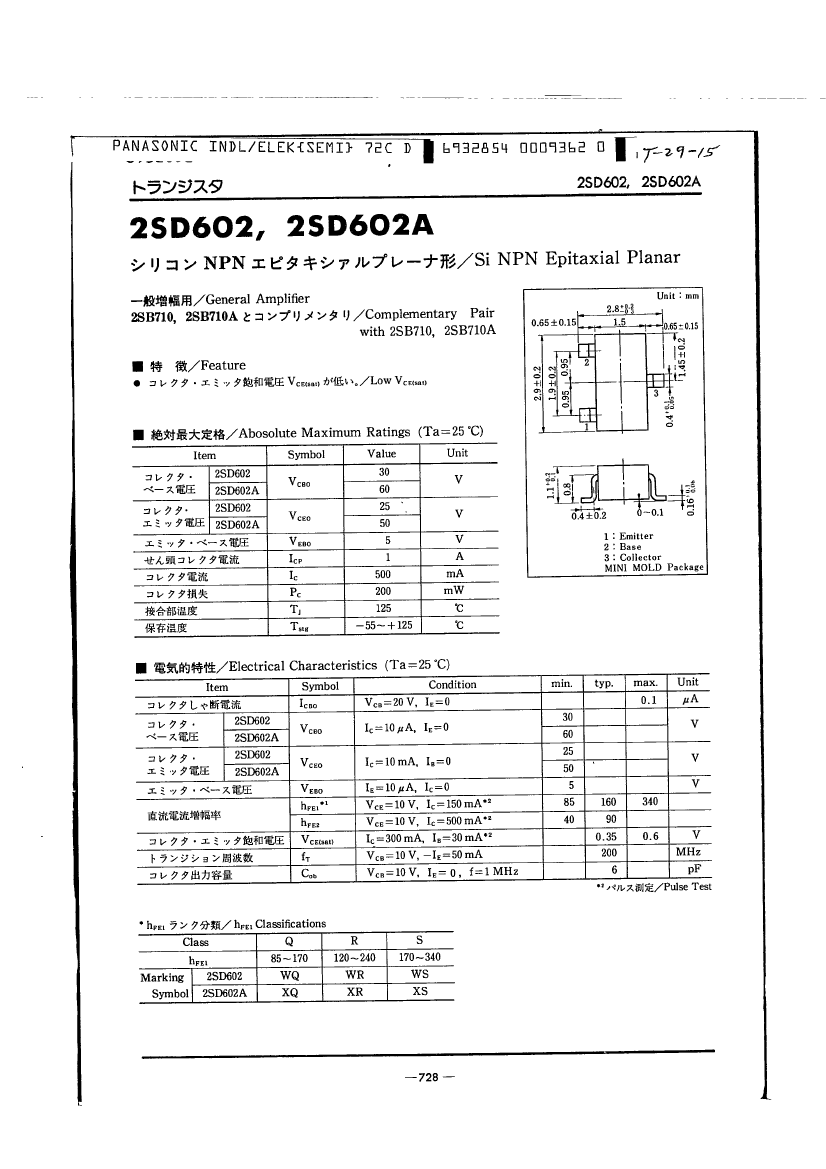

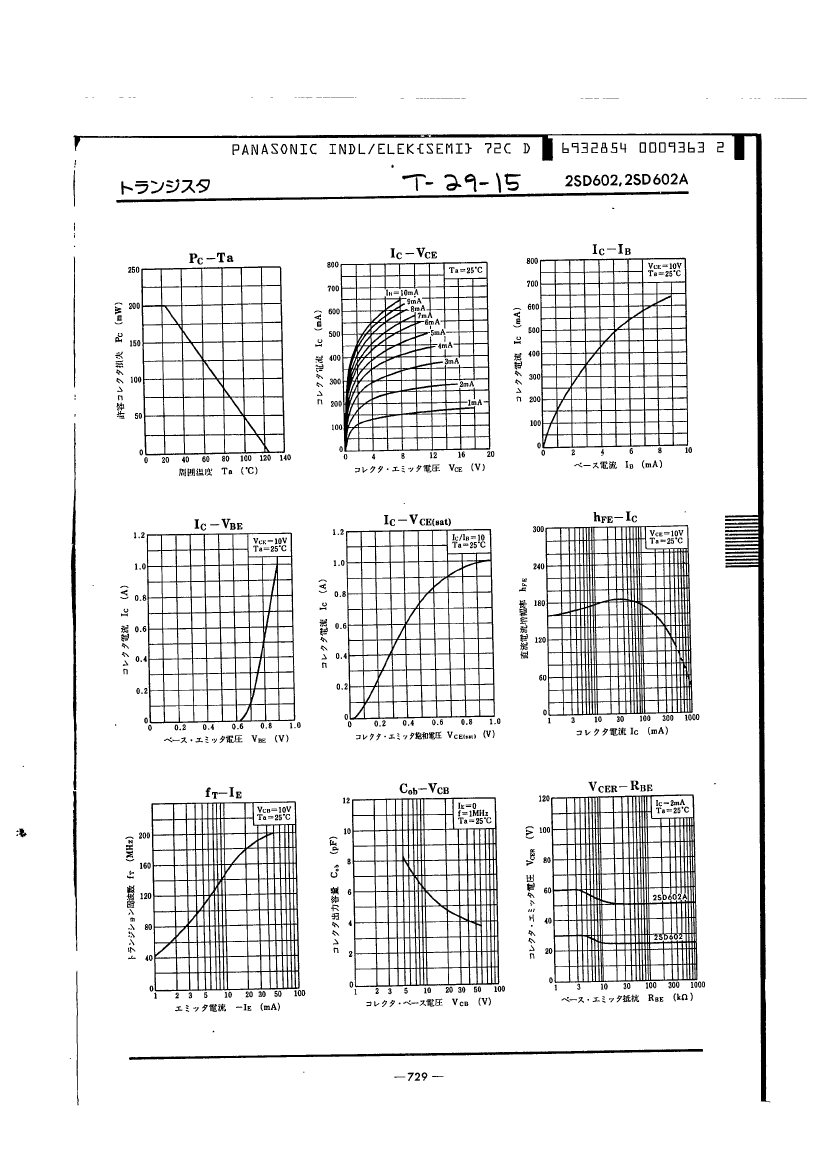

2SD649 2SD602A 2SD602
Description Small-signal device - Small-signal transistor - General-use Low-Frequency Amplifires Small-signal device - Small-signal transistor - General-use Low-Frequency Amplifires Small-signal device - Small-signal transistor - General-use Low-Frequency Amplifires
Is it Rohs certified? incompatible incompatible incompatible
package instruction , SMALL OUTLINE, R-PDSO-G3 SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code unknow unknow unknow
Maximum collector current (IC) 5 A 0.5 A 0.5 A
Configuration Single SINGLE SINGLE
Minimum DC current gain (hFE) 4 40 40
JESD-609 code e0 e0 e0
Maximum operating temperature 125 °C 125 °C 125 °C
Polarity/channel type NPN NPN NPN
Maximum power dissipation(Abs) 22 W 0.2 W 0.2 W
surface mount NO YES YES
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Base Number Matches 1 1 1
Parts packaging code - SOT-23 SOT-23
Contacts - 3 3
ECCN code - EAR99 EAR99
Other features - TO-236 TO-236
Collector-emitter maximum voltage - 50 V 25 V
JEDEC-95 code - TO-236 TO-236
JESD-30 code - R-PDSO-G3 R-PDSO-G3
Number of components - 1 1
Number of terminals - 3 3
Package body material - PLASTIC/EPOXY PLASTIC/EPOXY
Package shape - RECTANGULAR RECTANGULAR
Package form - SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) - NOT SPECIFIED NOT SPECIFIED
Certification status - Not Qualified Not Qualified
Terminal form - GULL WING GULL WING
Terminal location - DUAL DUAL
Maximum time at peak reflow temperature - NOT SPECIFIED NOT SPECIFIED
transistor applications - AMPLIFIER AMPLIFIER
Transistor component materials - SILICON SILICON
Nominal transition frequency (fT) - 200 MHz 200 MHz
