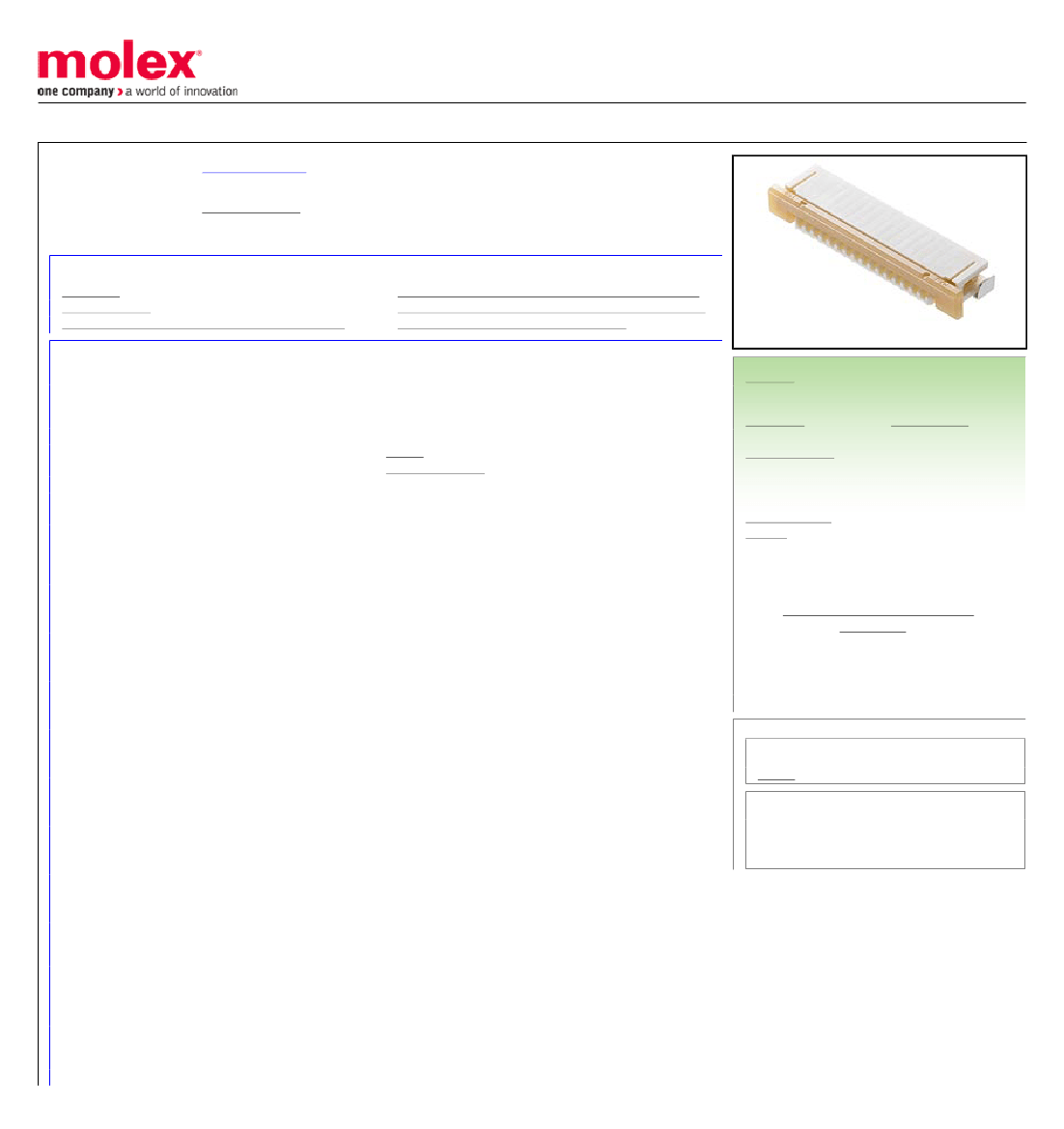

FFC & FPC Connectors 16CKT R/A SMT ZIF
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| package instruction | LEAD FREE |
| Reach Compliance Code | compliant |
| Factory Lead Time | 13 weeks |
| Samacsys Confidence | 4 |
| Samacsys Status | Released |
| Samacsys PartID | 245785 |
| Samacsys Pin Count | 16 |
| Samacsys Part Category | Connector |
| Samacsys Package Category | Other |
| Samacsys Footprint Name | 52271-1679 |
| Samacsys Released Date | 2016-06-29 14:50:24 |
| Is Samacsys | N |
| Other features | ZIF, BOTTOM CONTACT STYLE |
| Board mount options | FITTING NAIL |
| body width | 0.118 inch |
| subject depth | 0.264 inch |
| body length | 0.878 inch |
| Connector type | FFC/FPC CONNECTOR |
| Contact to complete cooperation | TIN BISMUTH |
| Contact completed and terminated | TIN/BISMUTH (SN/BI) |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 750VAC V |
| Durability | 30 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 100000000 Ω |
| Insulator color | NATURAL |
| insulator material | NYLON |
| JESD-609 code | e6 |
| MIL compliance | NO |
| Plug contact pitch | 0.039 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 40u inch |
| Rated current (signal) | 0.5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal pitch | 1 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 16 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
