This document was generated on 12/02/2013
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
503304-1610
Active
SlimStack™ 0.40mm Pitch Board-to-Board Connectors
0.40mm Pitch SlimStack™ Board-to-Board Receptacle, SMT, Dual Row, Vertical,
0.70mm Stacking Height, 16 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-503304-001 (PDF)
Application Specification AS-503304-001 (PDF)
Packaging Specification SPK-503304-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series

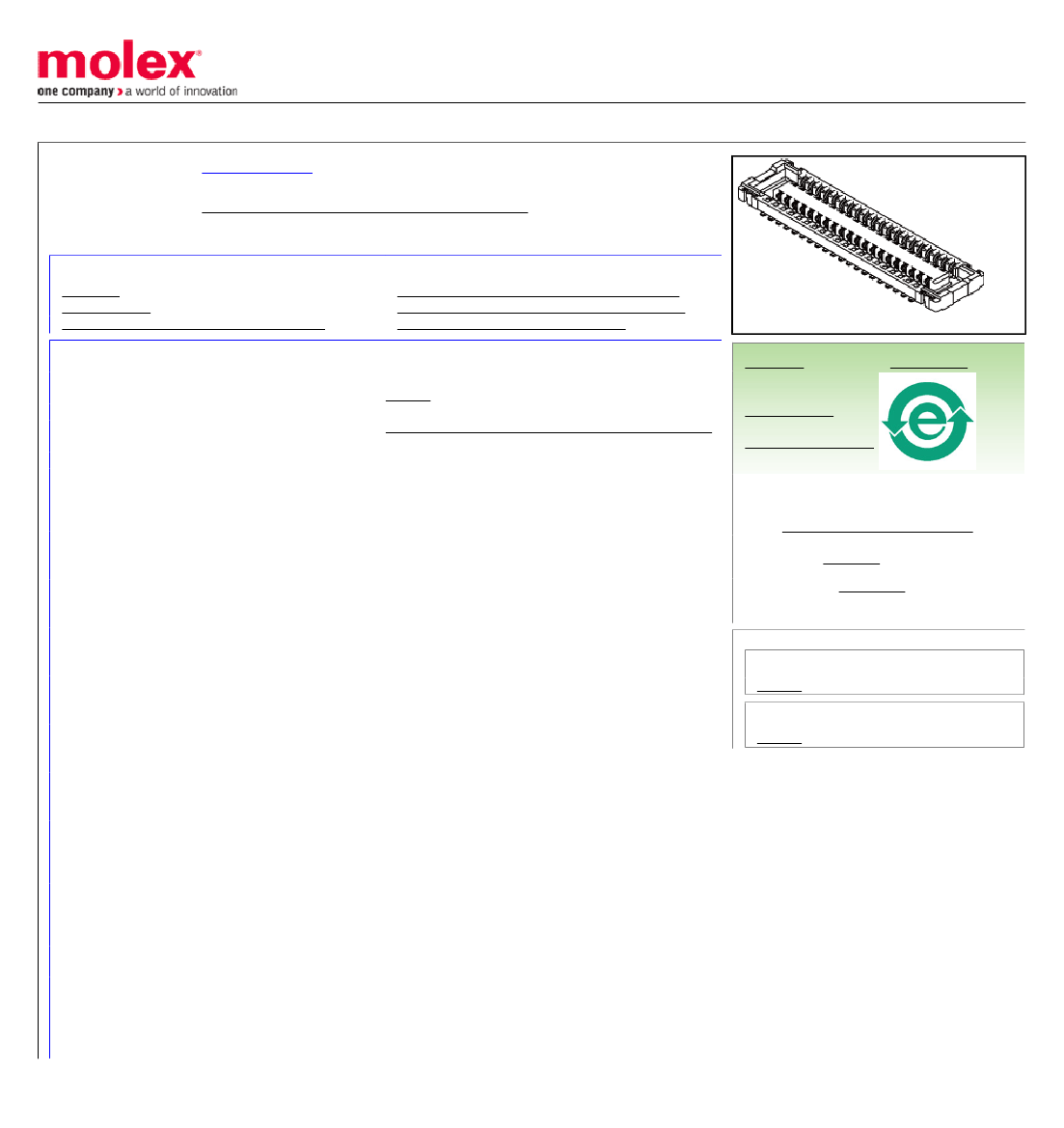

image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Overview
Product Name
UPC
PCB Receptacles
503304
Board-to-Board, Signal
SlimStack™ 0.40mm Pitch Board-to-Board Connectors
SlimStack™
883906713911
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Lock to Mating Part
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to Mating Part
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
16
16
Black
30
No
Yes
0.70mm
Copper Alloy
Gold
Gold
9.294/mg
2
Vertical
No
Yes
Embossed Tape on Reel
0.40mm
No
No
No
-40°C to +85°C
Surface Mount
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
503304Series
Mates With
503308 PCB Header
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.3A
50V AC/DC
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
AS-503304-001
SPK-503304-001
PS-503304-001, RPS-503304-004, RPS-503304-015,
RPS-503304-016
SD-503304-001, SD-503304-002
