2
.92
23.3
17.17 436.0
1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
PANDUIT PART NUMBER
DPA48688TGY
WEIGHT
2.36 lb (1070.48 g)
4.75
120.6
B
19.00 482.6
.28
18.44 468.4
1.25
31.8
MOUNTS TO 19"
UNIVERSAL RACKS
7.1
1.75
44.45
NOTES:
1. SEE CURRENT CATALOG FOR VARIOUS
APPLICATIONS AS WELL AS OPTIONAL
ICONS.
2. MATERIAL:
PANEL HOUSING: STEEL
RJ45 MODULES: THERMOPLASTIC RESIN
UL94V-0
PUNCHDOWN BLOCKS: THERMOPLASTIC
RESIN UL94V-0
BEZEL ASSEMBLY: THERMOPLASTIC RESIN
UL94H-B
RETENTION CAP:
THERMOPLASTIC RESIN UL94V-O
3. 48 PORT ANGLED PATCH PANEL 8 POSITION
8 WIRE.
4. THE PATCH PANEL IS DESIGNED FOR
MOUNTING TO 19" UNIVERSAL RACKS.
5. FOUR (4) 12-24 X 1/2" ROUND HEAD
SCREWS AND (4) M6x1x15MM METRIC
SCREWS ARE PROVIDED FOR FASTENING
TO RACKS.
6. DIMENSIONS IN BRACKETS ARE IN METRIC.
7. USE 110 STYLE TERMINATION
TOOL FOR PUNCHDOWN.
8. RETENTION CAPS
(ONE PER CONNECTOR)
PROVIDED FOR SNAP-IN ON TERMINATED
CONNECTORS.
B
3.47
PLUS
88.1
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1.75
44.4
.40
10.2
A
PART NUMBER
DPA48688TGY
TITLE
A
3.00
76.2
CID**-C & CIP**-C, PHONE OR DATA ICON
LOCATES HERE. IDENTIFIES INDIVIDUAL PORT.
OPTIONAL, NOT SUPPLIED.
DP6
PLUS
48
PORT
ANGLED
PATCH
PANEL

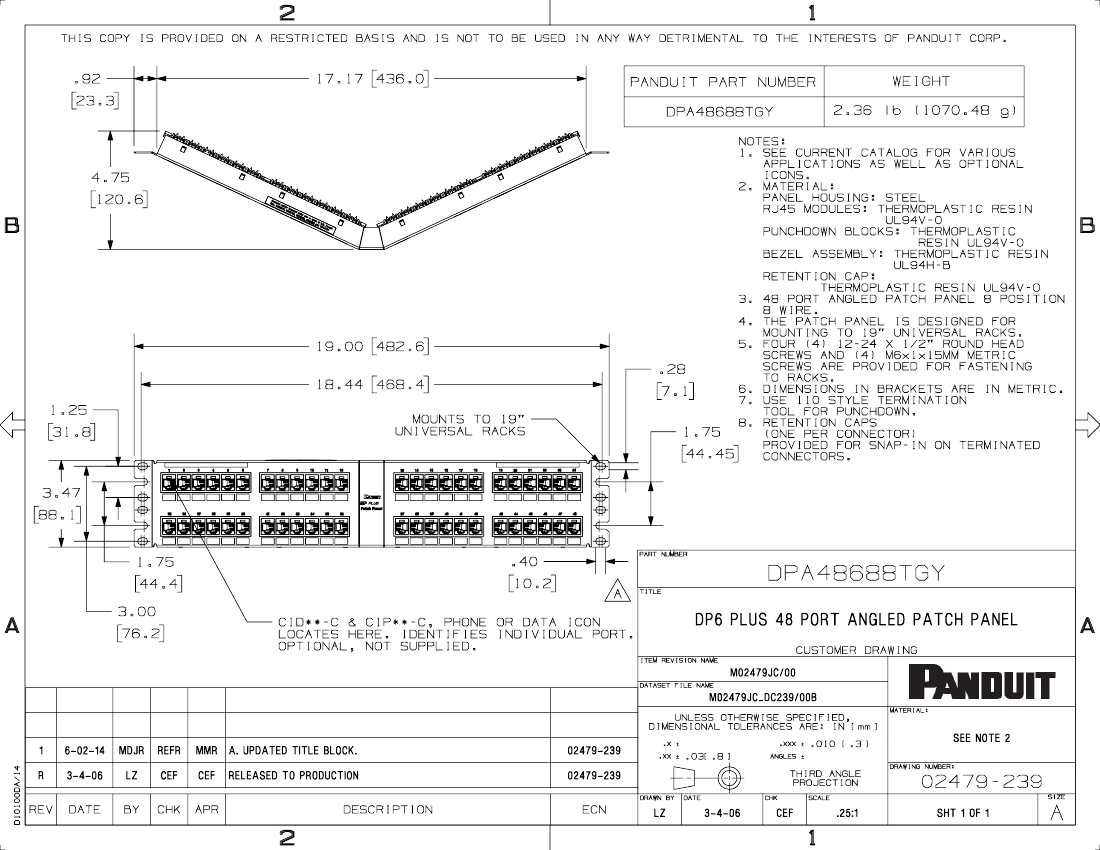

CUSTOMER DRAWING
ITEM REVISION NAME
A
M02479JC/00
DATASET FILE NAME
M02479JC_DC239/00B
MATERIAL:
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
1
D10100DA/14
6-02-14
3-4-06
DATE
MDJR
REFR
CEF
MMR
CEF
A.
UPDATED
TITLE
BLOCK.
RELEASED
TO
PRODUCTION
02479-239
02479-239
.X
.XX
.XXX
.010 [.3]
SEE
NOTE
DRAWING NUMBER:
2
.03[.8]
ANGLES
R
LZ
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
CHK
SCALE
02479-239
SIZE
REV
BY
CHK
APR
DESCRIPTION
ECN
LZ
3-4-06
CEF
.25:1
SHT
1
OF
1
A
2
1
