MCR8DSMT4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> MCR8DSMT4

MCR8DSMT4: DescriptionSCRs 600V 8A; CategoryAnalog mixed-signal IC Trigger device; File Size108KB，6 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

MCR8DSMT4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MCR8DSMT4	-	-	View	Buy Now

MCR8DSMT4 Overview

SCRs 600V 8A

MCR8DSMT4 Parametric

Parameter Name	Attribute value
Brand Name	ON Semiconductor
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	TO-252
package instruction	PLASTIC, CASE 369C-01, DPAK-3
Contacts	3
Manufacturer packaging code	369C
Reach Compliance Code	not_compliant
Shell connection	ANODE
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	2 V/us
Maximum DC gate trigger current	0.2 mA
Maximum DC gate trigger voltage	1 V
Maximum holding current	6 mA
JESD-30 code	R-PSSO-G2
JESD-609 code	e0
Maximum leakage current	0.01 mA
Humidity sensitivity level	1
On-state non-repetitive peak current	90 A
Number of components	1
Number of terminals	2
Maximum on-state current	8000 A
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum rms on-state current	8 A
Off-state repetitive peak voltage	600 V
Repeated peak reverse voltage	600 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	30
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

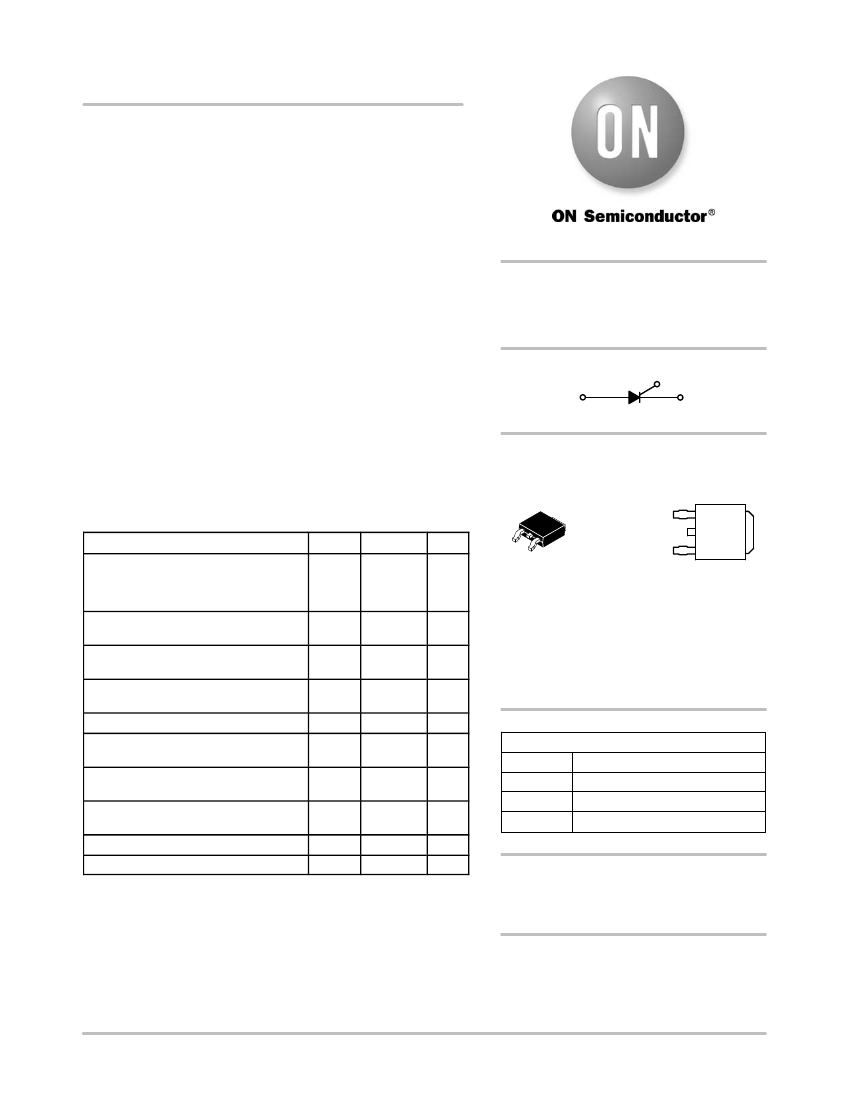

MCR8DSM, MCR8DSN

Preferred Device

Sensitive Gate

Silicon Controlled Rectifiers

Reverse Blocking Thyristors

Designed for high volume, low cost, industrial and consumer

applications such as motor control; process control; temperature, light

and speed control.

Features

http://onsemi.com

•

Small Size

Passivated Die for Reliability and Uniformity

Low Level Triggering and Holding Characteristics

Available in Two Package Styles

Surface Mount Lead Form

−

Case 369C

Miniature Plastic Package

−

Straight Leads

−

Case 369

•

Epoxy Meets UL 94 V−0 @ 0.125 in

•

ESD Ratings:

Human Body Model, 3B

8000 V

Machine Model, C

400 V

•

Pb−Free Packages are Available

MAXIMUM RATINGS

= 25°C unless otherwise noted)

Rating

Peak Repetitive Off−State Voltage (Note 1)

−40

to 110°C, Sine Wave, 50 Hz to

60 Hz)

MCR8DSM

MCR8DSN

On−State RMS Current

(180° Conduction Angles; T

= 90°C)

Average On−State Current

(180° Conduction Angles; T

= 90°C)

Peak Non-Repetitive Surge Current

(1/2 Cycle, Sine Wave 60 Hz, T

= 110°C)

Circuit Fusing Consideration (t = 8.3 msec)

Forward Peak Gate Power

(Pulse Width

≤

msec,

= 90°C)

Forward Average Gate Power

(t = 8.3 msec, T

= 90°C)

Forward Peak Gate Current

(Pulse Width

≤

msec,

= 90°C)

Operating Junction Temperature Range

Storage Temperature Range

Symbol

DRM,

RRM

Value

Unit

600

800

8.0

5.1

5.0

0.5

2.0

−40

to 110

−40

to 150

sec

G(AV)

stg

°C

1 2

SCRs

8 AMPERES RMS

600

−

800 VOLTS

MARKING

DIAGRAM

DPAK

CASE 369C

STYLE 4

YWW

8DSxG

T(RMS)

T(AV)

TSM

= Year

= Work Week

CR8DSx = Device Code

x= M or N

= Pb−Free Package

PIN ASSIGNMENT

Cathode

Anode

Gate

Anode

Stresses exceeding Maximum Ratings may damage the device. Maximum

Ratings are stress ratings only. Functional operation above the Recommended

Operating Conditions is not implied. Extended exposure to stresses above the

Recommended Operating Conditions may affect device reliability.

1. V

DRM

and V

RRM

for all types can be applied on a continuous basis. Ratings

apply for negative gate voltage; positive gate voltage shall not be applied

concurrent with negative potential on the anode. Blocking voltages shall not

be tested with a constant current source such that the voltage ratings of the

device are exceeded.

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 2 of this data sheet.

Preferred

devices are recommended choices for future use

and best overall value.

Semiconductor Components Industries, LLC, 2010

October, 2010

−

Rev. 7

Publication Order Number:

MCR8DSM/D

MCR8DSMT4 Related Products

	MCR8DSMT4	MCR8DSNT4G	MCR8DSNT4	MCR8DSMT4G
Description	SCRs 600V 8A	SCRs 800V 8A	SCRs 800V 8A	SCRs 600V 8A
Brand Name	ON Semiconductor	ON Semiconductor	ON Semiconductor	ON Semiconductor
Is it lead-free?	Contains lead	Lead free	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to	incompatible	conform to
Parts packaging code	TO-252	TO-252	TO-252	TO-252
package instruction	PLASTIC, CASE 369C-01, DPAK-3	SMALL OUTLINE, R-PSSO-G2	PLASTIC, CASE 369C-01, DPAK-3	LEAD FREE, PLASTIC, CASE 369C-01, DPAK-3
Contacts	3	3	3	3
Manufacturer packaging code	369C	369C	369C	369C
Reach Compliance Code	not_compliant	compliant	not_compliant	compliant
Shell connection	ANODE	ANODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	2 V/us	2 V/us	2 V/us	2 V/us
Maximum DC gate trigger current	0.2 mA	0.2 mA	0.2 mA	0.2 mA
Maximum DC gate trigger voltage	1 V	1 V	1 V	1.5 V
Maximum holding current	6 mA	6 mA	6 mA	10 mA
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
JESD-609 code	e0	e3	e0	e3
Maximum leakage current	0.01 mA	0.01 mA	0.01 mA	0.5 mA
Humidity sensitivity level	1	1	1	1
On-state non-repetitive peak current	90 A	90 A	90 A	90 A
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum on-state current	8000 A	8000 A	8000 A	8000 A
Maximum operating temperature	110 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	260	240	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	8 A	8 A	8 A	8 A
Off-state repetitive peak voltage	600 V	800 V	800 V	600 V
Repeated peak reverse voltage	600 V	800 V	800 V	600 V
surface mount	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin (Sn)	Tin/Lead (Sn/Pb)	Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	30	40	30	40
Trigger device type	SCR	SCR	SCR	SCR
