ATT3042-150M68I datasheet, PDF

ATT3042-150M68I: DescriptionField Programmable Gate Array, 144 CLBs, 4200 Gates, 150MHz, CMOS, PQCC68; CategoryProgrammable logic devices Programmable logic; File Size2MB，53 Pages; ManufacturerLSC/CSI; Websitehttps://lsicsi.com

Download Datasheet Parametric View All

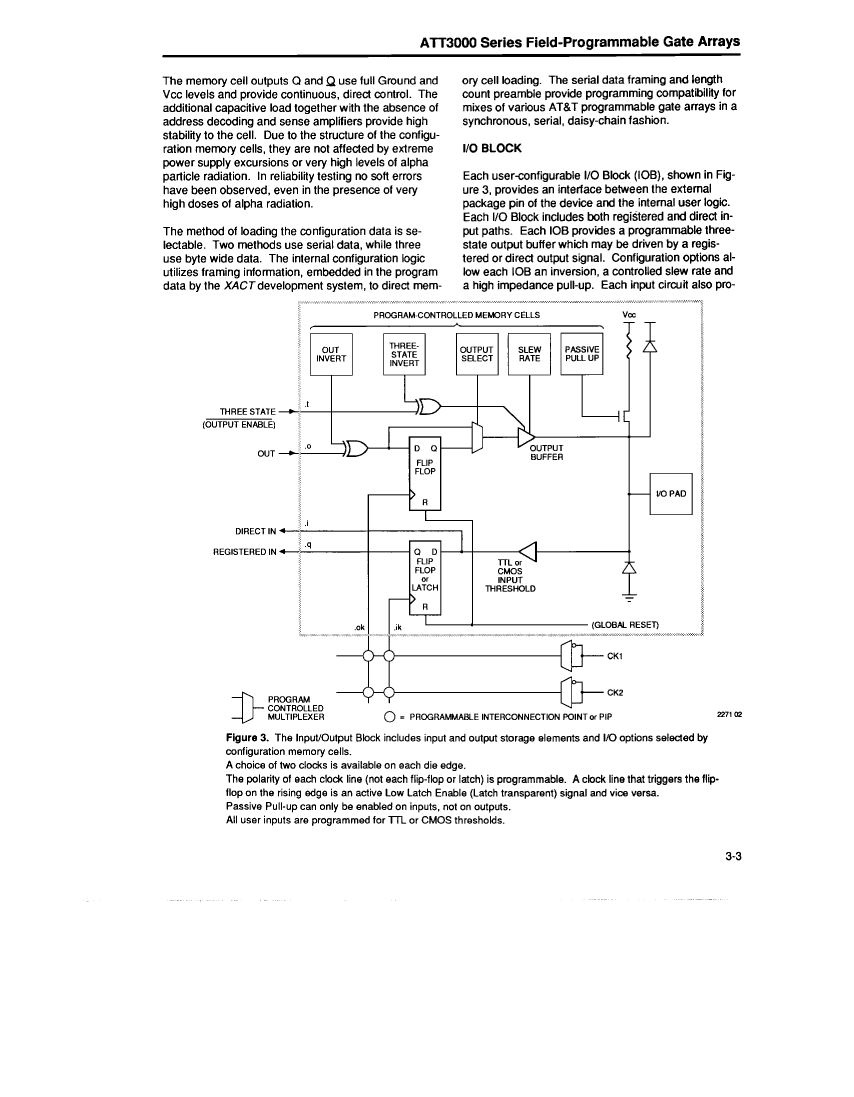

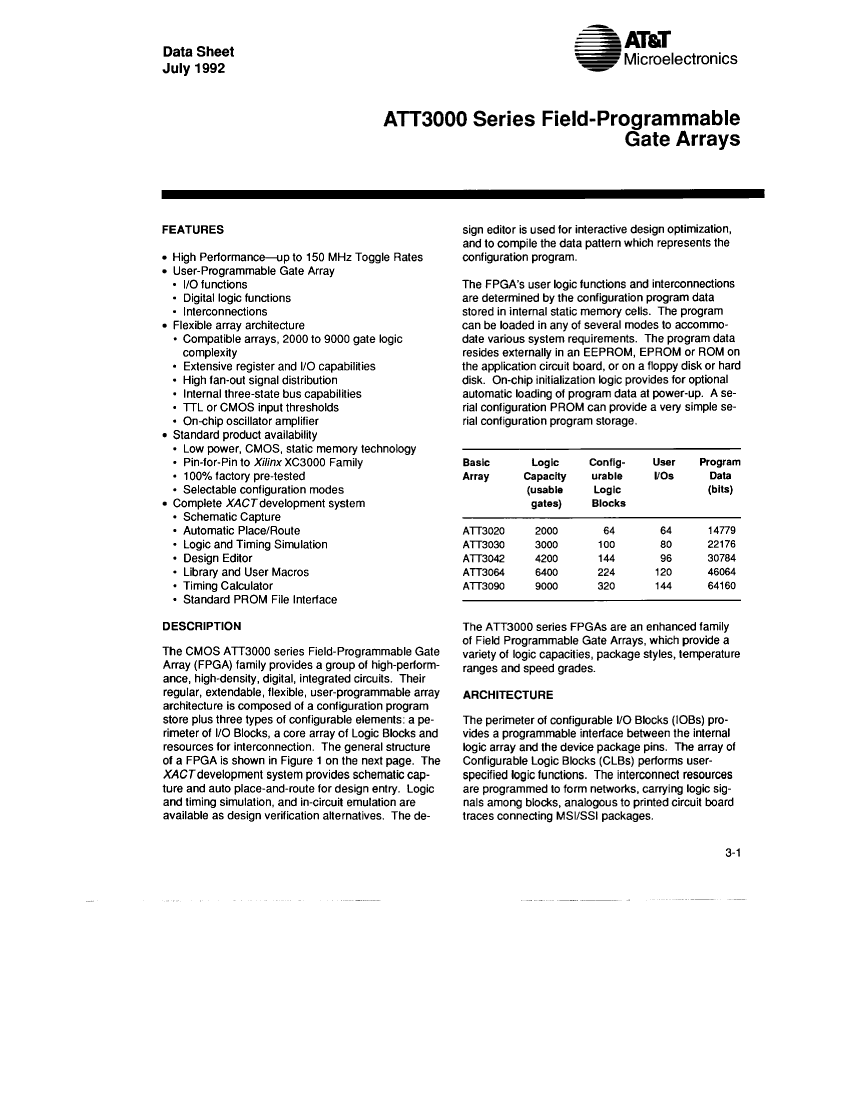

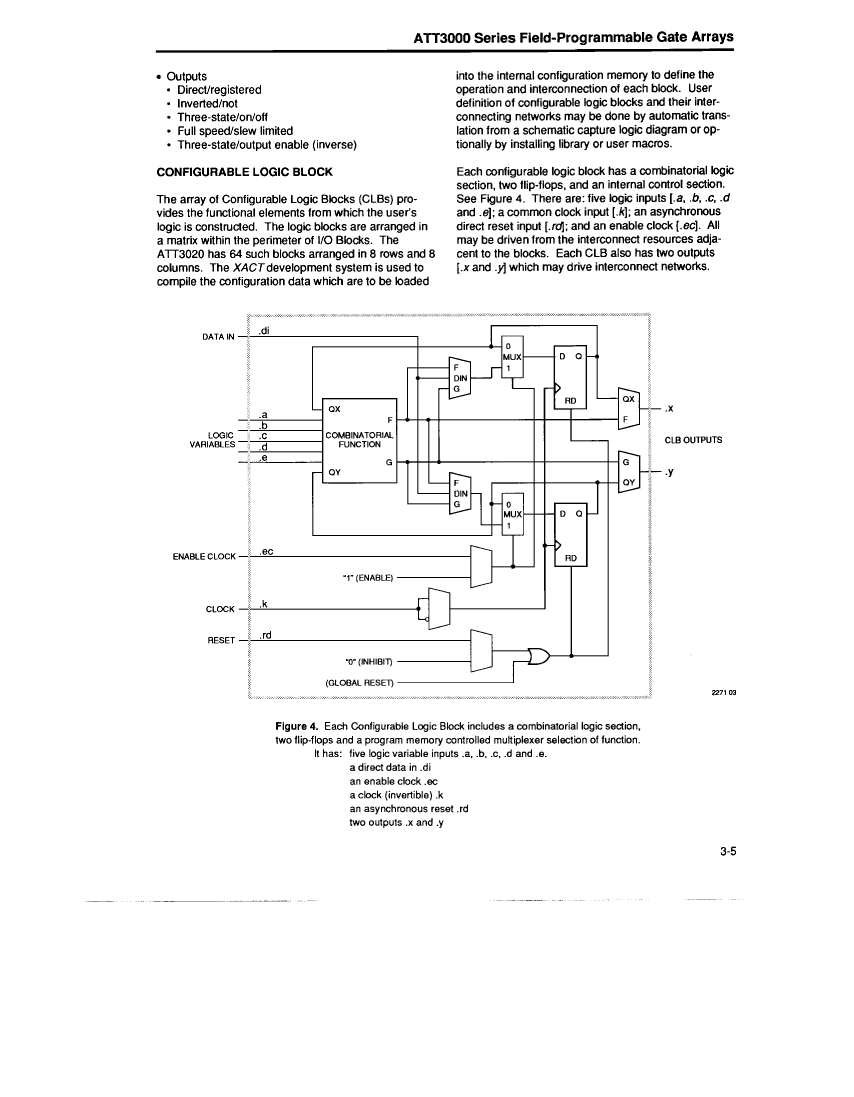

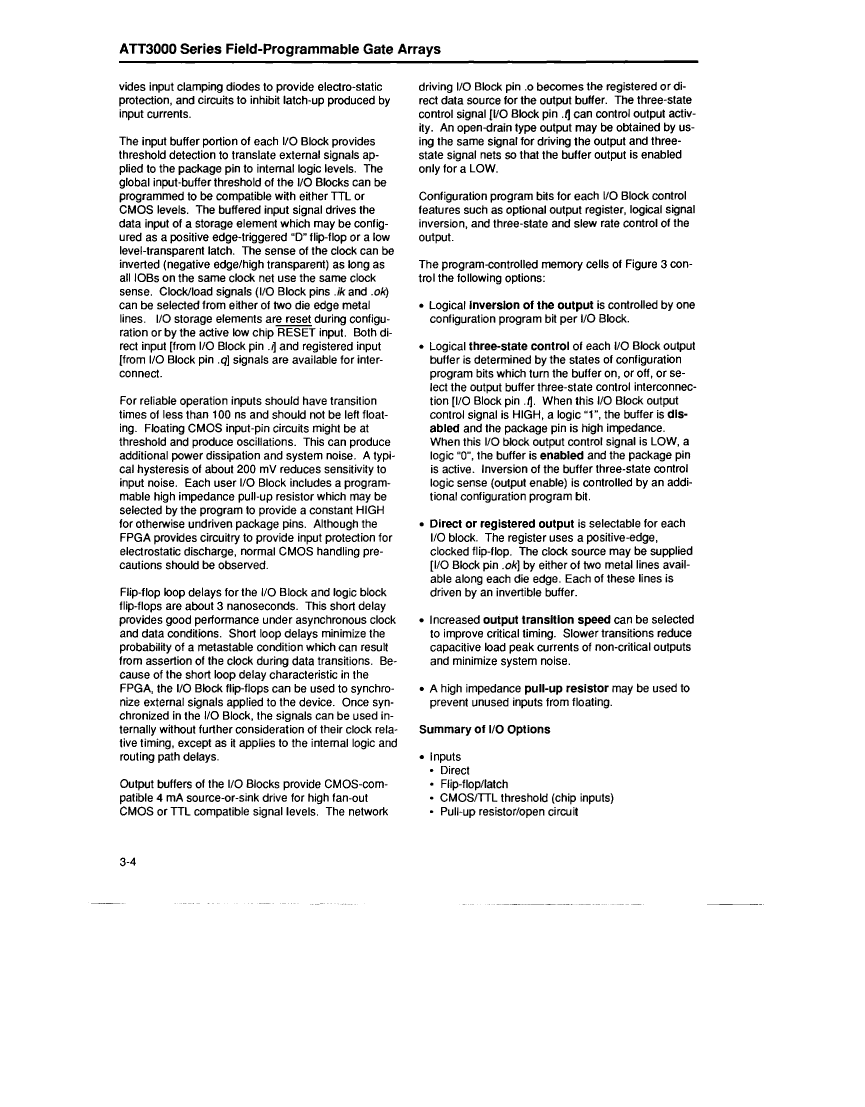

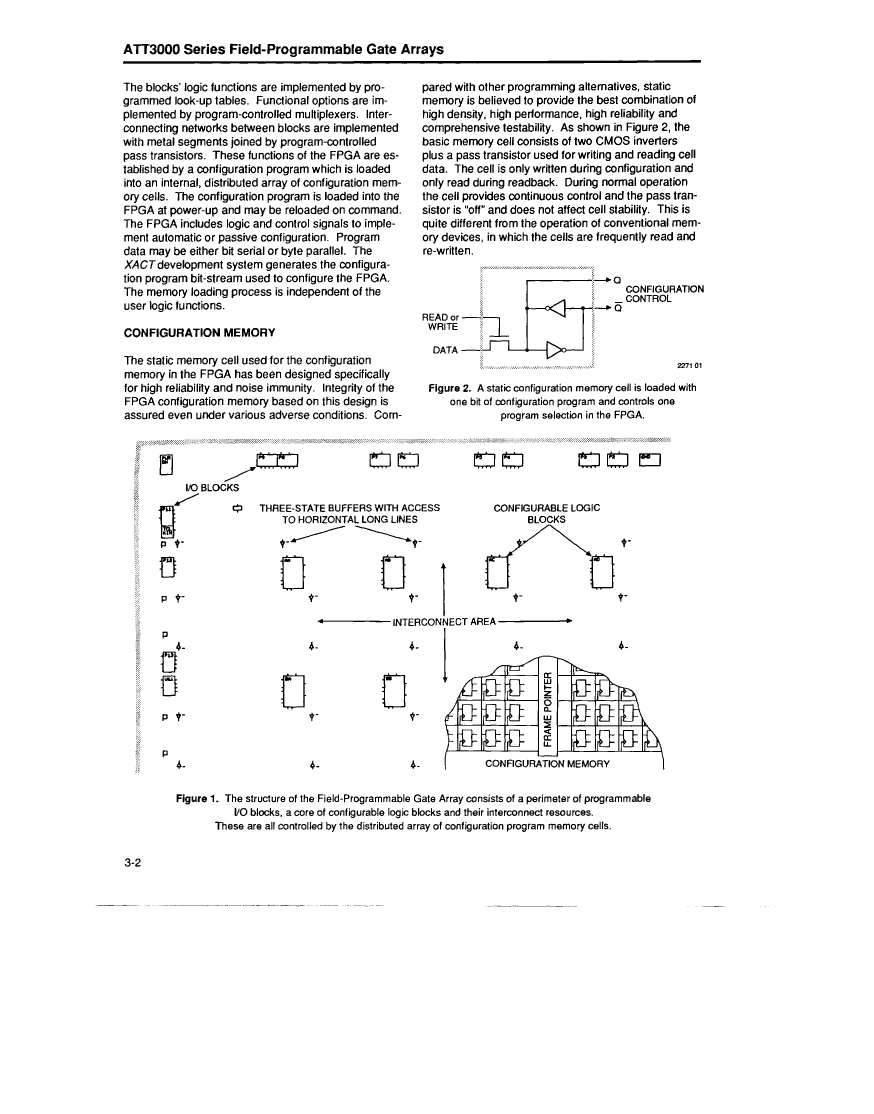

ATT3042-150M68I Overview

Field Programmable Gate Array, 144 CLBs, 4200 Gates, 150MHz, CMOS, PQCC68

Parameter Name	Attribute value
Maker	LSC/CSI
package instruction	,
Reach Compliance Code	unknown
Other features	MAX 96 I/OS; 480 FLIP-FLOPS
maximum clock frequency	150 MHz
Combined latency of CLB-Max	4.6 ns
JESD-30 code	S-PQCC-J68
Configurable number of logic blocks	144
Equivalent number of gates	4200
Number of terminals	68
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	144 CLBS, 4200 GATES
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal location	QUAD
Base Number Matches	1
