5.0SMLJ60A: DescriptionTrans Voltage Suppressor Diode, 5000W, 60V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size116KB，3 Pages; ManufacturerMDE Semiconductor; Websitehttp://www.mdesemiconductor.com

Download Datasheet Parametric View All

5.0SMLJ60A Overview

Trans Voltage Suppressor Diode, 5000W, 60V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC PACKAGE-2

5.0SMLJ60A Parametric

Parameter Name	Attribute value
Maker	MDE Semiconductor
Parts packaging code	DO-214AB
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED, PD-MIN
Maximum breakdown voltage	73.7 V
Minimum breakdown voltage	66.7 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak reverse power dissipation	5000 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	UNIDIRECTIONAL
Maximum repetitive peak reverse voltage	60 V
surface mount	YES
technology	AVALANCHE
Terminal form	C BEND
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

MDE Semiconductor, Inc.

78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel : 760-564-8656 • Fax : 760-564-2414

1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com

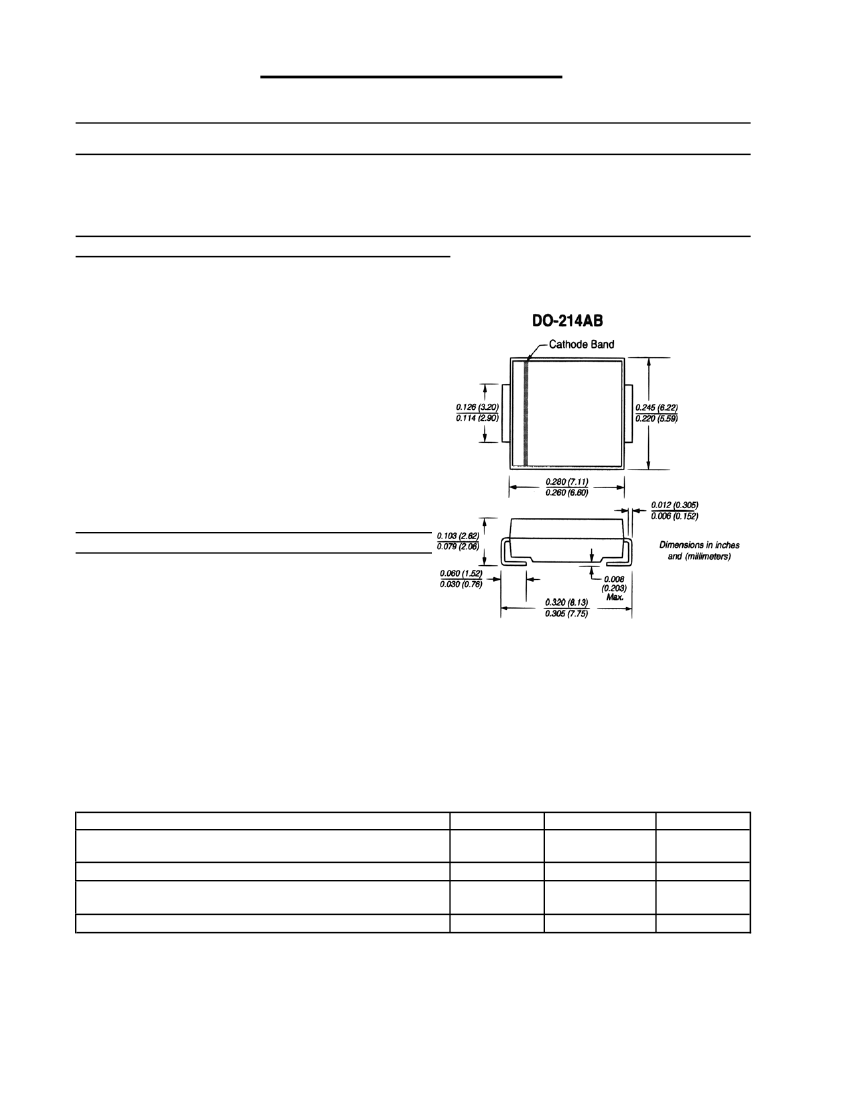

5.0 SMLJ SERIES

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

VOLTAGE-5.0 TO 170 Volts

5000 Watt Peak Pulse Power

FEATURES

• For surface mounted applications in order to

optimize board space

• Low profile package

• Built-in strain relief

• Glass passivated junction

• Low inductance

• Excellent clamping capability

• Repetition rate (duty cycle):0.01%

• Fast response time: typically less than

1.0 ps from 0 volts to BV for unidirectional types

• Typical IR less than 1µA above 10V

• High temperature soldering:

250°C/10 seconds at terminals

• Plastic package has Underwriters Laboratory

Flammability Classification 94 V-O

MECHANICAL DATA

Case: JEDEC DO214AB. Molded plastic over glass

passivated junction

Terminals: Solder plated, solderable per

MIL-STD-750, Method 2026

Polarity: Color band denoted positive end (cathode)

except Bidirectional

Standard Packaging: 12mm tape (EIA STD RS-481)

Weight: 0.007 ounces, 0.021 grams)

Dimensions in inches and (millimeters)

DEVICES FOR BIPOLAR APPLICATIONS

For Bidirectional use Suffix for types 5.0SMLJ12A thru types 5.0SMLJ170A (e.g. 5.0SMLJ12CA, 5.0SMLJ45CA)

Electrical characteristics apply in both directions.

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25°C ambient temperature unless otherwise specified.

RATING

Peak Pulse Power Dissipation on 10/1000 µs

waveform

(NOTE 1, 2, Fig.1)

Peak Pulse Current of on 10/1000 µs waveform

(Note 1,Fig 3)

Peak Forward Surge Current, 8.3ms Single Half Sine-wave

Superimposed on Rated Load,

(JEDEC Method)(Note2, 3)

Operatings and Storage Temperature Range

SYMBOL

PPM

VALUE

Minimum 5000

SEE TABLE 1

300

-55 +150

UNITS

Watts

Amps

°C

FSM

, T

STG

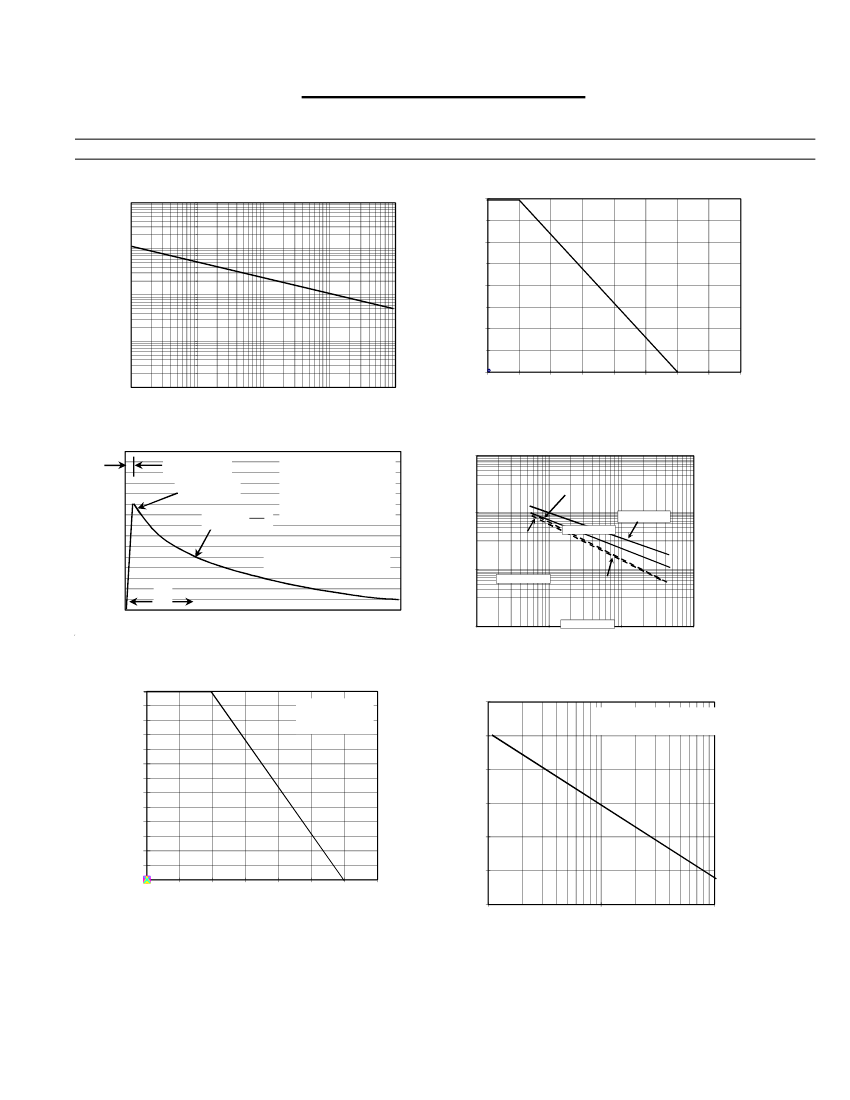

NOTES:

1. Non-repetitive current pulse, per Fig.3 and derated above Ta=25 °C per Fig.2.

2. Mounted on Copper Pad area of 0.8x0.8" (20x20mm) per Fig.5.

3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle=4 pulses per minutes maximum.

Certified RoHS Compliant

UL File # E223026

5/1/2012
