257-005-14S-5P datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 257-005-14S-5P

Preview

257-005-14S-5P: DescriptionCircular MIL Spec Connector STAINLESS STEEL ENV RECEPTACLE PIN; CategoryThe connector; File Size317KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

257-005-14S-5P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	257-005-14S-5P	-	-	View	Buy Now

257-005-14S-5P Overview

Circular MIL Spec Connector STAINLESS STEEL ENV RECEPTACLE PIN

257-005-14S-5P Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Connector
Number of Positions	5 Position
Insert Arrangement	14S-5
Contact Gender	Pin (Male)
MIL Type	MIL-DTL-5015
Product	Connectors
Shell Size	14S
Shell Style	Receptacle
Mounting Style	Cable
Termination Style	Solder
Current Rating	10 A
Contact Plating	Gold
Contact Material	Copper Alloy
Mounting Angle	Straight
Voltage Rating	250 VDC
Shell Plating	Passivated
Mating Style	-
Shell Material	Steel
Wire Gauge	-

Preview

Download Datasheet

View All

257-005

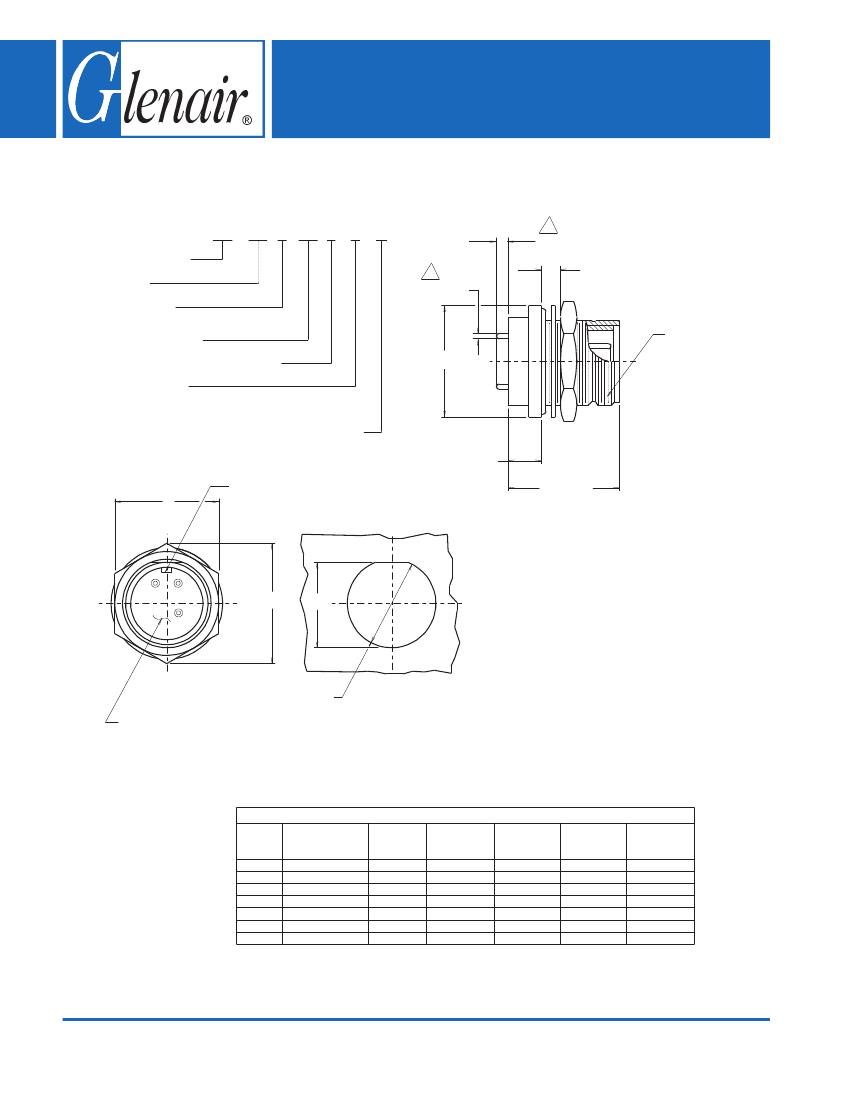

Stainless Steel Environmental Receptacle

CONNECTOR, RECEPTACLE,

ENVIRONMENT RESISTANT

WITH PRINTED CIRCUIT CONTACTS

MIL-DTL-5015

HOW TO ORDER:

EXAMPLE:

PRODUCT SERIES

BASIC NO

H = HERMETIC

OMIT FOR STD, SUBSTITUTE DASH

SHELL SIZE, TABLE I

INSERT ARRANGEMENT DASH NO.

CONTACT STYLE :

P = PIN

S = SOCKET (NON HERMETIC ONLY)

E

C

L

POLARIZING KEY

F

D

SHELL

SIZE

10SL

12

14S

18

20

24

28

www.glenair.com

257-005

with Printed Circuit Contacts

MIL-DTL-5015 Type

257 - 005 H 14S - 5

P

W

4

.170

4

.065/.060 DIA

.50 MAX. PANEL

A THREAD TYP.

B DIA

ALTERNATE INSERT POSITION, OMIT FOR NORMAL

.450/.440

1.82 MAX

C

L

C

RECOMMENDED

PANEL CUTOUT

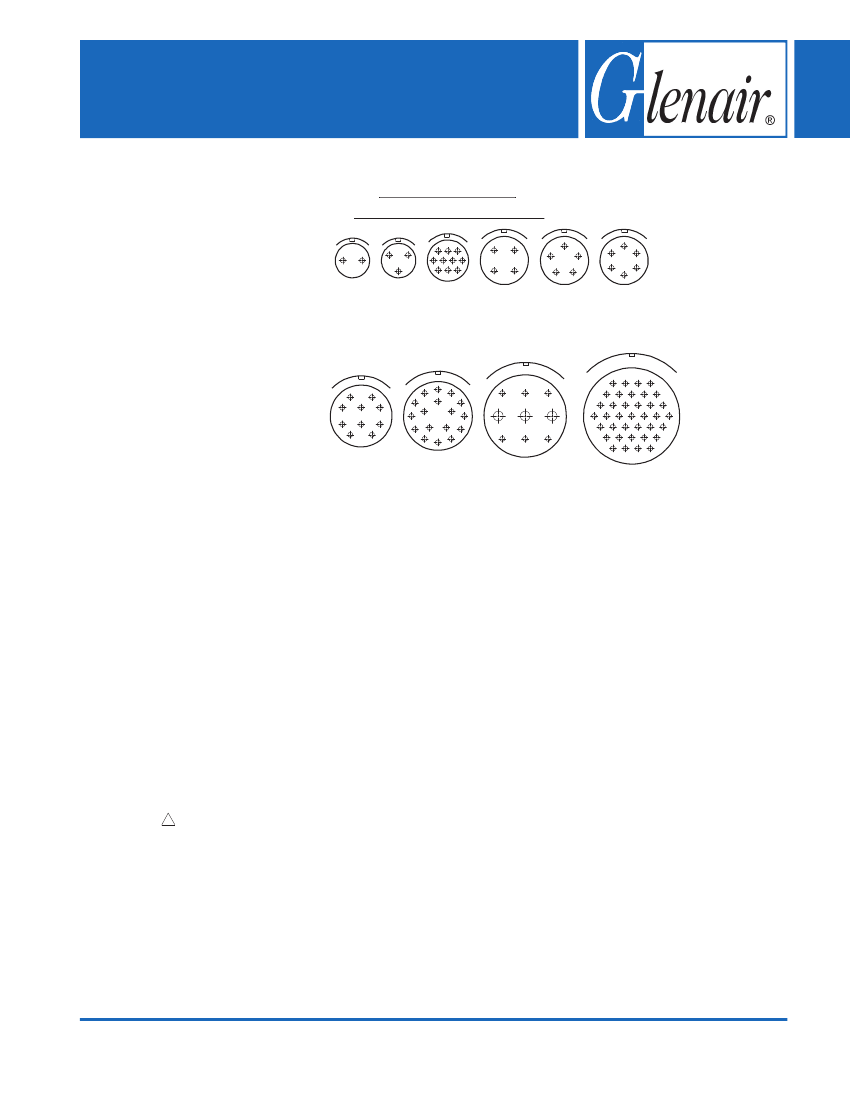

INSERT ARRANGEMENT WITH SOLDER POT

CONTACTS, SEE FACE VIEWS & P/N DEVELOPMENT

A THREAD

CLASS 2A

TABLE I: CONNECTOR DIMENSIONS

B DIA

MAX

1.03 (26.2)

1.16 (29.5)

1.28 (32.5)

1.66 (42.2)

1.78 (45.2)

2.03 (51.6)

2.28 (57.9)

C DIA

+.010 - .000

(+0.3 - 0)

.635 (16.1)

.760 (19.3)

.885 (22.5)

1.135 (28.8)

1.260 (32.0)

1.510 (38.4)

1.760 (44.7)

D

+.010 - .000

(+0.3 - 0)

.585 (14.9)

.710 (18.0)

.835 (21.2)

1.085 (27.6)

1.210 (30.7)

1.460 (37.1)

1.710 (43.4)

E

FLATS

F

REF

1.000 (25.4)

1.125 (28.6)

1.250 (31.8)

1.730 (43.9)

1.870 (47.5)

2.165 (55.0)

2.448 (62.2)

5/8 -24 UNEF

3/4 -20 UNEF

7/8 -20 UNEF

1 1/8 -18 UNEF

1 1/4 -18 UNEF

1 1/2 -18 UNEF

1 3/4 -18 UNEF

.870 (22.1)

.995 (25.3)

1.120 (28.4)

1.495 (38.0)

1.620 (41.1)

1.870 (47.5)

2.120 (53.8)

CAGE CODE 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

C-14

257-005-14S-5P Related Products

	257-005-14S-5P	257-005-10SL-3P
Description	Circular MIL Spec Connector STAINLESS STEEL ENV RECEPTACLE PIN	Circular MIL Spec Connector STAINLESS STEEL ENV RECEPTACLE PIN
Product Attribute	Attribute Value	Attribute Value
Manufacturer	Glenair	Glenair
Product Category	Circular MIL Spec Connector	Circular MIL Spec Connector
Number of Positions	5 Position	3 Position
Insert Arrangement	14S-5	10SL-3
Contact Gender	Pin (Male)	Pin (Male)
MIL Type	MIL-DTL-5015	MIL-DTL-5015
Product	Connectors	Connectors
Shell Size	14S	10SL
Shell Style	Receptacle	Receptacle
Mounting Style	Cable	Cable
Termination Style	Solder	Solder
Current Rating	10 A	10 A
Contact Plating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Mounting Angle	Straight	Straight
Voltage Rating	250 VDC	250 VDC
Shell Plating	Passivated	Passivated
Shell Material	Steel	Steel
