ZWS240PAF36-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> ZWS240PAF36-A

ZWS240PAF36-A: DescriptionSwitching Power Supplies 240W 36V 6.7A; Categorysemiconductor Power management; File Size538KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric View All

ZWS240PAF36-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZWS240PAF36-A	-	-	View	Buy Now

ZWS240PAF36-A Overview

Switching Power Supplies 240W 36V 6.7A

ZWS240PAF36-A Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	TDK Corporation
Product Category	Switching Power Supplies
RoHS	Details
Product	Switching Supplies
Output Voltage-Channel 1	36 VDC
Number of Outputs	1 Output
Output Power	240 W
Open Frame/Enclosed	Open Frame
Input Voltage	85 VAC to 265 VAC
Output Current-Channel 1	6.7 A
Industry	Commercial
Length	3.26 in
Width	3.38 in
Height	0.5 in
Approvals	EN60950-1, UL60950-1
Factory Pack Quantity	1

Preview

Download Datasheet

View All

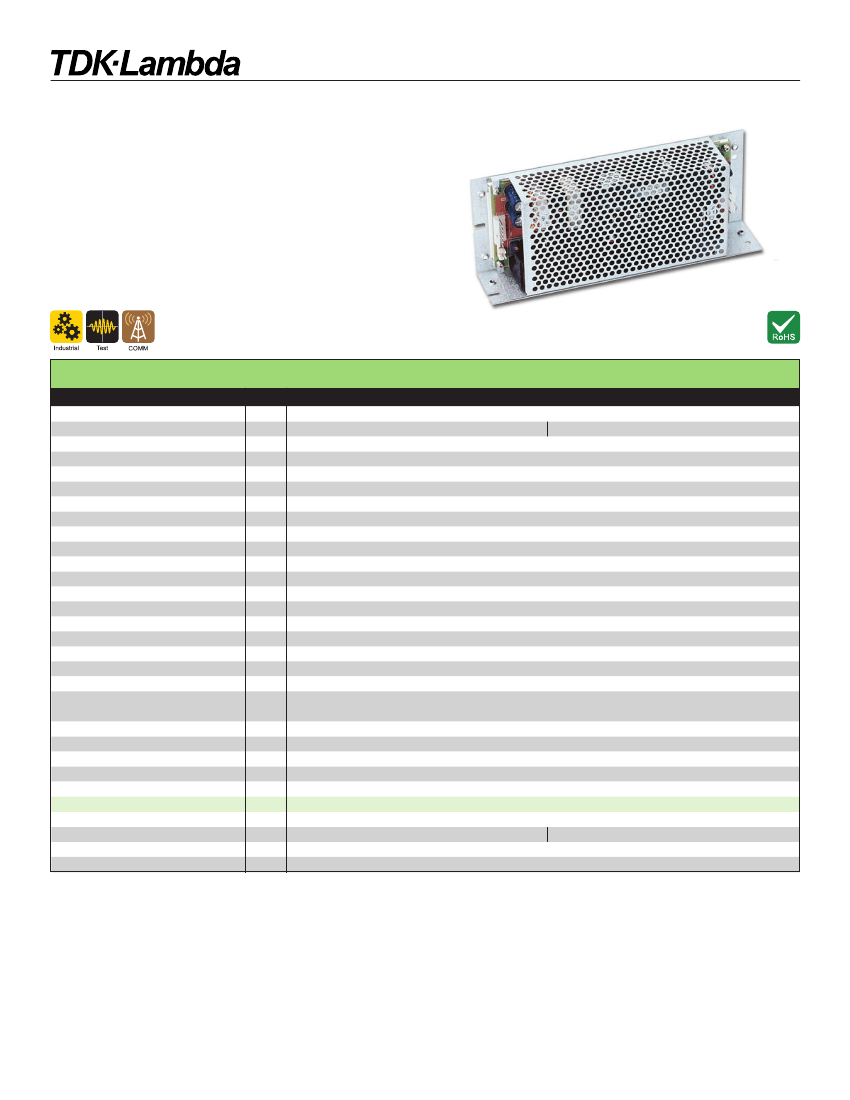

ZWS-PAF Series

150W to 480W Single Output Power Supplies

Features

Universal Input (85 - 265VAC)

Power factor Corrected

200% Peak Power capability

2 year warranty

Less than 0.5mA earth leakage current

Input Transient Protected

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage

Input Current (Forced air (1)

Inrush Current

(1,2)

Power Factor

Leakage Current

Temperature Coefﬁcient

Overcurrent Protection

(3)

Overvoltage Protection

Hold Up Time (Typ) at 100VAC

Efﬁciency

Remote On/Off

Line Regulation

Load Regulation

Ripple & Noise

Operating Temperature

(4)

Operating Temperature

(4)

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Approvals

Conducted & Radiated EMI

Recommended EMI Filter

Immunity

Weight (Typ)

Size (WxHxD)

Warranty

°C

yrs

ZWS150PAF

ZWS240PAF

85-265VAC (47-63Hz), 120-370VDC

2.8/1.4

4.0/2.0

14 / 28

0.99 at 100VAC, 0.95 at 200VAC, Meets EN61000-3-2

0.5mA Max. Typically 0.1mA (100VAC), 0.22mA (230VAC)

<0.02%/°C

>102% of peak current capability

24V: 30-35V, 36V: 43.2-50.4, 48V: 55.2-64.8V

20 (16ms at forced air power ratings)

See installation manual (Not available with /A cover option)

0.4%

0.8%

(Open frame or L bracket) -10°C to +70°C, derate linearly to 70% load from 60°C to 70°C

(With /A cover option) -10°C to +60°C, derate linearly to 70% load from 50°C to 60°C

-30 to +85°C

Operating: 30 - 90% RH, Operating: 10 - 95% RH

Convection or Forced Air Cooled (1.5m/s)

Input to Ground 2kVAC (20mA), Input to Output 3kVAC (20mA),

Output to Ground 500VAC (100mA) for 1 min.

>100M at 25°C & 70% RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant X, Y, Z 1 hour

< 196.1 m/s

UL60950-1, CSA60950-1, EN60950-1, EN50178, CE Mark

EN55022/EN55022-B, FCC Class B, VCCI-B

RSEL-2006W

EN61000-4-2, -3, -4, -5, -6, -8, -11

500g (800g with cover)

750g (1100g with cover)

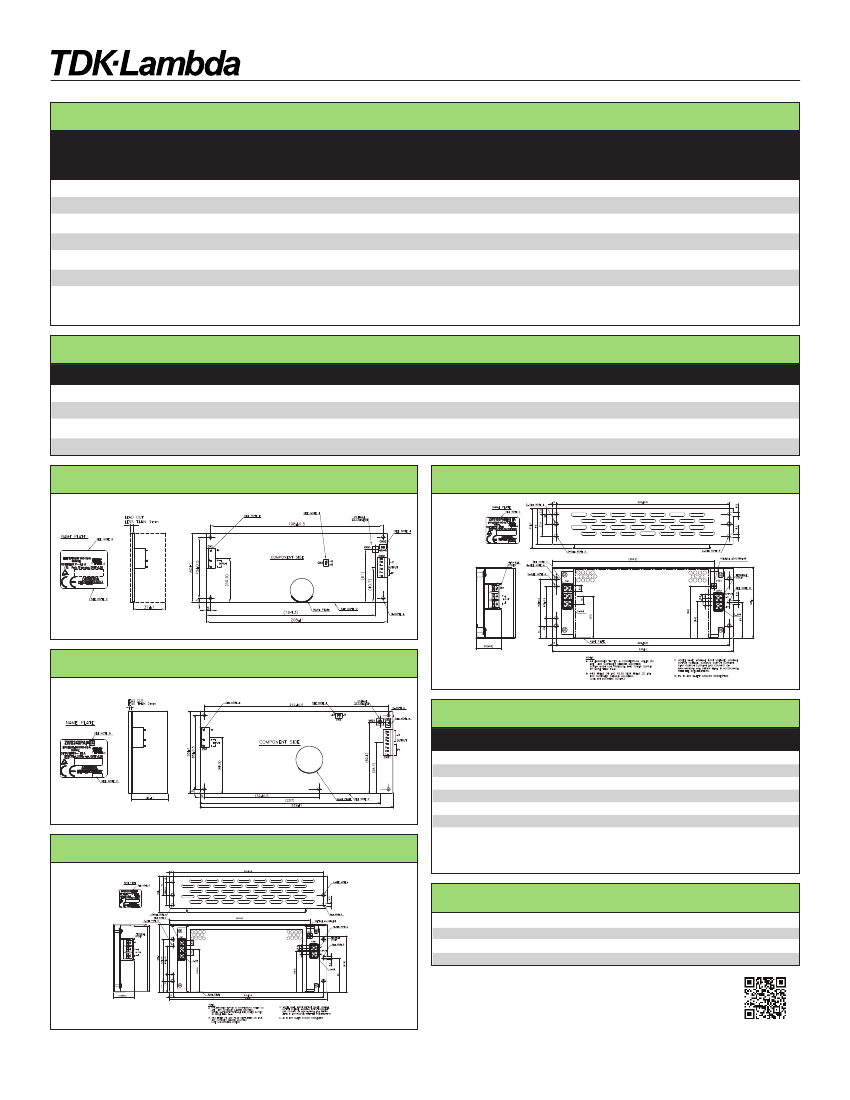

See Outline Drawings

Two Years

Notes:

(1) 100/200VAC

(2) 25°C ambient (cold start)

(3) Avoid prolonged operartion in overload

(4) With 0.7m/s airﬂow. See derating table for convection cooling

1-800-526-2324 • www.us.tdk-lambda.com/lp/

117

Disclaimer: us.tdk-lambda.com/lp/legal.htm
