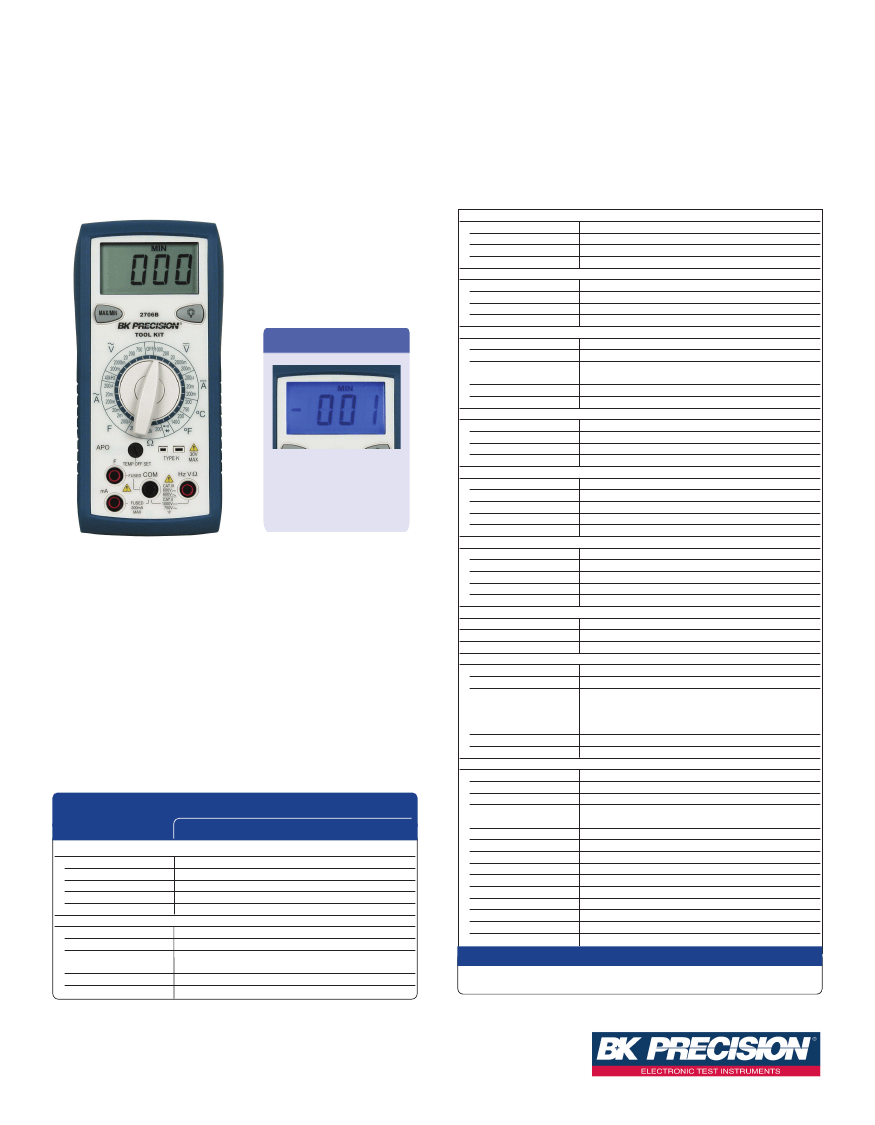

Data Sheet
Manual Ranging Tool Kit
®
DMM with Temperature
Model 2706B
DC Current
Ranges
200 uA, 20 mA, 200 mA
Resolution
0.1 uA, 10 uA, 100 uA
±(1.0% rdg + 1 dgts)
Accuracy
0.25 A/500 V fast blow ceramic fuse
Input Protection
AC Cu rrent (50 Hz-500 Hz)
Ranges
200 uA, 20 mA, 200 mA
Resolution
0.1 uA, 10 uA, 100 uA
±(1.5% rdg + 5 dgts)
Accuracy
Input Protection
0.25 A/500 V fast blow ceramic fuse
Resis tan ce
Ranges
200
Ω,
2 kΩ, 200 kΩ, 20 MΩ
0.1
Ω,
1.0
Ω,
100
Ω,
10 kΩ,
Resolution
Accuracy
200
Ω
to 200 kΩ ranges: ±(1.0 % rdg + 4 dgts)
20MΩ range: ±(2.0 % rdg + 4 dgts)
Open Circuit Voltage (typical) 0.3 VDC (3.0 VDC on 200
Ω)
500 VDC/ACrms
Overload Protection
Capacitance
200 uF 2 mF 20 mF
,
,
Ranges
0.1 uF 1.0 uF 10 uF
,
,
Resolution
Accuracy
±(4 % rdg + 10 dgts)
Overload Protection
0.25 A/500 V fast blow ceramic fuse
Fre qu ency
10 Hz to 40 kHz
Ranges
Resolution
1 Hz
Accuracy
±(0.1 % rdg + 3 dgts)
Sensitivity
3.5 Vrms minimum
Overload Protection
500 VDC/AC rms
Diode Te st
Test Current
1.0 mA (typical)
Resolution
10 mV
Accuracy
±(1.5 % rdg + 3 dgts)
Open Circuit Voltage
3.0 VDC (typical)
Overload Protection
500 VDC/ACrms
Con tinuity
Audible Indication
Less than 100
Ω
Response Time
100 ms
Overload Protection
500 VDC/ACrms
Temperature
Ranges
-35ºC to 750ºC, -30ºF to 1400ºF
Resolution
0.1ºC, 0.1ºF
Accuracy
0ºC to 400ºC ±(1.0 % rdg + 1ºC)
-35ºC to 0ºC, 400ºC to 750ºC ±(3.0 % rdg + 3ºC)
-4ºF to 750ºF ±(1.0 % rdg + 2ºF)
-30ºF to -4ºF 750ºF to 1400ºF ±(3.0 % rdg + 6ºF)
,
Sensor Type
K-type thermocouple
Overload Protection
60 VDC or 30 VACrms
General
Display
3 1/2 digit, 2000 count LCD
Polarity
Automatic, positive implied, negative polarity indication
Overrange
OL or -OL is displayed
Low Battery Indication
Battery symbol will display when battery voltage drops below
operating levels
Measurement Rate
2.5 times per second
Auto Power Off
Approximately 25 minutes
Operating Environment
0ºC to 50ºC at <70 % relative humidity
Storage Environment
-20ºC to 60ºC at 0 to 80 % relative humidity
Accuracies
Stated accuracy at 23ºC +5ºC at <75 % relative humidity
Temperature Coefficient
0.1 x (specified accuracy) per ºC. (ºC to 18ºC, 28ºC to 50ºC)
Power
Single standard 9 volt battery, NEDA 1604, JIS 006P IEC 6F22
,
Battery Life
150 hours typical
Dimensions
165 mm (H) x 78 mm (W) x 42.5 mm (D)
Weight
Approximately 10 oz. (285 g) with battery and hanger
LC D bac k light
Ultra bright blue LCD back
light for low ambient light
measurements
The 2706B is a versatile manual-ranging DMM with temperature measurement.
The 2000 count LCD has a bright blue back light that allows the meter to be
used in dimly lit environments. With the auto-power-off feature you won’t have to
worry about accidental battery consumption. Value-packed features make this
meter a must in every "Tool Kit
®
".
Features
I
I
I
I
I
I
Auto power off
DC voltage to 1000 V
Resistance to 20 MΩ
One-handed operation
Magnetic hanger
Bright blue LCD backlight
I
I
I
I
AC voltage to 750 V
Capacitance to 20 mF
Continuity test
Diode test
Specifications
2706B
D C Volts
Ranges
200 mV, 2000 mV, 20 V, 200 V 1000 V
Resolution
0.1 mV, 1 mV, 10 mV, 100 mV, 1 V
Accuracy
±(0.5 % rdg + 1 dgts)
Input Impedance
10 MΩ
Overload Protection
1000 VDC or 750 VACrms*
A C Volts (50 Hz-500 Hz)
Ranges
200 mV, 2000 mV, 20 V, 200 V 750 V
Resolution
0.1 mV, 1 mV, 10 mV, 100 mV, 1 V
Accuracy
200 mV & 20 V ranges: ±(1.2 % rdg + 5 dgts)
200 V & 750 V ranges: ±(2.0 % rdg + 5 dgts)
Input Impedance
10 MΩ
Overload Protection
1000 VDC or 750 VACrms*
model
Three-Year Warranty
Supplied Accessories: User manual, one set of test leads, one spare fuse, 9V battery (installed),
and one K-type thermocouple
*= 600 VDC/Acrms for 15 seconds on 200 mV range
Technical data subject to change
© B&K Precision Corp. 2013
Page 1 of 2
w w w.bk prec ision.c om
Tel.: 714.921.9095
Data Sheet

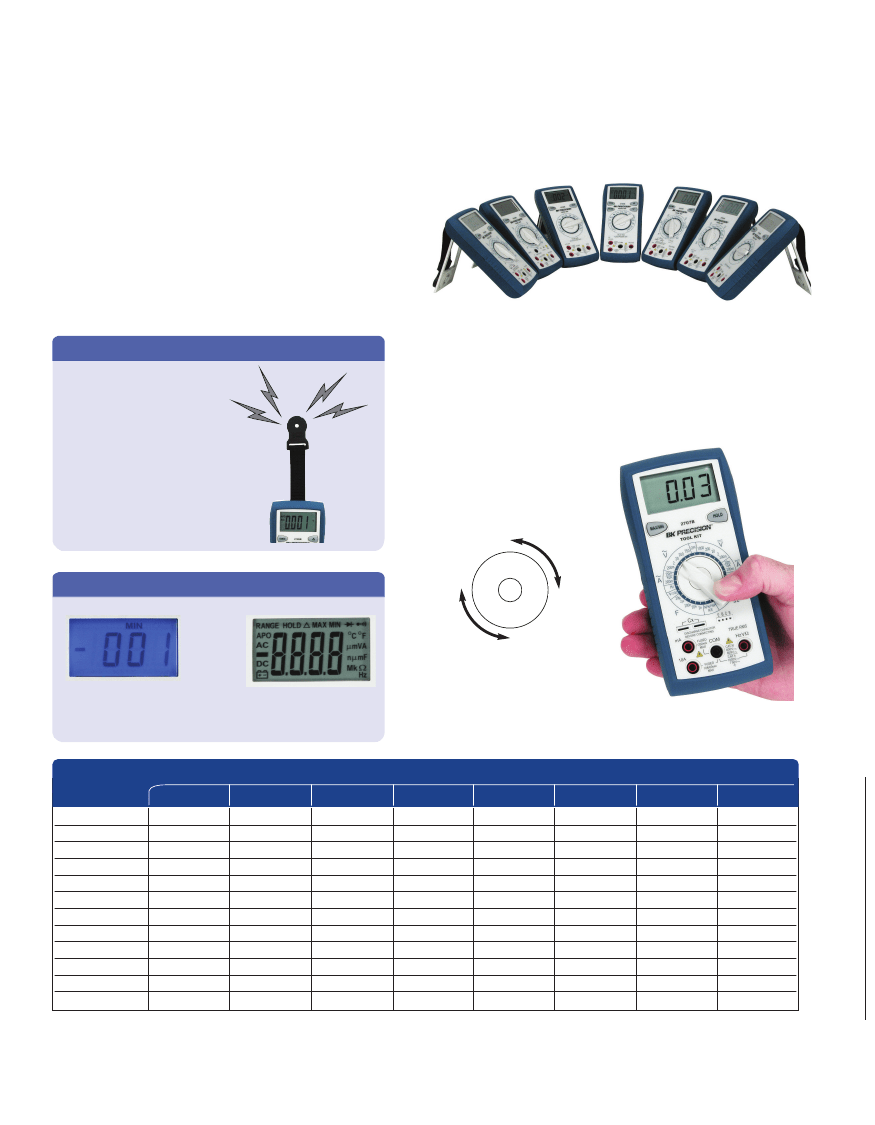

B&K Precision’s 2700 Tool Kit
®
Series
Models 2703C, 2704C, 2705B, 2706B, 2707B, 2708B, 2709B & 2712
These excellent meters are for most jobs that require flexibility, accuracy and
speed. Value-packed features make these meters a must for everyone’s “Tool
Kit
®
”.
Common Features:
I
I
I
I
DC Voltage to 1000V
DC Current to 10A
Diode test
Magnetic hanging strap
Magnet ic Hanging Strap
I
I
I
AC Voltage to 750V
Continuity test
Drop resistant case
Single-handed operation
The ergonomic design allows both left and right handed users to rotate the
knob while holding the meter in one hand. While one hand keeps the probe
on the circuit, the other hand changes the meter’s function. This speeds up
troubleshooting because you don’t have to locate the probe point in the
circuit again.
This convenient feature allows you to
hang your DMM on any magnetic
metallic surface freeing up your
hands for troubleshooting.
Bac k Light / Easy-t o-Read LC D
Model 2706B
Models 2709B & 2712
É
Ultra-bright blue LCD
back light for low ambient
light measurements
Large easy-to-read LCD
with green LED backlight
Features
2712
Ranging
True RMS
Current
Capacitance
Transistor Test
Frequency Counter
Temperature
Logic Probe
Backlight LCD
Analog Bar Graph
Battery Test
Auto Power off
Auto/Manual
AC + DC
10 A AC/DC
to 40 uF
-
to 500 kHz
-
-
√
√
-
√
2709B
Auto/Manual
√
10 A AC/DC
to 66 mF
-
to 66 MHz
-
-
√
-
-
√
2708B
Auto/Manual
√
10 A AC/DC
-
-
-
-
-
-
√
-
√
2707B
Manual
√
10 A AC/DC
to 20 uF
√
to 20 MHz
-
√
-
-
-
-
2706B
Manual
-
200 mA AC/DC
to 20 mF
-
to 40 kHz
√
-
√
-
-
√
2705B
Auto/Manual
-
10 A AC/DC
-
-
-
-
-
-
-
-
√
2704C
Manual
-
10 A AC/DC
to 20 uF
√
to 20 MHz
-
√
-
-
-
-
models
2703C
Manual
-
10 A DC
-
-
-
-
-
-
-
√
-
Page 2 of 2
v041113
w w w.bk precision.com
Analogue and Mixed Signal
