399100109: Description10.16mm (.400") beau? eurostyle?, fixed mount pcb terminal block, high voltage, high power 60a, 9 circuits; CategoryThe connector terminals; File Size171KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

399100109 Overview

10.16mm (.400") beau? eurostyle?, fixed mount pcb terminal block, high voltage, high power 60a, 9 circuits

399100109 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	THERMOPLASTIC
Fastening method	SCREW
Manufacturer's serial number	39910
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	9
Rated current	60 A
Rated voltage	600 V
safety certificate	UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	6 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0399100107

Active

10.16mm (.400") Beau™ Eurostyle™, Fixed Mount PCB Terminal Block, High Voltage,

High Power 60A, 7 Circuits

Documents:

3D Model

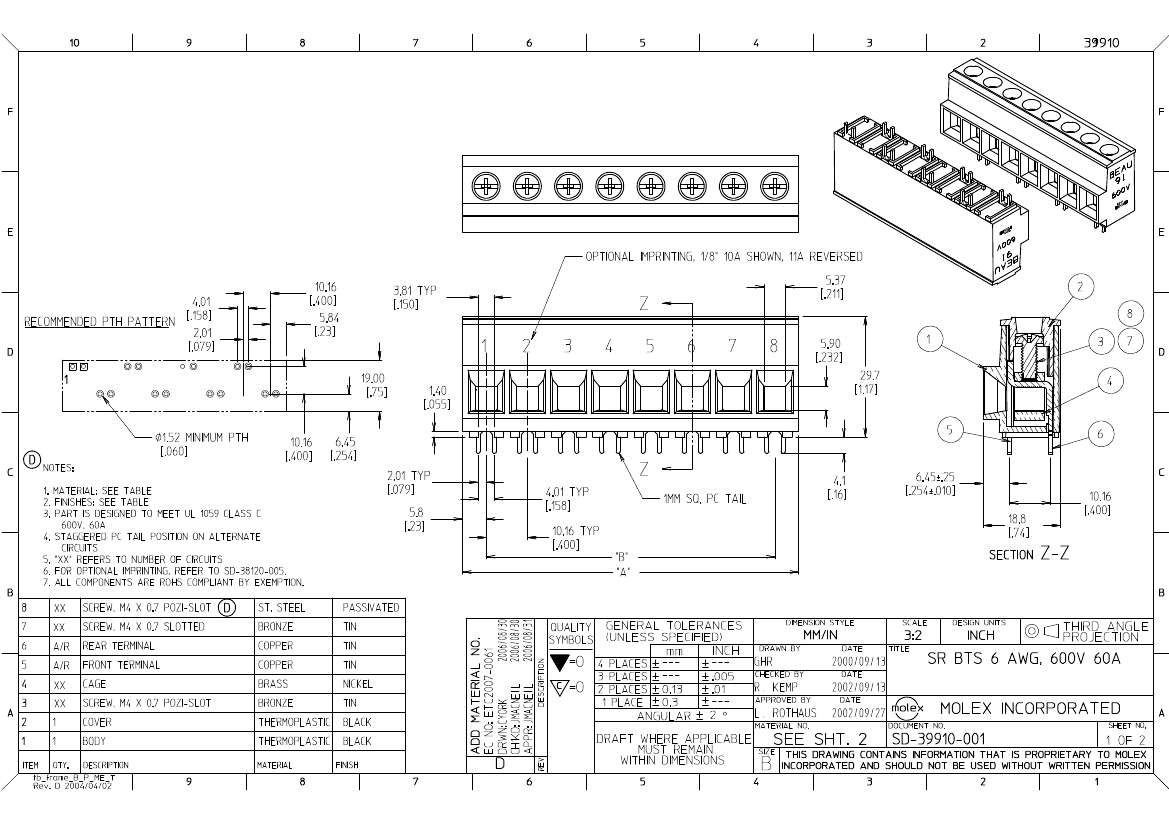

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

E48521

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39910

Wire-to-Board

One Piece

USA-199

Eurostyle™Fixed Mount

Euro Block

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Retention

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Wire Size mm²

Black

Horizontal

94V-0

None

Brass, Copper

Tin

Polyester

Vertical

0.160 In

4.10 mm

None

0.400 In

10.16 mm

0.400 In

10.16 mm

150

3.75

150

3.75

Yes

Fully

130°C

Through Hole

10, 12, 14, 16, 18, 6, 8

0.75 - 10.0

Search Parts in this Series

39910Series

Mates With

N/A

Electrical

399100109 Related Products

	399100109	399100111	399100107
Description	10.16mm (.400") beau? eurostyle?, fixed mount pcb terminal block, high voltage, high power 60a, 9 circuits	10.16mm (.400") beau? eurostyle?, fixed mount pcb terminal block, high voltage, high power 60a, 11 circuits	10.16mm (.400") beau? eurostyle?, fixed mount pcb terminal block, high voltage, high power 60a, 7 circuits
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	Molex	Molex	Molex
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	unknown	compli
ECCN code	EAR99	EAR99	EAR99
Other features	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Fastening method	SCREW	SCREW	SCREW
Manufacturer's serial number	39910	39910	39910
Installation type	BOARD	BOARD	BOARD
Number of layers	1	1	1
Rows	1	1	1
Number of channels	9	11	7
Rated current	60 A	60 A	60 A
Rated voltage	600 V	600 V	600 V
safety certificate	UL	UL	UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK
Wire gauge	6 AWG	6 AWG	6 AWG
Base Number Matches	1	1	1
