PBSS9110X
100 V, 1 A PNP low V
CEsat
(BISS) transistor
Rev. 01 — 2 May 2005
Product data sheet
1. Product profile
1.1 General description
PNP low V
CEsat
Breakthrough in Small Signal (BISS) transistor in a SOT89 (SC-62/
TO-243) SMD plastic package.
NPN complement: PBSS8110X.
1.2 Features
s
s
s
s
SOT89 package
Low collector-emitter saturation voltage V
CEsat
High collector current capability I
C
and I
CM
High efficiency leading to less heat generation
1.3 Applications
s
Major application segments:
x
Automotive 42 V power
x
Telecom infrastructure
x
Industrial
s
Peripheral driver:
x
Driver in low supply voltage applications (e.g. lamps and LEDs)
x
Inductive load driver (e.g. relays, buzzers and motors)
s
DC-to-DC conversion
1.4 Quick reference data
Table 1:
Symbol
V
CEO
I
C
I
CM
R
CEsat
[1]
Quick reference data
Parameter
collector-emitter voltage
collector current (DC)
peak collector current
collector-emitter saturation
resistance
single pulse;
t
p
≤
1 ms
I
C
=
−1
A;
I
B
=
−100
mA
[1]
Conditions
open base
Min
-
-
-
-
Typ
-
-
-
170
Max
−100
−1
−3
320
Unit
V
A
A
mΩ
Pulse test: t
p
≤
300
µs; δ ≤
0.02.
Philips Semiconductors
PBSS9110X
100 V, 1 A PNP low V
CEsat
(BISS) transistor
2. Pinning information
Table 2:
Pin
1
2
3
Pinning
Description
emitter
collector
base
3
2
1
3
1
006aaa231
Simplified outline
Symbol
2
3. Ordering information
Table 3:
Ordering information
Package
Name
PBSS9110X
SC-62
Description
plastic surface mounted package; collector pad for good
heat transfer; 3 leads
Version
SOT89
Type number
4. Marking
Table 4:
Marking codes
Marking code
[1]
*4C
Type number
PBSS9110X
[1]
* = -: made in Hong Kong
* = p: made in Hong Kong
* = t: made in Malaysia
* = W: made in China
9397 750 14765
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
2 of 15
Philips Semiconductors
PBSS9110X
100 V, 1 A PNP low V
CEsat
(BISS) transistor
5. Limiting values
Table 5:
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
P
tot
Parameter
collector-base voltage
collector-emitter voltage
emitter-base voltage
collector current (DC)
peak collector current
base current (DC)
total power dissipation
T
amb
≤
25
°C
[1]
[2]
[3]
Conditions
open emitter
open base
open collector
single pulse;
t
p
≤
1 ms
Min
-
-
-
-
-
-
-
-
-
-
−65
−65
Max
−120
−100
−5
−1
−3
−0.3
0.55
1.4
2.0
150
+150
+150
Unit
V
V
V
A
A
A
W
W
W
°C
°C
°C
T
j
T
amb
T
stg
[1]
[2]
[3]
junction temperature
ambient temperature
storage temperature
Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated, standard footprint.
Device mounted on an FR4 PCB, single-sided copper, tin-plated, 6 cm
2
collector mounting pad.
Device mounted on a ceramic PCB, Al
2
O
3
, standard footprint.
2.0
P
tot
(W)
1.6
006aaa408
(1)
(2)
1.2
0.8
(3)
0.4
0
0
40
80
120
160
T
amb
(°C)
(1) Ceramic PCB, Al
2
O
3
, standard footprint
(2) FR4 PCB, mounting pad for collector 6 cm
2
(3) FR4 PCB, standard footprint
Fig 1. Power derating curves
9397 750 14765
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
3 of 15
Philips Semiconductors
PBSS9110X
100 V, 1 A PNP low V
CEsat
(BISS) transistor
6. Thermal characteristics
Table 6:
Symbol
R
th(j-a)
Thermal characteristics
Parameter
thermal resistance from
junction to ambient
Conditions
in free air
[1]
[2]
[3]
Min
-
-
-
-
Typ
-
-
-
-
Max
227
89
63
16
Unit
K/W
K/W
K/W
K/W
R
th(j-sp)
[1]
[2]
[3]
thermal resistance from
junction to solder point
Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.
Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for collector 6 cm
2
.
Device mounted on a ceramic PCB, AL
2
O
3
, standard footprint.

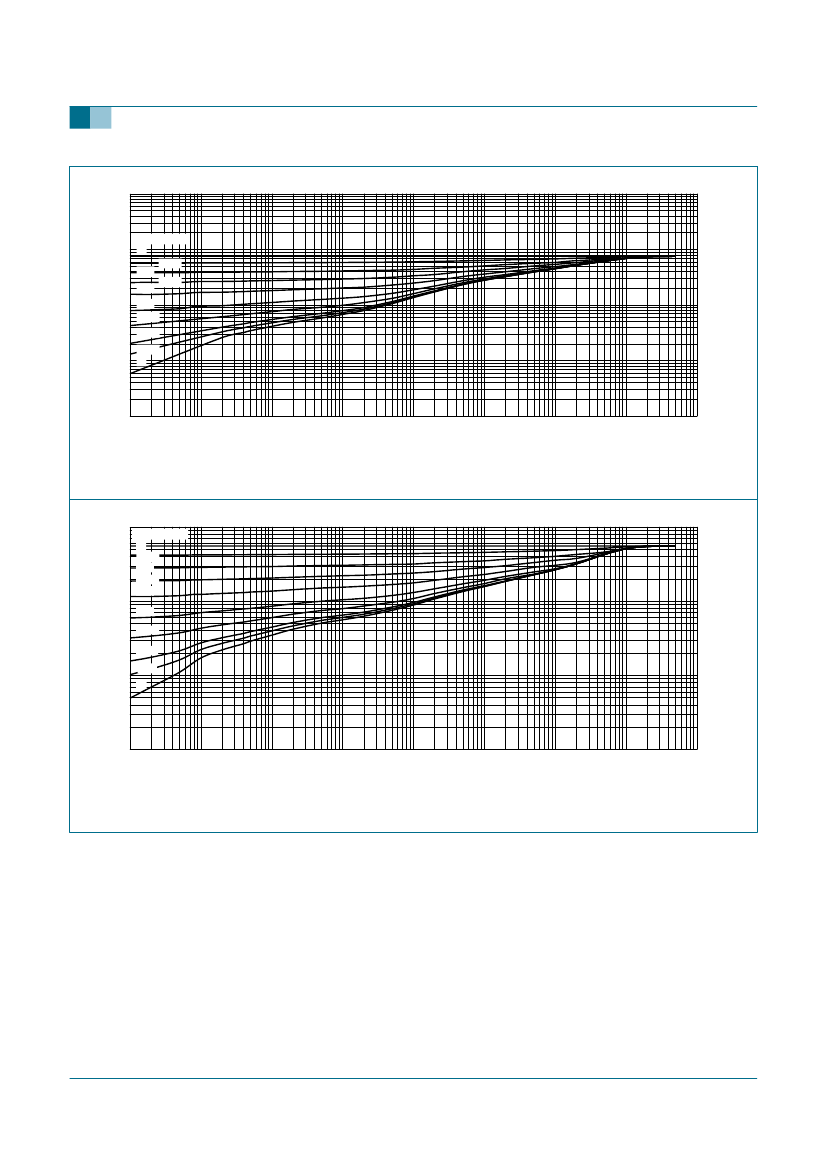

10
3
Z
th(j-a)
(K/W)
duty cycle =
1
0.75
10
2
0.5
0.33
0.2
0.1
0.05
0.02
0.01
1
0
006aaa409
10
10
−1
10
−5
10
−4
10
−3
10
−2
10
−1
1
10
10
2
t
p
(s)
10
3
FR4 PCB, standard footprint
Fig 2. Transient thermal impedance from junction to ambient as a function of pulse time; typical values
9397 750 14765
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
4 of 15
Philips Semiconductors
PBSS9110X
100 V, 1 A PNP low V
CEsat
(BISS) transistor
10
3
Z
th(j-a)
(K/W)
10
2
duty cycle =
1
0.75
0.5
0.33
0.2
0.1
0.05
0.02
1
0.01
0
006aaa411
10
10
−1
10
−5
10
−4
10
−3
10
−2
10
−1
1
10
10
2
t
p
(s)
10
3
FR4 PCB, mounting pad for collector 6 cm
2
Fig 3. Transient thermal impedance from junction to ambient as a function of pulse time; typical values
10
2
Z
th(j-a)
(K/W)
006aaa410
duty cycle =
1
0.75
0.5
0.33
0.2
0.1
0.05
0.02
10
1
0.01
0
10
−1
10
−5
10
−4
10
−3
10
−2
10
−1
1
10
10
2
t
p
(s)
10
3
Ceramic PCB, Al
2
O
3
, standard footprint
Fig 4. Transient thermal impedance from junction to ambient as a function of pulse time; typical values
9397 750 14765
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 01 — 2 May 2005
5 of 15
