Printed-circuit board connector - FKC 2,5 HC/ 9-ST - 1942222
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 16 A, Rated voltage (III/2): 320 V, Number of positions: 9, Pitch: 5 mm,
Connection method: Push-in spring connection, Color: green, Contact surface: Tin, COMBICON connectors
may only be activated under no load conditions. If for operating reasons small loads must be switched,
experimental values are available upon request.

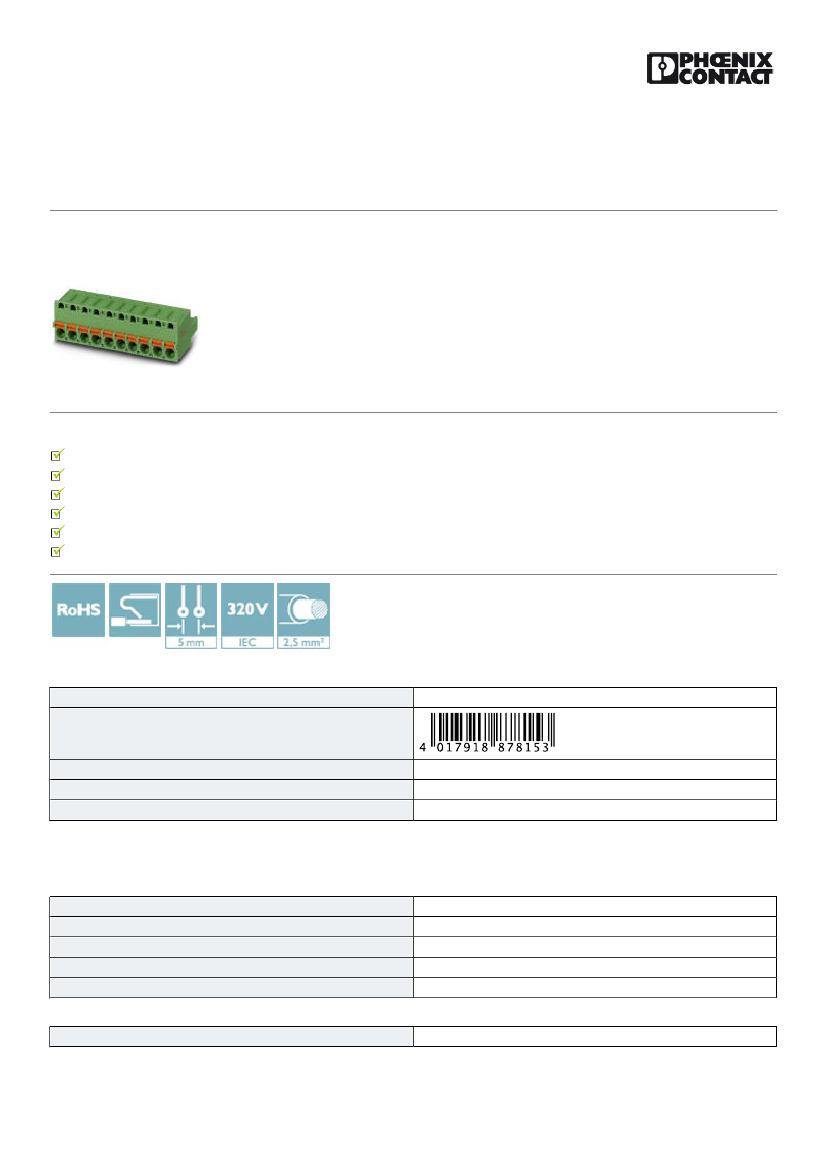

The figure shows a 10-position
version of the product
Why buy this product
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
Optimized for tight installation situations: operation and conductor connection from one direction
Quick and convenient testing using integrated test option
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4017918878153
85366990
Made to Order (non-returnable)
50 STK
Technical data
Dimensions
Length
Height
Width
Pitch
Dimension a
25.6 mm
15 mm
45.1 mm
5.00 mm
40 mm
General
Range of articles
FKC 2,5 HC/..-ST
11/14/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1942222
Printed-circuit board connector - FKC 2,5 HC/ 9-ST - 1942222
Technical data
General
Type of contact
Number of positions
Connection method
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Flammability rating according to UL 94
Internal cylindrical gage
Stripping length
Female connector
9
Push-in spring connection
I
4 kV
4 kV
4 kV
250 V
320 V
630 V
EN-VDE
16 A
2.5 mm²
16 A (with a 2.5 mm² conductor cross section)
PA
V0
A2
10 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
0.25 mm²
2.5 mm²
24
12
0.5 mm²
1.5 mm²
26
12
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Environmental Product Compliance
11/14/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1942222
Printed-circuit board connector - FKC 2,5 HC/ 9-ST - 1942222
Technical data
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

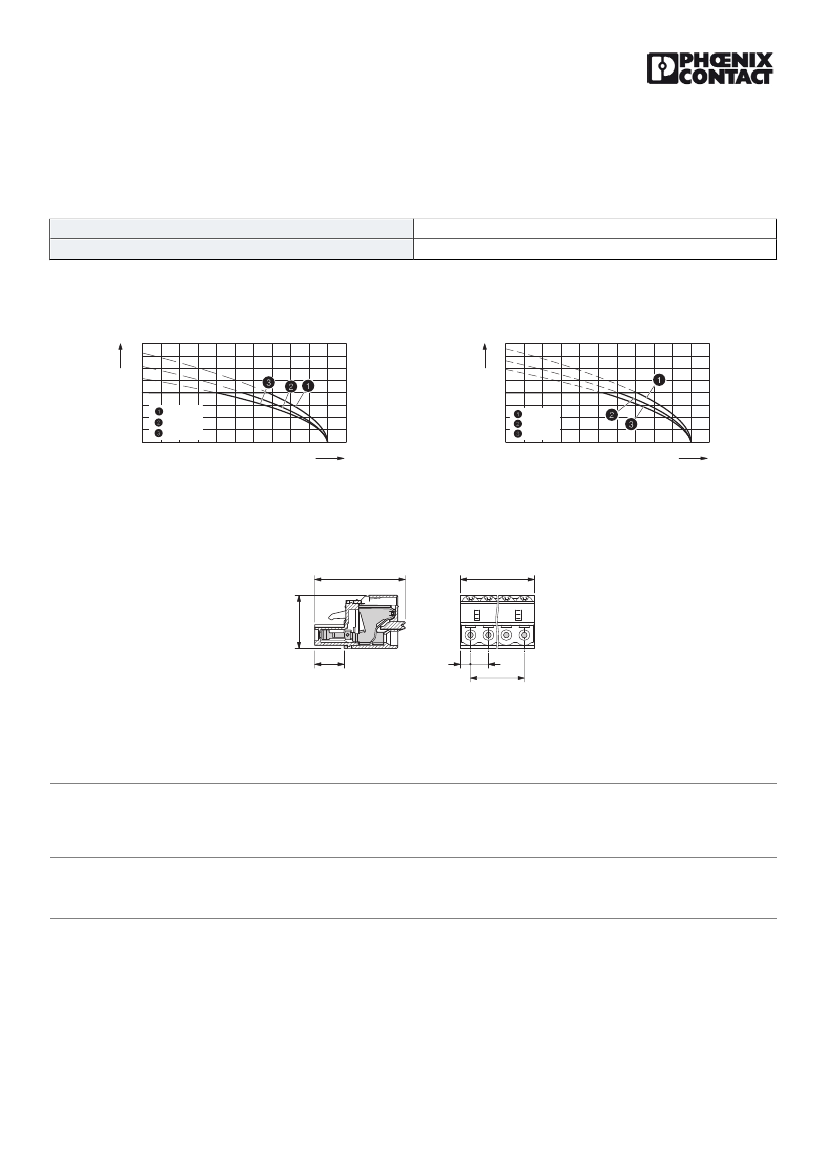

Drawings
Diagram
Operating current [A]
Current strength [A]
Diagram
32
28
24
20
16
12
8
4
0
0
32
24
16
8
0
0
10
20
30
40
50
60
70
80
90 100 110
Ambient temperature [°C]
= 2-pos.
= 5-pos.
= 12-pos.
= 2-pos.
= 5-pos.
= 12-pos.
20
40
60
80
100
Ambient temperature [°C]
Derating curve for: FKC 2,5 HC/..-ST with MSTBA 2,5 HC/..-G
Type: FKC 2,5 HC/...-ST with MSTBVA 2,5 HC/...-G
Dimensional drawing
25,6
a+5,1
15
8,3
2,55
5
a
Approvals
Approvals
Approvals
VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized / IECEE CB Scheme
Ex Approvals
Approval details
11/14/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1942222
Printed-circuit board connector - FKC 2,5 HC/ 9-ST - 1942222
Approvals
VDE Gutachten mit Fertigungsüberwachung
Search.aspx 40004701
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://www.vde.com/en/Institute/OnlineService/VDE-approved-products/Pages/Online-
0.2-2.5
16 A
250 V
EAC B.01742
cULus Recognized http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19931011
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
16 A
300 V
D
26-12
10 A
300 V
IECEE CB Scheme http://www.iecee.org/ DE1-56062-M1-B1B2
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.2-2.5
16 A
250 V
