63900-0570

Description
Tool Kits & Cases TOOL KIT TOOL KIT
CategoryTools and equipment
File Size309KB,6 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

63900-0570 Online Shopping

Suppliers Part Number Price MOQ In stock
63900-0570 - - View Buy Now

63900-0570 Overview

Tool Kits & Cases TOOL KIT TOOL KIT

63900-0570 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMolex
Product CategoryTool Kits & Cases
RoHSDetails
Factory Pack Quantity1

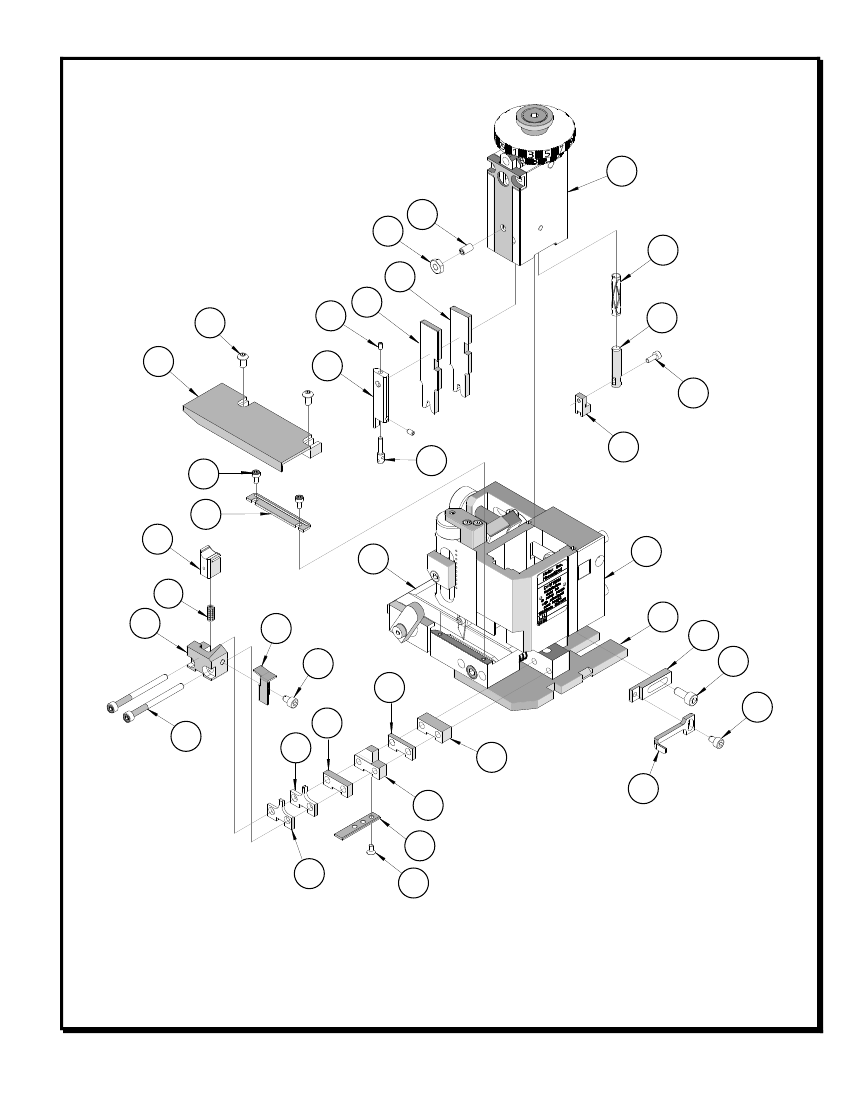

Fine Adjust Applicator for “MX150” Blade
FineAdjust
Applicator
Application Tooling
Specification Sheet
Order No. 63900-0500
FEATURES
Quick punch removal with the push of a button for fast and easy tooling change
Applicator designed to industry standard mounting and shut height 135.80mm (5.346")
Quick set-up time; plus the crimp height, track and feed adjustments can be set without removing the applicator
from the press
Fine adjustment allows users to achieve target with little effort by adjusting in increments of .015mm (.0006") for
conductor crimp height and .063mm (.0025") for insulation height
Independent adjustment rings allow users to quickly adjust the conductor or insulation crimp height without
affecting each other
Directly adapts to most automatic wire processing machines
SCOPE
Products: MX150 Blade Terminals 20 AWG.
Terminal
Series No.
33000
Terminal Order No.
33000-1002 Male (Tin)
33011-0004 Male (Gold)
33011
20
0.50 1.70-1.85 .067-.073 4.70-5.60 .185-.220
33011-3002 Male (Silver)
Terminals were validated per USCAR-21 using the following wire specifications:
M1L-123A (TXL), M1L-135A1 (UTX), and M1L-126A1(metric-TXL)
Customers are required to complete validation testing if tooling purchased outside Molex Inc.
and/or wire specifications are different than above.
Wire Size
AWG mm²
20
0.50
Insulation Diameter
mm
In.
1.70-1.85 .067-.073
Strip Length
mm
In.
4.70-5.60 .185-.220
DEFINITION OF TERMS
BRUSH
BEND UP
WIRE BRUSH MUST BE
FLUSH OR BELOW TOP
OF CONDUCTOR CRIMP
STRIP LENGTH
BEND
DOWN
INSULATION
CRIMP
SEAM
THIS AREA
TERMINAL WIDTH
NOT TO EXCEED
2.65mm AFTER CRIMP
WIRE BEND
ROLLING
0.30
CUT-OFF
TAB
WIRE BEND
BELL MOUTH
TWISTING
CRIMP
HEIGHT
CONDUCTOR
CRIMP

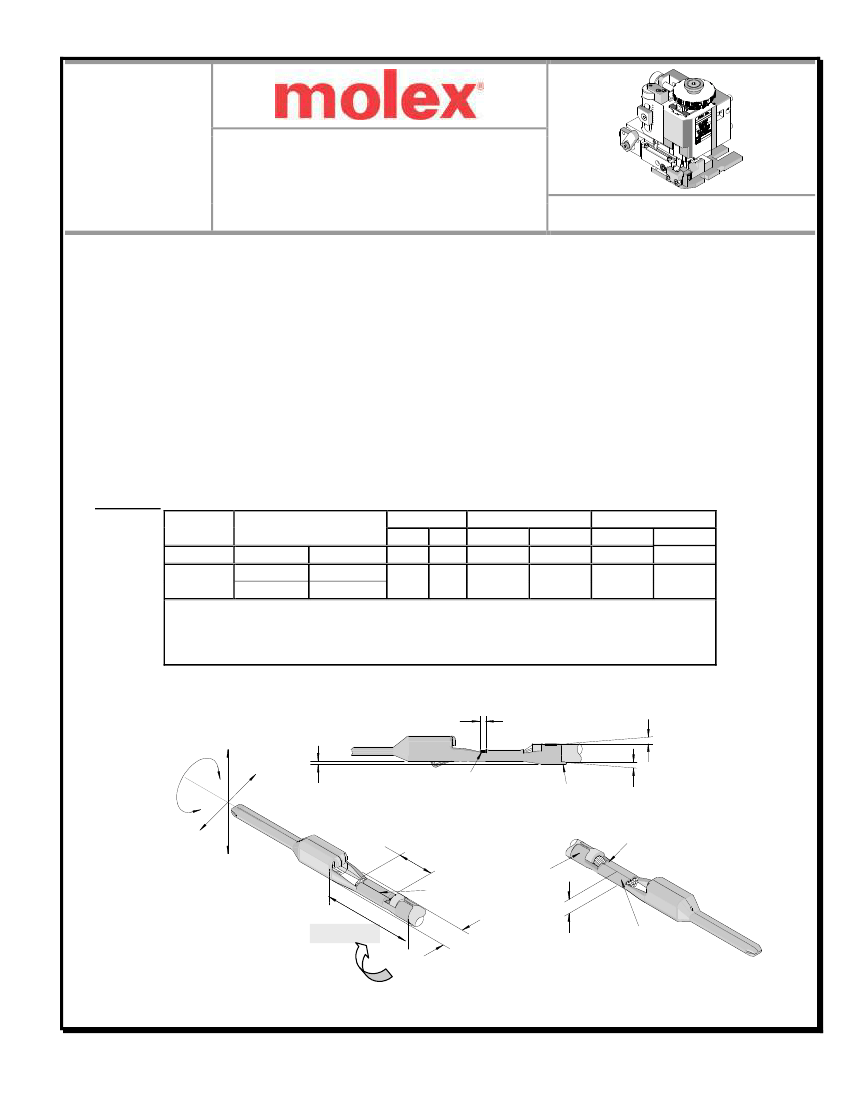

Doc No: ATS-639000500
Revision: D
Release Date: 05-22-07
Revision Date: 01-03-13
UNCONTROLLED COPY
Page 1 of 6
