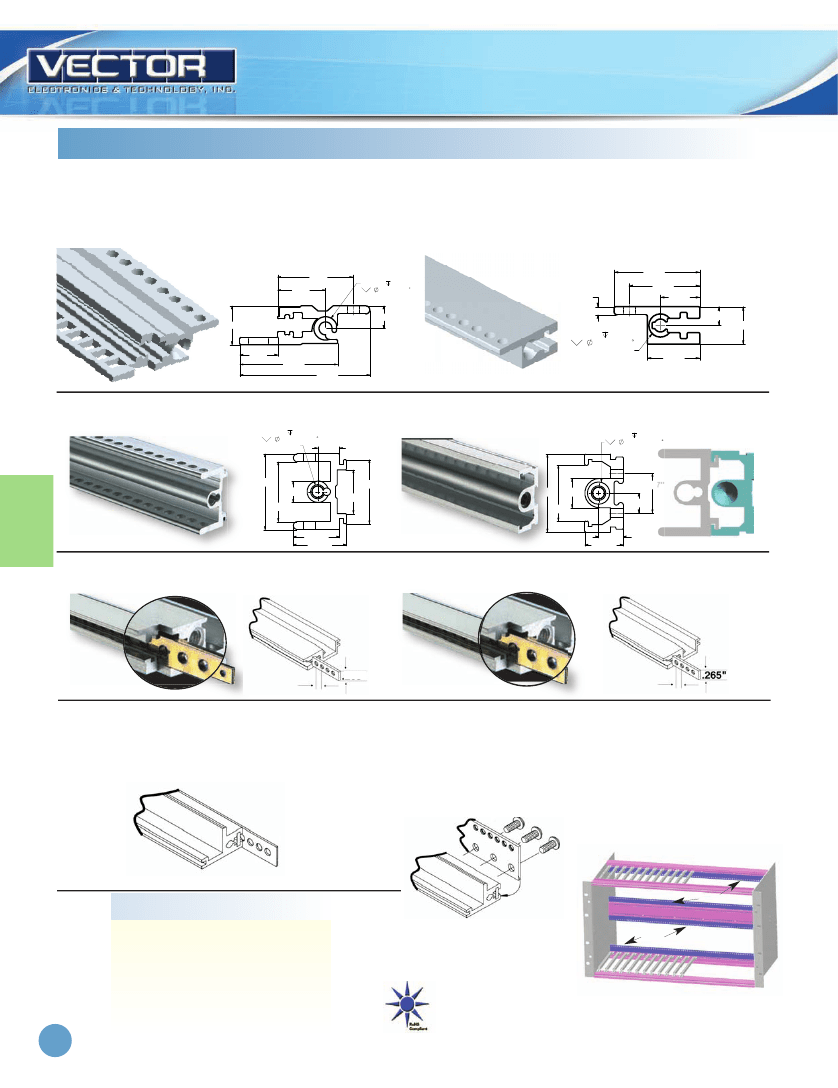

DIN-Based VectorPak
tm
Subracks
Accessories
• Clear Chem-film finish; Aluminum 6063
• IEEE 1101.10 & 1101.11 compliant
Front Horizontal Extrusion with 10MM extended lip
for Type IV or Type VII extractor
Extrusions
• Includes metric screw tapping at two ends
• Custom lengths are available other than table listings
Rear Horizontal Extrusion
1404-0012-84
1440-0013-84
Rear Center Horizontal Rail to accommodate rear
upper/lower CG3 card guides
Rear Center Horizontal Rail slides (telescopes)
over 1404-0013-84 if 6U is to be divided into 2 3U
DIN
Subracks
1404-0018-84
1404-0013-84
Nut Strips For Front Horizontal Rails, M2.5
Threaded Holes on 1HP Centers
Nut Strips For Rear Horizontal Rails, M2.5
Threaded Holes on 1HP Centers
1404-0016-84
.235”
.085” thick
5250268-84
or 5700202
w
.200”
.062” thick
Insulation Strip: 0.030” thick PVC to isolate back-
planes from rear horizontal extrusions. Only
available in 84HP width/length, easily cuts with
paper shears for exact size.
Adapter Plate: AS1/2 set of DIN Adapters (“Z”-
rails)to reduce 3U rear section for direct DIN connec-
tor mounting. Set includes two DIN adapter strips,
84HP wide, 12 M2.5 screws with spring washers
5250998-84
Choose Part Choose any HP (4HP min)
(1HP = 0.2”)
Type
1404-0012-
1440-0013-
1404-0013-
1404-0018-
1404-0016-
5250268-
5250998-
84
63
42
21
=
=
=
=
17.00” (431mm)
12.80” (325.1mm)
8.60” (218.4mm)
4.40” (218.4mm)
AS1/2
AS1/2
AS1/2
28
www.vectorelect.com
Specification subject to change without notice
800-423-5659
