LCCX4-38BD-L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> LCCX4-38BD-L

Preview

LCCX4-38BD-L: DescriptionTerminals Copp Comp Lug 2H #4 AWG Flex 3; CategoryThe connector terminals; File Size79KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric View All

LCCX4-38BD-L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LCCX4-38BD-L	-	-	View	Buy Now

LCCX4-38BD-L Overview

Terminals Copp Comp Lug 2H #4 AWG Flex 3

LCCX4-38BD-L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Panduit
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Terminal and terminal strip types	WIRE TERMINAL

Preview

Download Datasheet

View All

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

Material

Plating

Wire Size

Wire Type

High Conductivity

Seamless Copper Tube

Electro-Tin

4 STR/FLEX (ALL),3 & 5 FLEX*

Stranded Copper: Class B & C

Compact, Class G, H, I, K, M,

Locomotive (*Locomotive only)

1-1/8 in.

3/8 in.

Yes, for applications up to 35kv.

Consult cable manufacturer for

voltage stress relief instructions

with applications greater than

2000 volts.

90 C

1.00±.02

Yes

3.09±.06

GRAY

1.05±.04

Wire inspection window

.28±.01

.38 .01

Beveled wire

entry

.62±.04

.41±.02 DIA

(3) PLS

4 STR/FLEX

LCCX4-38BD

R.48 REF

GRAY DIE P29 (8)

Stud Size

UL Listed Wire

Connector

.36±.04

.75±.02

.25 REF.

UL Temperature

Rating

C.S.A Certified

Wire Connector

Panduit Color Code

on Barrel

Panduit Die Index No. P29

on Barrel

Alternate Industry

Die Index No. ( )

on Barrel

(8)

.08±.01

CERTIFIED

LISTED

Wire Connector

CORP.

00

REV

PANDUIT

Wire Strip Length

PANDUIT

Color coded

barrel markings

TINLEY PARK, ILLINOIS

1/05

DATE

JHNU CSH

BY

CHK

RELEASED

12394

ECN

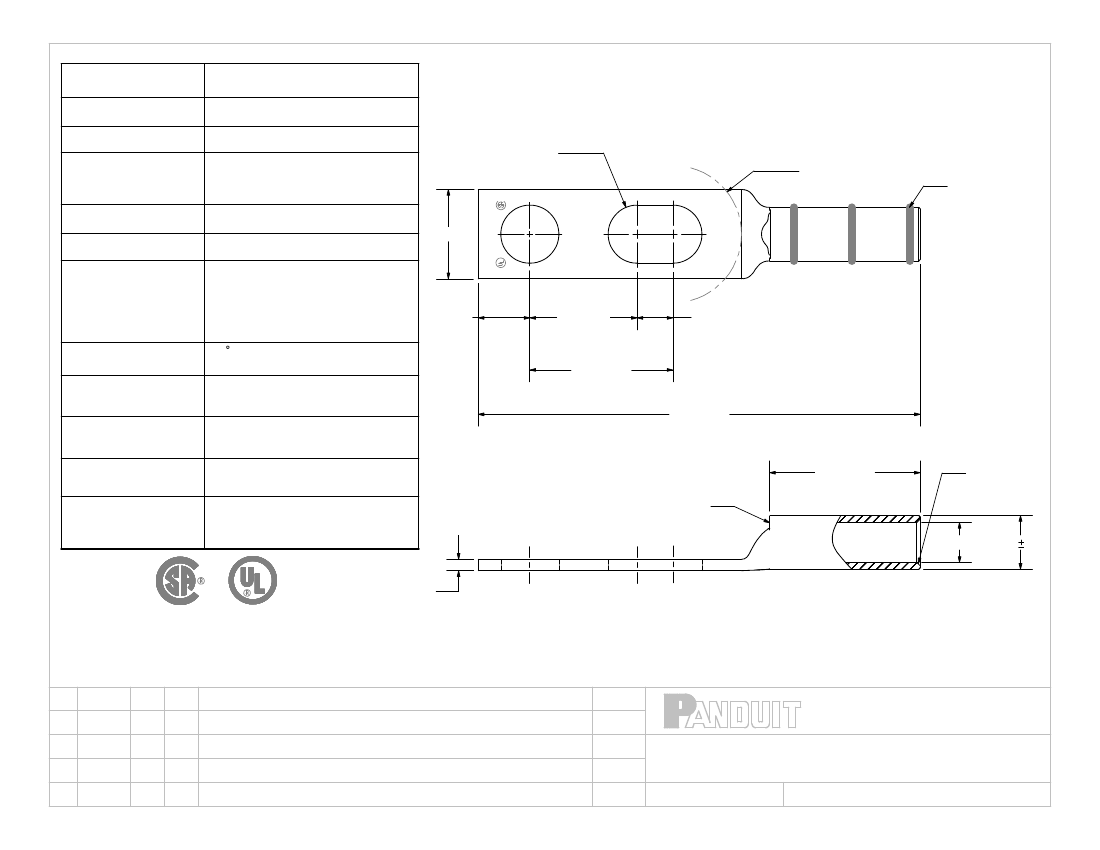

LCCX4-38BD-L

Copper Lug - Slotted Two-Hole, Long Flex Barrel with Window

SCALE

DESCRIPTION

N/A

DRAWING NO / CAD FILE

LCCX4-38BD-CUST
