2N6421 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N6421

2N6421: DescriptionDarlington Transistors . .; CategoryDiscrete semiconductor The transistor; File Size408KB，3 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

2N6421 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2N6421	-	-	View	Buy Now

2N6421 Overview

Darlington Transistors . .

2N6421 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	TO-66
package instruction	TO-66, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	2 A
Collector-emitter maximum voltage	250 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JEDEC-95 code	TO-66
JESD-30 code	O-MBFM-P2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Maximum power dissipation(Abs)	35 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	10 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

2N6420

2N6421

2N6422

2N6423

SILICON

PNP POWER TRANSISTORS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR 2N6420 series

devices are silicon PNP power transistors designed

for high speed switching and high voltage amplifier

applications.

MARKING: FULL PART NUMBER

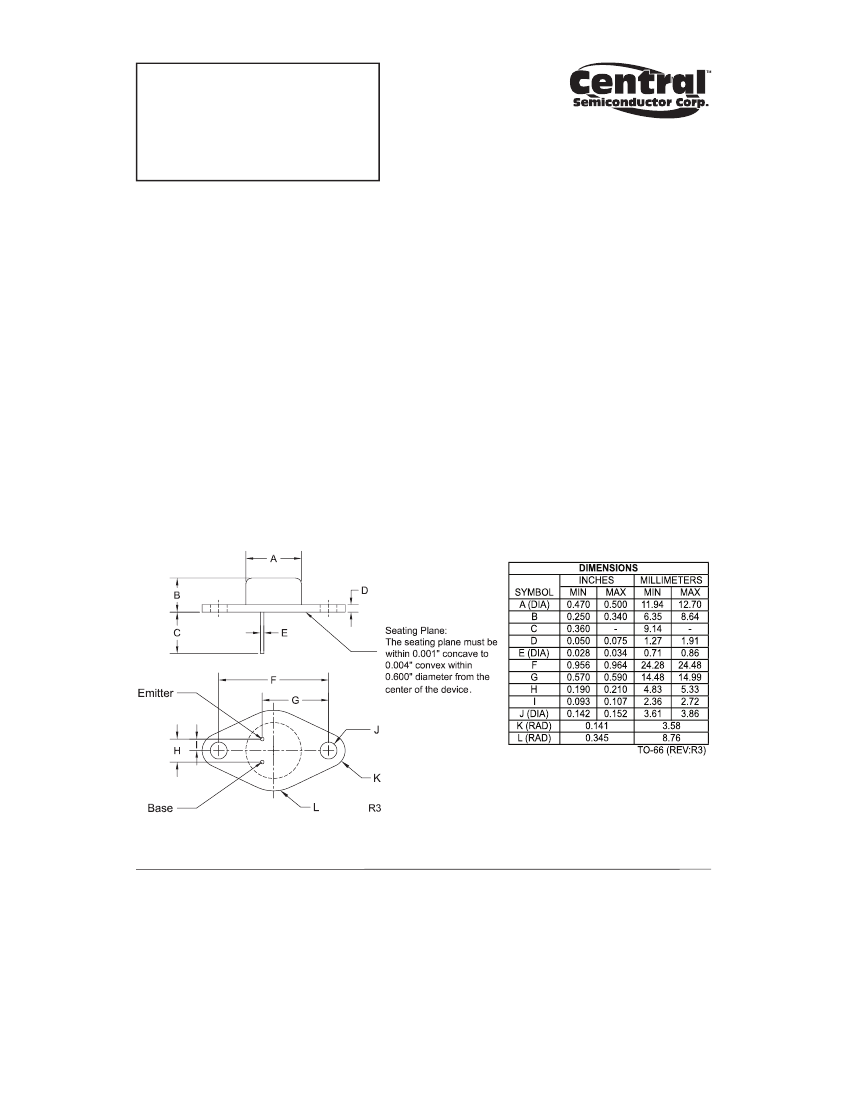

TO-66 CASE

MAXIMUM RATINGS:

(TC=25°C)

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Peak Collector Current

Continuous Base Current

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL 2N6420 2N6421

VCBO

250

375

VCEO

175

250

VEBO

6.0

1.0

2.0

ICM

5.0

1.0

TJ, Tstg

-65 to +200



5.0

MAX

1.0

2.0

3.0

5.0

0.5

2N6422

2N6423

500

300

6.0

2.0

UNITS

°C

°C/W

ELECTRICAL CHARACTERISTICS:

(TC=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

ICEV

VCE=225V, VBE=1.5V (2N6420)

ICEV

VCE=340V, VBE=1.5V (2N6421)

ICEV

VCE=450V, VBE=1.5V (2N6422)

ICEV

VCE=450V, VBE=1.5V (2N6423)

ICEV

VCE=225V, VBE=1.5V, TC=150°C (2N6420)

ICEV

VCE=300V, VBE=1.5V, TC=150°C (2N6421)

ICEV

VCE=300V, VBE=1.5V, TC=150°C (2N6422)

ICEV

VCE=300V, VBE=1.5V, TC=150°C (2N6423)

ICEO

VCE=150V (2N6420)

ICEO

VCE=150V (2N6421, 2N6422, 2N6423)

IEBO

VEB=6.0V (2N6420)

IEBO

VEB=6.0V (2N6421, 2N6422, 2N6423)

BVCEO

IC=50mA, (2N6420)

175

BVCEO

IC=50mA, (2N6421)

250

BVCEO

IC=50mA, (2N6422, 2N6423)

300

VCE(SAT) IC=1.0A, IB=125mA (2N6420 thru 2N6422)

VCE(SAT) IC=750mA, IB=75mA (2N6423)

VBE(SAT) IC=1.0A, IB=100mA (2N6420 thru 2N6422)

VBE(SAT) IC=750mA, IB=75mA (2N6423)

hFE

VCE=10V, IC=100mA

hFE

VCE=10V, IC=500mA (2N6420)

0.75

1.0

1.4

1.8

200

UNITS

R1 (2-September 2014)
