2N5058
2N5059
SILICON
NPN TRANSISTORS
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR 2N5058 and 2N5059
are silicon NPN epitaxial planar transistors designed for
high voltage general purpose amplifier applications.
MARKING: FULL PART NUMBER

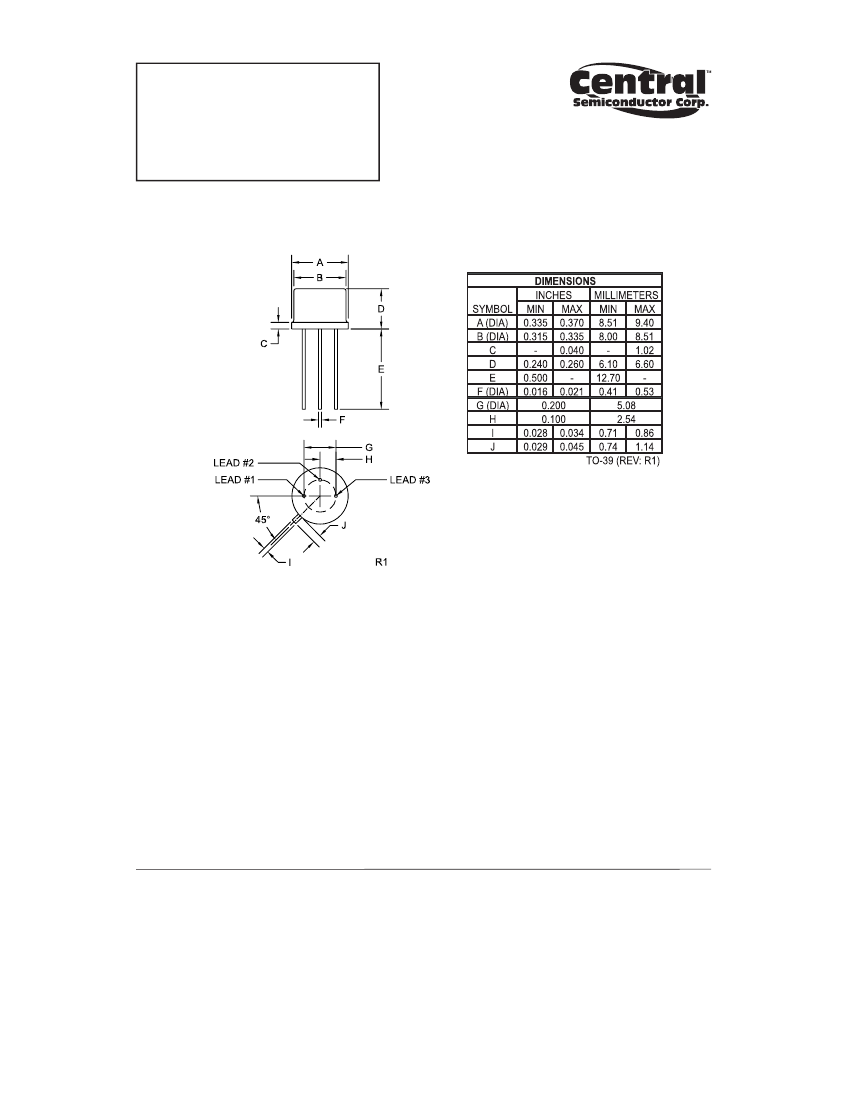

TO-39 CASE
MAXIMUM RATINGS:
(TA=25°C)
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Power Dissipation
Power Dissipation (TC=25°C)
Operating and Storage Junction Temperature
Thermal Resistance
Thermal Resistance
SYMBOL
VCBO
VCEO
VEBO
IC
PD
PD
TJ, Tstg
JA
JC
2N5058
300
300
7.0
150
1.0
5.0
-65 to +200
150
30
2N5059
250
250
6.0
UNITS
V
V
V
mA
W
W
°C
°C/W
°C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
2N5058
SYMBOL
TEST CONDITIONS
MIN
MAX
ICBO
VCB=100V
-
50
ICBO
VCB=100V, TA=125°C
-
20
IEBO
BVCBO
BVCEO
BVEBO
VCE(SAT)
VBE(SAT)
VBE(ON)
hFE
hFE
hFE
hFE
fT
Cob
Cib
VEB=5.0V
IC=100μA
IC=30mA
IE=100μA
IC=30mA, IB=3.0mA
IC=30mA, IB=3.0mA
VCE=25V,
VCE=25V,
VCE=25V,
VCE=25V,
IC=30mA
IC=5.0mA
IC=30mA
-
300
300
7.0
-
-
-
10
35
10
35
30
-
-
10
-
-
-
1.0
0.85
0.82
-
150
-
-
160
10
75
2N5059
MIN
MAX
-
50
-
-
250
250
6.0
-
-
-
-
30
-
30
30
-
-
20
10
-
-
-
1.0
0.85
0.82
10
150
-
-
160
10
75
UNITS
nA
μA
nA
V
V
V
V
V
V
IC=30mA, TA=-55°C
VCE=25V, IC=100mA
VCE=25V, IC=10mA, f=20MHz
VCB=10V, IE=0, f=1.0MHz
VEB=0.5V, IC=0, f=1.0MHz
MHz
pF
pF
