1N1813E3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N1813E3

1N1813E3: DescriptionZener Diode, 160V V(Z), 10%, 10W, Silicon, Unidirectional, DO-4, DO-4, 1 PIN; CategoryDiscrete semiconductor diode; File Size110KB，1 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

1N1813E3 Overview

Zener Diode, 160V V(Z), 10%, 10W, Silicon, Unidirectional, DO-4, DO-4, 1 PIN

1N1813E3 Parametric

Parameter Name	Attribute value
package instruction	O-MUPM-D1
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-4
JESD-30 code	O-MUPM-D1
Number of components	1
Number of terminals	1
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
polarity	UNIDIRECTIONAL
Maximum power dissipation	10 W
Nominal reference voltage	160 V
surface mount	NO
technology	ZENER
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum voltage tolerance	10%
Working test current	50 mA
Base Number Matches	1

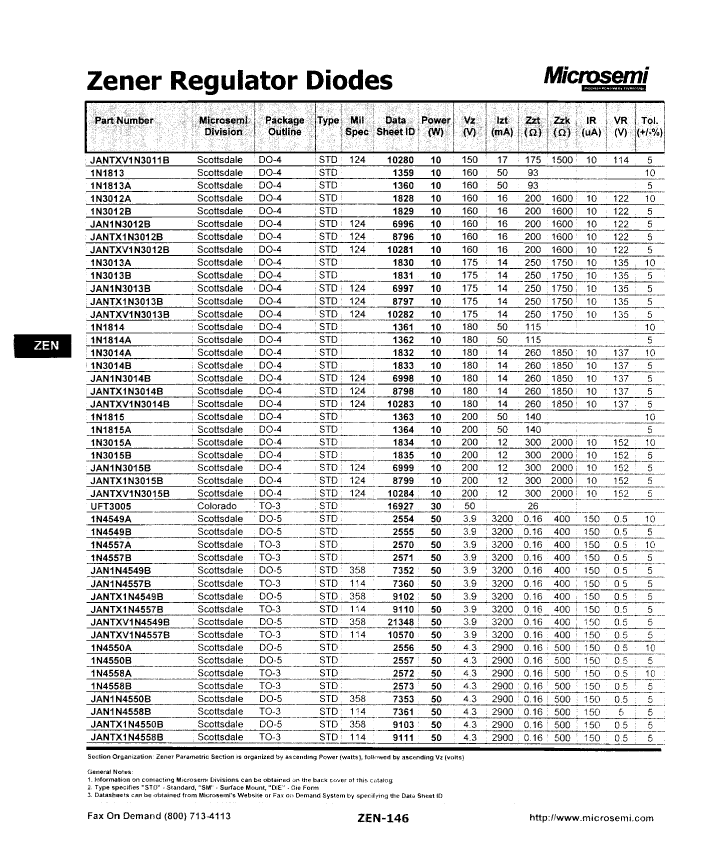

Preview

Download Datasheet

View All

1N1813E3 Related Products

	1N1813E3	1N1814AE3	1N1814E3	1N1814A	1N1815AE3	1N1815A	1N1813AE3	1N1813A	1N1815E3	UFT3005E3
Description	Zener Diode, 160V V(Z), 10%, 10W, Silicon, Unidirectional, DO-4, DO-4, 1 PIN	Zener Diode, 180V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, DO-4, 1 PIN	Zener Diode, 180V V(Z), 10%, 10W, Silicon, Unidirectional, DO-4, DO-4, 1 PIN	Zener Diode, 180V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, DO-4, 1 PIN	Zener Diode, 200V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, DO-4, 1 PIN	Zener Diode, 200V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, DO-4, 1 PIN	Zener Diode, 160V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, DO-4, 1 PIN	Zener Diode, 160V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, DO-4, 1 PIN	Zener Diode, 200V V(Z), 10%, 10W, Silicon, Unidirectional, DO-4, DO-4, 1 PIN	Zener Diode, 50V V(Z), 30W, Silicon, Unidirectional, TO-3, TO-3, 2 PIN
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	TO-3, 2 PIN
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli	compli	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JEDEC-95 code	DO-4	DO-4	DO-4	DO-4	DO-4	DO-4	DO-4	DO-4	DO-4	TO-3
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MBFM-P2
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1	1	2
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	FLANGE MOUNT
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	10 W	10 W	10 W	10 W	10 W	10 W	10 W	10 W	10 W	30 W
Nominal reference voltage	160 V	180 V	180 V	180 V	200 V	200 V	160 V	160 V	200 V	50 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	PIN/PEG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	BOTTOM
Maximum voltage tolerance	10%	5%	10%	5%	5%	5%	5%	5%	10%	-
Working test current	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	-
Base Number Matches	1	1	1	1	1	1	1	1	1	-
