FMMT415TC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> FMMT415TC

FMMT415TC: DescriptionBipolar Transistors - BJT NPN Avalanche; Categorysemiconductor Discrete semiconductor; File Size428KB，7 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

FMMT415TC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FMMT415TC	-	-	View	Buy Now

FMMT415TC Overview

Bipolar Transistors - BJT NPN Avalanche

FMMT415TC Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Diodes
Product Category	Bipolar Transistors - BJT
RoHS	Details
Mounting Style	SMD/SMT
Package / Case	SOT-23-3
Transistor Polarity	NPN
Configuration	Single
Collector- Emitter Voltage VCEO Max	100 V
Collector- Base Voltage VCBO	260 V
Emitter- Base Voltage VEBO	6 V
Maximum DC Collector Current	0.5 A
Gain Bandwidth Product fT	40 MHz
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
DC Current Gain hFE Max	25 at 10 mA at 10 V
Height	1.1 mm
Length	3 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Width	1.4 mm
Continuous Collector Current	0.5 A
DC Collector/Base Gain hfe Min	25 at 10 mA at 10 V
Pd - Power Dissipation	330 mW
Factory Pack Quantity	10000
Unit Weight	0.000282 oz

Preview

Download Datasheet

View All

A Product Line of

Diodes Incorporated

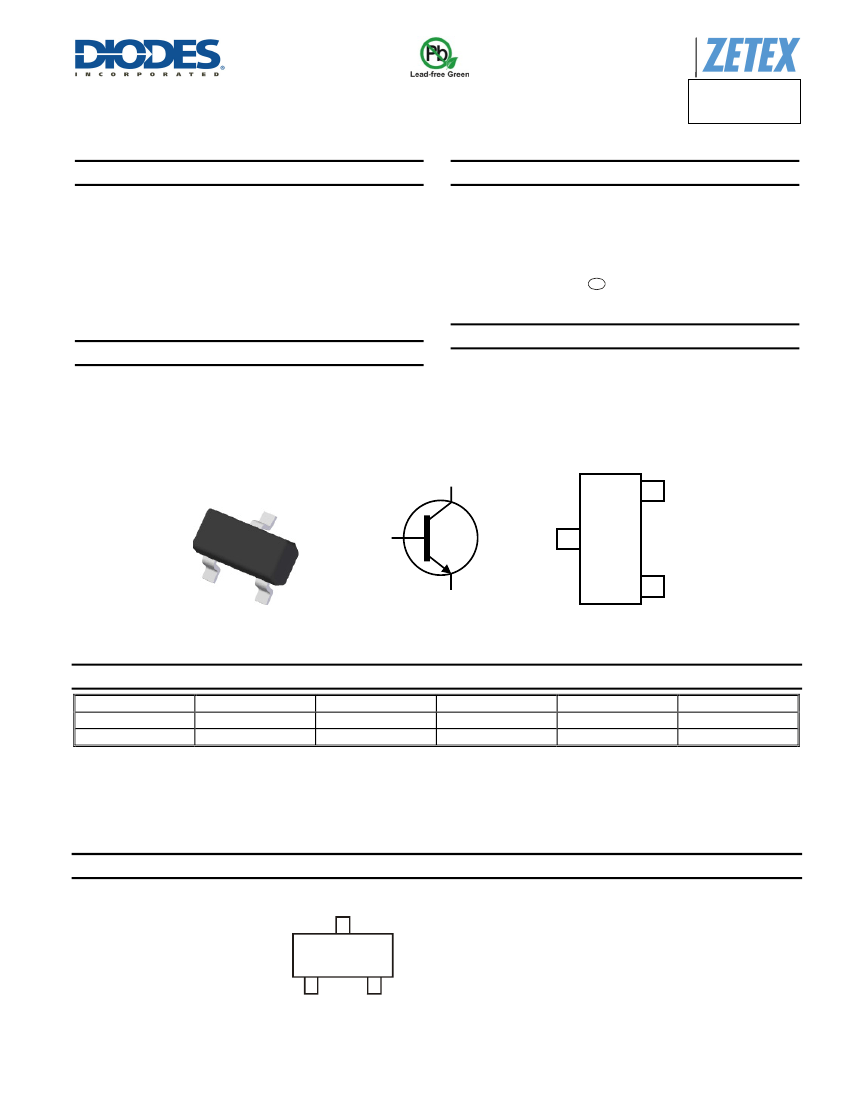

FMMT415

FMMT417

NPN AVALANCHE TRANSISTOR IN SOT23

Features

•

Avalanche Transistor

60A Peak Avalanche Current (Pulse width = 20ns)

CES

> 260V (415) & 320V (417)

CEO

> 100V

Specifically designed for Avalanche mode operation

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

•

Case: SOT23

Case Material: Molded Plastic. “Green” Molding Compound

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-

STD-202, Method 208

Weight: 0.008 grams (Approximate)

Description

The FMMT415/417 are NPN silicon planar bipolar transistors

designed for operating in avalanche mode. Tight process control and

low inductance packaging combine to produce high current pulses

with fast edges.

Applications

•

Laser Diode Drivers for Ranging and Measurement (LIDAR)

Automotive Radar Systems

Adaptive Cruise Control

Collision Avoidance System

•

SOT23

Fast Edge Switch Generator

High Speed Pulse Generators

Top View

Pin-Out

Top View

Device Symbol

Ordering Information

(Note 4)

Product

FMMT415TD

FMMT417TD

Notes:

Compliance

AEC-Q101

Marking

415

417

Reel size (inches)

Tape width (mm)

Quantity per reel

500

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, “Green”

and Lead-free.

3. Halogen- and Antimony-free “Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

589

xxx

xxx = Product Type Marking Code

(See Ordering Information)

FMMT415-FMMT417

Datasheet Number: DS33084 Rev. 5 - 2

1 of 7

www.diodes.com

February 2014

FMMT415TC Related Products

	FMMT415TC	FMMT415TA
Description	Bipolar Transistors - BJT NPN Avalanche	Bipolar Transistors - BJT NPN Avalanche
Product Attribute	Attribute Value	Attribute Value
Manufacturer	Diodes	Diodes
Product Category	Bipolar Transistors - BJT	Bipolar Transistors - BJT
RoHS	Details	Details
Mounting Style	SMD/SMT	SMD/SMT
Package / Case	SOT-23-3	SOT-23-3
Transistor Polarity	NPN	NPN
Configuration	Single	Single
Collector- Emitter Voltage VCEO Max	100 V	100 V
Collector- Base Voltage VCBO	260 V	260 V
Emitter- Base Voltage VEBO	6 V	6 V
Maximum DC Collector Current	0.5 A	0.5 A
Gain Bandwidth Product fT	40 MHz	40 MHz
Minimum Operating Temperature	- 55 C	- 55 C
Maximum Operating Temperature	+ 150 C	+ 150 C
DC Current Gain hFE Max	25 at 10 mA at 10 V	25 at 10 mA at 10 V
Height	1.1 mm	1.1 mm
Length	3 mm	3 mm
Width	1.4 mm	1.4 mm
Continuous Collector Current	0.5 A	0.5 A
DC Collector/Base Gain hfe Min	25 at 10 mA at 10 V	25 at 10 mA at 10 V
Pd - Power Dissipation	330 mW	330 mW
Factory Pack Quantity	10000	3000
Unit Weight	0.000282 oz	0.000282 oz
Packaging	Reel	Reel
