3PM6: Description1.5 A, 600 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size124KB，3 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

3PM6 Overview

1.5 A, 600 V, SILICON, RECTIFIER DIODE

3PM6 Parametric

Parameter Name	Attribute value
Maker	SEMTECH
package instruction	O-XALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V
JESD-30 code	O-XALF-W2
Maximum non-repetitive peak forward current	80 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	1.5 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	1 µA
Maximum reverse recovery time	2.5 µs
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

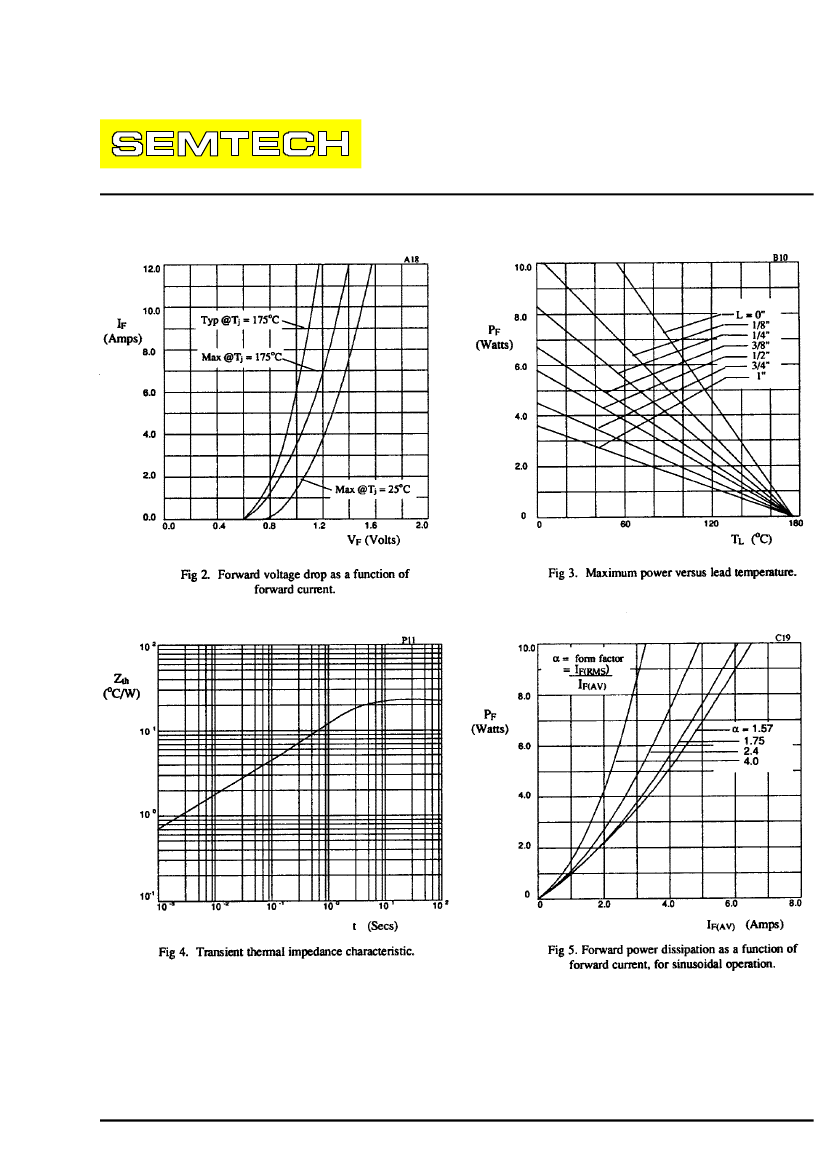

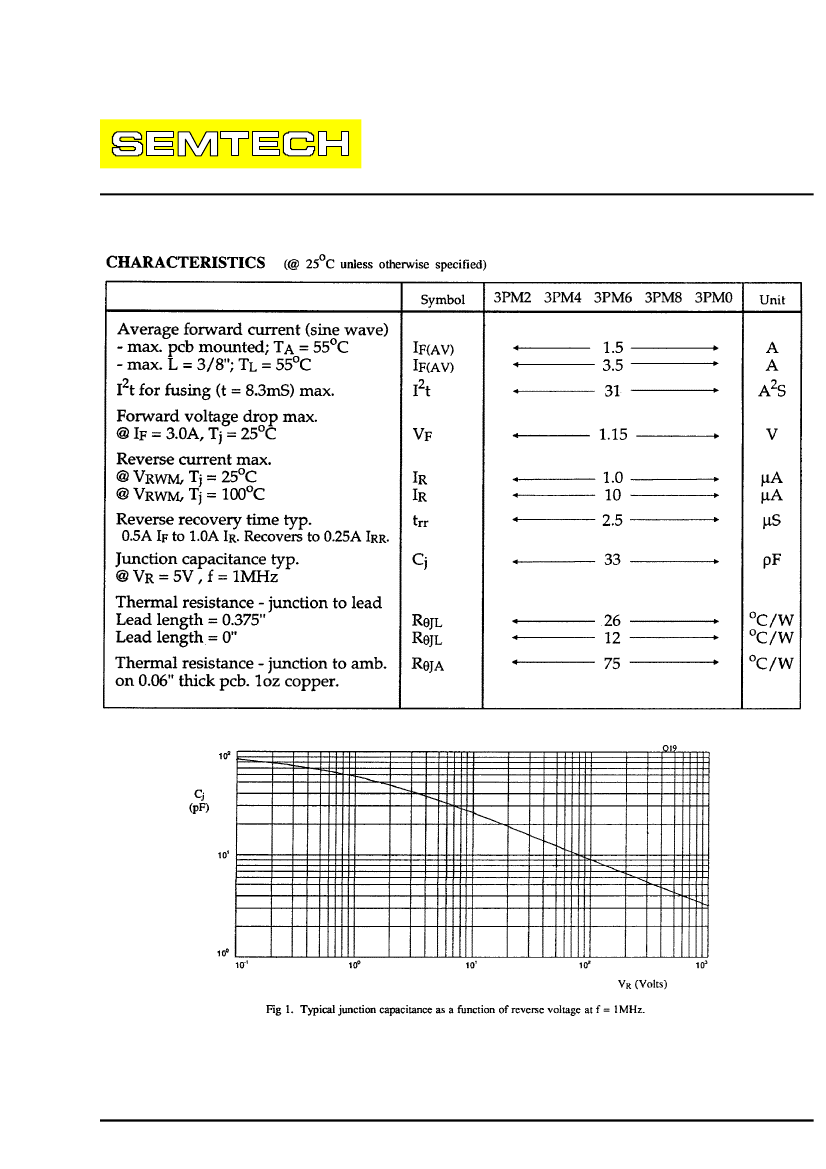

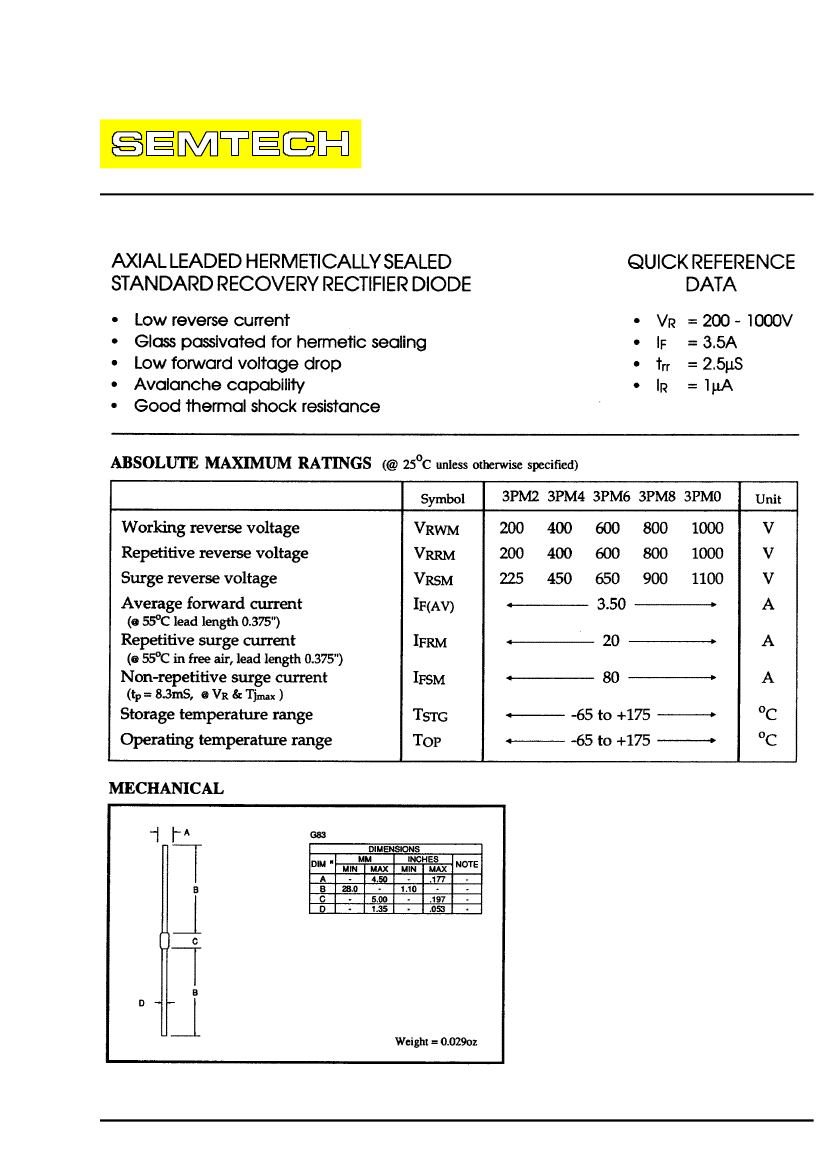

RECTIFIER, up to 1kV, 3.5A, 2.5µs

3PM2

3PM6

3PM0

3PM4

3PM8

January 7, 1998

TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.semtech.com

652 MITCHELL ROAD NEWBURY PARK CA 91320

3PM6 Related Products

	3PM6	3PM8	3PM2	3PM4	3PM0
Description	1.5 A, 600 V, SILICON, RECTIFIER DIODE	1.5 A, 800 V, SILICON, RECTIFIER DIODE	1.5 A, 200 V, SILICON, RECTIFIER DIODE	1.5 A, 400 V, SILICON, RECTIFIER DIODE	1.5 A, 1000 V, SILICON, RECTIFIER DIODE
Maker	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH
package instruction	O-XALF-W2	HERMETIC SEALED, G83, 2 PIN	HERMETIC SEALED, G83, 2 PIN	HERMETIC SEALED, G83, 2 PIN	HERMETIC SEALED, G83, 2 PIN
Contacts	2	2	2	2	2
Reach Compliance Code	unknow	unknown	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V	1.15 V	1.15 V	1.15 V	1.15 V
JESD-30 code	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2
Maximum non-repetitive peak forward current	80 A	80 A	80 A	80 A	80 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	800 V	200 V	400 V	1000 V
Maximum reverse current	1 µA	1 µA	1 µA	1 µA	1 µA
Maximum reverse recovery time	2.5 µs	2.5 µs	2.5 µs	2.5 µs	2.5 µs
surface mount	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
