-TDK-B82725A2163N020 datasheet, PDF

-TDK-B82725A2163N020: DescriptionCommon Mode Chokes / Filters RING CORE CHOKE 2X560UH 16A; CategoryPassive components; File Size374KB，8 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

-TDK-B82725A2163N020 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	-TDK-B82725A2163N020	-	-	View	Buy Now

Common Mode Chokes / Filters RING CORE CHOKE 2X560UH 16A

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	TDK Corporation
Product Category	Common Mode Chokes / Filters
RoHS	Details
Termination Style	Radial
Inductance	560 uH
Tolerance	30 %
Maximum DC Current	16 A
Maximum DC Resistance	7 mOhms
Self Resonant Frequency	-
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Package / Case	44 mm x 42.4 mm
Length	44 mm
Width	42.4 mm
Height	25 mm
Packaging	Tray
Product	Power Line Chokes
Type	Power Line Chokes Current-Compensated Ring Core Double Chokes
Core Material	Ferrite
Diameter	-
Operating Temperature Range	- 40 C to + 125 C
Q Minimum	-
Shielding	Unshielded
Mounting Style	Through Hole
Lead Diameter	1 mm
Lead Spacing	40 mm
Factory Pack Quantity	160
Test Frequency	-

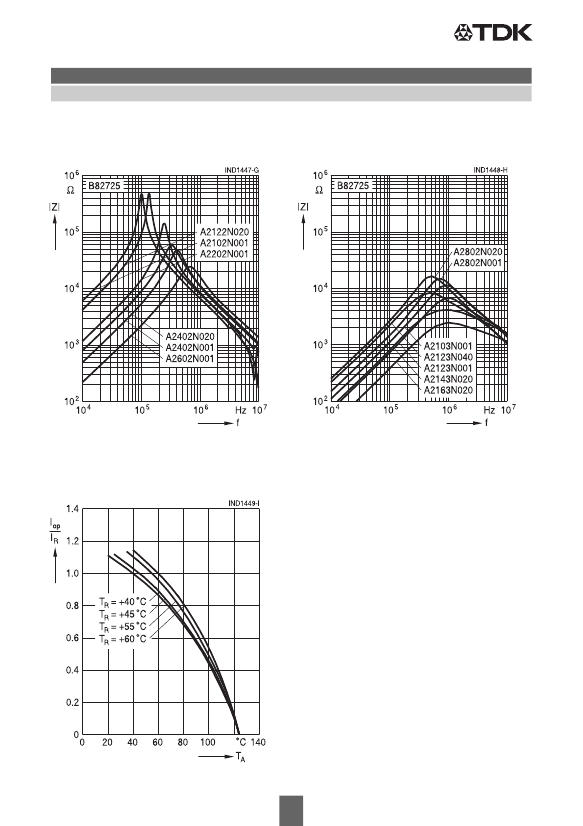

Power Line Chokes

Current-compensated ring core double chokes

250 V AC, 0.56 … 82 mH, 1 … 16 A,

+40 °C / +45 °C / +55 °C / +60 °C

Series/Type:

Date:

B82725A

January 2018



EPCOS AG 2018. Reproduction, publication and dissemination of this publication, enclosures hereto and the

information contained therein without EPCOS’ prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

	-TDK-B82725A2163N020	-TDK-B82725A2123N001
Description	Common Mode Chokes / Filters RING CORE CHOKE 2X560UH 16A	Common Mode Chokes / Filters RING CORE CHOKE 2X1.0MH 12A
Product Attribute	Attribute Value	Attribute Value
Manufacturer	TDK Corporation	TDK Corporation
Product Category	Common Mode Chokes / Filters	Common Mode Chokes / Filters
RoHS	Details	Details
Termination Style	Radial	Radial
Inductance	560 uH	1 mH
Tolerance	30 %	30 %
Maximum DC Current	16 A	12 A
Maximum DC Resistance	7 mOhms	12 mOhms
Minimum Operating Temperature	- 40 C	- 25 C
Maximum Operating Temperature	+ 125 C	+ 60 C
Length	44 mm	44 mm
Width	42.4 mm	42.4 mm
Height	25 mm	25 mm
Packaging	Tray	Tray
Product	Power Line Chokes	Power Inductors
Type	Power Line Chokes Current-Compensated Ring Core Double Chokes	Ring Core Double Choke
Core Material	Ferrite	Ferrite
Operating Temperature Range	- 40 C to + 125 C	- 25 C to + 60 C
Shielding	Unshielded	Unshielded
Mounting Style	Through Hole	Through Hole
Factory Pack Quantity	160	160
