PS2503L-1-E4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> PS2503L-1-E4

PS2503L-1-E4: Description4 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER; CategoryLED optoelectronic/LED; File Size244KB，14 Pages; ManufacturerNEC ( Renesas ); Websitehttps://www2.renesas.cn/zh-cn/

Download Datasheet Parametric Compare View All

PS2503L-1-E4 Overview

4 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER

PS2503L-1-E4 Parametric

Parameter Name	Attribute value
Minimum operating temperature	-55 Cel
Maximum operating temperature	100 Cel
Processing package description	PLASTIC, DIP-16
each_compli	Yes
state	Transferred
Optoelectronic device type	TRANSISTOR OUTPUT OPTOCOUPLER
Minimum Coll-emtr Bkdn voltage	40 V
structure	SEPARATE, 4 CHANNELS WITH BUILT-IN RESISTOR
Rated current transfer ratio	200 %
Maximum dark current	100 nA
forward_current_max	0.0800 A
Maximum insulation voltage	5000 V
jesd_609_code	e0
Number of components	4
terminal coating	TIN LEAD
dditional_feature	UL RECOGNIZED

Preview

Download Datasheet

View All

PHOTOCOUPLER

PS2503-1,-2,-4,PS2503L-1,-2,-4

LOW INPUT CURRENT, HIGH SPEED SWITCHING

−NEPOC

MULTI PHOTOCOUPLER SERIES

Series−

DESCRIPTION

The PS2503-1, -2, -4 and PS2503L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode

and an NPN silicon phototransistor.

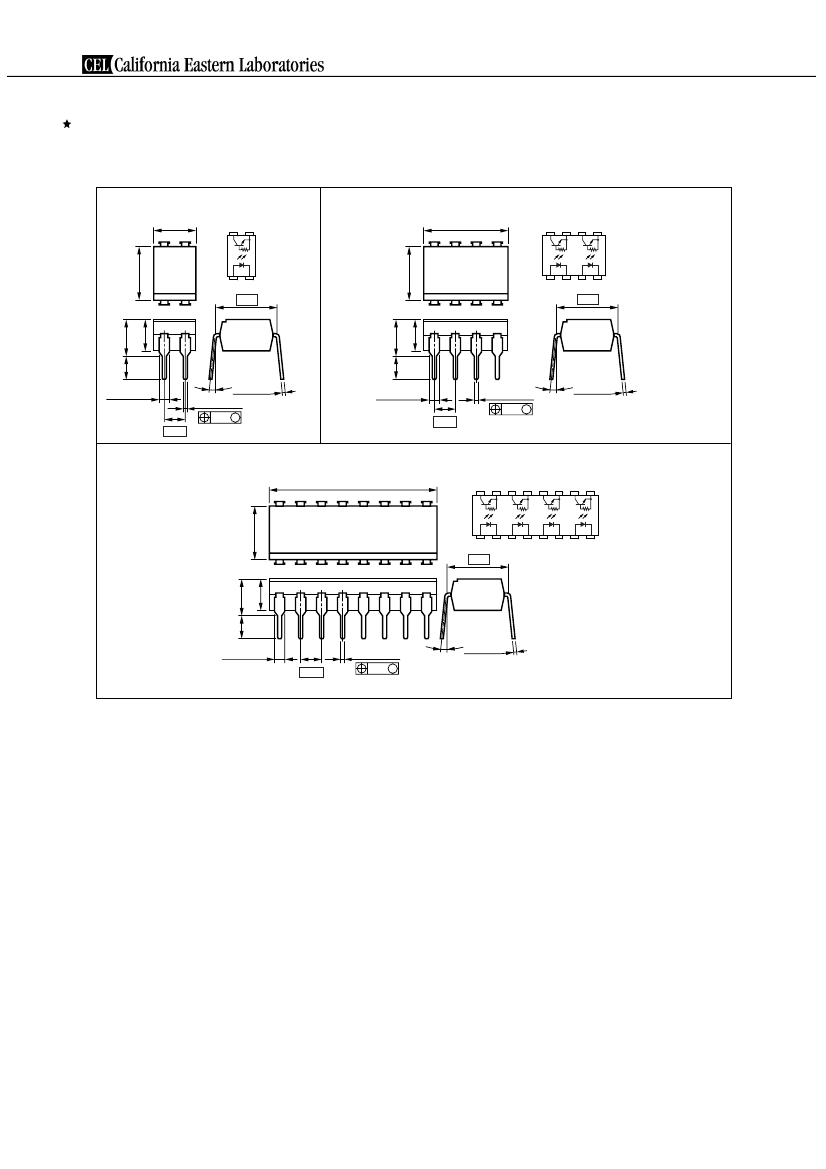

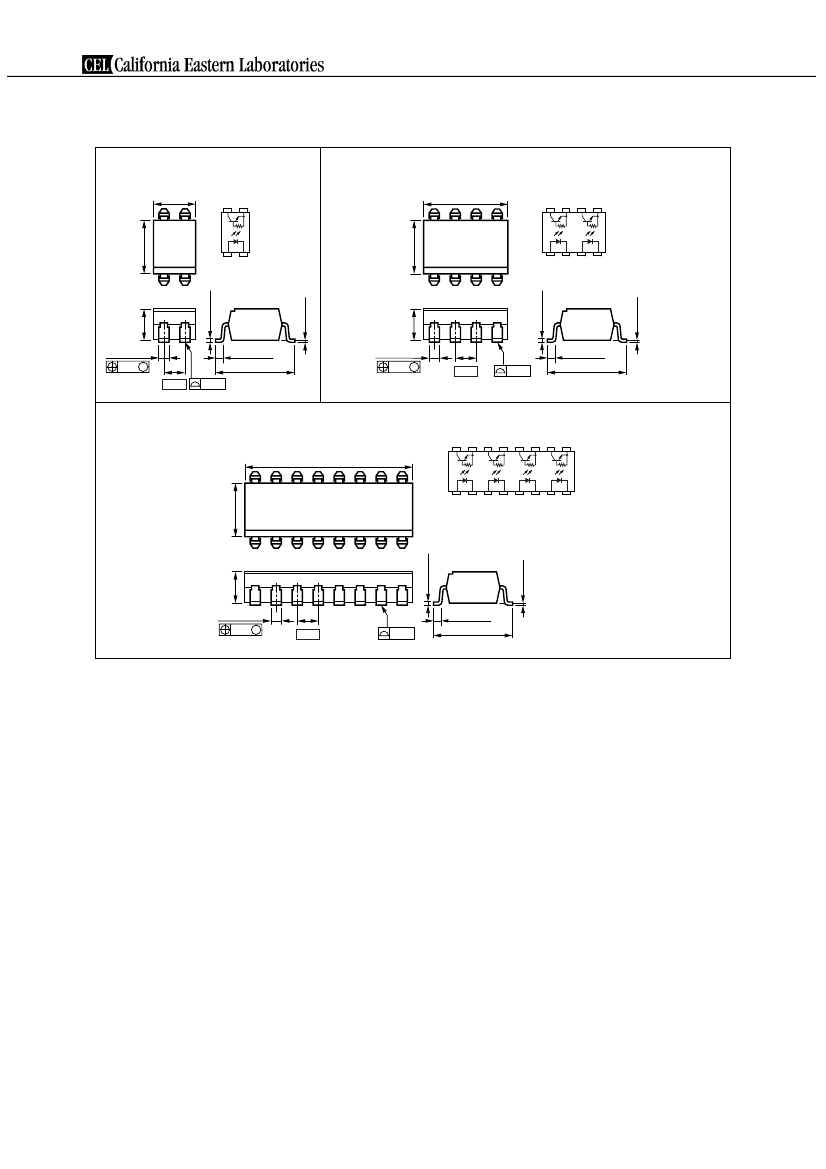

The PS2503-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2503L-1, -2, -4 are lead bending type

(Gull-wing) for surface mount.

FEATURES

• High isolation voltage (BV = 5 000 Vr.m.s.)

• High-speed switching (t

= 20

s TYP., t

= 30

s TYP.)

• Ordering number of tape product: PS2503L-1-E3, E4, F3, F4, PS2503L-2-E3, E4

• Safety standards

• UL approved: File No. E72422 (S)

• CSA approved: No. CA 101391

APPLICATIONS

• Measurement equipment

• Programmable logic controller

• Telephone/Telegraph Receiver

• Power supply

Document No. PN10227EJ01V0DS (1st edition)

(Previous No. P11304EJ4V0DS00)

Date Published February 2003 CP(K)

The mark

shows major revised points.

PS2503L-1-E4 Related Products

	PS2503L-1-E4	PS2503L-1-E3	PS2503-4	PS2503L-4	PS2503L-2	PS2503L-1-F4	PS2503L-1-F3	PS2503L-2-E4	PS2503-2	PS2503L-2-E3
Description	4 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER	4 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER	4 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER	4 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER	4 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER	4 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER	4 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER	4 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER	4 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER	4 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER
Minimum operating temperature	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel	-55 Cel
Maximum operating temperature	100 Cel	100 Cel	100 Cel	100 Cel	100 Cel	100 Cel	100 Cel	100 Cel	100 Cel	100 Cel
Processing package description	PLASTIC, DIP-16	PLASTIC, DIP-16	PLASTIC, DIP-16	PLASTIC, DIP-16	PLASTIC, DIP-16	PLASTIC, DIP-16	PLASTIC, DIP-16	PLASTIC, DIP-16	PLASTIC, DIP-16	PLASTIC, DIP-16
each_compli	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
state	Transferred	Transferred	Transferred	Transferred	Transferred	Transferred	Transferred	Transferred	Transferred	Transferred
Optoelectronic device type	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Minimum Coll-emtr Bkdn voltage	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V
structure	SEPARATE, 4 CHANNELS WITH BUILT-IN RESISTOR	SEPARATE, 4 CHANNELS WITH BUILT-IN RESISTOR	SEPARATE, 4 CHANNELS WITH BUILT-IN RESISTOR	SEPARATE, 4 CHANNELS WITH BUILT-IN RESISTOR	SEPARATE, 4 CHANNELS WITH BUILT-IN RESISTOR	SEPARATE, 4 CHANNELS WITH BUILT-IN RESISTOR	SEPARATE, 4 CHANNELS WITH BUILT-IN RESISTOR	SEPARATE, 4 CHANNELS WITH BUILT-IN RESISTOR	SEPARATE, 4 CHANNELS WITH BUILT-IN RESISTOR	SEPARATE, 4 CHANNELS WITH BUILT-IN RESISTOR
Rated current transfer ratio	200 %	200 %	200 %	200 %	200 %	200 %	200 %	200 %	200 %	200 %
Maximum dark current	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA
forward_current_max	0.0800 A	0.0800 A	0.0800 A	0.0800 A	0.0800 A	0.0800 A	0.0800 A	0.0800 A	0.0800 A	0.0800 A
Maximum insulation voltage	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V
jesd_609_code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of components	4	4	4	4	4	4	4	4	4	4
terminal coating	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
dditional_feature	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
