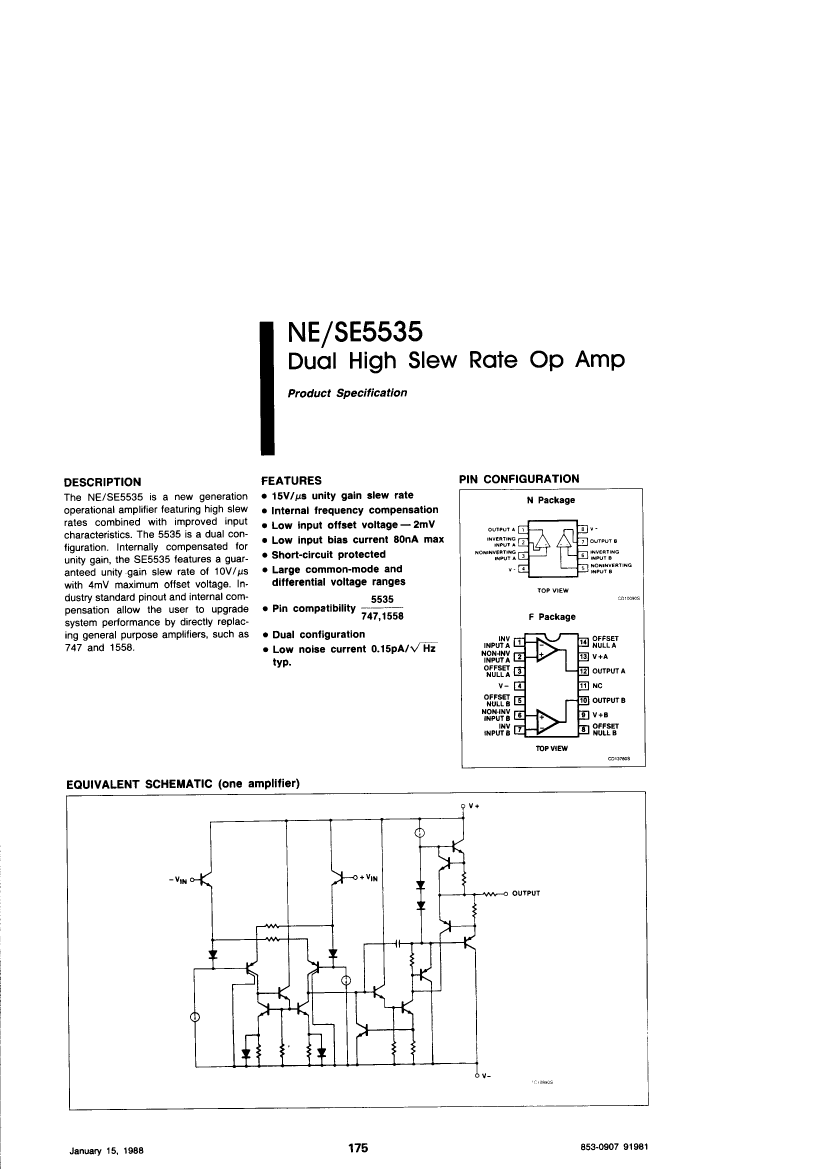

DUAL OP-AMP, 6000 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDIP8

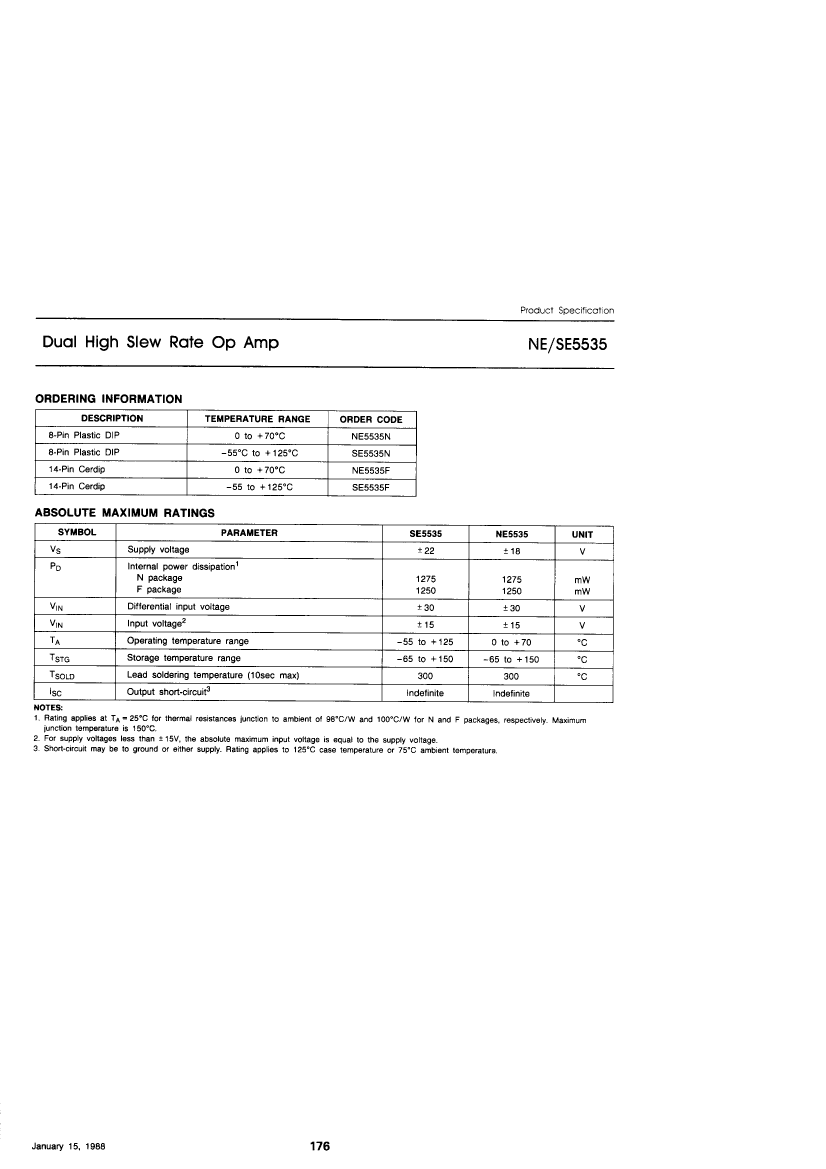

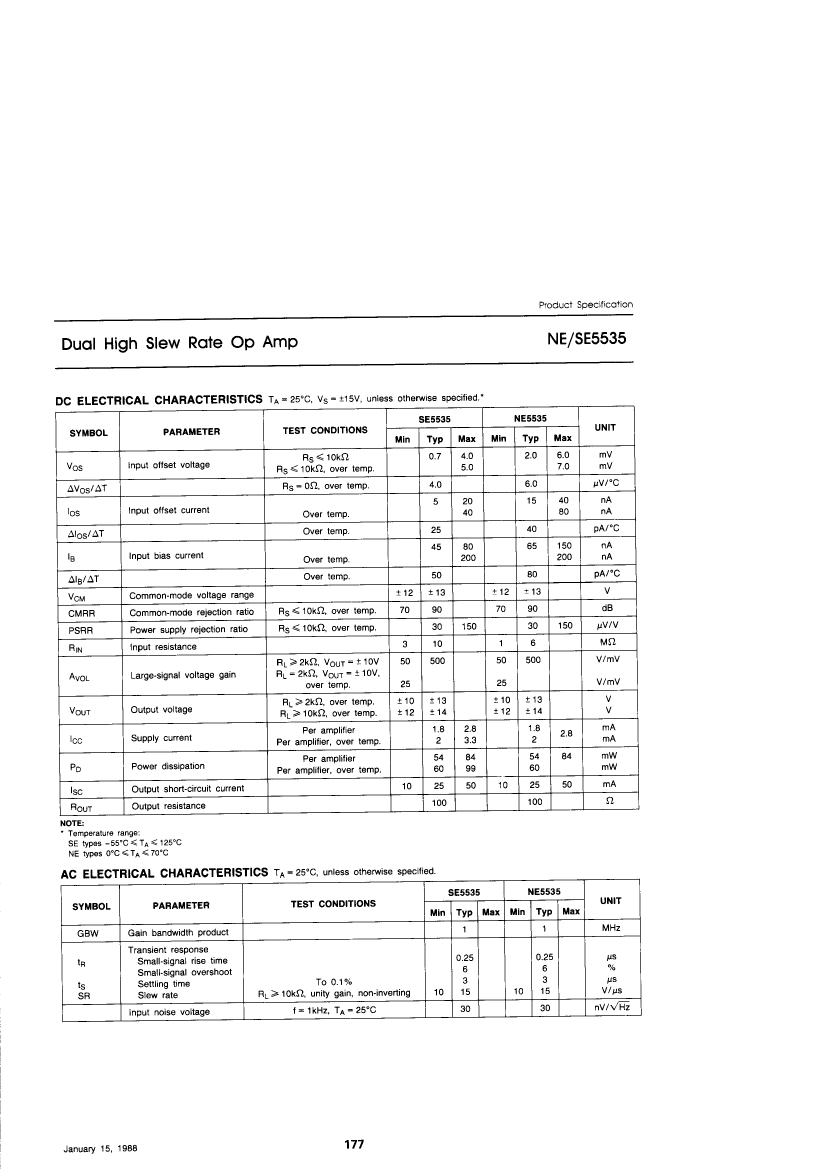

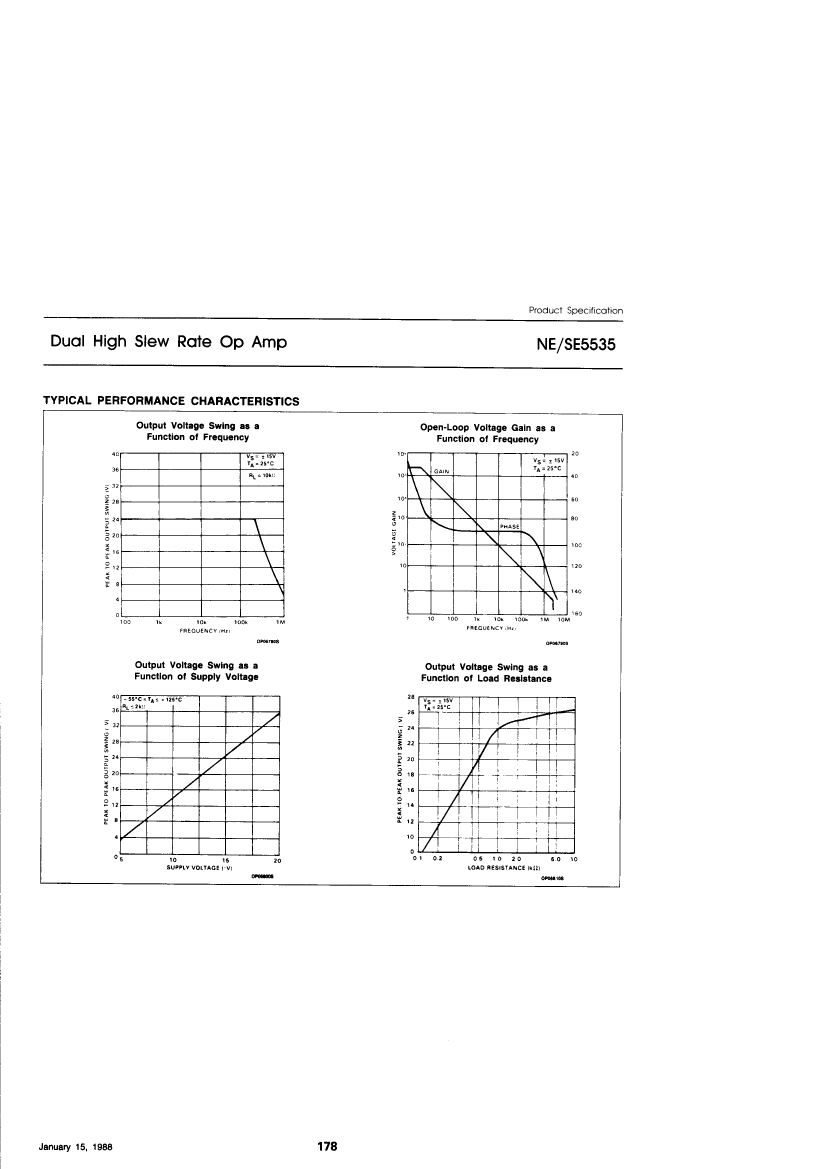

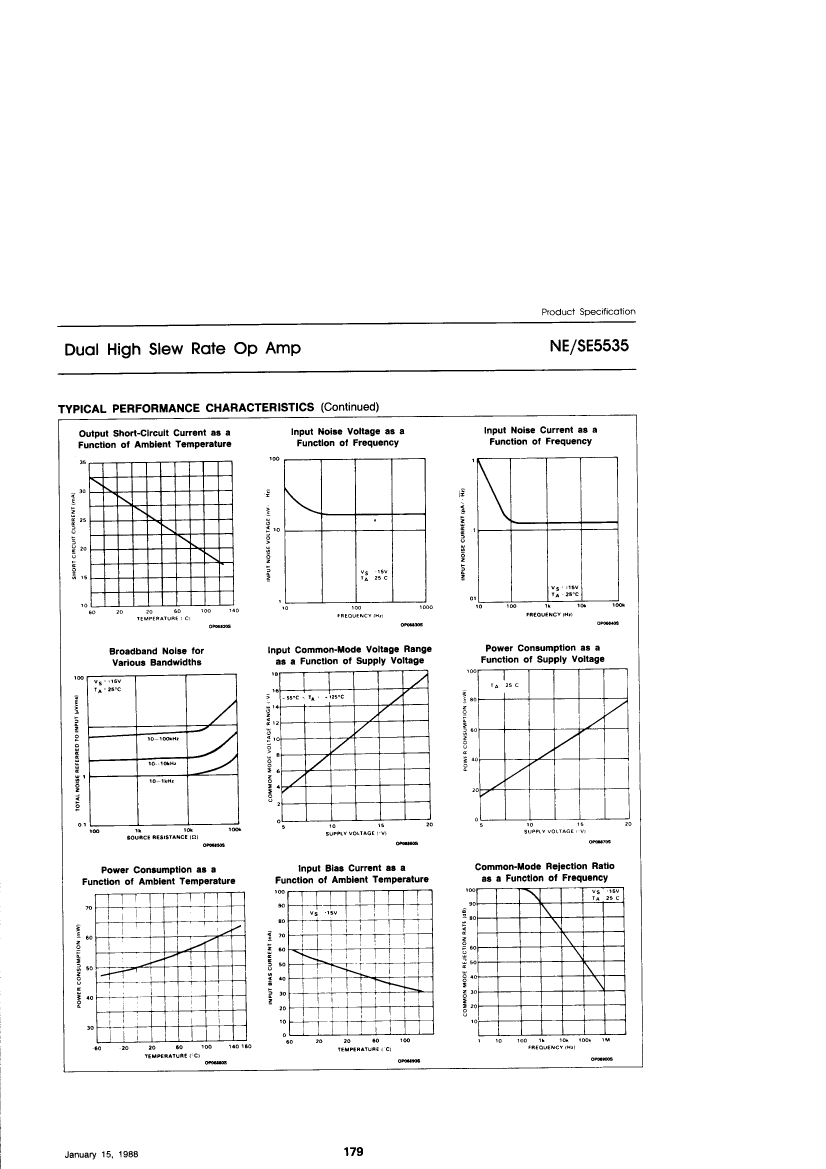

| SE5535 | NE5535 | NE5535N | SE5535F | NE5535F | |
|---|---|---|---|---|---|
| Description | DUAL OP-AMP, 6000 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDIP8 | DUAL OP-AMP, 6000 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDIP8 | DUAL OP-AMP, 6000 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDIP8 | DUAL OP-AMP, 3000 uV OFFSET-MAX, 1 MHz BAND WIDTH, CDIP14 | DUAL OP-AMP, 6000 uV OFFSET-MAX, 1 MHz BAND WIDTH, CDIP14 |
| Is it Rohs certified? | - | - | incompatible | incompatible | incompatible |
| package instruction | - | - | DIP, DIP8,.3 | DIP, DIP14,.3 | DIP, DIP14,.3 |
| Reach Compliance Code | - | - | unknow | unknow | unknow |
| Amplifier type | - | - | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | - | - | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum bias current (IIB) at 25C | - | - | 0.15 µA | 0.08 µA | 0.15 µA |
| frequency compensation | - | - | YES | YES | YES |
| Maximum input offset voltage | - | - | 7000 µV | 5000 µV | 7000 µV |
| JESD-30 code | - | - | R-PDIP-T8 | R-XDIP-T14 | R-XDIP-T14 |
| JESD-609 code | - | - | e0 | e0 | e0 |
| low-dissonance | - | - | NO | NO | NO |
| Nominal Negative Supply Voltage (Vsup) | - | - | -15 V | -15 V | -15 V |
| Number of functions | - | - | 2 | 2 | 2 |
| Number of terminals | - | - | 8 | 14 | 14 |
| Maximum operating temperature | - | - | 70 °C | 125 °C | 70 °C |
| Package body material | - | - | PLASTIC/EPOXY | CERAMIC | CERAMIC |
| encapsulated code | - | - | DIP | DIP | DIP |
| Encapsulate equivalent code | - | - | DIP8,.3 | DIP14,.3 | DIP14,.3 |
| Package shape | - | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | - | - | IN-LINE | IN-LINE | IN-LINE |
| power supply | - | - | +-15 V | +-15 V | +-15 V |
| Certification status | - | - | Not Qualified | Not Qualified | Not Qualified |
| minimum slew rate | - | - | 10 V/us | 10 V/us | 10 V/us |
| Maximum slew rate | - | - | 5.6 mA | 6.6 mA | 5.6 mA |
| Supply voltage upper limit | - | - | 18 V | 22 V | 18 V |
| Nominal supply voltage (Vsup) | - | - | 15 V | 15 V | 15 V |
| surface mount | - | - | NO | NO | NO |
| technology | - | - | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | - | - | COMMERCIAL | MILITARY | COMMERCIAL |
| Terminal surface | - | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | - | - | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | - | - | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | - | - | DUAL | DUAL | DUAL |
| Minimum voltage gain | - | - | 25000 | 25000 | 25000 |
